Product Overview

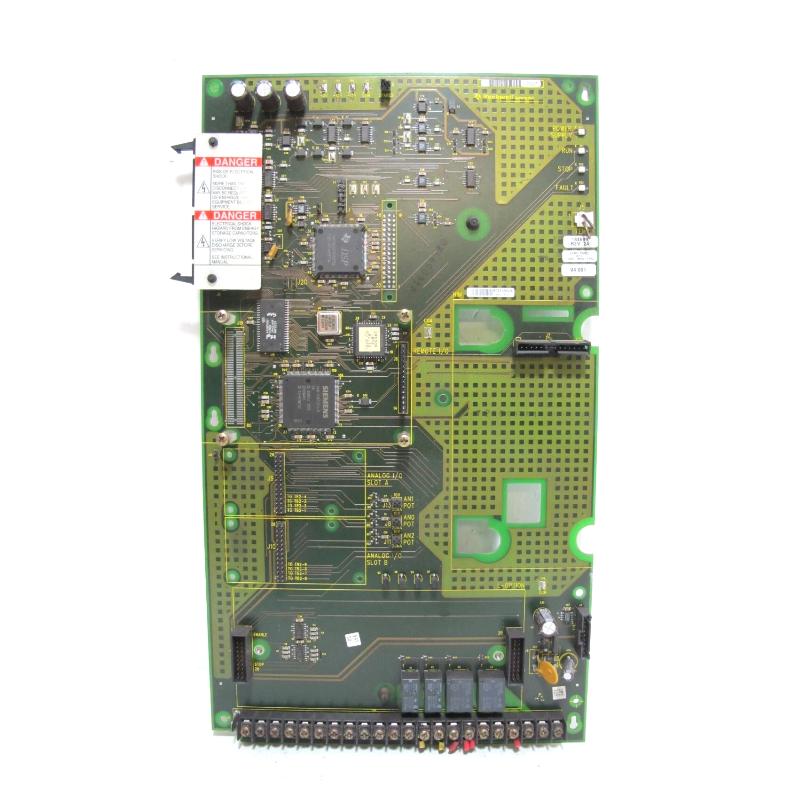

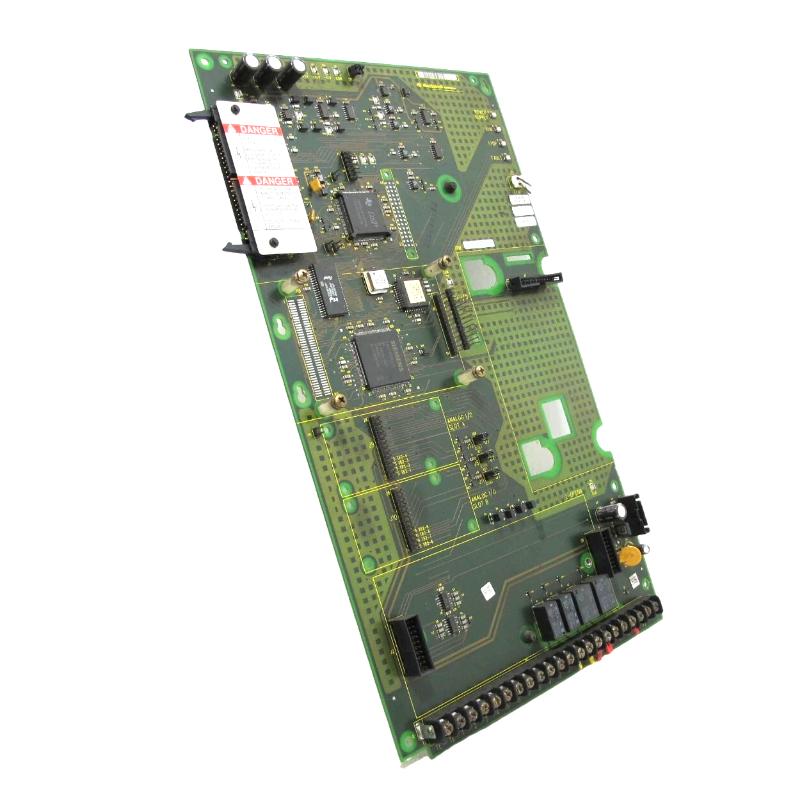

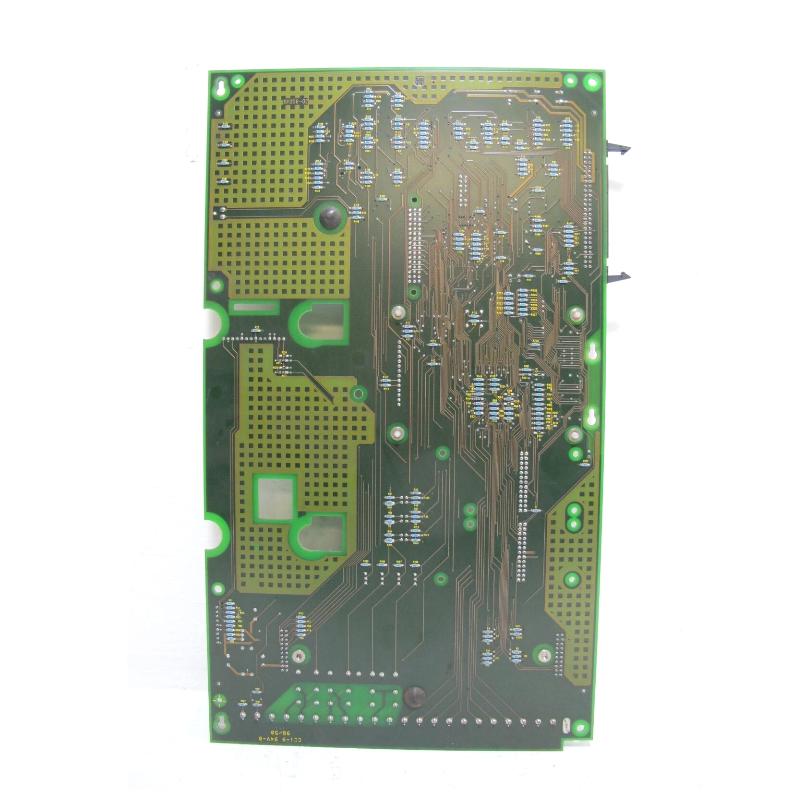

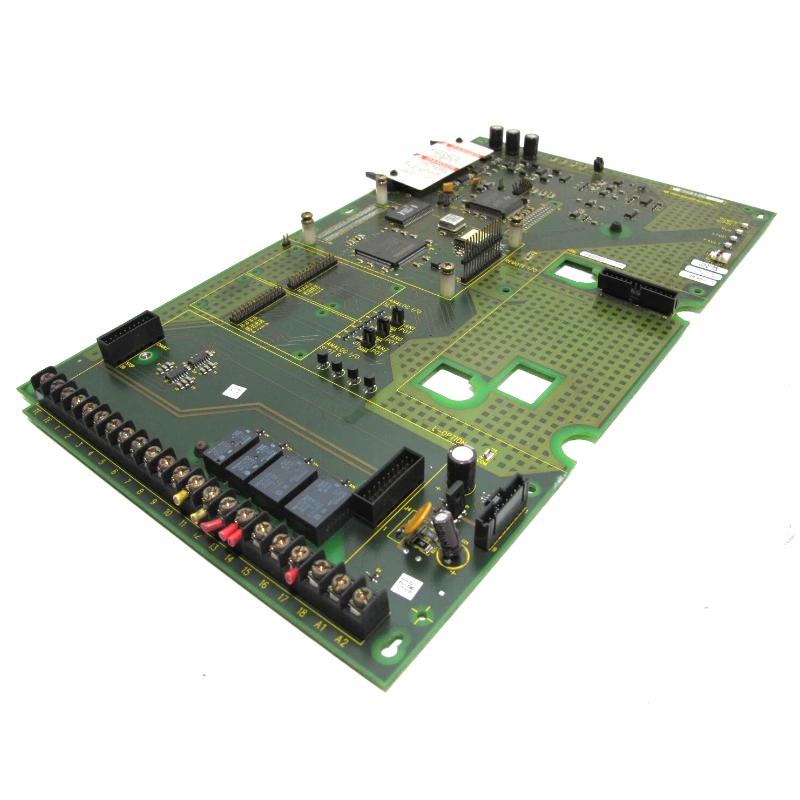

The Allen Bradley 1336F-MCB-SP1G Drive Control Board is a control electronics component used within Allen Bradley industrial drive systems. As the control board, it handles the low-level electronic functions required for drive operation and provides the control interface between the drive’s command logic, feedback signals, and power conversion section.
In a variable frequency drive, the control board is responsible for much more than simply turning the motor on or off. It works with the drive’s processing and feedback circuits to manage operating commands, monitor drive conditions, coordinate protection functions, and generate the control signals required by the power stage.
The 1336F-MCB-SP1G is therefore an internal drive component rather than a standalone PLC or motor controller. Its operation depends on the specific drive architecture, firmware or configuration, associated power components, and connected feedback circuits.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1336F-MCB-SP1G |
| Product Type | Drive Control Board |
| Series | 1336F Series |
| Main Function | Drive Control and Signal Processing |
| System Role | Central Drive Control Electronics |
| Application | Industrial Motor Drives |
| Typical Use | Variable Frequency Drive Control |
| Dimensions | 200 × 50 × 150 mm |
| Weight | 0.45 kg |
| Application Area | Industrial Automation and Motor Control |
Product Features
The 1336F-MCB-SP1G provides the electronic control functions required by the associated drive system.
Key characteristics include:
- Drive control board design
- Associated with Allen Bradley 1336F drive hardware
- Processes drive control information
- Coordinates motor control functions
- Interfaces with feedback and monitoring circuits
- Supports communication with other drive electronics
- Works with the drive power stage through appropriate control circuitry
- Suitable for industrial motor control applications
- Dimensions of 200 × 50 × 150 mm
- Stated weight of 0.45 kg
The board works as part of the complete drive electronics rather than operating independently. Its compatibility should therefore be evaluated against the complete drive model and hardware configuration.
Working Principle
The control board receives operating commands and information from different sections of the drive and processes these signals according to the drive’s control architecture.
A simplified control path can be represented as:
Operator / Control System → Drive Control Board → Power Control Circuit → Motor
At the same time, feedback information can travel in the opposite direction:
Motor / Sensors → Feedback Circuit → Drive Control Board
The control board uses this information to coordinate the drive’s operating state. Depending on the drive configuration, this can include speed commands, start/stop commands, feedback signals, protection information, and status conditions.
The resulting control signals are then passed to the appropriate power-stage circuitry, allowing the drive to regulate the electrical power delivered to the motor.
Role in Industrial Motor Drives
The 1336F-MCB-SP1G is positioned on the control side of the drive architecture and works closely with the power electronics.
| Function | Description |
|---|---|
| Command Processing | Processes operating commands received by the drive |
| Drive Control | Coordinates motor operating functions |
| Feedback Handling | Uses available feedback information for control |
| Protection Coordination | Responds to monitored drive conditions |
| Power Stage Interface | Provides control information to the drive power section |
| Status Monitoring | Supports drive operating and fault information |
| System Integration | Connects control functions with other drive electronics |
A problem with the control board can therefore affect several drive functions at the same time, even when the motor and external wiring are otherwise in good condition.
Industrial Applications
The 1336F-MCB-SP1G is intended for applications using compatible Allen Bradley industrial drive equipment.
| Application | Typical Use |
|---|---|
| Conveyors | Speed and acceleration control |
| Pumps | Variable-speed operation |
| Fans | Motor speed regulation |
| Material Handling | Controlled motor movement |
| Production Machinery | Drive-based motor control |
| Machine Tools | Motor speed and process coordination |
| Process Equipment | Variable-speed motor operation |
| Industrial Automation | Integration with automated equipment |
The specific application depends on the drive in which the control board is installed and the overall machine control architecture.
Installation and Maintenance
The control board is an internal electronic component and should be handled using appropriate electrostatic and electrical safety procedures.
Before removing or replacing the board, the associated drive should be isolated from the relevant power sources and the DC bus should be verified to have discharged to a safe level according to the applicable maintenance procedure.
Recommended checks include:
- Confirm the complete 1336F-MCB-SP1G part number.
- Verify the associated drive model.
- Check hardware configuration and revision compatibility.
- Inspect connectors and board terminals.
- Look for signs of overheating or physical damage.
- Check for loose or damaged connections.
- Inspect related control and power boards.
- Verify feedback and communication connections.
- Install the replacement board carefully.
- Perform appropriate drive configuration and functional testing after replacement.
Because a control-board fault can sometimes be caused by another part of the drive, technicians should inspect the surrounding electronics rather than automatically assuming that the board itself is the original source of the problem.
Related Drive Components
The control board operates together with several other parts of a variable frequency drive.
| Component | Function |
|---|---|
| Power Module | Handles high-power switching |
| Gate Driver | Controls power semiconductor switching |
| DC Bus Capacitor | Stores and stabilizes DC-link energy |
| Bridge Rectifier | Converts incoming AC to DC |
| Feedback Circuit | Provides motor and electrical feedback |
| Current Sensors | Monitor drive and motor current |
| Cooling System | Removes heat from power electronics |
| Communication Interface | Exchanges commands and status information |
For troubleshooting purposes, the interaction between these components is important. A fault reported by the drive does not necessarily mean that the control board itself has failed.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Allen Bradley 1336F-MCB-SP1G | Drive Control Board | Drive control and signal processing | 1336F series drives |
| Allen Bradley 1336-BDB-SP31C | Gate Driver | Power switching control | 1336 series drives |
| Allen Bradley 1336-BR-SP5A | Bridge Rectifier | AC-to-DC rectification | 1336 series drives |
| Allen Bradley 1336-CAP-SP15A | Bus Capacitor | DC bus energy storage | 1336 series drives |
| Allen Bradley 1336F Drive Components | Drive Hardware | Drive system operation | Industrial motor control |
When selecting a replacement control board, the complete part number, associated drive model, hardware revision, configuration, connectors, and system requirements should be verified. A board with similar dimensions may still have a different electrical or functional configuration.
Key Advantages
- Provides drive-level control and signal processing
- Associated with Allen Bradley 1336F drive hardware
- Coordinates motor control functions
- Interfaces with feedback and power-stage circuitry
- Supports drive monitoring and protection functions
- Suitable for industrial variable frequency drive applications
- Dimensions of 200 × 50 × 150 mm
- Stated weight of 0.45 kg
- Suitable for drive maintenance and replacement applications
Technical FAQs
What functions are normally handled by a drive control board such as the 1336F-MCB-SP1G?
The control board can handle command processing, operating-state management, feedback processing, protection coordination, and communication with other drive electronics. Its exact functions depend on the architecture of the associated drive.
How can a control-board fault be distinguished from a power-stage fault?
A control-board problem may affect commands, feedback processing, configuration, communication, or drive logic, while a power-stage fault may be associated with switching devices, rectifiers, DC bus components, or excessive current. Drive diagnostics and measurements from the relevant circuits should be used to separate these fault categories.
Why should the associated drive model be verified before installing a replacement board?
Drive control boards are designed around specific electrical interfaces, firmware requirements, connectors, and hardware architectures. Installing a board with a similar physical appearance does not guarantee that it will communicate correctly with the rest of the drive.
What should be checked if a replacement control board does not restore normal drive operation?
The drive configuration, connectors, feedback circuits, power supply rails, communication paths, and associated power electronics should be checked. If the original board failed because of an external electrical problem, installing a new board without correcting that condition can lead to another failure.
