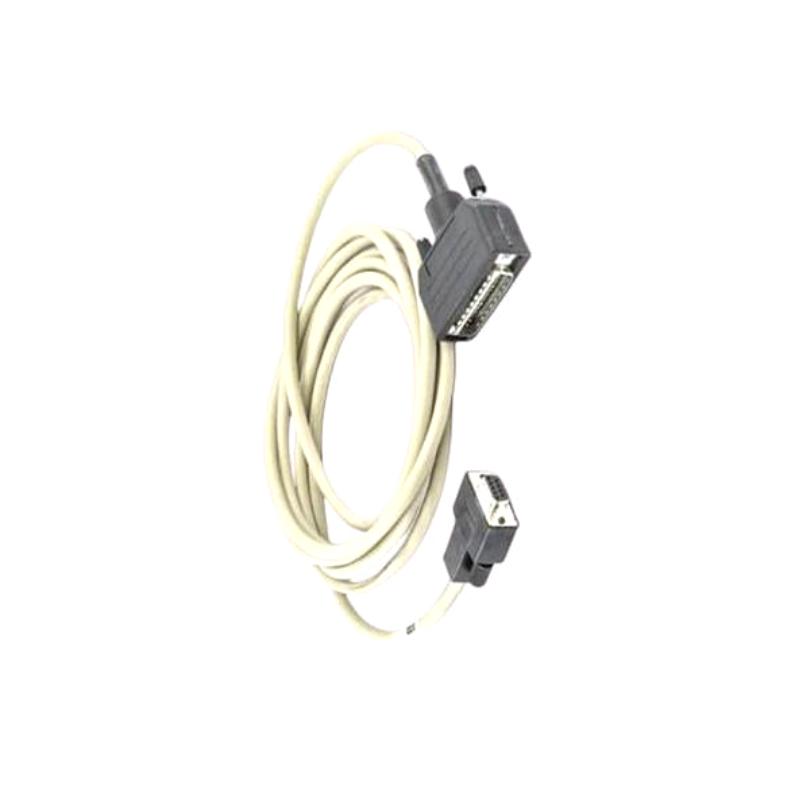

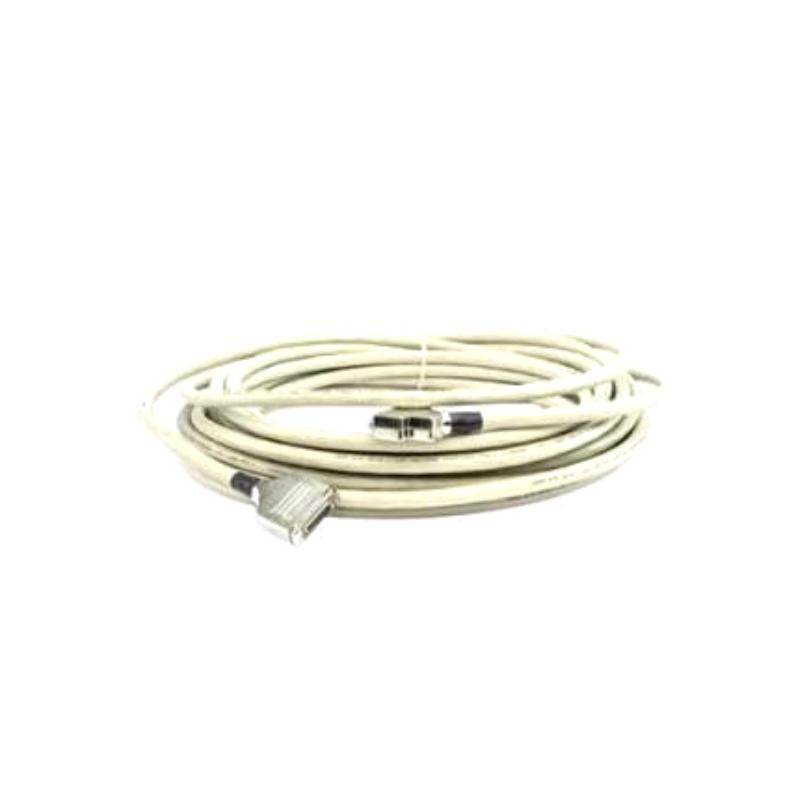

- Cable Assembly
- Sweden
- 340 × 220 × 150 mm
- 10.5kg
- 3BSC950019R1
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 24
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
ABB TK520V030 (3BSC950019R1) Technical Overview
Product Introduction
The ABB TK520V030 (part number 3BSC950019R1) is a high-performance industrial motor control and protection device, designed to ensure reliable operation in demanding industrial environments. As part of the TK Series, it combines robust engineering, high efficiency, and safety, making it ideal for heavy-duty applications where precise motor control and long service life are essential.
The TK520V030 is engineered to handle variable loads and operates efficiently in harsh industrial conditions. Its compact design allows for easy installation in control panels while maintaining accessibility for maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TK520V030 |
| Part Number | 3BSC950019R1 |
| Brand | ABB |
| Series | TK Series |
| Rated Voltage | 400 V AC |
| Rated Current | 60 A |
| Frequency | 50/60 Hz |
| Power Rating | 30 kW |
| Insulation Class | F |
| Protection Class | IP55 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Dimensions (L × W × H) | 340 × 220 × 150 mm |
| Weight | 10.5 kg |
| Mounting Type | Panel-mounted |
| Connection Type | Screw terminals |
| Mechanical Durability | 10⁶ operations |
| Electrical Durability | 10⁵ operations |
Product Applications
The ABB TK520V030 is suitable for a variety of industrial applications:
-
Motor control in heavy machinery and industrial production lines
-
Automation systems in manufacturing plants
-
Industrial process control requiring high reliability
-
HVAC systems in large commercial and industrial buildings
-
Power distribution and control in factories
-
Renewable energy systems and grid-connected equipment
Product Advantages
-
High Durability: Designed for long-term operation under heavy industrial load.
-
Compact Design: Fits easily into control panels while maintaining high capacity.
-
Robust Safety Features: IP55 rating ensures protection from dust and water ingress.
-
Energy Efficient: Optimized to reduce operational losses and improve performance.
-
Easy Maintenance: Modular and accessible design allows rapid servicing.
-
Wide Operating Range: Supports varying voltages, currents, and frequencies.
Related Models in the TK Series
| Model | Rated Voltage | Rated Current | Power Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TK515V020 | 400 V AC | 40 A | 20 kW | 300 × 190 × 130 | 8.5 |
| TK516V025 | 400 V AC | 45 A | 22 kW | 310 × 195 × 135 | 8.8 |
| TK517V028 | 400 V AC | 48 A | 24 kW | 315 × 200 × 140 | 9.0 |
| TK518V030 | 400 V AC | 50 A | 25 kW | 320 × 200 × 140 | 9.2 |
| TK519V035 | 400 V AC | 55 A | 28 kW | 330 × 210 × 145 | 9.5 |
Popular ABB Models
| Model | Rated Voltage | Rated Current | Power Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ACS355 | 380–480 V AC | 0.5–32 A | 0.25–15 kW | 240 × 120 × 140 | 5.5 |
| ACS580 | 380–480 V AC | 1–250 A | 0.75–250 kW | 400 × 200 × 180 | 12 |
| DSQC630 | 380–480 V AC | 32–250 A | 15–200 kW | 450 × 220 × 200 | 15 |
| PM550 | 400 V AC | 20–80 A | 7.5–30 kW | 280 × 150 × 120 | 6.8 |
| MNS Low Voltage Panel | 400 V AC | 63–4000 A | N/A | Custom | 50–500 |
Frequently Asked Questions (FAQ)
Q1: What is the main function of TK520V030?
A1: TK520V030 is designed to control and protect motors, ensuring safe and reliable operation in industrial systems.
Q2: What is the protection rating of this device?
A2: The TK520V030 has an IP55 rating, which provides protection against dust and water splashes.
Q3: What is the rated current and voltage?
A3: Rated current is 60 A and voltage is 400 V AC.
Q4: What type of motors can it control?
A4: It is suitable for standard AC motors, including induction motors.
Q5: How is the device installed?
A5: It is panel-mounted using screw terminals for secure connection.
Q6: What is the operational temperature range?
A6: The TK520V030 operates from -20°C to +60°C.
Q7: Is maintenance required?
A7: Minimal maintenance is needed; regular inspections for dust and connections are sufficient.
Q8: Can it handle overloads?
A8: Yes, it is designed to handle overloads and short-duration current spikes safely.
Q9: Is the TK520V030 compatible with automation systems?
A9: Yes, it integrates smoothly into industrial automation and motor control systems.
Q10: What are the advantages of using TK520V030?
A10: It provides high reliability, energy efficiency, IP55 protection, and ease of maintenance, making it ideal for heavy-duty industrial applications.
