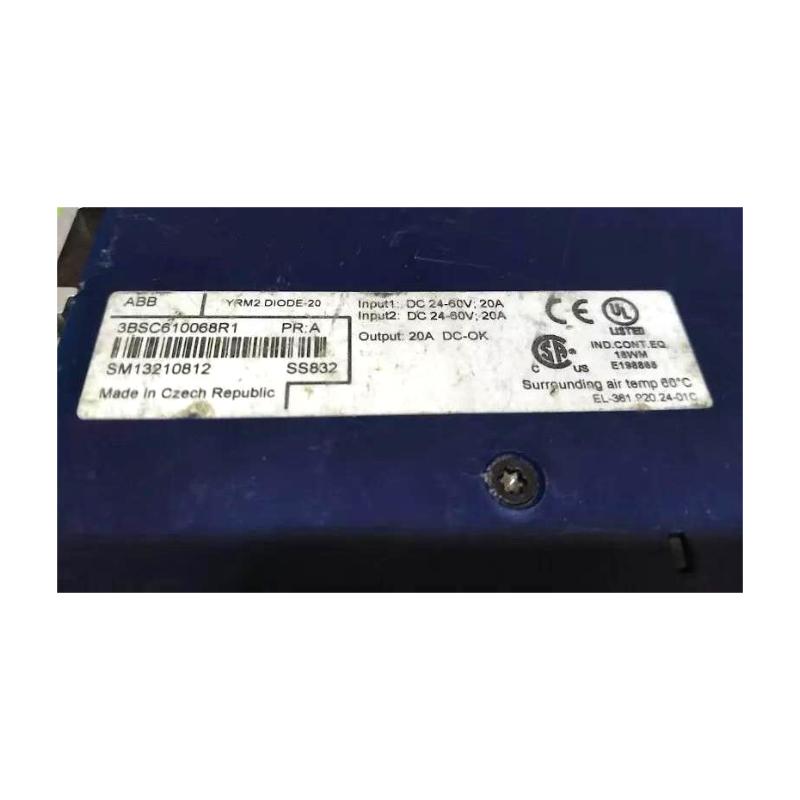

ABB SS832 (3BSC610068R1) Product Overview
Product Introduction
The ABB SS832 (3BSC610068R1) is a compact and reliable power voting unit designed for use in redundant DC power distribution systems. It is used to manage multiple 24 V DC power inputs and intelligently provide a stable, monitored output to downstream loads in industrial automation environments. Its primary purpose is to ensure continuity and integrity of power to critical control and signaling devices where redundancy and monitoring are required.
This module is engineered for DIN‑rail mounting in control cabinets and interfaces with dual DC supply sources, selecting the optimal supply and delivering controlled DC to the output. Visual indication via LEDs assists troubleshooting and system health monitoring. The SS832 is a key component in systems where mission‑critical operation must be maintained even in the presence of power supply failures or fluctuations.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ABB SS832 (3BSC610068R1) |
| Product Type | Power Voting Unit |
| Input Voltage | 2 × 24 V DC |
| Output Current | 10 A (20 A in parallel operation) |
| Maximum Overload | 25 A (short duration) |
| Power Input Rating | 240 W (480 W parallel) |
| Output Regulation | ~0.85 V drop at full load |
| Mounting | DIN rail mount |
| LED Status Indicators | Yes – for correct output voltage |
| Protection | Over‑current & over‑voltage protection |
| Operating Ambient Temperature | –25 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (L × W × H) | 117 × 32 × 125 mm |
| Weight | ~0.35 kg |
| Protection Category | IP20 |
| Approvals | CE, RoHS, marine certifications possible |
Values are typical industrial specifications; actual measured values may vary slightly by batch.
Product Applications
The SS832 power voting unit is used in a variety of industrial automation settings where redundancy, reliability, and power supervision are essential:
• Redundant DC power distribution for critical control systems.
• Process automation cabinets where continuous supply to controllers and I/O modules is required.
• Industrial plants — manufacturing, energy, utility and process sectors.
• Backup power systems for safety, monitoring, and alarm circuits.
• Maritime and offshore power systems requiring robust, monitored power delivery.
• Large telecommunication or data centres with redundant power rails.
• Any control architecture where dual supply sources are used to prevent downtime and protect load equipment.
Product Advantages
• Reliable Redundant Power Selection – intelligently selects the highest quality DC input to feed the load without manual intervention.
• Compact Design – slim and DIN‑rail compatible, saving space in cabinets.
• LED Status Indication – provides visual confirmation of correct voltage output, facilitating fast diagnosis.
• Solid Protection Mechanisms – over‑current and over‑voltage protection safeguard connected loads.
• Parallel Operation Support – two units can be used in parallel to increase maximum current capacity.
• Wide Operating Temperature Range – suitable for industrial ambient environments.
• Robust Electrical Isolation – protects sensitive electronic systems against harmful conditions.
Brand and Series Information
• Brand: ABB
• Series: SS Series – Power Voting Units designed for redundant supply environments and industrial power architecture.
Recommended Related Models (Same Series or Function)
| Model | Input Voltage | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| SS823 | 2×24 V DC | 10 A | 117 × 32 × 125 | 0.45 |
| SS822 | 2×24 V DC | 25 A | 145 × 45 × 85 | 0.85 |
| SS824 | 2×24 V DC | 10 A | 117 × 32 × 125 | 0.36 |
| SS825 | 2×24 V DC | 30 A | 150 × 50 × 90 | 0.95 |
| SS830 | 24 V DC | 20 A | 135 × 40 × 80 | 0.90 |
All are part of ABB’s power redundancy and control modules designed for industrial DC power system integration.
Recommended Popular Models (Same Brand)
| Model | Type | Nominal Voltage | Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| D16 | Solid‑State Relay | 24–240 V | 16 A | 85 × 30 × 55 | 0.23 |
| D25 | Solid‑State Relay | 24–240 V | 25 A | 90 × 35 × 60 | 0.30 |
| D40 | Solid‑State Relay | 24–600 V | 40 A | 120 × 50 × 80 | 0.52 |
| T7 | Control Relay | 24–240 V | 7 A | 70 × 25 × 45 | 0.18 |
| T9 | Control Relay | 24–600 V | 9 A | 80 × 30 × 50 | 0.20 |
FAQ — ABB SS832 (3BSC610068R1)
Q1: What is the primary function of the SS832 unit?
A1: The SS832 ensures the correct DC power source is provided from redundant supplies to protect downstream loads.
Q2: What DC input voltages are used?
A2: It uses dual 24 V DC inputs to create a stable output.
Q3: What is its rated output current?
A3: It is rated for 10 A, with parallel operation allowing up to 20 A.
Q4: Is it mountable on a DIN rail?
A4: Yes, it is designed for standard DIN rail mounting in control cabinets.
Q5: Does it offer visual run‑status feedback?
A5: Yes, front‑panel LED indicators show output voltage status.
Q6: How much does the SS832 unit weigh?
A6: It weighs approximately 0.35 kg.
Q7: What protection features does it include?
A7: It includes over‑current limiting and over‑voltage protection.
Q8: Can multiple units run in parallel?
A8: Yes — running two units in parallel increases maximum current capacity.
Q9: What environmental temperatures can it handle?
A9: The unit operates between –25 °C and +55 °C ambient temperature.
Q10: In what systems is SS832 typically used?
A10: It is mainly used in control systems requiring redundant power, such as industrial automation and backup power systems.
