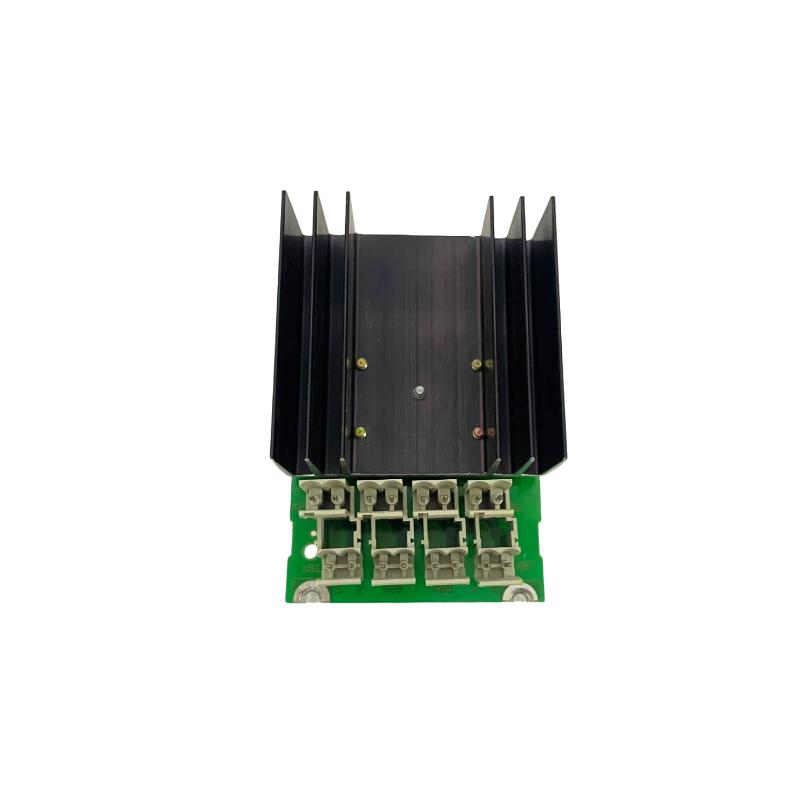

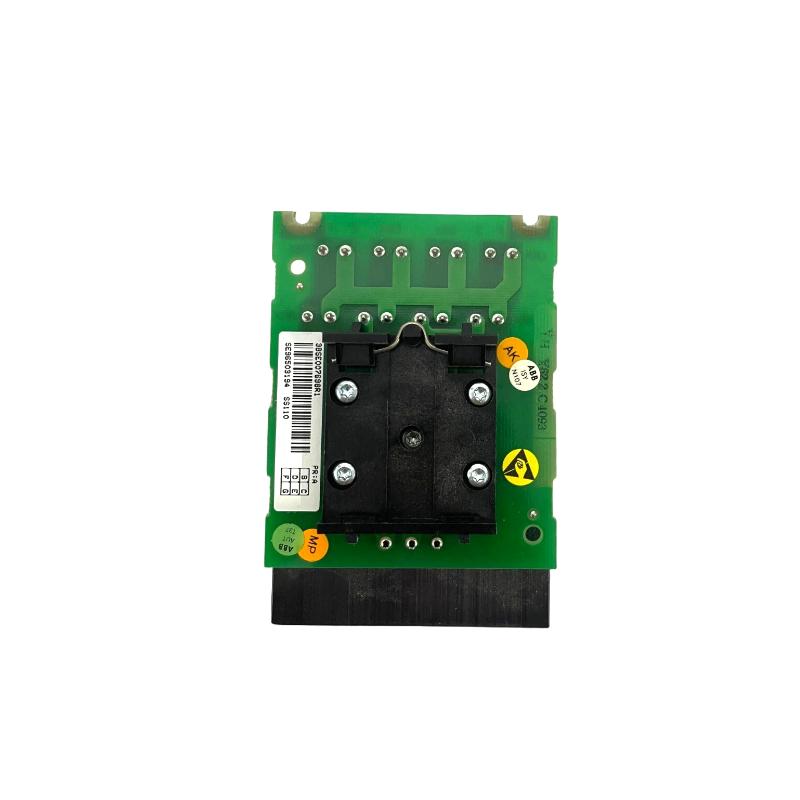

ABB SS110 (3BSE007698R1) Product Overview
Product Introduction
The ABB SS110 is a high-performance, single-phase solid-state relay designed for precise switching of AC and DC loads in industrial and automation applications. It is engineered for durability, stability, and accurate control, making it ideal for heating systems, motor control, and process automation.
This relay is optimized for continuous operation under heavy industrial conditions while providing high electrical isolation and fast response times. Its compact design allows easy integration into panels, DIN rails, and other industrial control setups, making it a reliable choice for engineers who require both performance and space efficiency.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ABB SS110 (3BSE007698R1) |
| Type | Single-phase Solid-State Relay (SSR) |
| Control Voltage | 24–240 V AC/DC |
| Load Voltage | 24–480 V AC |
| Max Load Current | 10 A (continuous) |
| Switching Type | Zero-cross switching |
| Insulation Voltage | 2500 V AC between control and load |
| Isolation | Optical isolation between input and output |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Mounting | DIN rail or panel mount |
| Dimensions (L×W×H) | 92 × 30 × 55 mm |
| Weight | 0.23 kg |
| Response Time | ≤ 10 ms |
| Approvals | CE, UL, RoHS compliant |
Product Applications
The ABB SS110 is suitable for:
-
Industrial automation control systems
-
Resistive and inductive heating applications
-
Temperature control for furnaces, ovens, and kilns
-
Motor control in industrial machinery
-
Pump and fan switching
-
Robotics and assembly line automation
-
Lighting control in industrial environments
-
Process control in chemical and pharmaceutical production
Product Advantages
-
High Reliability: Solid-state design ensures minimal wear and long service life.
-
Compact Design: Ideal for tight spaces and control panels.
-
Fast Switching: Responds quickly for precise process control.
-
Wide Voltage Range: Operates efficiently with 24–240 V control and 24–480 V load.
-
Safety Compliant: Meets CE, UL, and RoHS standards.
-
Low Maintenance: No moving parts reduce downtime and operational costs.
-
Flexible Installation: Supports DIN rail and panel mounting.
Brand Information
-
Brand: ABB
-
Series: SS Series (Single-phase Solid-State Relays for industrial automation)
Recommended Related Models (Same Series)
| Model | Control Voltage | Load Voltage | Max Load Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SS120 | 24–240 V AC/DC | 24–480 V AC | 20 A | 100 × 35 × 60 | 0.32 |
| SS130 | 24–240 V AC/DC | 24–480 V AC | 30 A | 110 × 40 × 65 | 0.38 |
| SS140 | 24–240 V AC/DC | 24–600 V AC | 10 A | 92 × 30 × 55 | 0.25 |
| SS150 | 24–240 V AC/DC | 24–480 V AC | 40 A | 130 × 50 × 80 | 0.55 |
| SS160 | 24–240 V AC/DC | 24–600 V AC | 60 A | 150 × 60 × 90 | 0.78 |
Recommended Popular Models (Same Brand)
| Model | Control Voltage | Load Voltage | Max Load Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| D16 | 24–240 V AC/DC | 24–480 V AC | 16 A | 85 × 30 × 55 | 0.23 |
| D25 | 24–240 V AC/DC | 24–480 V AC | 25 A | 90 × 35 × 60 | 0.30 |
| D40 | 24–240 V AC/DC | 24–600 V AC | 40 A | 120 × 50 × 80 | 0.52 |
| T7 | 24–240 V AC/DC | 24–480 V AC | 7 A | 70 × 25 × 45 | 0.18 |
| T9 | 24–240 V AC/DC | 24–600 V AC | 9 A | 80 × 30 × 50 | 0.20 |
FAQ – ABB SS110
Q1: What is the maximum load current for ABB SS110?
A1: The maximum continuous load current is 10 A.
Q2: Can the relay be mounted on a DIN rail?
A2: Yes, it supports both DIN rail and panel mounting.
Q3: What is the control voltage range?
A3: The control voltage range is 24–240 V AC/DC.
Q4: What type of switching does it support?
A4: It supports zero-cross switching for safe load activation.
Q5: What is the operating temperature range?
A5: The operating temperature is -20 °C to 70 °C.
Q6: Is there electrical isolation between input and output?
A6: Yes, it features optical isolation with 2500 V AC insulation.
Q7: Can it handle inductive loads?
A7: Yes, it is suitable for both resistive and inductive loads.
Q8: What are the dimensions and weight?
A8: Dimensions are 92 × 30 × 55 mm, weight is 0.23 kg.
Q9: Is ABB SS110 CE and UL certified?
A9: Yes, it meets CE, UL, and RoHS standards.
Q10: How fast does the relay respond?
A10: The response time is ≤ 10 ms, suitable for rapid switching applications.
