- ABB
- SDCS-FIS-3A
- Field Exciter Board Industrial Automation Control Module
- Sweden
- 185 mm × 120 mm × 35 mm
- 0.68kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 72
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

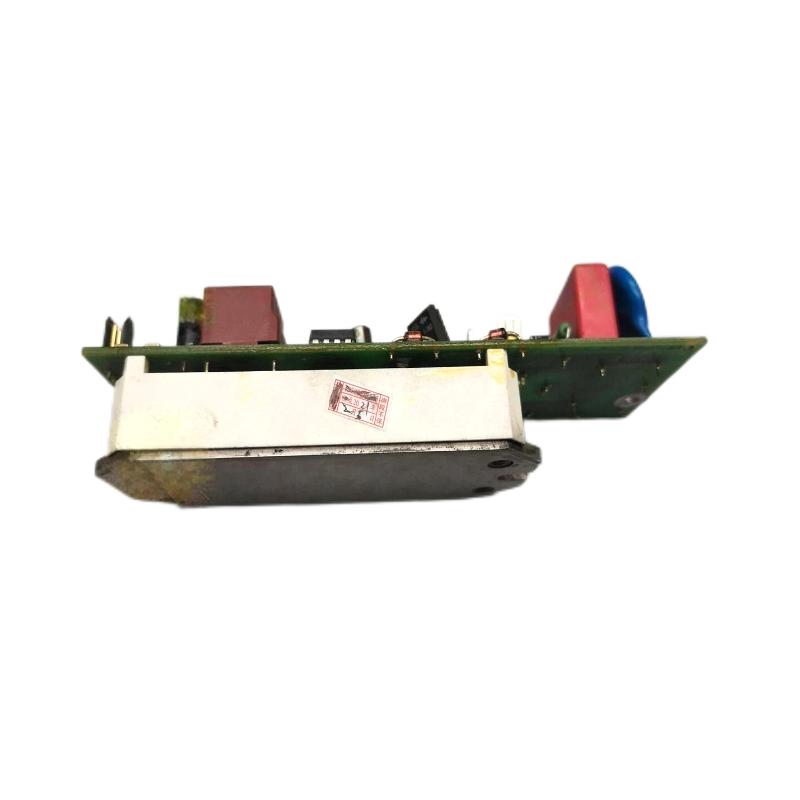

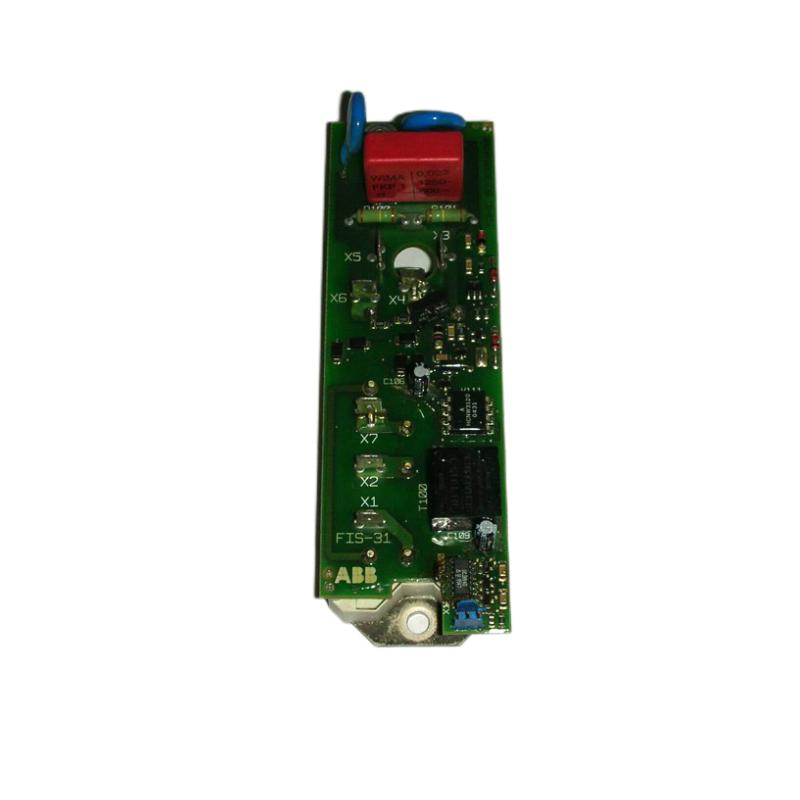

The ABB SDCS-FIS-3A is a field-interface / excitation-feedback board designed for use in ABB’s DCS (direct-current drive control) systems. It functions as a key signal-interface module between control electronics and the field circuits within DC drive applications.
It supports accurate analogue and digital feedback, galvanic isolation, and is built for demanding industrial environments. The SDCS-FIS-3A plays a vital role in ensuring stable excitation and motor control performance by providing reliable input/output signal conditioning, isolation and interface for field circuits.
Product Parameters
| Parameter | Description |
|---|---|
| Model | SDCS-FIS-3A |
| Part Number | 3ADT313600R0001 (or similarly annotated for this board) |
| Product Type | Field Interface / Excitation Feedback Board |
| Brand | ABB |
| Series | DCS Control System Series |
| AC Input Voltage | 230…500 V AC ±10% (three-phase) |
| DC Output Voltage (programmable) | 50…440 VDC (depending on field converter) |
| DC Output Current Range | 0.1 A…4 A for smaller armature converter modules; up to 20 A for larger ones |
| Isolation Voltage (AC) | 600 V AC |
| Signal Interface | Analogue input (11 bit + sign), analogue output, digital in/out (24 V) |
| Operating Temperature | +5 °C to +40 °C in typical use (for full load) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | Approximately 185 mm × 120 mm × 35 mm (estimated from older data) |
| Weight | Approximately 0.68 kg (typically in that module class) |
| Compliance & Protection | Built for industrial use, includes surge, isolation, and filtering features |
Product Description
The SDCS-FIS-3A is engineered specifically for use in ABB’s DCS drive systems. It manages the interface between the drive’s control board and the field circuits (such as field windings or excitation supplies). By converting, isolating and conditioning both analog and digital signals, the module ensures the control system receives clean, reliable feedback from the field side and sends accurate commands back.
In application it supports galvanic isolation to protect control electronics from the high-voltage field side. It supports a wide range of field currents and voltages, making it suitable for many armature / field converter modules. The board is built for industrial durability, designed to withstand vibrations, elevated temperatures, and harsh ambient conditions typical in steel mills, heavy manufacturing or mining operations.
By using this board, drive systems achieve enhanced feedback accuracy (improving torque and speed regulation), reduced signal interference and improved overall stability of the DC motor and drive loop.
Product Applications
-
DC motor drives in heavy industry (steel plants, rolling mills)
-
Field excitation feedback circuits in DC drive systems
-
Mining conveyors and hoisting equipment requiring precise field control
-
Pulp & paper plant DC drives with variable field control
-
Marine propulsion systems where DC drives are used
-
Chemical / petrochemical process drives using DC motors
-
Power generation plants where excitation feedback of DC machines is required
-
Any industrial automation environment where reliable feedback interface for field circuits is needed
Product Advantages
-
High signal fidelity — the SDCS-FIS-3A ensures accurate analogue and digital feedback from field circuits, improving control precision.
-
Strong isolation — galvanic isolation ensures safe separation between field side (high voltage) and control electronics, reducing risk of interference or damage.
-
Wide operating range — supports a broad range of field output currents and voltages, making it adaptable to many drive module sizes.
-
Industrial-grade construction — designed for continuous duty in harsh environments with elevated temperature, humidity, vibration and dust.
-
Compact footprint and moderate weight — enabling easier integration into existing drive racks or cabinets without significant space or structural burden.
-
Seamless integration — built to interface with ABB’s DCS drive family, allowing straightforward replacement or upgrade without major system redesign.
-
Reduced maintenance downtime — accurate diagnostics and robust construction reduce unplanned failures and simplify maintenance.
-
Optimised performance — by improving feedback clarity and stability, the module helps the overall drive system achieve better motor control, lower ripple, and smoother operation.
Brand Information
Brand: ABB
ABB is a leading name in industrial automation, power control and drive systems. Its DCS series products represent a robust line of DC drive control modules and interfaces used worldwide in heavy industry. The brand stands for reliability, high performance, and long lifecycle support.
Product Series
Series Name: DCS Control System Series
Within the ABB DCS series, modules are grouped into control boards, interface boards (like this FIS series), excitation modules, power supply modules and communication boards. The SDCS-FIS-3A belongs to the interface/feedback sub-category and integrates with DCS armature and excitation converter modules to provide signal conditioning, isolation, monitoring and feedback.
Related Models (Same Series / Compatible Types)
| Model | Description | Key Parameters |
|---|---|---|
| SDCS-FEX-4A | Field Excitation Board (advanced version) | Output: 0-500 VDC, up to ~35A; Dimensions: 200×140×45 mm; Weight: ~0.82 kg |
| SDCS-FEX-425 | High-capacity Field Excitation Board | Output: 0-500 VDC, up to ~35A; Dimensions: 200×140×45 mm; Weight: ~0.85 kg |
| SDCS-FEX-32B | Field Excitation Board (alternative variant) | Output: 0-500 VDC, up to ~25A; Dimensions: 190×130×40 mm; Weight: ~0.72 kg |
| SDCS-CON-3A | Control Board Module for DCS drives | Voltage: 24 VDC; Dimensions: ~150×100×30 mm; Weight: ~0.55 kg |
| SDCS-PIN-3A | Connection/Interface Board for DCS modules | Supports signal interface and firing logic; Dimensions: ~?; Weight: ~0.60 kg |
Popular Models (Same Brand)
| Model | Description | Key Parameters |
|---|---|---|
| ACS880-01-085A-3 | Industrial AC Drive (high performance) | Power: ~55 kW; Voltage: 400 V; Weight: ~52 kg |
| DCS800-S02-0140-05 | DC Drive System (high current) | Power: ~140A; Voltage: ~500 V; Weight: ~46 kg |
| DSQC1046 | Automation Control Board Module | Voltage: 24 VDC; Dimensions: ~210×130×40 mm; Weight: ~0.70 kg |
| CI858A | Communication Interface Module | Protocol: PROFINET; Voltage: 24 VDC; Weight: ~0.50 kg |
| PM867AK02 | High-Performance Processor Module | CPU: 32-bit; Voltage: 24 VDC; Weight: ~0.56 kg |
FAQ (Frequently Asked Questions)
Q1: What is the primary function of the SDCS-FIS-3A?
A1: Its primary function is to act as a field interface board, providing signal conditioning, isolation and feedback from field circuits to the drive’s control electronics.
Q2: Which drive series is this module compatible with?
A2: It is designed for use with ABB’s DCS series DC drive modules (such as DCS 400 armature and excitation converter systems).
Q3: What are the input and output voltage ranges of the board?
A3: The board accepts an AC input in the range of approximately 230…500 V AC ±10% and provides a programmable DC output of 50…440 V DC depending on application.
Q4: What kind of output current can it handle?
A4: It supports a range of DC output currents depending on the armature/excitation module size, from about 0.1 A up to 20 A for larger field modules.
Q5: Does the board provide galvanic isolation?
A5: Yes, it has an isolation voltage of approximately 600 V AC between field and control circuits to protect control electronics from high-voltage field side disturbances.
Q6: What are the operating environmental conditions?
A6: Typical operating ambient temperature is +5 °C to +40 °C for full rated load, with storage range from –40 °C to +70 °C and humidity from 5% to 95% non-condensing.
Q7: What is the approximate size and weight of the module?
A7: The module’s dimensions are approximately 185 mm × 120 mm × 35 mm and weight around 0.68 kg.
Q8: Can this module be used as a standalone unit?
A8: No — it is designed to function as part of the DCS drive system and interfaces with armature/excitation converters, control electronics and field circuits.
Q9: What are the benefits of using this interface board in a drive system?
A9: It improves signal fidelity, provides safe isolation, reduces interference, enhances reliability and allows better motor control and system diagnostics.
Q10: Is the board suitable for upgrades or replacement in older systems?
A10: Yes, in many DCS installations this board can be used to replace or upgrade existing interface modules to improve reliability and serviceability.
