ABB SDCS-FEX-32A (Model: 3ADT312400R0002)
Product Overview

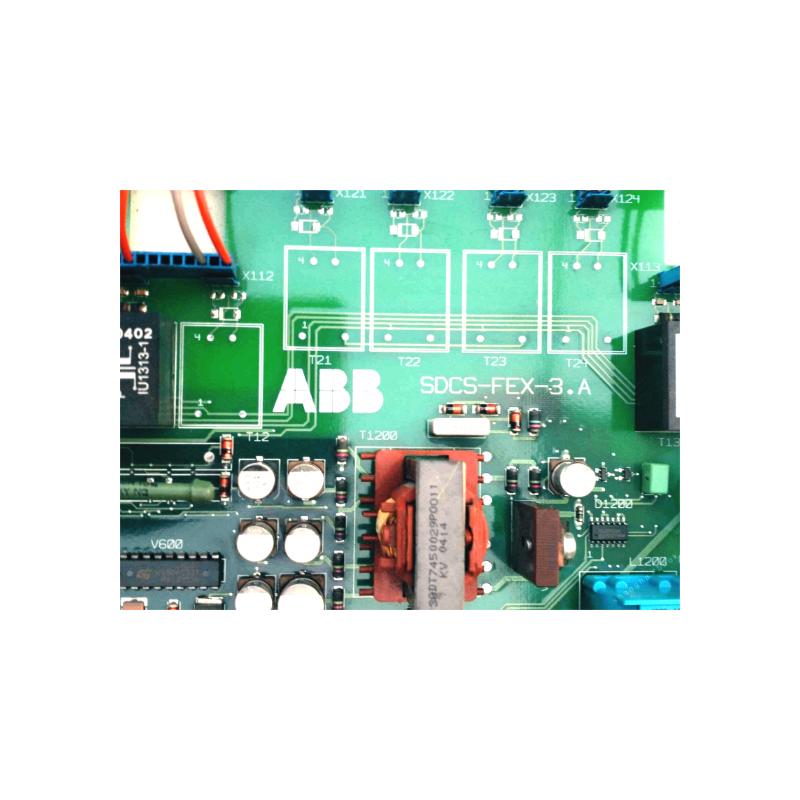

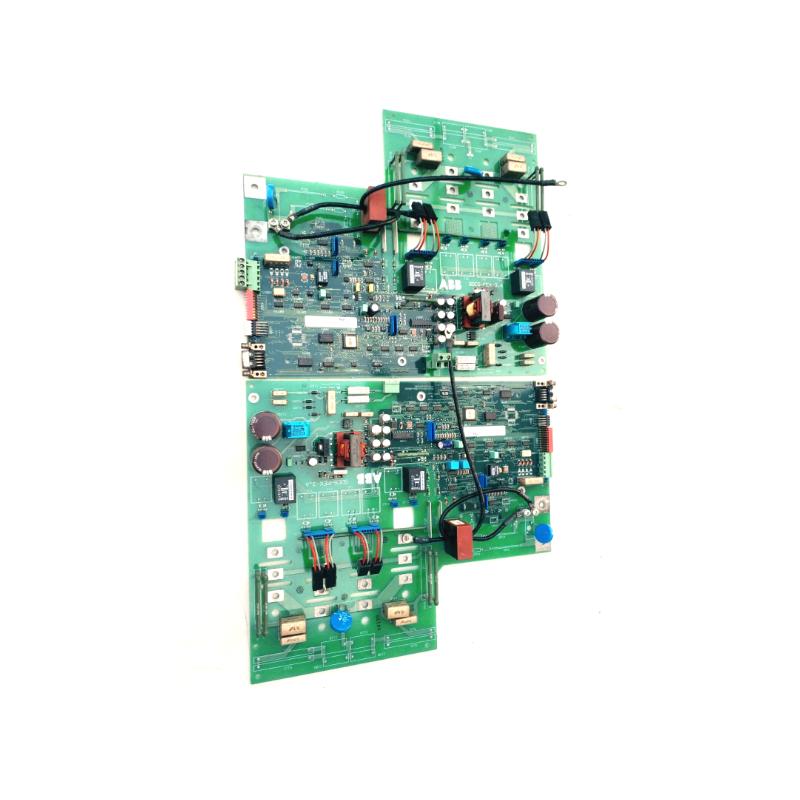

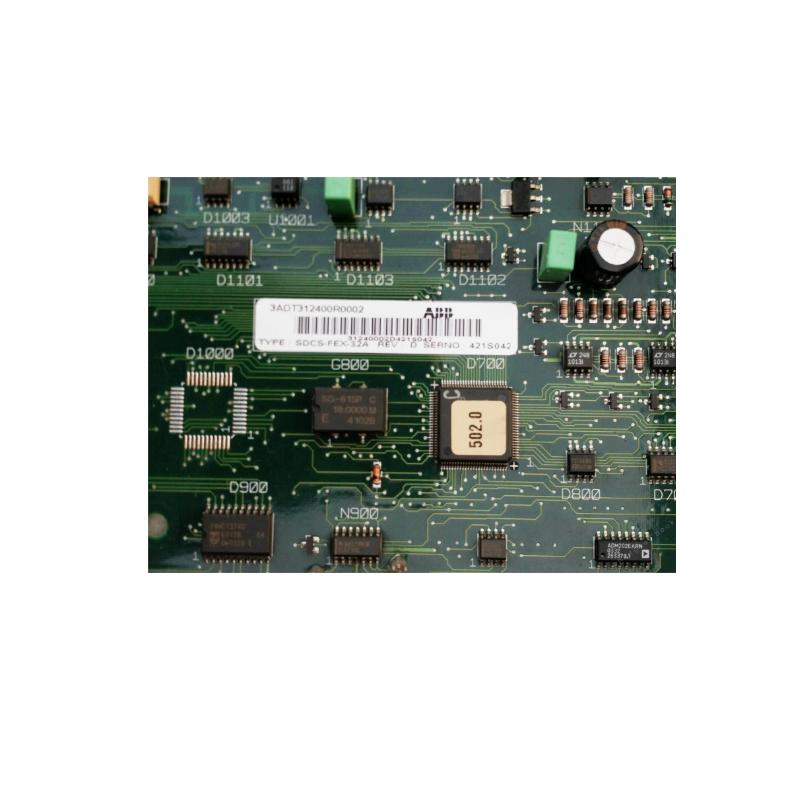

The ABB SDCS-FEX-32A is a Field Excitation Board designed for use in ABB’s DCS 500/600/800 industrial drive systems. It plays a critical role in providing controlled excitation current to DC motors, ensuring stable field voltage and smooth operation under varying load conditions.
This module integrates advanced control and protection features, making it ideal for precision-driven industrial automation environments. The SDCS-FEX-32A serves as an interface between the control unit and the field circuit, guaranteeing reliable excitation and optimized performance.
Product Parameters
| Parameter | Description |
|---|---|
| Model | SDCS-FEX-32A |
| Part Number | 3ADT312400R0002 |
| Product Type | Field Excitation Board |
| Brand | ABB |
| Series | DCS Control Series (DCS 500 / DCS 600 / DCS 800) |
| Input Voltage | 24 VDC nominal |
| Output Field Voltage | 0 – 460 VDC (controlled) |
| Output Field Current | 0 – 20 A |
| Control Interface | Analog and digital I/O connections |
| Protection Features | Overvoltage, overcurrent, and thermal protection |
| Operating Temperature | 0°C – +55°C |
| Storage Temperature | -40°C – +70°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Dimensions (W × H × D) | 180 mm × 120 mm × 35 mm |
| Weight | 0.65 kg |
| Mounting Type | PCB-mounted module |
| Cooling Method | Natural air cooling |
| Communication Protocol | Internal system bus compatible |
| Compliance | CE certified, RoHS compliant |
Product Description
The ABB SDCS-FEX-32A board functions as the excitation control component within ABB DC drive systems. It regulates and stabilizes field current to ensure efficient torque and speed control for DC motors. Engineered with high reliability and long operational life, the SDCS-FEX-32A is built using robust industrial-grade materials to operate in demanding industrial environments.
The board features advanced fault diagnostics and monitoring capabilities, enabling real-time system protection and preventive maintenance. It can easily integrate into existing ABB DCS systems without requiring additional configuration or external interface devices.
Product Applications
-
Heavy-duty industrial automation systems
-
Steel rolling mills and metal processing plants
-
Paper and pulp production machinery
-
Chemical and petrochemical processing facilities
-
Marine propulsion and winch systems
-
Mining and material handling equipment
-
Large-scale manufacturing production lines
Product Advantages
-
High Reliability – Designed for continuous industrial operation with minimal downtime.
-
Precise Control – Provides stable field excitation for optimal motor performance and efficiency.
-
Easy Integration – Fully compatible with ABB DCS series drives and existing automation infrastructure.
-
Enhanced Safety – Equipped with overcurrent, overvoltage, and thermal protection.
-
Compact Design – Lightweight and compact structure for easy installation and maintenance.
-
Diagnostic Functionality – Built-in status monitoring allows fast fault identification and system optimization.
-
Energy Efficiency – Optimized excitation control reduces energy loss and improves system performance.
Brand Information
Brand: ABB
ABB is a global leader in electrical engineering and automation technology, known for providing reliable and efficient drive systems, industrial components, and power control solutions. The company’s DCS drive series is widely used in industries requiring high precision and durability.
Product Series
Series Name: ABB DCS Control Series
This series includes various modules for control, communication, and excitation functions within ABB’s DCS 500/600/800 drive systems. Each module is designed for seamless interoperability, high efficiency, and flexible configuration.
Related Models (Same Series)
| Model | Description | Key Parameters |
|---|---|---|
| SDCS-CON-2 | Control board for DCS series drives | Voltage: 24VDC; Dimensions: 150×100×30 mm; Weight: 0.55 kg |
| SDCS-PIN-41A | I/O interface module for control signal processing | Input: 24VDC; I/O Channels: 32; Weight: 0.60 kg |
| SDCS-POW-1 | Power supply board for control modules | Input: 230VAC; Output: 24VDC; Weight: 0.75 kg |
| SDCS-FEX-2A | Early version field excitation board | Output Current: 15A; Voltage: 0–460VDC; Weight: 0.60 kg |
| SDCS-IOB-22 | Input/output board for analog/digital signals | Channels: 32; Power: 24VDC; Weight: 0.58 kg |
Popular Models (Same Brand)
| Model | Description | Key Parameters |
|---|---|---|
| ACS880-01-065A-3 | Industrial AC Drive | Power: 37 kW; Voltage: 400V; Weight: 45 kg |
| DCS800-S02-0050-05 | DC Drive System | Power: 50A; Voltage: 500V; Weight: 38 kg |
| ABB DSQC1003 | Control Board Module | Power: 24VDC; Dimensions: 190×120×30 mm; Weight: 0.62 kg |
| ABB CI854A | Communication Interface Module | Protocol: PROFIBUS; Voltage: 24VDC; Weight: 0.45 kg |
| ABB PM864AK01 | CPU Processor Module | Memory: 16 MB; Voltage: 24VDC; Weight: 0.50 kg |
FAQ (Frequently Asked Questions)
Q1: What is the main function of the SDCS-FEX-32A?
A1: It provides controlled field excitation current for DC motors, ensuring stable motor operation and precise torque control.
Q2: Which drive systems are compatible with this board?
A2: The SDCS-FEX-32A is compatible with ABB DCS 500, DCS 600, and DCS 800 series drives.
Q3: Can it be used as a replacement for SDCS-FEX-2A?
A3: Yes, it can replace earlier versions with minor configuration adjustments.
Q4: What is the input voltage requirement?
A4: The input voltage is typically 24V DC.
Q5: Does it include built-in protection features?
A5: Yes, it features overvoltage, overcurrent, and thermal protection mechanisms.
Q6: What is the operating temperature range?
A6: It operates efficiently between 0°C and +55°C.
Q7: How is the cooling achieved?
A7: The board uses natural air cooling, requiring no external fans.
Q8: What industries commonly use this module?
A8: Steel, paper, chemical, marine, and mining industries frequently use it.
Q9: Is it easy to install?
A9: Yes, its compact design allows for simple installation and quick replacement.
Q10: What is the weight of the SDCS-FEX-32A?
A10: The module weighs approximately 0.65 kg.
