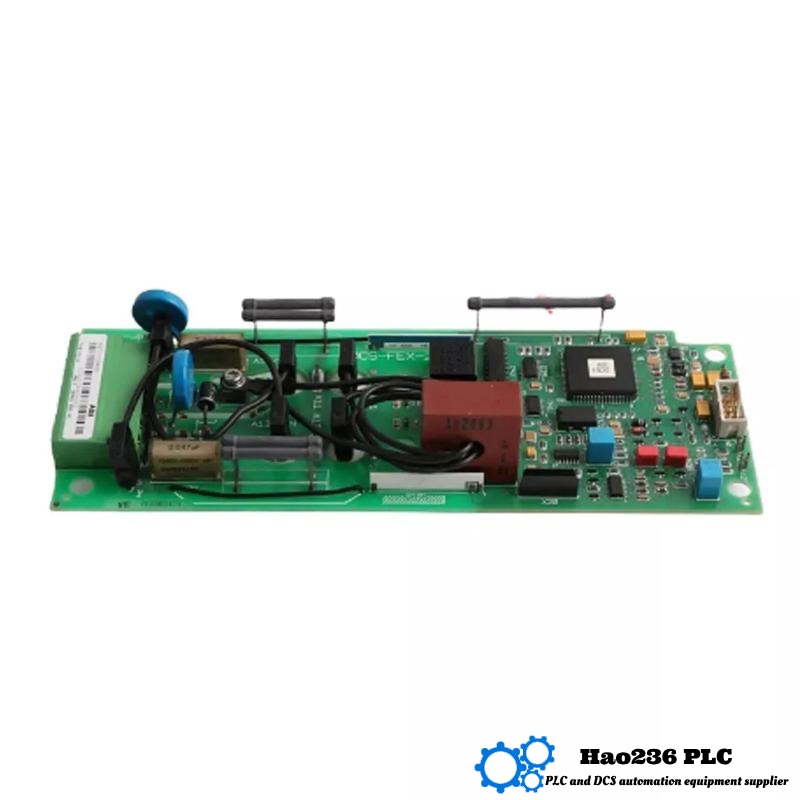

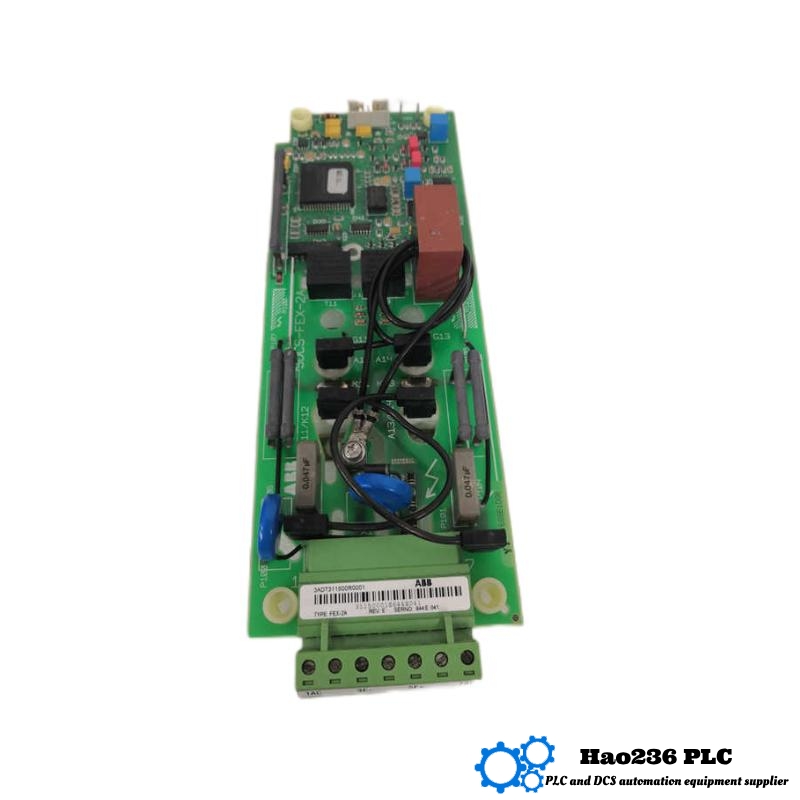

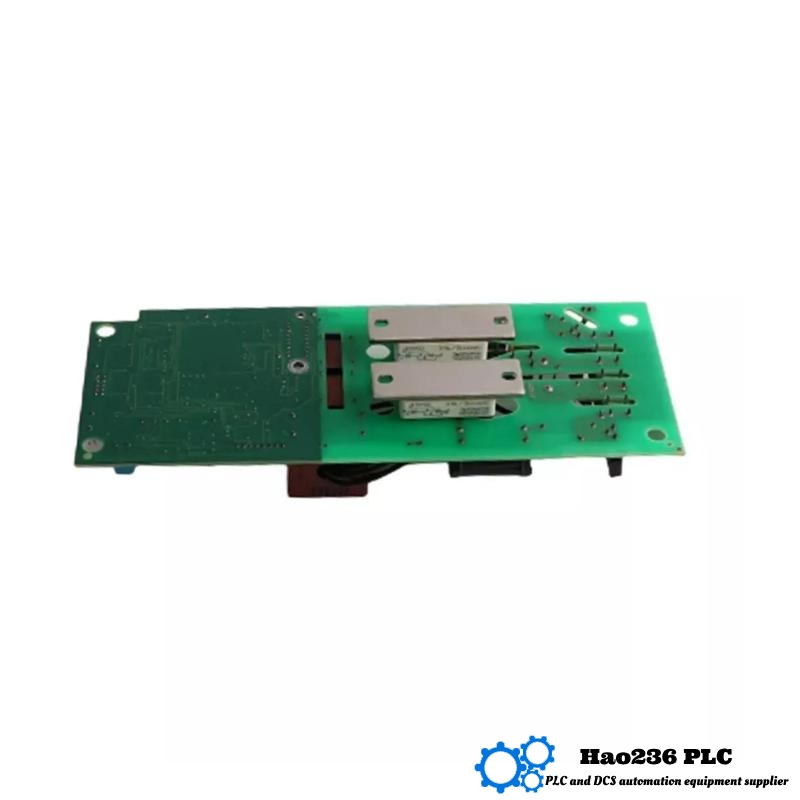

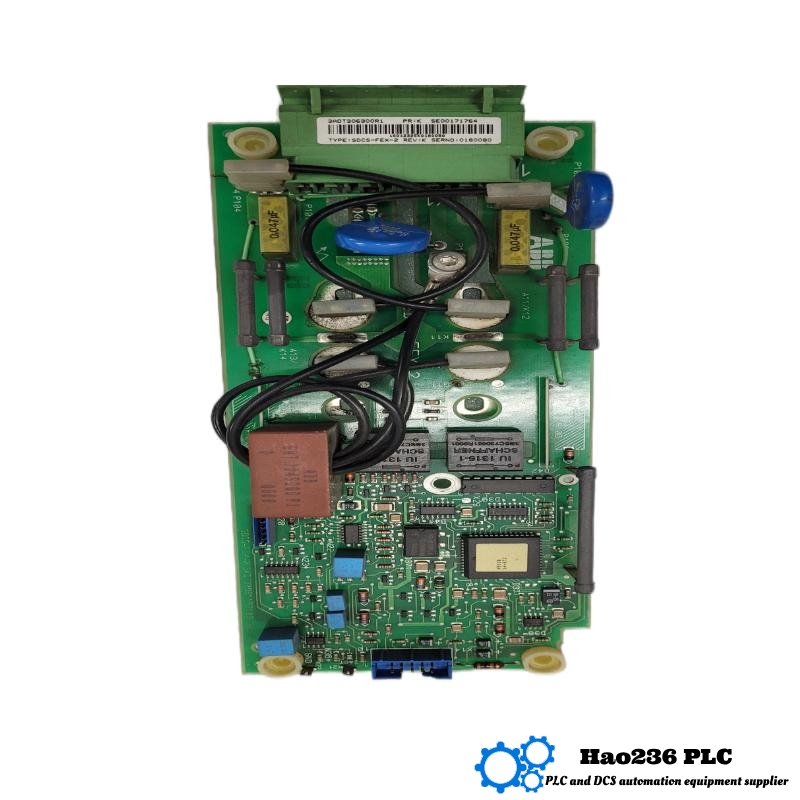

ABB SDCS-FEX-2 3ADT306300R1 Excitation Board
Product Introduction
The ABB SDCS-FEX-2 3ADT306300R1 excitation board is a high-performance component designed to regulate and stabilize the excitation current in industrial machinery, particularly synchronous motors and generators. This component is engineered to maintain optimal operation by providing precise excitation control. Its design ensures consistent performance even under challenging operating conditions, making it an essential piece of equipment in power generation and industrial automation systems. With its compact size, robust features, and easy integration, the SDCS-FEX-2 is widely used across various industries for controlling and maintaining the performance of electrical systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | SDCS-FEX-2 3ADT306300R1 |
| Dimensions | 83 x 44 x 133 mm |
| Weight | 0.1 kg |
| Input Voltage | 24 VDC |
| Maximum Output Current | 5A |
| Temperature Range | –20°C to +60°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Mounting Type | DIN rail or panel mount |
| Connector Type | Screw terminal |
| Compatibility | ABB excitation systems |
| Protection | Overload and short-circuit protection |
Product Applications
The ABB SDCS-FEX-2 3ADT306300R1 excitation board is used in the following applications:
-
Generator Excitation Systems: It controls the excitation current, ensuring stable output voltage in generators by regulating the magnetic field.
-
Motor Control: This board helps in maintaining the correct field excitation for synchronous motors, enhancing performance and preventing damage.
-
Power Generation: Used in power plants and energy production facilities, it ensures the generators operate at maximum efficiency and stability.
-
Industrial Automation: In automated manufacturing plants, this excitation board maintains stable motor and generator operations, preventing system failures.
-
Renewable Energy: It is used in systems that require precise control of excitation, such as wind turbines and hydroelectric generators.
Product Advantages
-
High Reliability: The SDCS-FEX-2 3ADT306300R1 offers excellent reliability, designed to operate continuously in demanding environments without failure.
-
Compact Size: With dimensions of 83 x 44 x 133 mm, the board is compact yet powerful, ideal for installations in tight spaces.
-
Precision Control: It provides highly accurate control of excitation current, ensuring stable performance in motors and generators.
-
Durability: Built to withstand harsh industrial environments, including high temperatures and humidity, the board is durable and long-lasting.
-
Easy Integration: The SDCS-FEX-2 is compatible with other ABB excitation systems, making it easy to integrate into existing setups for an efficient upgrade.
Brand Overview
ABB is a globally recognized leader in industrial automation, robotics, and electrical equipment. The company specializes in providing cutting-edge solutions designed to improve productivity, efficiency, and sustainability in a range of sectors, including power generation, oil and gas, manufacturing, and more. Known for its quality, innovation, and commitment to sustainability, ABB products are trusted by industries worldwide for their reliability and performance.
Related Models from the Same Series
| Model | Description | Key Specifications |
|---|---|---|
| SDCS-FEX-1 | Excitation module for smaller-scale systems | 24 VDC input, 3A maximum output |
| SDCS-FEX-3 | Advanced version with more output channels | 24 VDC input, 10A maximum output |
| SDCS-FEX-4 | For larger generator systems with advanced feedback | 24 VDC input, 8A maximum output |
| SDCS-FEX-5 | Compact and easy-to-integrate excitation module | 24 VDC input, 6A maximum output |
| SDCS-FEX-6 | High-performance excitation control for industrial use | 24 VDC input, 12A maximum output |
| SDCS-FEX-7 | Offers multiple field current outputs for complex systems | 24 VDC input, 7A maximum output |
| SDCS-FEX-8 | Latest model with added diagnostics and enhanced features | 24 VDC input, 15A maximum output |
Popular Models from ABB
| Model | Description | Key Specifications |
|---|---|---|
| SDCS-PIN-1 | Digital controller for advanced process control | 12-24 VDC input, multi-channel output |
| SDCS-PIN-2 | PID control system for industrial use | 24 VDC input, 5A maximum output |
| SDCS-PIN-3 | Multi-axis motion control for precision applications | 24 VDC input, 4A maximum output |
| SDCS-PIN-4 | Communication processor for automation systems | 24 VDC input, Ethernet interface |
| SDCS-PLC-2 | Programmable logic controller for industrial use | 24 VDC input, 8 digital I/O channels |
| SDCS-RIO-2 | Remote I/O module for field communication | 24 VDC input, 16 digital I/O channels |
FAQ
Q1: What is the primary function of the ABB SDCS-FEX-2 excitation board?
A1: The primary function is to regulate the excitation current for synchronous machines, ensuring stable voltage output and efficient operation.
Q2: Can the SDCS-FEX-2 be used with other ABB systems?
A2: Yes, it is compatible with various ABB excitation control systems, allowing for easy integration.
Q3: What is the maximum output current of the SDCS-FEX-2?
A3: The SDCS-FEX-2 provides a maximum output current of 5A.
Q4: What is the input voltage required for the SDCS-FEX-2?
A4: The SDCS-FEX-2 requires a 24 VDC input voltage.
Q5: What are the environmental conditions for operating the SDCS-FEX-2?
A5: It can operate within a temperature range of –20°C to +60°C and humidity between 5% to 95% (non-condensing).
Q6: How does the SDCS-FEX-2 help improve system efficiency?
A6: It ensures stable excitation current regulation, preventing fluctuations that could cause inefficiency or instability in motors and generators.
Q7: Is the SDCS-FEX-2 designed for easy installation?
A7: Yes, it can be mounted easily on a DIN rail or directly on a panel, providing flexibility during installation.
Q8: What protection features does the SDCS-FEX-2 have?
A8: The SDCS-FEX-2 includes overload and short-circuit protection, ensuring safe operation.
Q9: What industries benefit from using the SDCS-FEX-2?
A9: The SDCS-FEX-2 is ideal for power generation, industrial automation, renewable energy, and motor control industries.
Q10: How long is the lifespan of the SDCS-FEX-2?
A10: With proper usage, the SDCS-FEX-2 is designed for long-lasting operation, providing reliable performance over many years.
