Product Overview

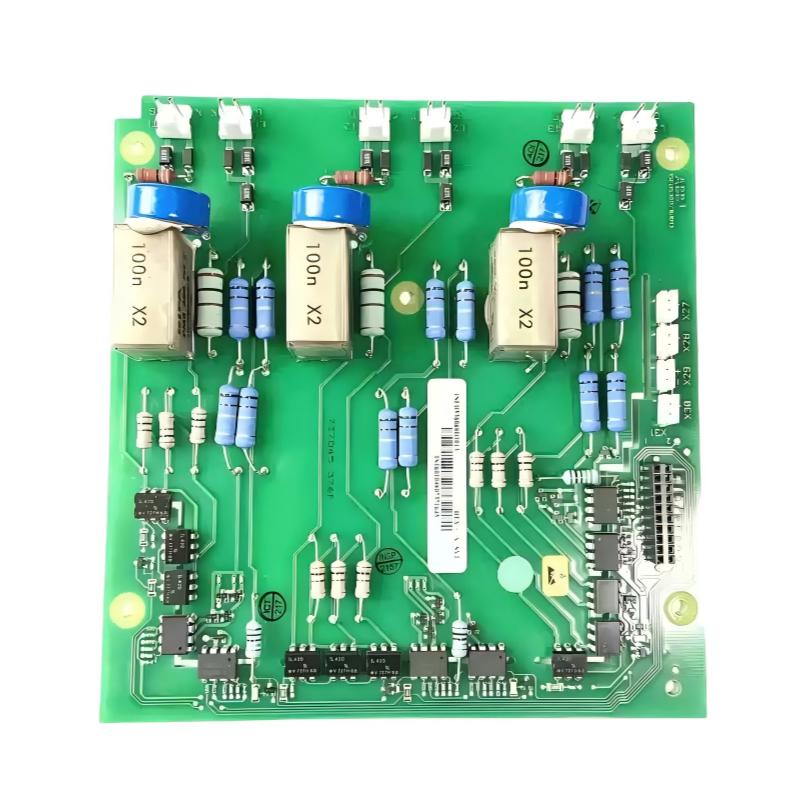

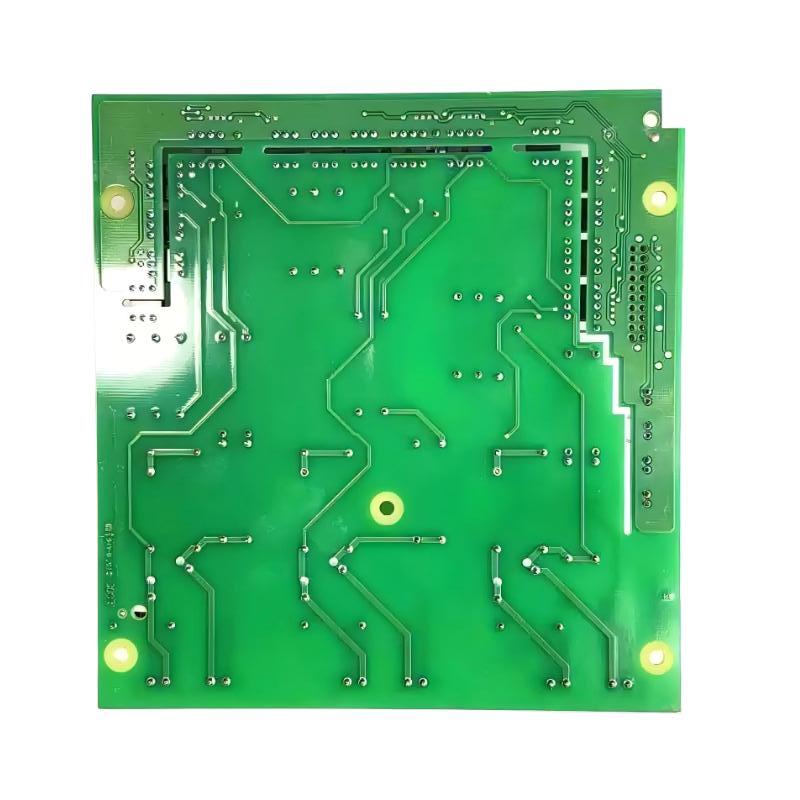

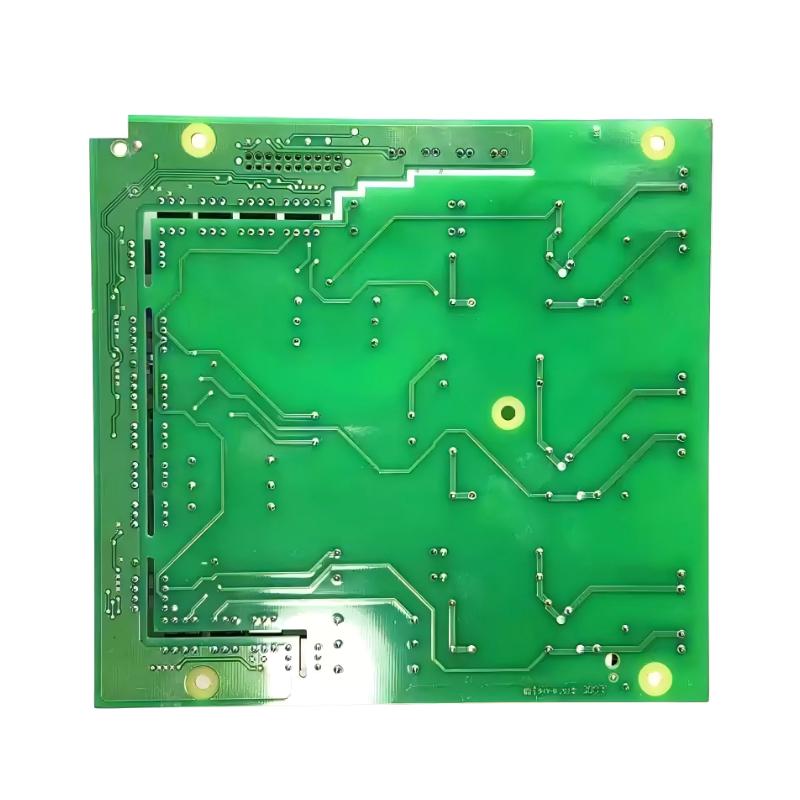

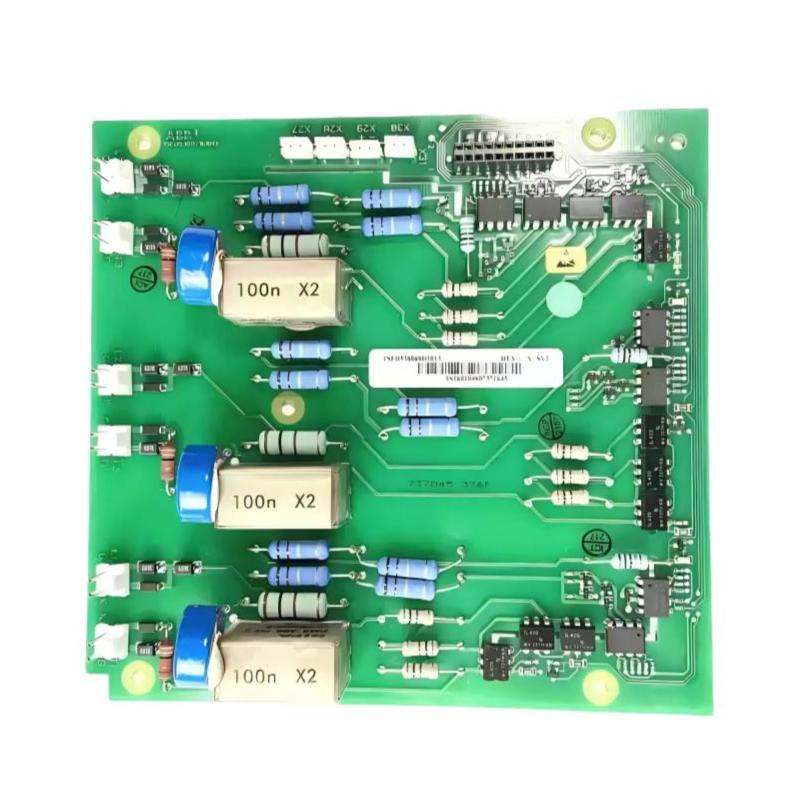

The ABB PSPCB-690/T 1SFA899020R7690 is a high-voltage circuit board used in ABB PST and PSTB softstarter systems. It belongs to the internal electronic circuitry associated with the softstarter’s high-power switching section and works with the control electronics to support the controlled application of electrical power to the motor.
Within a PST/PSTB softstarter, the circuit board forms part of the interface between the control system and the high-voltage power circuitry. Its operation is coordinated with the softstarter control section so that switching functions occur according to the configured motor-starting or stopping sequence.
This type of board is used in industrial motor-control equipment where high-power motors require controlled starting and stopping. Typical applications include pumps, fans, compressors, conveyors, and process machinery where uncontrolled motor starting can result in high inrush current or mechanical stress.
For maintenance engineers, the PSPCB-690/T should be evaluated as part of the complete PST/PSTB power-control assembly. Fault diagnosis may require checking the control board, power semiconductors, drive circuitry, wiring, protection functions, and motor circuit together.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PSPCB-690/T |
| Part Number | 1SFA899020R7690 |
| Product Family | PST / PSTB Softstarter |
| Product Type | Softstarter High Voltage Circuit Board |
| Primary Function | High-voltage power-control circuitry |
| System Role | Softstarter power-control interface |
| Application | Industrial motor starting and control |
| Dimensions | 250 × 35 × 230 mm |
| Weight | 0.4 kg |
Product Features
- High-voltage circuit board for ABB PST/PSTB softstarter systems
- Supports circuitry associated with the softstarter power section
- Interfaces with the internal control and switching architecture
- Suitable for high-power industrial motor-control applications
- Works with associated PST/PSTB control and power components
- Applicable to softstarter service and replacement requirements
- Supports controlled motor starting and stopping within the complete softstarter assembly
Working Principle
The PSPCB-690/T operates within the high-voltage circuitry of the PST/PSTB softstarter. Control commands generated by the softstarter’s electronic control section are transferred to the relevant power-control circuitry, where the high-voltage switching process is managed.
During motor starting, the softstarter regulates the application of electrical power so that the motor accelerates under controlled conditions. The PSPCB-690/T forms part of the circuit path supporting this switching operation rather than independently determining the complete starting sequence.
During stopping, the same power-control architecture can be used to execute the configured stopping behavior. The circuit board therefore works together with the control electronics, power semiconductors, and protection circuitry throughout the operating cycle.
PST / PSTB Control Electronics → PSPCB-690/T → High-Voltage Power Circuit → Motor
Correct operation depends on the condition of the complete power-control circuit. A failure in the circuit board, power devices, connectors, or associated control circuitry can prevent the softstarter from applying the expected motor voltage.
Role in an ABB PST / PSTB Softstarter Control Architecture
The 1SFA899020R7690 is positioned within the high-voltage power-control portion of the PST/PSTB softstarter. It works alongside the control electronics and power-switching components to transfer the required control action into the motor power circuit.
PLC / Control Circuit → PST/PSTB Control Section → High-Voltage Circuit Board → Power Switching Section → Motor
| System Element | Function |
|---|---|
| PLC / Controller | Sends motor operating commands |
| Control Circuit | Provides start, stop, and auxiliary signals |
| PST / PSTB Control Section | Processes softstarter operating logic |
| PSPCB-690/T | Supports high-voltage power-control circuitry |
| Power Switching Section | Controls electrical power applied to the motor |
| Motor Protection | Monitors and protects the motor circuit |
| Motor | Converts electrical power into mechanical output |
| Driven Equipment | Performs the required industrial process |
The circuit board is therefore a component within the softstarter power architecture and relies on the associated control and switching hardware for complete motor-control operation.
Industrial Applications
| Application | Typical Use |
|---|---|
| Pump Systems | Controlled starting and stopping of industrial pumps |
| HVAC Equipment | Soft starting of large fans and blowers |
| Compressor Systems | Managing motor acceleration during compressor startup |
| Conveyor Systems | Reducing mechanical stress during conveyor startup |
| Water Treatment | Starting high-power pumps and process motors |
| Process Machinery | Controlled motor operation in production equipment |
| Material Handling | Soft starting of heavy-duty motor-driven equipment |
| Industrial Plants | High-power motor control within automated systems |
Installation and Maintenance
- Confirm that the PSPCB-690/T and part number 1SFA899020R7690 match the installed PST/PSTB softstarter configuration.
- Isolate the softstarter from all electrical energy sources before accessing the internal circuit board.
- Observe the required discharge and safety procedures for the high-voltage power section.
- Document existing board connections and connector positions before removing the original board.
- Use appropriate ESD precautions when handling the replacement circuit board.
- Inspect connectors, terminals, and circuit-board interfaces for contamination or physical damage.
- Check the surrounding power-switching components for signs of overheating, arcing, or abnormal operation.
- Install the replacement board in the correct position and ensure all connections are fully seated.
- Verify internal wiring against the approved PST/PSTB electrical documentation.
- Restore control power and check the softstarter’s diagnostic and status indications.
- Perform a controlled motor-start and stopping test while monitoring the power-control response.
- Verify protection functions, control signals, and normal motor operation before returning the softstarter to service.
Compatible System Components
| Component | Function |
|---|---|
| ABB PST Softstarter | Softstarting and motor-control system |
| ABB PSTB Softstarter | High-power softstarting system |
| PST / PSTB Control Board | Processes softstarter control functions |
| High-Voltage Power Section | Switches and regulates motor power |
| Power Semiconductors | Perform controlled high-power switching |
| Motor Protection Devices | Protect the motor and electrical circuit |
| PLC / Controller | Provides automatic motor-control commands |
| HMI / Operator Interface | Provides local operation and status monitoring |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB PST Softstarter Series | Softstarter | Industrial motor starting and control |
| ABB PSTB Softstarter Series | Softstarter | High-power motor starting |
| ABB PST/PSTB Circuit Boards | Circuit Board | Internal softstarter control circuitry |
| ABB PST/PSTB Control Boards | Control Board | Softstarter control and processing |
| ABB PST/PSTB Power Sections | Power-Control Section | High-power motor switching |
| ABB PST/PSTB Accessories | Softstarter Accessories | Installation and maintenance |
Key Advantages
- Supports the high-voltage power-control circuitry of PST/PSTB softstarters.
- Works with the softstarter control section to manage motor power switching.
- Suitable for high-power industrial motor applications.
- Helps maintain the intended electrical switching path within the softstarter.
- Useful for troubleshooting and replacement of internal PST/PSTB circuit-board components.
- Integrates with the broader PST/PSTB control and power architecture.
Technical FAQs
What is the function of the PSPCB-690/T circuit board?
The PSPCB-690/T forms part of the high-voltage circuitry inside compatible PST/PSTB softstarters. It works with the control and power-switching sections to support controlled motor power operation.
What symptoms may point to a fault in the high-voltage circuit board?
Possible symptoms include abnormal softstarter operation, failure of the power section to switch as expected, diagnostic faults, or a motor that does not respond correctly to a start command. The power semiconductors, control circuitry, and wiring should also be checked.
Why should the power section be inspected when replacing the PSPCB-690/T?
The circuit board operates as part of the high-voltage switching assembly. Damaged power devices, overheating, loose connections, or other power-section problems can create symptoms that resemble a circuit-board failure.
What should be verified after installing a replacement PSPCB-690/T?
Check the board connections and internal wiring first, then verify softstarter initialization, diagnostic indications, control signals, and protection functions. A controlled motor-start and stopping test should be completed before returning the equipment to normal operation.
