Product Overview

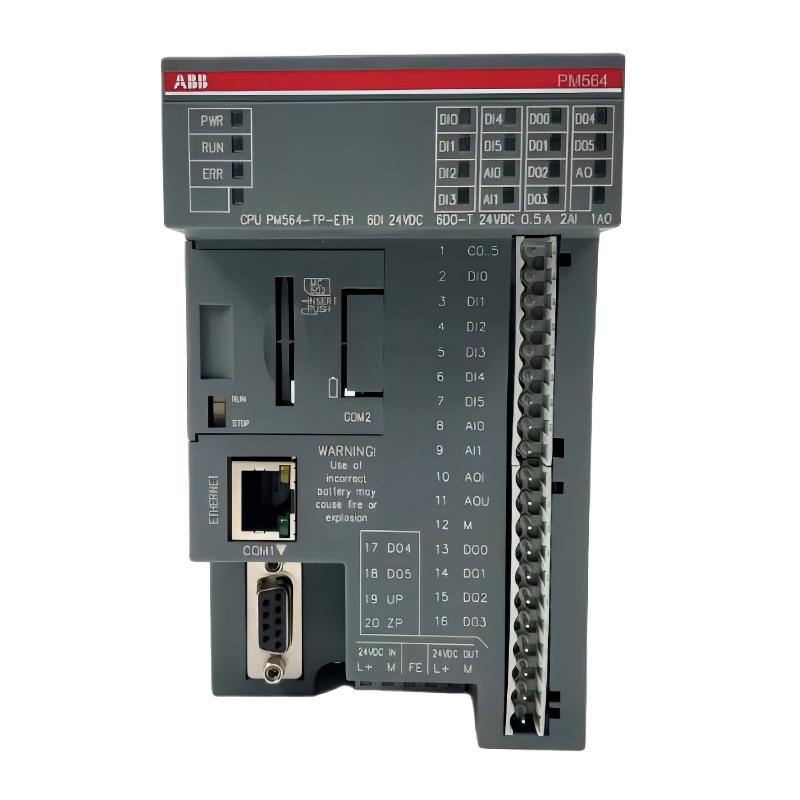

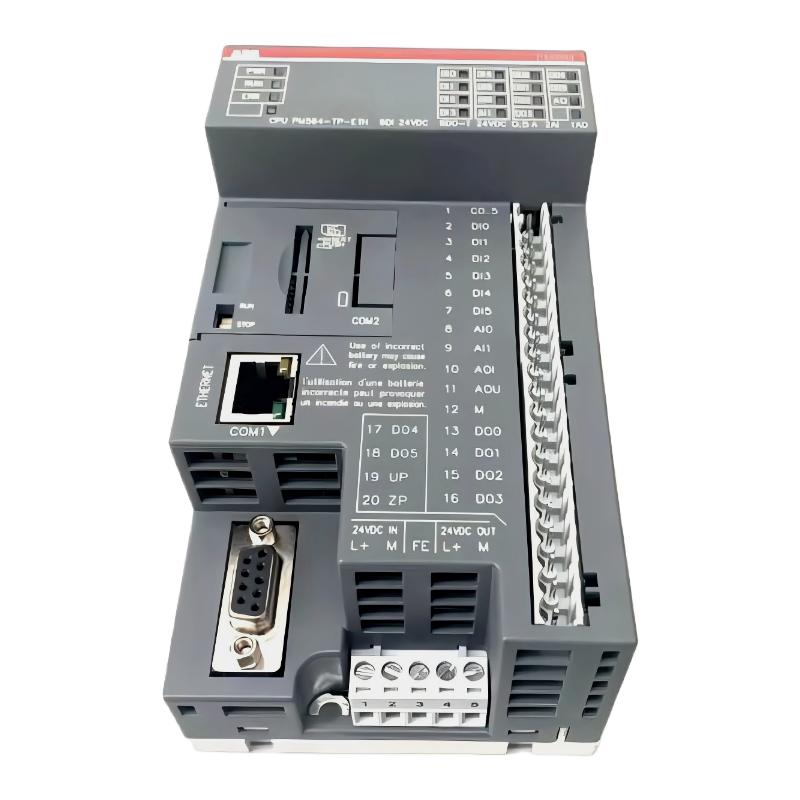

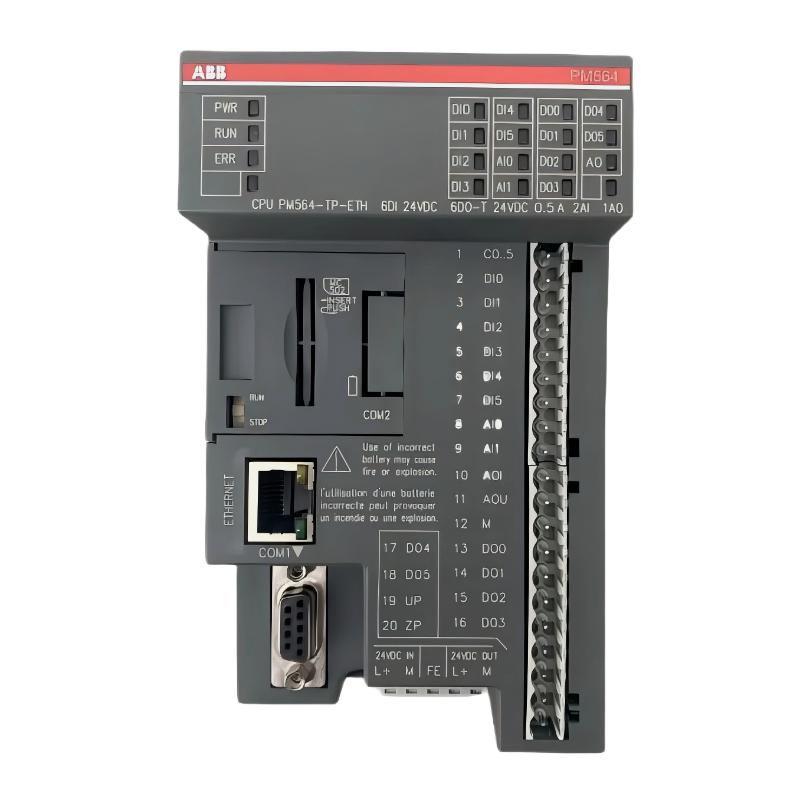

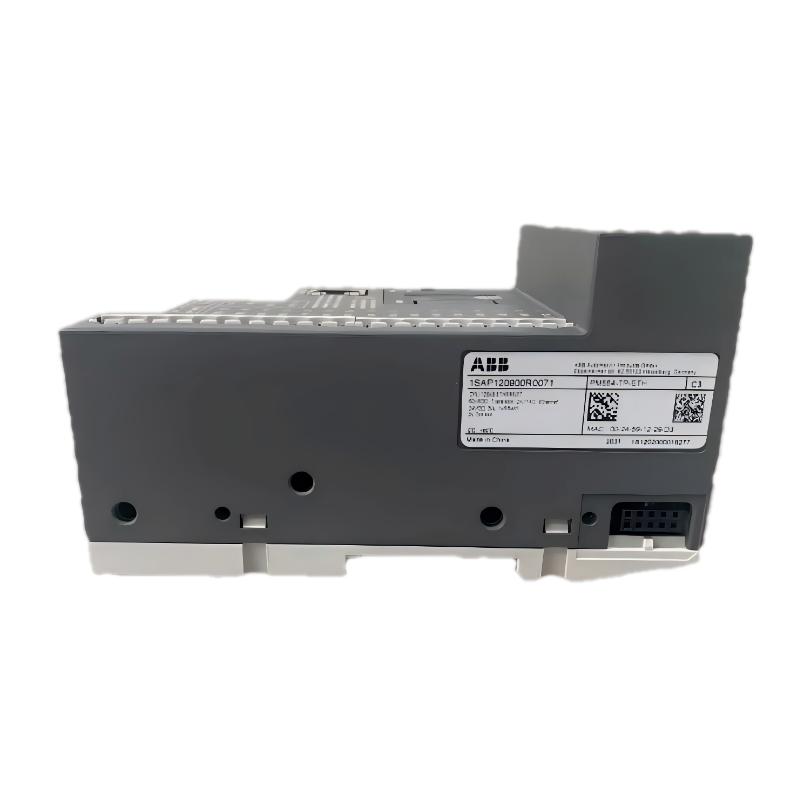

The ABB PM564-TP-ETH (Part Number: 1SAP120900R0071) is a compact CPU Programmable Logic Controller (PLC) from the ABB AC500-eCo series. It is designed for small to medium industrial automation applications that require integrated control, basic I/O handling, and industrial communication in a single device.
This model combines a PLC CPU, onboard digital and analog I/O, Ethernet communication, RS485 serial connectivity, and expansion capability, making it suitable for standalone machine control and simple process automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM564-TP-ETH |
| Part Number | 1SAP120900R0071 |
| Product Type | CPU Programmable Logic Controller |
| PLC Series | AC500-eCo |
| Program Memory | 128 kB |
| Digital Inputs | 6 × 24 V DC |
| Digital Outputs | 6 × Transistor Outputs |
| Analog Inputs | 2 × AI |
| Analog Outputs | 1 × AO |
| Communication Interfaces | 1 × Industrial Ethernet, 1 × RS485 |
| Expansion Capability | 2 Option Slots |
| Supply Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.29 kg |
Function and Working Principle
The PM564-TP-ETH operates as a compact all-in-one PLC controller. It continuously reads input signals from field devices, executes the stored control program cyclically, and updates outputs in real time.
The integrated CPU processes logic instructions, while Ethernet enables communication with HMIs, SCADA systems, and engineering software. RS485 supports industrial protocols such as Modbus RTU, and onboard I/O reduces the need for external modules in small systems.
Operating Sequence
- Field devices send signals to digital/analog inputs
- CPU scans inputs cyclically
- PLC program is executed in real time
- Outputs are updated (digital + analog)
- Communication data is exchanged via Ethernet or RS485
Key Features
- Compact all-in-one PLC CPU module
- Integrated digital and analog I/O
- Industrial Ethernet communication
- RS485 serial communication support
- 128 kB program memory
- 6 digital inputs / 6 transistor outputs
- 2 analog inputs and 1 analog output
- 2 expansion option slots
- DIN rail mounting design
- Suitable for standalone machine automation
System Role
The PM564-TP-ETH is designed as a standalone PLC controller for small automation systems, reducing the need for separate CPU and I/O modules.
Typical System Architecture
Sensors → PM564-TP-ETH PLC CPU → Actuators
↘ Ethernet / RS485 → HMI / SCADA / Field Devices
Industrial Applications
The PM564-TP-ETH is widely used in:
- Small machine automation
- Conveyor systems
- Pump and motor control
- Packaging machinery
- HVAC systems
- Building automation
- OEM equipment control
- Simple process control systems
Installation Guidelines
- Mount on DIN rail inside control cabinet
- Supply stable 24 V DC power
- Wire field I/O according to terminal layout
- Configure Ethernet and RS485 communication
- Load PLC program via ABB engineering software
- Verify I/O and communication before commissioning
Compatible Components
The PM564-TP-ETH is compatible with:
- ABB AC500-eCo expansion modules
- ABB HMI panels
- SCADA systems
- Modbus RTU devices
- Industrial Ethernet switches
- ABB Automation Builder software
Alternative Models
| Model | Description |
|---|---|
| PM5630-2ETH | Higher-performance processor module |
| PM5620-2ETH | Mid-range AC500 CPU |
| PM564-T | Base CPU variant |
| PM5052-T-ETH | Modular PLC processor |
| PM5072-T-2ETH | Dual Ethernet processor module |
Advantages
- Compact integrated PLC solution
- Built-in analog + digital I/O reduces wiring
- Ethernet + RS485 communication flexibility
- Cost-effective for small automation systems
- Easy installation and programming
- Reliable ABB industrial design
Frequently Asked Questions
What is the PM564-TP-ETH used for?
It is used for small industrial automation systems, including machine control and basic process control applications.
Does it support expansion modules?
Yes, it supports AC500-eCo expansion I/O modules via option slots.
What communication interfaces are available?
It includes Ethernet and RS485, enabling integration with HMIs, SCADA, and field devices.
Is it suitable for advanced motion control?
No, it is intended for basic automation tasks, not high-performance motion systems.
Conclusion
The ABB PM564-TP-ETH (1SAP120900R0071) is a compact all-in-one PLC controller in the ABB AC500-eCo family. With integrated digital and analog I/O, Ethernet and RS485 communication, and a space-efficient design, it is well suited for small-scale industrial automation, machine control, and simple process applications.
