- ABB
- PM554-T-ETH 1TNE968900R0110
- CPU Programmable Logic Controller
- Sweden (SE)
- 74 × 135 × 82 mm
- 0.281 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 11
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

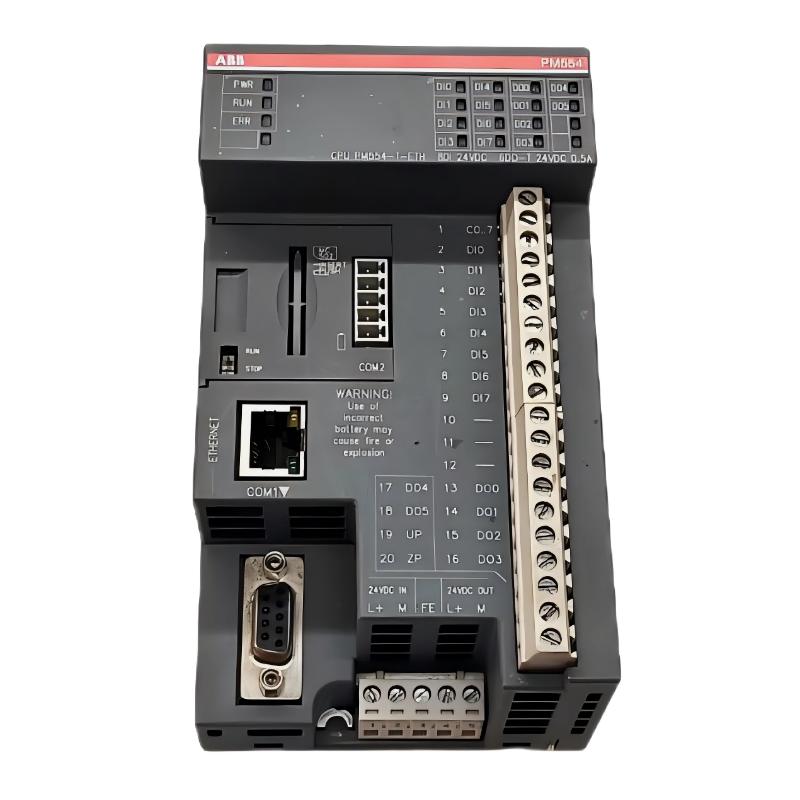

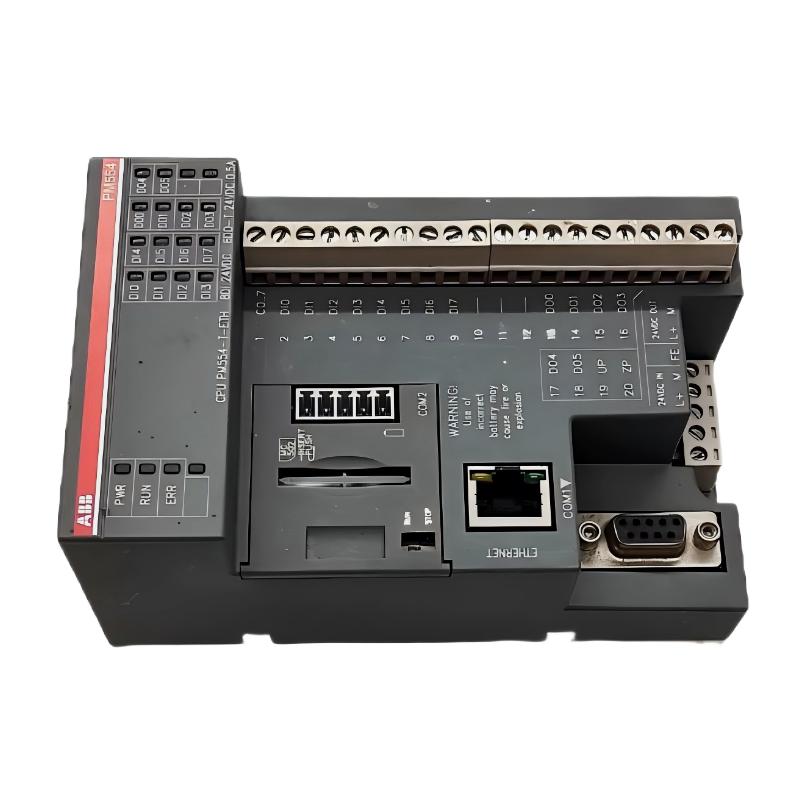

The ABB PM554-T-ETH (1TNE968900R0110) is a CPU Programmable Logic Controller (PLC) from the ABB AC500-eCo platform. It integrates processing, onboard I/O, and Ethernet communication in a compact DIN-rail-mounted unit, making it suitable for small to medium industrial automation systems.
It is designed for applications requiring fast control response, network connectivity, and flexible expansion capability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | PM554-T-ETH |
| Part Number | 1TNE968900R0110 |
| Product Type | CPU Programmable Logic Controller |
| System Compatibility | ABB AC500-eCo PLC |
| Function | PLC CPU with integrated I/O and Ethernet communication |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR + system memory |
| Digital Inputs | 8 × 24 V DC |
| Digital Outputs | 6 × transistor outputs |
| Communication Interfaces | Ethernet, RS485 |
| Programming Interfaces | Ethernet / Serial |
| Expansion Capability | Supports AC500-eCo expansion modules |
| Programming Standard | IEC 61131-3 |
| Power Supply | 24 V DC |
| Diagnostics | LED status indicators (Power, Run, Error, I/O status) |
| Installation Type | DIN rail mounting |
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.281 kg |
Function and Working Principle
The PM554-T-ETH operates as a compact industrial PLC CPU with integrated communication capabilities.
Its main functions include:
- Executing user-defined PLC control programs
- Processing digital input signals from field devices
- Controlling transistor outputs for actuators and relays
- Managing real-time automation logic and sequencing
- Providing Ethernet-based communication for SCADA/HMI integration
- Supporting RS485 communication (e.g., Modbus RTU)
- Coordinating expansion I/O modules
The controller follows a deterministic scan cycle:
Input acquisition → Program execution → Output update → Communication exchange
Role in Industrial Control Systems
Within the ABB AC500-eCo ecosystem, the PM554-T-ETH functions as:
- The central CPU for compact automation systems
- A network-enabled controller via Ethernet interface
- A machine-level control unit for sequencing and logic control
- A communication node for industrial protocols
- A diagnostic and system monitoring device
Industrial Applications
The PM554-T-ETH is widely used in:
- Factory automation systems
- Packaging machinery
- Conveyor and material handling systems
- HVAC control systems
- Water and wastewater treatment plants
- Food and beverage processing
- Building automation
- General industrial machine control
Installation and System Integration
- Mount on DIN rail inside electrical control cabinet
- Connect 24 V DC power supply
- Wire sensors to digital inputs and actuators to outputs
- Configure logic using ABB AC500 engineering tools
- Connect Ethernet network for SCADA/HMI communication
- Use RS485 for Modbus RTU or field device integration
- Expand system with AC500-eCo I/O modules if required
Compatible System Components
- ABB AC500-eCo digital I/O modules
- ABB AC500 communication modules
- HMI operator panels
- SCADA systems
- Industrial sensors and actuators
- Modbus RTU / TCP devices
- Relay and contactor systems
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| PM554-T-ETH | CPU PLC | Ethernet-enabled compact controller | Networked automation systems |
| PM554-T | CPU PLC | Non-Ethernet variant | Basic machine control |
| PM564-T-ETH | CPU PLC | Higher performance | Complex automation systems |
| PM573-ETH | CPU PLC | Advanced Ethernet communication | Industrial networking |
Key Advantages
- Integrated Ethernet communication for industrial networking
- Compact all-in-one PLC design
- Built-in I/O reduces external wiring complexity
- Reliable real-time control performance
- Supports IEC 61131-3 programming standard
- RS485 communication for field devices
- Easy DIN rail installation
- Suitable for continuous industrial operation
Technical FAQs
Q1: What is the main function of PM554-T-ETH?
It is a compact PLC CPU that executes control logic and provides Ethernet-based industrial communication.
Q2: What communication interfaces does it support?
It supports Ethernet and RS485 interfaces.
Q3: Does it include onboard I/O?
Yes, it includes 8 digital inputs and 6 transistor outputs.
Q4: What is its power supply requirement?
It operates on 24 V DC power supply.
Conclusion
The ABB PM554-T-ETH (1TNE968900R0110) is a compact and network-capable PLC CPU designed for the AC500-eCo platform. With integrated I/O, Ethernet communication, and reliable real-time control, it is ideal for industrial machine automation, building systems, and distributed control applications.
