Product Overview

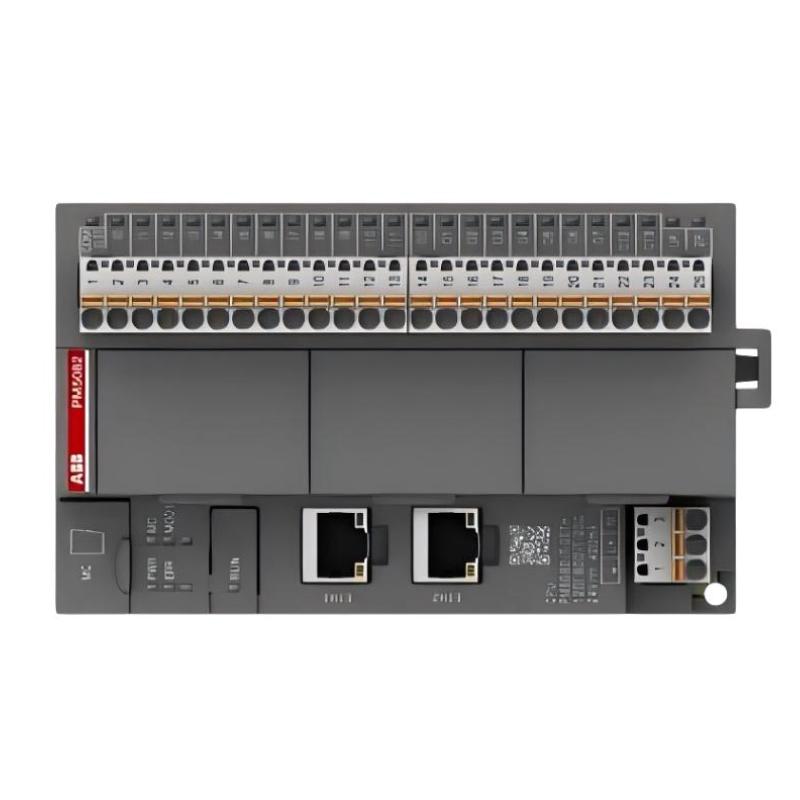

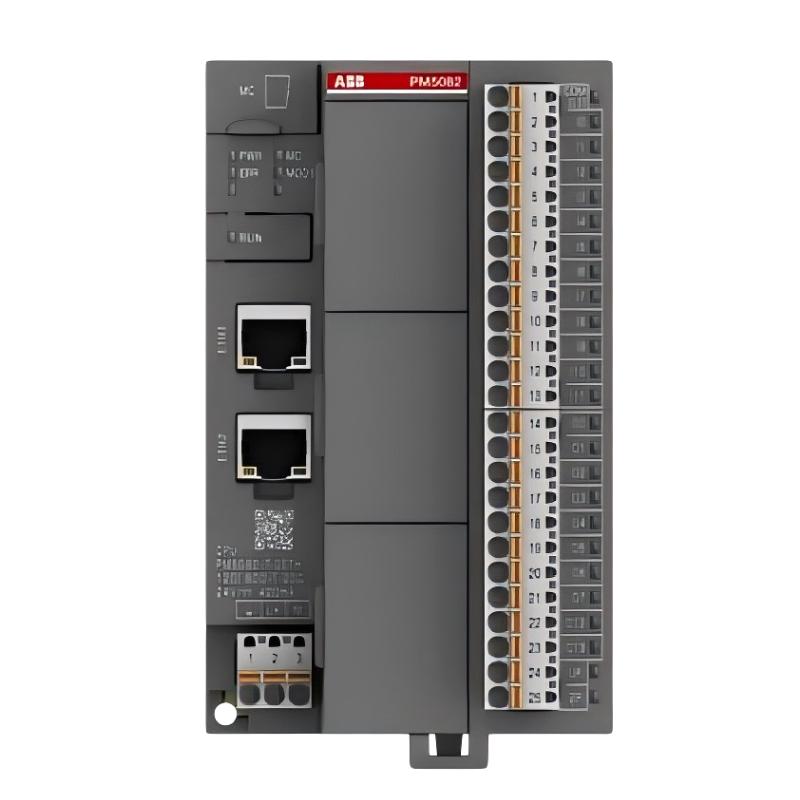

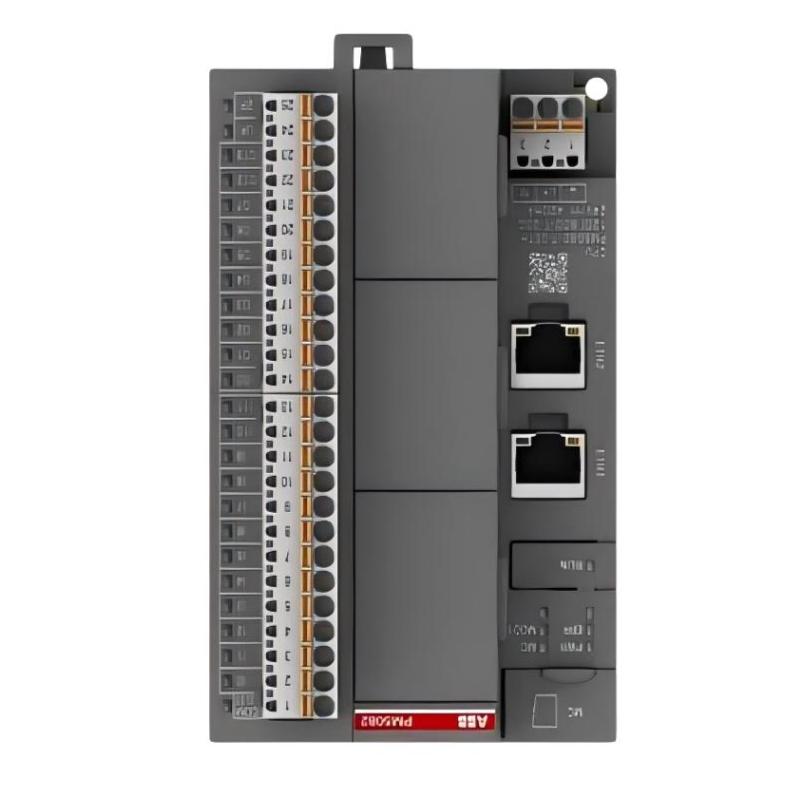

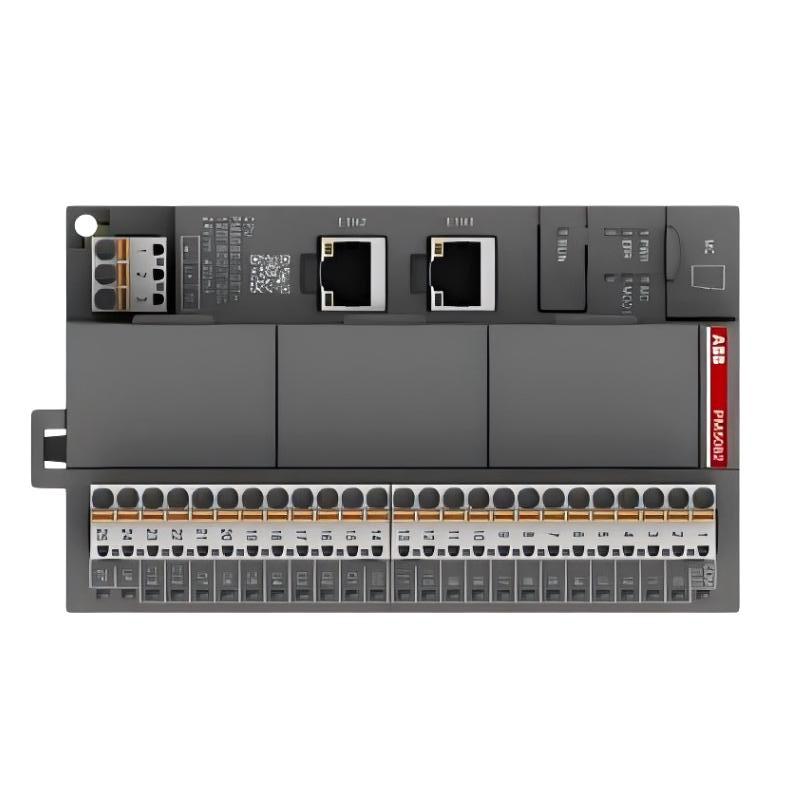

The ABB PM5082-MC-KIT-EC-EIP (Part Number: 1SAP125300R0173) is a high-performance Machine Control Kit designed for the ABB AC500-eCo PLC platform. It combines a powerful processor module, motion control functionality, and integrated EtherCAT and EtherNet/IP runtime capabilities into a complete solution for advanced machine automation.
Designed for high-speed industrial applications, the kit delivers precise multi-axis motion control, deterministic communication, and seamless integration with servo drives, HMIs, and industrial networks. It is an ideal solution for complex automation systems requiring synchronized motion and real-time control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PM5082-MC-KIT-EC-EIP |
| Part Number | 1SAP125300R0173 |
| Product Type | Machine Control Kit |
| PLC Platform | AC500-eCo |
| Processor | PM5082-T-2ETH |
| Program Memory | 18 MB |
| RAM | 9100 kB |
| Digital Inputs | 12 × 24 V DC |
| Digital Outputs | 8 × 24 V DC Transistor Outputs, 0.5 A |
| Configurable I/O | 2 × Configurable Digital I/O |
| Communication Interfaces | 2 × Industrial Ethernet |
| Motion Control | Integrated Multi-axis Motion Control |
| Industrial Protocols | EtherCAT, EtherNet/IP |
| Expansion Slots | 3 Option Slots |
| Supply Voltage | 20.4–28.8 V DC |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Dimensions | 250 × 110 × 180 mm |
| Weight | 0.363 kg |
Function and Working Principle
The PM5082-MC-KIT-EC-EIP operates as the central controller of an industrial automation system. It acquires input signals, executes PLC and motion control programs, calculates synchronized motion profiles, and transmits commands to servo drives through high-speed industrial communication networks.
Its integrated EtherCAT and EtherNet/IP capabilities allow deterministic communication with distributed devices while maintaining precise coordination of multiple motion axes.
Operating Sequence
- Sensors and field devices transmit real-time input data.
- The processor executes PLC and motion control programs.
- Motion algorithms calculate position, velocity, and acceleration.
- Control commands are transmitted to servo drives through industrial networks.
- Continuous feedback ensures accurate and synchronized machine operation.
Key Features
- Complete machine control solution
- PM5082-T-2ETH processor module
- 18 MB program memory
- 9100 kB RAM
- Integrated multi-axis motion control
- Dual Industrial Ethernet interfaces
- EtherCAT and EtherNet/IP support
- 12 digital inputs and 8 transistor outputs
- Three expansion option slots
- Compact DIN rail installation
System Role
The PM5082-MC-KIT-EC-EIP serves as the central machine controller in industrial automation systems, integrating PLC control, motion control, and industrial networking into a single platform.
Typical System Architecture
Sensors → PM5082-MC-KIT-EC-EIP Machine Control Kit → EtherCAT / EtherNet/IP Network → Servo Drives → Servo Motors → Industrial Machine
Industrial Applications
The PM5082-MC-KIT-EC-EIP is widely used in:
- Robotics
- Packaging machinery
- CNC equipment
- Material handling systems
- Conveyor automation
- Pick-and-place machines
- Printing machinery
- Textile machinery
- Semiconductor manufacturing
- General industrial automation
Installation Guidelines
- Install the controller components on a standard DIN rail.
- Connect a regulated 24 V DC power supply.
- Wire digital inputs, outputs, and motion devices according to the application design.
- Configure EtherCAT and EtherNet/IP network parameters.
- Install optional expansion modules if required.
- Verify communication, motion parameters, and safety settings before commissioning.
Compatible Components
The PM5082-MC-KIT-EC-EIP is compatible with:
- ABB AC500-eCo Expansion I/O Modules
- ABB Servo Drives
- ABB Servo Motors
- ABB Human Machine Interfaces (HMI)
- SCADA Systems
- EtherCAT Devices
- EtherNet/IP Devices
- Industrial Ethernet Switches
Alternative Models
| Model | Description |
|---|---|
| PM5072-MC-KIT | Motion Controller Kit |
| PM5082-MC-KIT-EC | Machine Control Kit with EtherCAT |
| PM5082-T-2ETH | Processor Module |
| PM5072-T-2ETH | Processor Module |
| PM5052-MC-KIT | Motion Controller Kit |
Advantages
- Complete machine control platform
- Integrated PLC and motion control
- High-speed 18 MB program memory
- Dual Industrial Ethernet communication
- Native EtherCAT and EtherNet/IP support
- High-speed multi-axis synchronization
- Flexible system expansion
- Reliable industrial-grade performance
- Easy programming and maintenance
Frequently Asked Questions
What is the PM5082-MC-KIT-EC-EIP used for?
It is used for advanced industrial machine automation, combining PLC control, multi-axis motion control, EtherCAT, and EtherNet/IP communication in one integrated platform.
What processor is included in the kit?
The kit includes the PM5082-T-2ETH Processor Module.
How much memory does the controller provide?
The controller provides 18 MB of program memory and 9100 kB of RAM.
Which industrial communication protocols are supported?
The kit supports EtherCAT and EtherNet/IP, along with dual Industrial Ethernet interfaces.
Can the controller be expanded?
Yes. The system includes three option slots for communication and application-specific expansion modules.
Conclusion
The ABB PM5082-MC-KIT-EC-EIP (1SAP125300R0173) Machine Control Kit is a powerful automation solution for the AC500-eCo PLC platform. Equipped with the PM5082-T-2ETH Processor Module, 18 MB program memory, 9100 kB RAM, 12 digital inputs, 8 transistor outputs, integrated multi-axis motion control, EtherCAT, EtherNet/IP, and dual Industrial Ethernet interfaces, it delivers exceptional performance, precise motion control, and flexible networking for demanding industrial automation applications.
