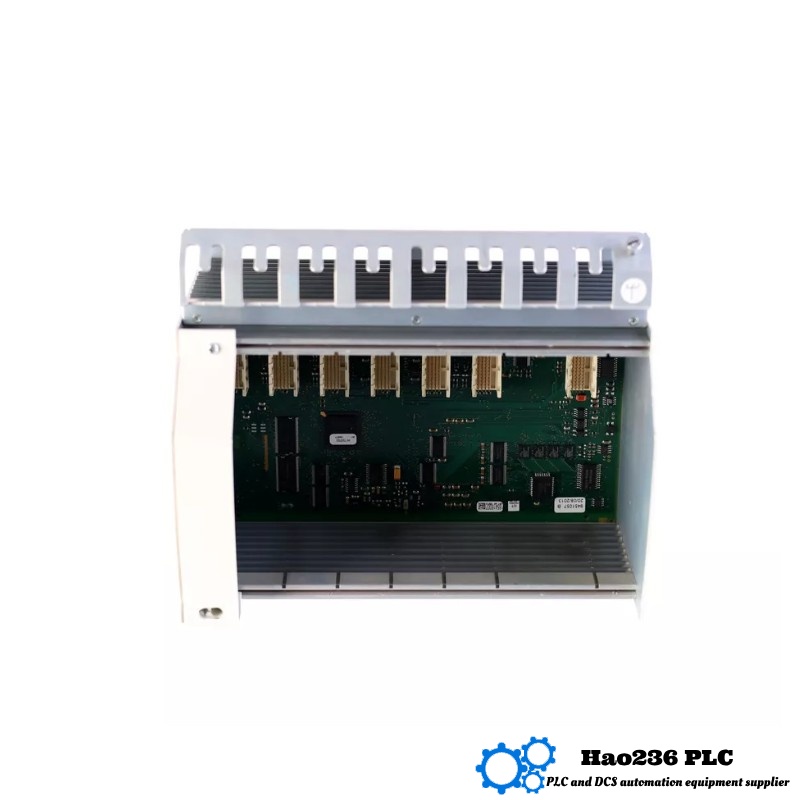

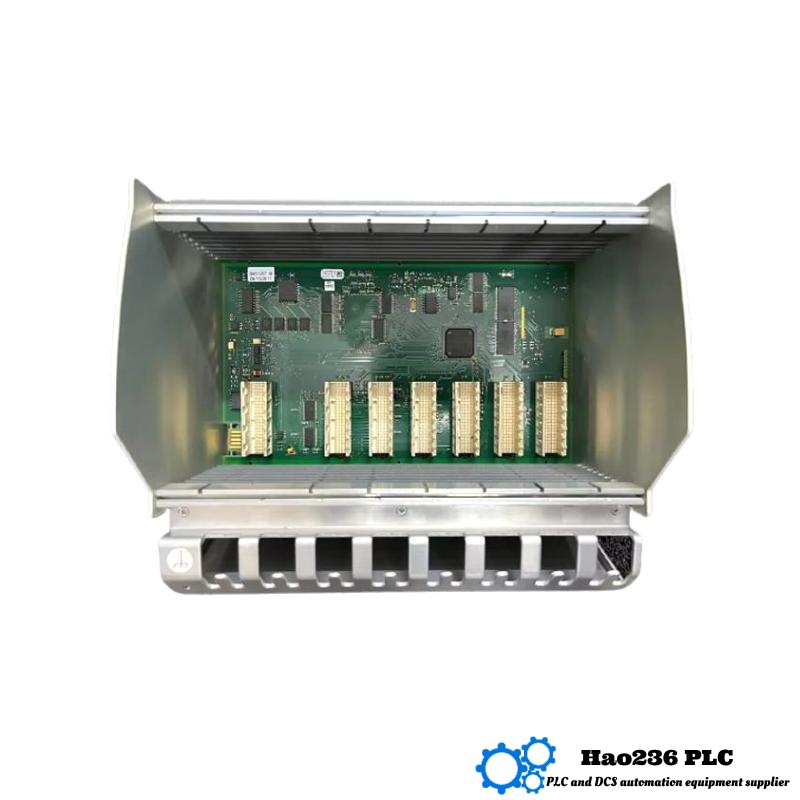

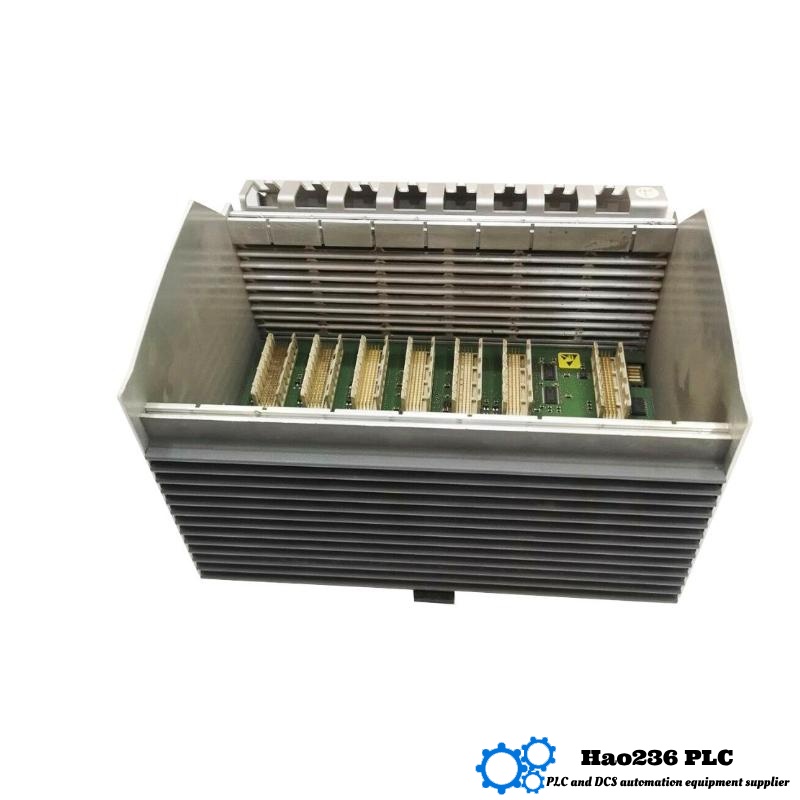

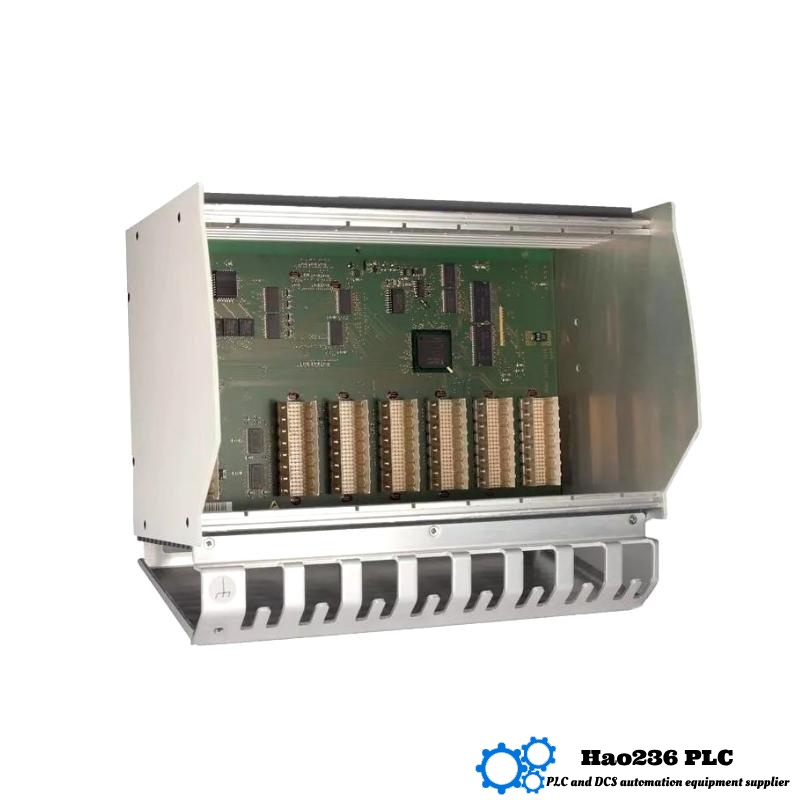

ABB PM 803F 3BDH000530R1 Drive Module Unit
Product Introduction
The ABB PM 803F 3BDH000530R1 is a powerful and efficient drive module unit designed for demanding industrial automation applications. Part of the ABB PM 803 family, this module is engineered to control and monitor various types of electrical drives, ensuring high performance, reliability, and scalability. The PM 803F unit is typically used in complex control systems and offers a range of advanced features designed to optimize energy efficiency and system performance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ABB PM 803F 3BDH000530R1 |
| Dimensions | 164 mm × 202 mm × 239 mm |
| Weight | 1.6 kg |
| Input Voltage Range | 380–480 V AC |
| Output Voltage Range | 0–400 V DC |
| Communication Interface | EtherCAT, Modbus, Profibus |
| Control Mode | Vector control, V/F control |
| Power Supply | 3-phase, 50/60 Hz |
| Temperature Range | –10°C to +50°C |
| Cooling | Fan-cooled |
| Mounting | DIN rail mount |
Applications
The ABB PM 803F 3BDH000530R1 is ideal for a wide range of applications in industries such as:
-
Automated production lines: Precision and speed are key in manufacturing processes.
-
Pumps and fans: Efficient control and regulation of variable-speed motors.
-
Conveyor systems: Ensures smooth and reliable operation.
-
HVAC systems: Optimizes energy usage and temperature control.
-
Elevator systems: Provides smooth motion and energy-saving capabilities.
Advantages
-
High Efficiency: The PM 803F offers high energy efficiency, minimizing power consumption while maximizing system performance.
-
Advanced Communication: With EtherCAT, Modbus, and Profibus communication options, it ensures seamless integration into a variety of automation systems.
-
Scalability: It can be easily integrated into small to large-scale systems, making it a flexible choice for different applications.
-
Reliable Control: Offers precise motor control capabilities, including vector control and V/F control for different types of loads.
-
Compact Design: The small footprint (164 mm × 202 mm × 239 mm) and lightweight design (1.6 kg) make it easy to install in space-constrained environments.
Brand: ABB
ABB is a global leader in electrification and automation, known for its high-quality, reliable, and innovative products. The company provides solutions across various sectors, including utilities, industry, transportation, and infrastructure. ABB’s products are trusted worldwide for their durability and cutting-edge technology.
Recommended Models in the Same Series or Related
| Model | Input Voltage | Output Voltage | Dimensions | Weight | Control Mode |
|---|---|---|---|---|---|
| ABB PM 803 3BDH000530R2 | 380–480 V AC | 0–400 V DC | 164 mm × 202 mm × 239 mm | 1.6 kg | Vector control |
| ABB PM 803F 3BDH000540R1 | 380–480 V AC | 0–400 V DC | 164 mm × 202 mm × 239 mm | 1.6 kg | V/F control |
| ABB PM 802F 3BDH000480R1 | 380–480 V AC | 0–400 V DC | 160 mm × 200 mm × 230 mm | 1.5 kg | Vector control |
| ABB PM 804F 3BDH000580R1 | 380–480 V AC | 0–400 V DC | 170 mm × 210 mm × 250 mm | 1.8 kg | V/F control |
| ABB PM 803C 3BDH000520R1 | 380–480 V AC | 0–400 V DC | 160 mm × 200 mm × 230 mm | 1.5 kg | Vector control |
Popular Models from ABB
| Model | Input Voltage | Output Voltage | Control Mode | Communication Interface |
|---|---|---|---|---|
| PM556-TP-ETH | 24 V DC | 24 V DC | Logic Control | Ethernet, Modbus |
| PM150V08 | 380–480 V AC | 0–400 V DC | V/F Control | Profibus, Modbus |
| PM 901F | 380–480 V AC | 0–500 V DC | Vector Control | EtherCAT, CANopen |
| PM556-T-ETH | 24 V DC | 24 V DC | Logic Control | Ethernet, Modbus |
| PM803C | 380–480 V AC | 0–400 V DC | Vector Control | EtherCAT, Modbus |
FAQ for ABB PM 803F 3BDH000530R1
Q1: What is the primary function of the ABB PM 803F 3BDH000530R1?
A1: The primary function of the ABB PM 803F 3BDH000530R1 is to control and monitor electrical drives in industrial automation systems.
Q2: How can the ABB PM 803F 3BDH000530R1 be connected to other devices?
A2: The PM 803F offers several communication options including EtherCAT, Modbus, and Profibus, making it compatible with a wide range of automation systems.
Q3: What type of control modes does the PM 803F support?
A3: The PM 803F supports vector control and V/F (Volts/Hz) control, which are suitable for a variety of motor types and applications.
Q4: What is the maximum operating temperature for the PM 803F?
A4: The maximum operating temperature for the PM 803F is +50°C.
Q5: Can the PM 803F be used in outdoor environments?
A5: The PM 803F is designed for indoor use and should be installed in environments that are free from excessive dust, moisture, and corrosive substances.
Q6: Is the PM 803F easy to install?
A6: Yes, the PM 803F is designed for easy installation with its compact size and DIN rail mounting feature.
Q7: What is the weight of the PM 803F?
A7: The PM 803F weighs 1.6 kg.
Q8: How does the PM 803F contribute to energy efficiency?
A8: The PM 803F uses advanced control algorithms and optimized power management to reduce energy consumption, making it a highly energy-efficient solution.
Q9: What protection features does the PM 803F offer?
A9: The PM 803F includes built-in protection against overvoltage, undervoltage, overcurrent, and overheating to ensure safe operation.
Q10: What is the lifespan of the PM 803F?
A10: The PM 803F is built for long-lasting performance, with a typical lifespan of several years when operated within its specified conditions.
