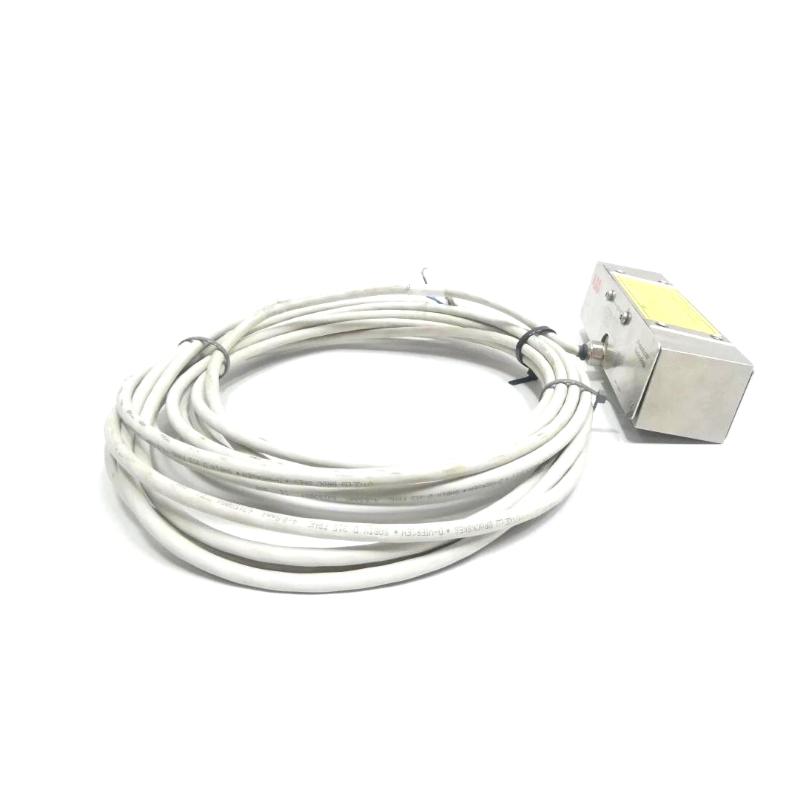

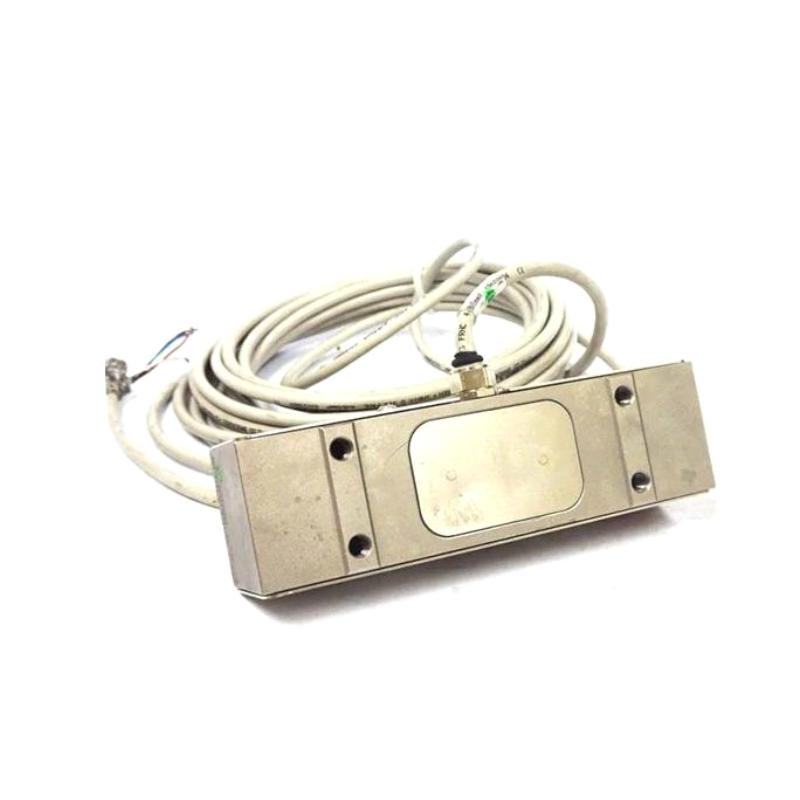

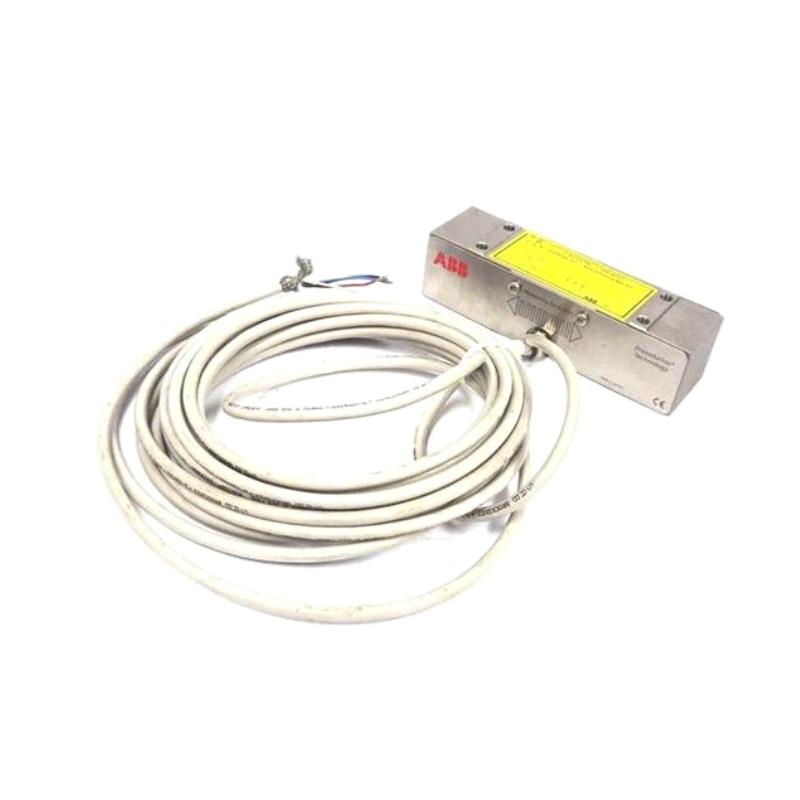

Product Profile: ABB PFTL301E-0.2KN
Product Code: 3BSE019050R200
Product Overview
The ABB PFTL301E-0.2KN is a highly sensitive industrial force sensor designed for precise low-force measurement applications. With a maximum capacity of 0.2 kilonewtons (kN), this sensor is ideal for delicate automation processes, laboratory testing, and robotics requiring accurate feedback at small loads.
Constructed using high-strength alloys and stainless steel, the sensor ensures high repeatability, minimal hysteresis, and robust performance in industrial and laboratory environments. The PFTL301E-0.2KN converts mechanical force into a reliable analog signal that can be used in control systems, measurement devices, or data acquisition systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PFTL301E-0.2KN |
| Brand | ABB |
| Series | PFTL Series |
| Product Code | 3BSE019050R200 |
| Maximum Force Capacity (kN) | 0.2 |
| Dimensions (mm) | 75 x 40 x 30 |
| Weight (kg) | 0.25 |
| Measurement Type | Compression / Tension |
| Accuracy (%) | ±0.5 |
| Operating Temperature (°C) | -10 ~ +70 |
| Material | Stainless steel / High-strength alloy |
| Output Signal | Analog voltage / Current signal |
| Mounting Type | Panel / Bracket mount |
| Applications | Low-force automation, robotics, laboratory testing, precision measurement |
Product Applications
-
Low-force measurement in industrial automation systems
-
Robotic grippers or manipulators requiring sensitive feedback
-
Laboratory testing and quality control for small-scale components
-
Force monitoring in precision assembly lines
-
Research and development in materials testing
-
Integration in control loops for sensitive equipment
Product Advantages
-
High sensitivity for low-force measurement up to 0.2 kN
-
High accuracy of ±0.5% ensures precise readings
-
Measures both compression and tension forces
-
Compact and lightweight design for easy integration
-
Stainless steel and high-strength alloy construction ensures durability
-
Stable analog output suitable for automated control systems
-
Minimal maintenance required
-
Reliable performance across a broad temperature range (-10°C to +70°C)
Related Models in the Same Series (PFTL Series)
| Model | Maximum Force (kN) | Dimensions (mm) | Weight (kg) | Accuracy (%) |
|---|---|---|---|---|
| PFTL301E-0.1KN | 0.1 | 70 x 38 x 28 | 0.22 | ±0.5 |
| PFTL301E-0.2KN | 0.2 | 75 x 40 x 30 | 0.25 | ±0.5 |
| PFTL301E-0.5KN | 0.5 | 80 x 45 x 32 | 0.28 | ±0.5 |
| PFTL302E-1KN | 1.0 | 85 x 50 x 35 | 0.35 | ±0.5 |
| PFTL303E-2KN | 2.0 | 90 x 55 x 38 | 0.4 | ±0.5 |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the primary function of the PFTL301E-0.2KN?
It measures small mechanical forces up to 0.2 kN and provides accurate analog output for monitoring and control.
QA2: What is the maximum force capacity?
The maximum force capacity is 0.2 kilonewtons.
QA3: Can it measure both compression and tension?
Yes, it can measure both compression and tension forces.
QA4: What is the measurement accuracy of this sensor?
The sensor provides ±0.5% accuracy.
QA5: What are the physical dimensions?
The dimensions are 75 x 40 x 30 mm.
QA6: How much does the sensor weigh?
It weighs approximately 0.25 kg.
QA7: What materials are used in the construction?
The sensor is made from stainless steel and high-strength alloys.
QA8: What is the operating temperature range?
It operates reliably from -10°C to +70°C.
QA9: What type of output does the sensor provide?
It provides analog voltage or current signals.
QA10: Where is this sensor typically applied?
It is used in low-force industrial automation, robotics, precision testing, laboratory experiments, and quality control processes.
