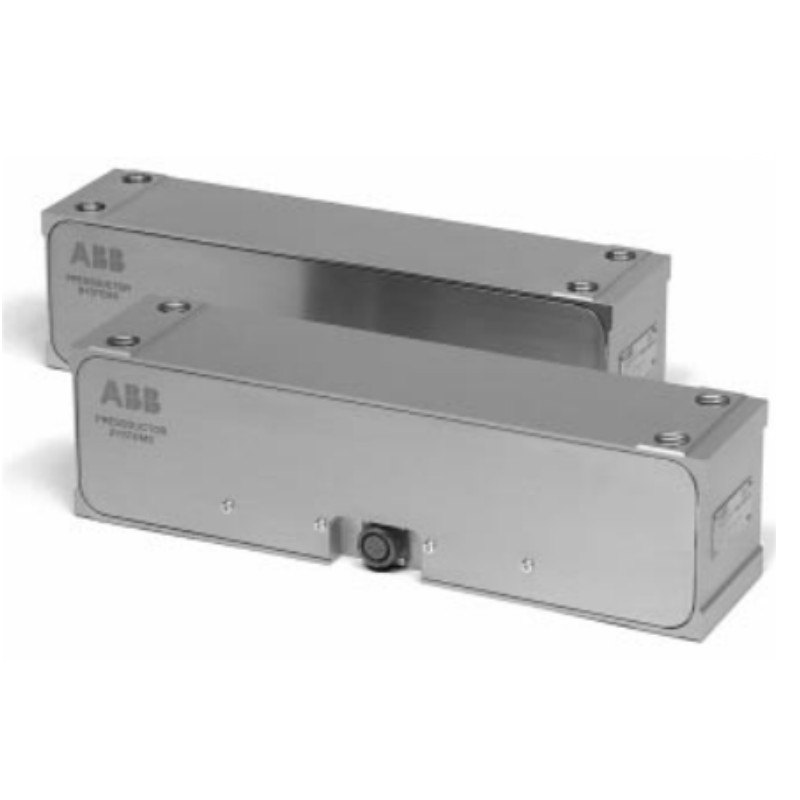

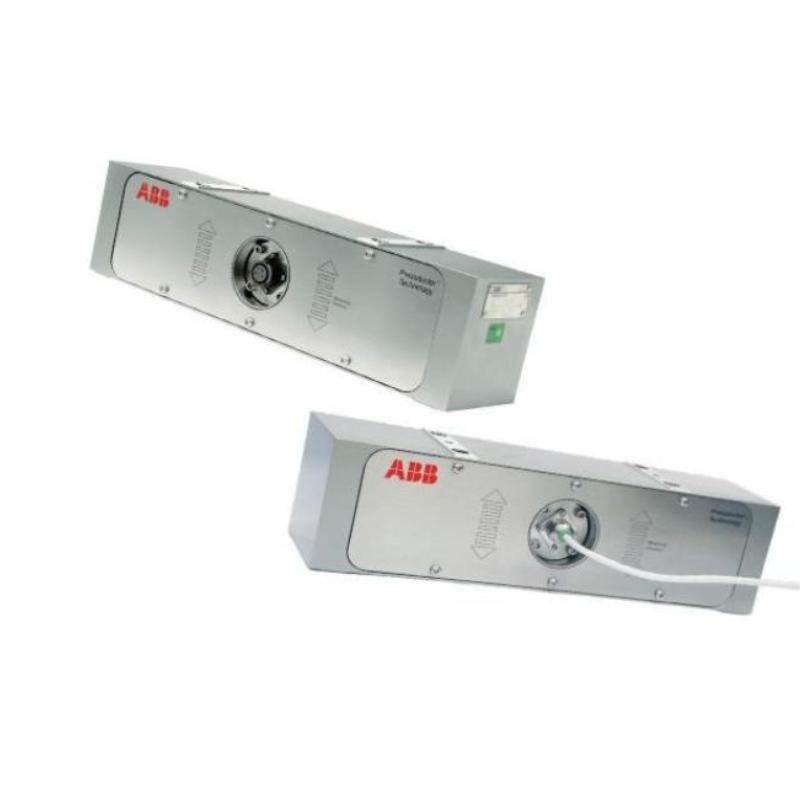

- Pressductor PillowBlock Load Cell
- Sweden
- 160 x 95 x 70 mm
- 1.5kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Profile: ABB PFTL211-CE / PFTL211CE
Product Overview
The ABB PFTL211-CE is a high-precision industrial force sensor designed to measure large mechanical forces with excellent repeatability and reliability. This model is capable of measuring forces in the high-range spectrum suitable for heavy industrial applications, robotic feedback systems, mechanical testing, and automation control.
It features a robust stainless steel construction combined with high-strength alloys, providing durability even under continuous or dynamic load conditions. The PFTL211-CE converts mechanical force into stable analog output signals that can be integrated into monitoring systems, control loops, or data acquisition setups. This makes it ideal for industrial machinery monitoring, automated production lines, and research applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PFTL211-CE / PFTL211CE |
| Brand | ABB |
| Series | PFTL Series |
| Maximum Force Capacity (kN) | 20 |
| Dimensions (mm) | 160 x 95 x 70 |
| Weight (kg) | 1.5 |
| Measurement Type | Compression / Tension |
| Accuracy (%) | ±1 |
| Operating Temperature (°C) | -10 ~ +70 |
| Material | Stainless steel / High-strength alloy |
| Output Signal | Analog voltage / Current signal |
| Mounting Type | Panel / Bracket mount |
| Applications | Heavy machinery monitoring, industrial automation, robotics, mechanical testing |
Product Applications
-
High-force measurement in industrial automation systems
-
Robotic manipulator force feedback
-
Mechanical testing and structural load evaluation
-
Monitoring forces in presses, assembly lines, and production machinery
-
Integration in automated control systems for feedback and safety
-
Research and development in mechanical engineering and industrial processes
Product Advantages
-
High measurement capacity up to 20 kN suitable for heavy industrial applications
-
High accuracy of ±1% ensures precise monitoring and control
-
Measures both compression and tension forces
-
Robust stainless steel and high-strength alloy construction for durability
-
Reliable performance across a wide industrial temperature range
-
Modular and compact design for easy integration
-
Minimal maintenance required
-
Provides stable analog outputs for integration with monitoring and control systems
Related Models in the Same Series (PFTL Series)
| Model | Maximum Force (kN) | Dimensions (mm) | Weight (kg) | Accuracy (%) |
|---|---|---|---|---|
| PFTL101B 5KN | 5 | 110 x 70 x 50 | 0.65 | ±1 |
| PFTL201C 10KN | 10 | 140 x 85 x 60 | 1.1 | ±1 |
| PFTL202C 15KN | 15 | 150 x 90 x 65 | 1.3 | ±1 |
| PFTL211-CE 20KN | 20 | 160 x 95 x 70 | 1.5 | ±1 |
| PFTL203C 25KN | 25 | 170 x 100 x 75 | 1.7 | ±0.8 |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the primary function of the PFTL211-CE?
It measures high mechanical forces up to 20 kN and provides reliable analog outputs for monitoring and control.
QA2: What is the maximum force capacity?
The sensor can measure up to 20 kilonewtons.
QA3: Can the PFTL211-CE measure both compression and tension forces?
Yes, it is capable of measuring both compression and tension forces.
QA4: What is the measurement accuracy of this sensor?
The sensor provides ±1% accuracy.
QA5: What are the dimensions of the PFTL211-CE?
The dimensions are 160 x 95 x 70 mm.
QA6: How much does the sensor weigh?
It weighs approximately 1.5 kg.
QA7: What materials are used in the sensor construction?
It is constructed from stainless steel and high-strength alloys.
QA8: What is the operating temperature range?
The sensor operates reliably between -10°C and +70°C.
QA9: What type of output does the sensor provide?
It provides analog voltage or current output signals suitable for industrial integration.
QA10: Where is this sensor typically applied?
It is used in heavy industrial automation, robotics, mechanical testing, load monitoring, and research & development applications.
