- ABB
- PFTL201C 10KN/PFTL201C-10KN

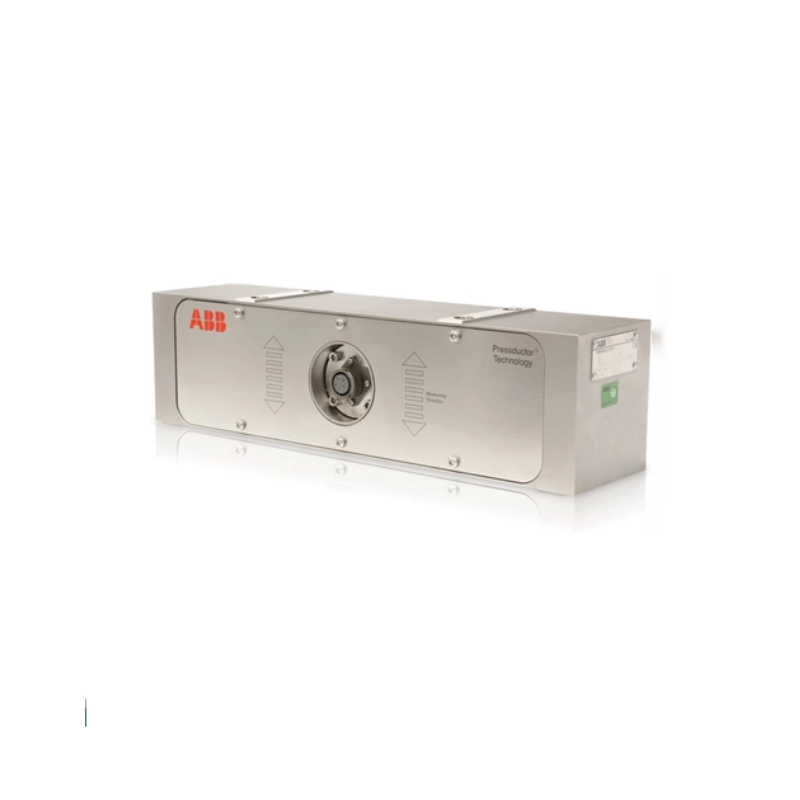

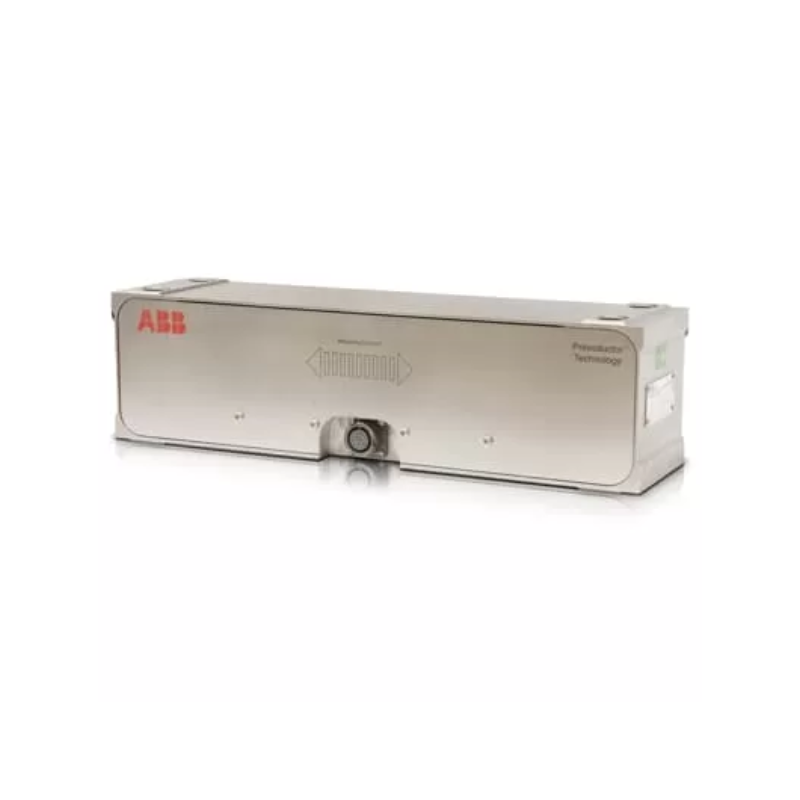

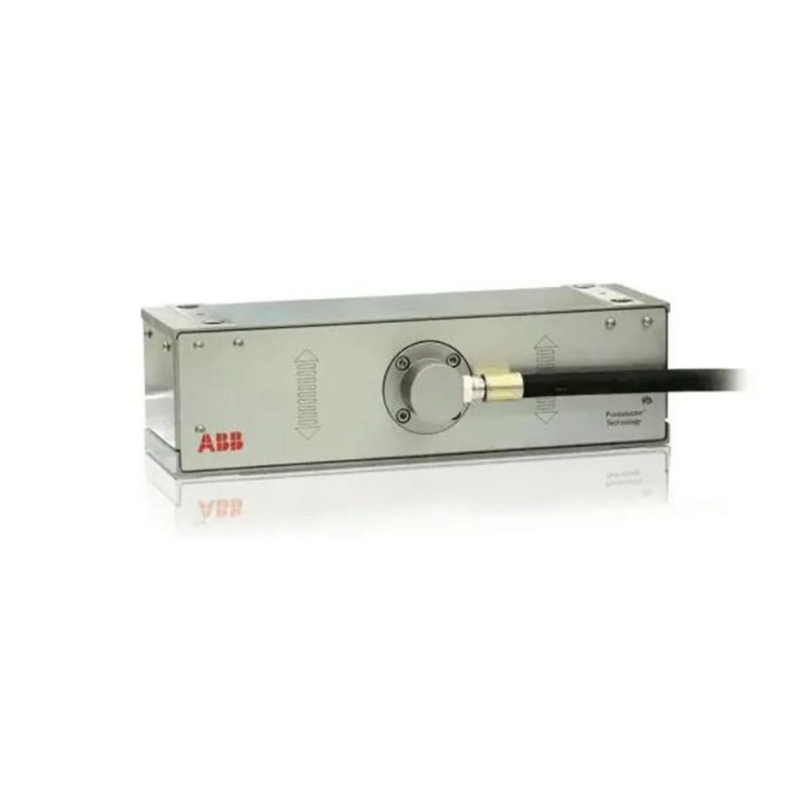

- Pressductor PillowBlock Load Cell
- Sweden
- 140 x 85 x 60 mm
- 1.1kg
- 3BSE007913R0010
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Profile: ABB PFTL201C 10KN / PFTL201C-10KN
Product Code: 3BSE007913R0010
Product Overview
The ABB PFTL201C 10KN is a high-capacity precision force sensor engineered for industrial automation, heavy mechanical testing, and robotics applications. It measures forces up to 10 kilonewtons (kN) with high accuracy and provides reliable analog output signals for monitoring, feedback control, or data acquisition systems.
Designed for demanding industrial environments, this sensor features a compact yet robust construction using stainless steel and high-strength alloys. Its precision mechanical design ensures consistent, repeatable measurements under continuous or dynamic load conditions. The PFTL201C 10KN is ideal for applications where high-force measurements and accurate feedback are critical, such as heavy machinery monitoring, robotics, and R&D testing systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PFTL201C 10KN / PFTL201C-10KN |
| Brand | ABB |
| Series | PFTL Series |
| Product Code | 3BSE007913R0010 |
| Maximum Force Capacity (kN) | 10 |
| Dimensions (mm) | 140 x 85 x 60 |
| Weight (kg) | 1.1 |
| Measurement Type | Compression / Tension |
| Accuracy (%) | ±1 |
| Operating Temperature (°C) | -10 ~ +70 |
| Material | Stainless steel / High-strength alloy |
| Output Signal | Analog voltage / Current signal |
| Mounting Type | Panel / Bracket mount |
| Applications | Industrial automation, robotics, mechanical testing, heavy-load monitoring |
Product Applications
-
Heavy-force measurement in industrial automation systems
-
Robotic arms and manipulators in manufacturing
-
Mechanical testing and structural load testing
-
Monitoring loads in large industrial machinery
-
Feedback control for automated assembly or press systems
-
Research and development in mechanical and industrial engineering
Product Advantages
-
High measurement capacity up to 10 kN for demanding industrial applications
-
High accuracy of ±1% ensures precise monitoring and control
-
Can measure both compression and tension forces
-
Robust stainless steel and high-strength alloy construction
-
Reliable operation across industrial temperature ranges
-
Compact and modular design for easy integration
-
Minimal maintenance required
-
Provides stable analog outputs suitable for industrial control systems
Related Models in the Same Series (PFTL Series)
| Model | Maximum Force (kN) | Dimensions (mm) | Weight (kg) | Accuracy (%) |
|---|---|---|---|---|
| PFTL101B 5KN | 5 | 110 x 70 x 50 | 0.65 | ±1 |
| PFTL201C 10KN | 10 | 140 x 85 x 60 | 1.1 | ±1 |
| PFTL202C 15KN | 15 | 150 x 90 x 65 | 1.3 | ±1 |
| PFTL203C 20KN | 20 | 160 x 95 x 70 | 1.5 | ±1 |
| PFTL204C 25KN | 25 | 170 x 100 x 75 | 1.7 | ±0.8 |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the primary function of the PFTL201C 10KN?
It measures forces up to 10 kN and provides accurate analog output signals for monitoring and control.
QA2: What is the maximum force capacity?
The sensor can measure up to 10 kilonewtons.
QA3: Can it measure both compression and tension?
Yes, it is designed to measure both compression and tension forces.
QA4: What is the measurement accuracy?
The sensor provides ±1% accuracy.
QA5: What are the dimensions of the PFTL201C 10KN?
The dimensions are 140 x 85 x 60 mm.
QA6: How much does the sensor weigh?
It weighs approximately 1.1 kg.
QA7: What materials are used in the sensor?
It is made from stainless steel and high-strength alloys for durability.
QA8: What is the operating temperature range?
The sensor operates reliably between -10°C and +70°C.
QA9: What type of output signal does the sensor provide?
It provides analog voltage or current output signals.
QA10: Where is this sensor typically used?
It is used in industrial automation, robotics, mechanical testing, heavy-load monitoring, and R&D applications.
