- ABB

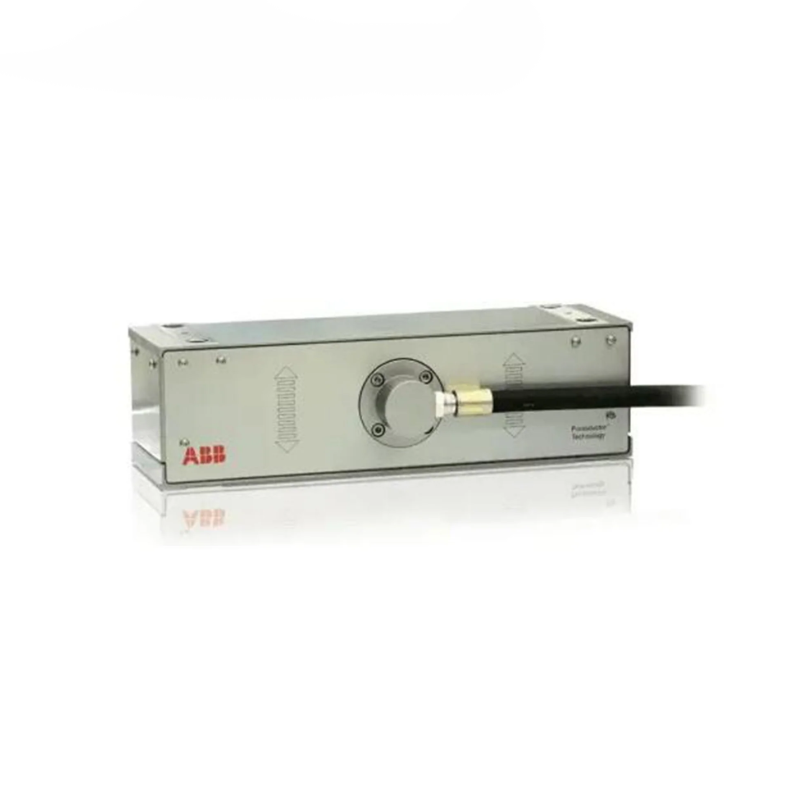

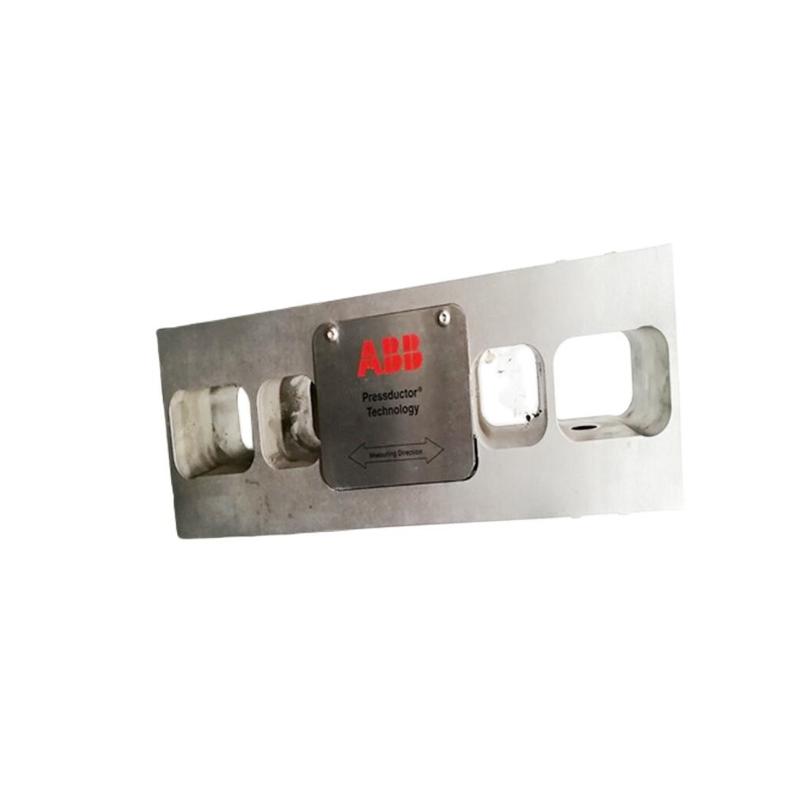

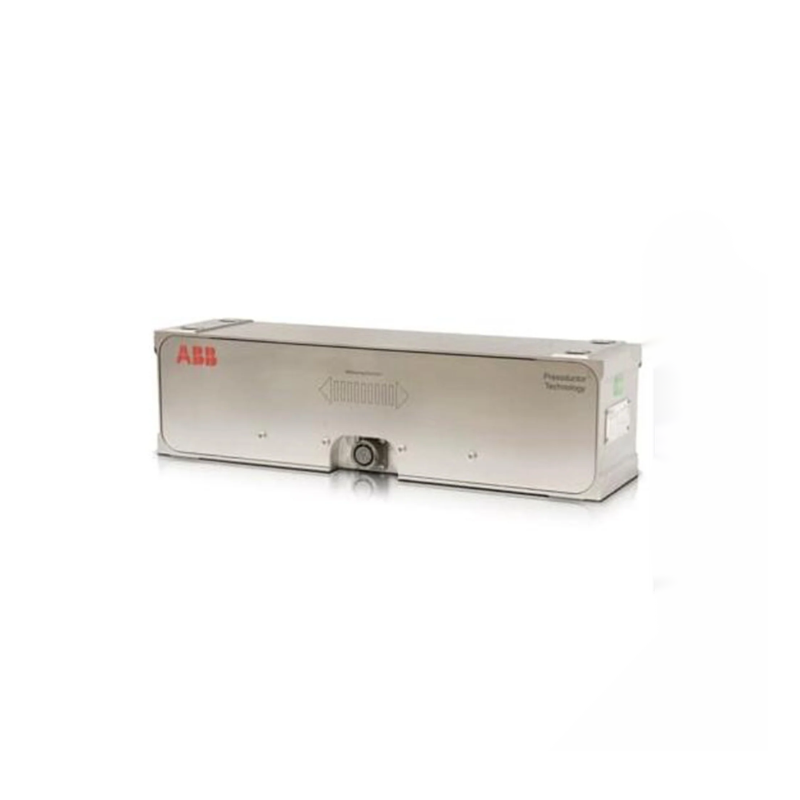

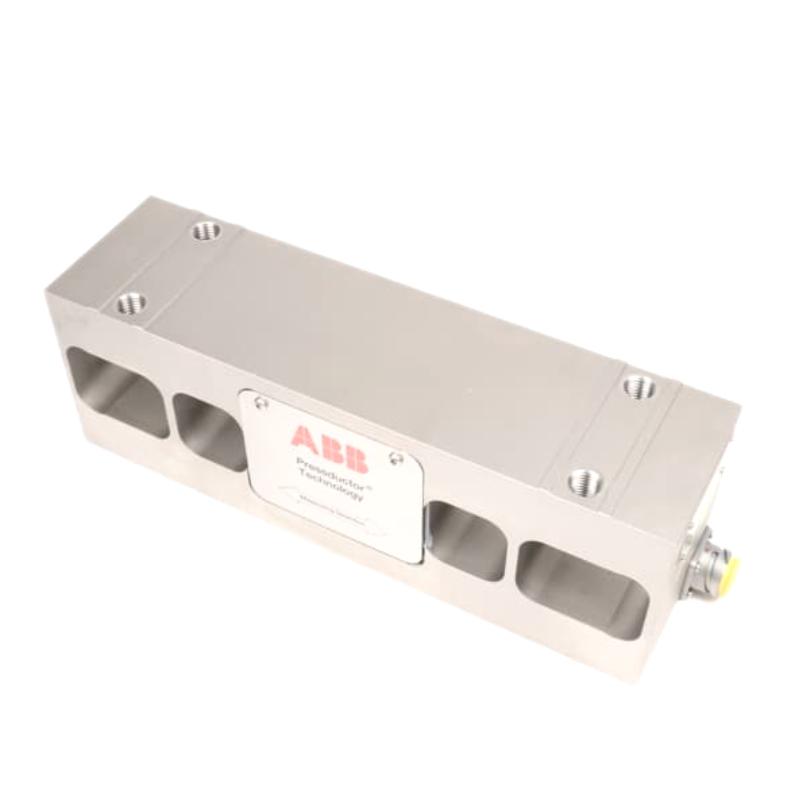

- PFTL101B 5.0KN/PFTL101B-5.0KN
- Pressductor PillowBlock Load Cell
- Sweden
- 110 x 70 x 50 mm
- 0.65kg
- 3BSE004191R1
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Profile: ABB PFTL101B 5.0KN / PFTL101B-5.0KN
Product Code: 3BSE004191R1
Product Overview
The ABB PFTL101B 5.0KN is a high-capacity precision force sensor designed for industrial automation, mechanical testing, and robotics applications. It can measure forces up to 5 kilonewtons (kN) with high accuracy, providing reliable analog outputs for monitoring, control, or data acquisition systems.
Constructed with stainless steel and high-strength alloys, the sensor is robust, durable, and suitable for demanding industrial environments. Its compact and modular design allows easy integration into existing machinery, test rigs, or robotic systems. The PFTL101B 5.0KN is ideal for high-force applications requiring precise and repeatable measurements.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PFTL101B 5.0KN / PFTL101B-5.0KN |
| Brand | ABB |
| Series | PFTL Series |
| Product Code | 3BSE004191R1 |
| Maximum Force Capacity (kN) | 5.0 |
| Dimensions (mm) | 110 x 70 x 50 |
| Weight (kg) | 0.65 |
| Measurement Type | Compression / Tension |
| Accuracy (%) | ±1 |
| Operating Temperature (°C) | -10 ~ +70 |
| Material | Stainless steel / High-strength alloy |
| Output Signal | Analog voltage / Current signal |
| Mounting Type | Panel / Bracket mount |
| Applications | Industrial automation, robotics, mechanical testing, load monitoring |
Product Applications
-
High-force measurement in industrial automation systems
-
Robotic manipulators and automated assembly lines
-
Mechanical testing, quality control, and R&D
-
Load monitoring in production and processing machinery
-
Feedback loops in automated control systems
-
Research and development in mechanical and industrial engineering
Product Advantages
-
High measurement capacity up to 5 kN for demanding industrial applications
-
Compact and modular design for easy integration into machinery or panels
-
High accuracy of ±1% for precise force monitoring
-
Can measure both compression and tension forces
-
Durable stainless steel and high-strength alloy construction
-
Reliable performance across industrial temperature ranges
-
Minimal maintenance required
-
Provides stable analog output for control and monitoring systems
Related Models in the Same Series (PFTL Series)
| Model | Maximum Force (kN) | Dimensions (mm) | Weight (kg) | Accuracy (%) |
|---|---|---|---|---|
| PFTL101A 0.5KN | 0.5 | 80 x 50 x 30 | 0.35 | ±1 |
| PFTL101A 1KN | 1 | 85 x 55 x 35 | 0.4 | ±1 |
| PFTL101B 2KN | 2 | 95 x 60 x 40 | 0.45 | ±1 |
| PFTL101B 5KN | 5 | 110 x 70 x 50 | 0.65 | ±1 |
| PFTL102B 5KN | 5 | 115 x 72 x 52 | 0.68 | ±0.8 |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the primary function of the PFTL101B 5.0KN?
It measures forces up to 5 kN and provides accurate analog outputs for monitoring and control.
QA2: What is the maximum force capacity?
The sensor can measure up to 5 kilonewtons.
QA3: Can it measure both compression and tension forces?
Yes, it is capable of measuring both compression and tension.
QA4: What is the measurement accuracy?
The sensor provides ±1% accuracy.
QA5: What are the dimensions of the PFTL101B 5.0KN?
The dimensions are 110 x 70 x 50 mm.
QA6: How much does the sensor weigh?
It weighs approximately 0.65 kg.
QA7: What materials are used in construction?
The sensor is constructed from stainless steel and high-strength alloys.
QA8: What is the operating temperature range?
The operating range is -10°C to +70°C.
QA9: What type of output does the sensor provide?
It provides analog voltage or current output signals.
QA10: Where is this sensor typically used?
It is used in industrial automation, robotics, mechanical testing, load monitoring, and R&D applications.
