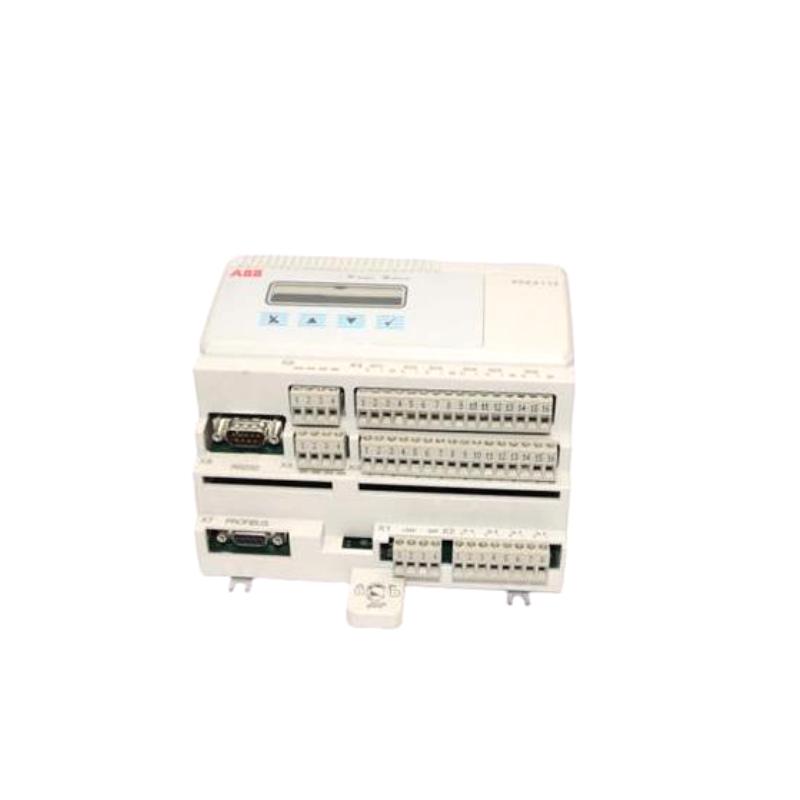

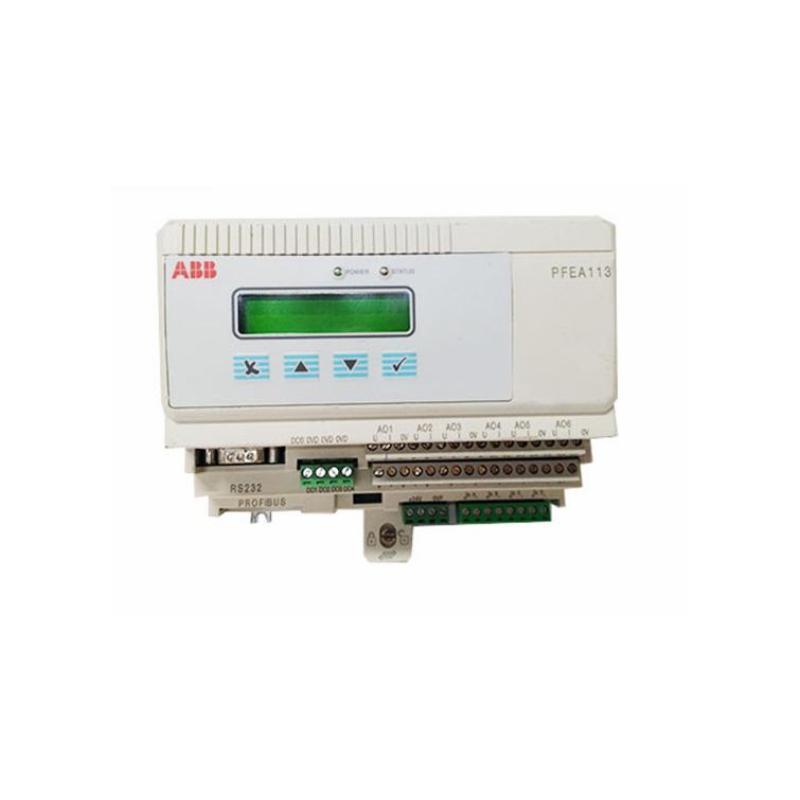

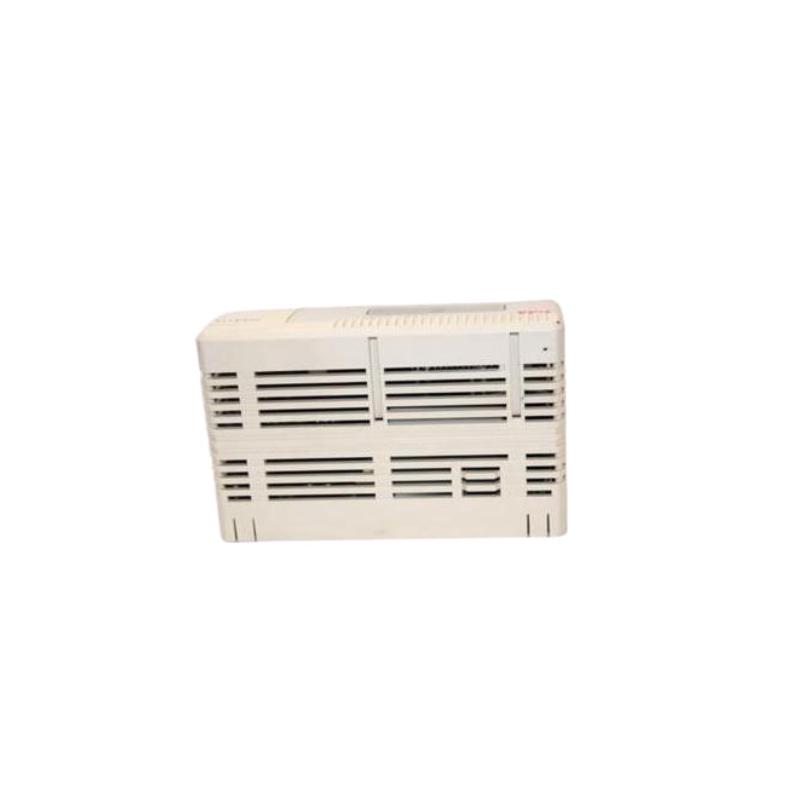

PFEA113-20 (3BSE050092R20 / 3BSE028144R20) – Industrial Force Measurement Module
Product Overview
The PFEA113-20, identified by part numbers 3BSE050092R20 / 3BSE028144R20, is a high-precision industrial force measurement module designed to measure forces up to 20 kN. It is part of ABB’s PFEA series, which provides reliable load sensing for both industrial and laboratory applications.
This module converts mechanical forces into accurate and stable analog electrical signals suitable for integration with automation, process control, and data acquisition systems. Its rugged design allows operation in harsh industrial environments, including exposure to vibration, dust, moisture, and fluctuating temperatures.
The PFEA113-20 is commonly used in applications requiring precise force monitoring, including material testing, weighing, process control, and research and development setups. Its compact and modular design simplifies installation, maintenance, and integration.
Brand Information
| Item | Description |
|---|---|
| Brand | ABB |
| Product Model | PFEA113-20 |
| Part Numbers | 3BSE050092R20 / 3BSE028144R20 |
| Product Category | Industrial Force Measurement Module |
| Product Type | Precision Load Cell / Force Sensor |
| Application Industry | Industrial automation, manufacturing, material testing, quality control |
| Installation | Flange mount / direct mechanical integration |
Product Series
The PFEA Series focuses on high-performance industrial force measurement modules and provides:
-
High-accuracy measurements across multiple force ranges
-
Rugged construction for industrial use
-
Modular and compact design for easy integration and maintenance
-
Analog outputs compatible with PLC, SCADA, and data acquisition systems
The series is widely used in industrial automation, laboratory testing, process monitoring, and quality control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PFEA113-20 |
| Part Numbers | 3BSE050092R20 / 3BSE028144R20 |
| Product Type | Industrial Force Measurement Module |
| Force Measurement Range | 0 – 20 kN |
| Accuracy | ±0.05% full scale |
| Output Signal | Analog mV/V, compatible with digital acquisition systems |
| Excitation Voltage | 5 – 15 VDC |
| Temperature Compensation | -10°C to +50°C operating |
| Maximum Overload | 150% of rated capacity |
| Protection Class | IP65 (dust and water resistant) |
| Mounting Method | Flange mount / direct mechanical integration |
| Dimensions | 180 × 90 × 75 mm |
| Weight | 2.5 kg ( ) |
Product Features
-
High Accuracy: ±0.05% full-scale precision ensures reliable measurement in tension and compression.
-
Rugged Construction: Resistant to industrial environments with vibration, dust, moisture, and temperature changes.
-
Compact and Modular: Simplifies installation, integration, and maintenance.
-
Stable Signal Output: Analog signal ensures compatibility with PLCs, SCADA, and data acquisition systems.
-
Overload Protection: Prevents mechanical damage, extending the module’s life.
-
Versatile Applications: Suitable for material testing, weighing, industrial automation, and laboratory monitoring.
Product Applications
-
Industrial Automation: Force monitoring for production lines, robotic systems, and automated machinery.
-
Material Testing: Tensile, compressive, and fatigue test measurements.
-
Manufacturing Quality Control: Ensures consistent production processes and product quality.
-
Weighing Applications: Integration into industrial weighing and batching systems.
-
Research & Development: Supports laboratories and engineering centers in load and stress testing.
Product Advantages
-
High Precision: ±0.05% full-scale accuracy for demanding applications.
-
Durable Design: Long-term reliability in industrial conditions.
-
Easy Integration: Modular and compact design simplifies installation and maintenance.
-
Protective Features: IP65 protection and overload capacity enhance durability.
-
Wide Range of Applications: Industrial automation, material testing, weighing, and R&D.
Recommended Models from the Same Series or Related Modules
| Model | Product Type | Key Function | Dimensions | Weight kg ( ) |
|---|---|---|---|---|
| PFEA111-20 | Load Cell | Force measurement up to 20 kN | 180 × 90 × 75 mm | 2.2 kg ( ) |
| PFEA112-20 | Load Cell | Force measurement up to 20 kN | 180 × 90 × 75 mm | 2.4 kg ( ) |
| PFEA111-50 | Load Cell | Force measurement up to 50 kN | 210 × 100 × 90 mm | 3.5 kg ( ) |
| PFEA112-65 | Load Cell | Force measurement up to 65 kN | 200 × 100 × 85 mm | 4.0 kg ( ) |
| PFEA113-50 | Heavy-Duty Load Cell | Force measurement up to 50 kN | 210 × 105 × 95 mm | 3.8 kg ( ) |
Popular Models from the Same Brand
| Model | Product Type | Key Function | Dimensions | Weight kg ( ) |
|---|---|---|---|---|
| ACS880‑01‑04A0‑3 | Variable Frequency Drive | Motor speed control | 520 × 220 × 280 mm | 8.5 kg ( ) |
| ACS580‑01‑046A‑4 | General Purpose Drive | Energy-efficient automation | 510 × 220 × 300 mm | 9.1 kg ( ) |
| ACS550‑01‑05A4‑4 | Industrial Drive | Pump and fan control | 480 × 200 × 260 mm | 7.2 kg ( ) |
| PFCA 401 | Power Factor Controller | Reactive power management | 150 × 130 × 70 mm | 0.6 kg ( ) |
| PP D113 B01‑10‑150000 | Industrial Controller | Automation system processing | 210 × 150 × 100 mm | 1.8 kg ( ) |
FAQ (Frequently Asked Questions)
Q1: What is the main purpose of PFEA113-20?
A1: To accurately measure forces up to 20 kN in industrial and laboratory applications.
Q2: Can it measure both compression and tension forces?
A2: Yes, it accurately measures both tensile and compressive forces.
Q3: What industrial environments can it operate in?
A3: It is suitable for environments with vibration, dust, moderate moisture, and temperature variations.
Q4: How precise is PFEA113-20?
A4: The measurement accuracy is ±0.05% full-scale.
Q5: Can it be integrated into automated systems?
A5: Yes, it provides an analog output compatible with PLCs, SCADA, and data acquisition systems.
Q6: What is the maximum overload it can handle?
A6: The device can safely withstand up to 150% of its rated 20 kN force.
Q7: How is it installed?
A7: Flange-mounted or directly integrated into mechanical systems.
Q8: Does it have protective features?
A8: Yes, it has IP65 protection and overload capacity for safety and durability.
Q9: Is maintenance complex?
A9: No, its modular design allows for easy installation, replacement, and integration.
Q10: Which industries benefit most from PFEA113-20?
A10: Industrial automation, material testing, quality control, process monitoring, and R&D laboratories.
