Product Overview

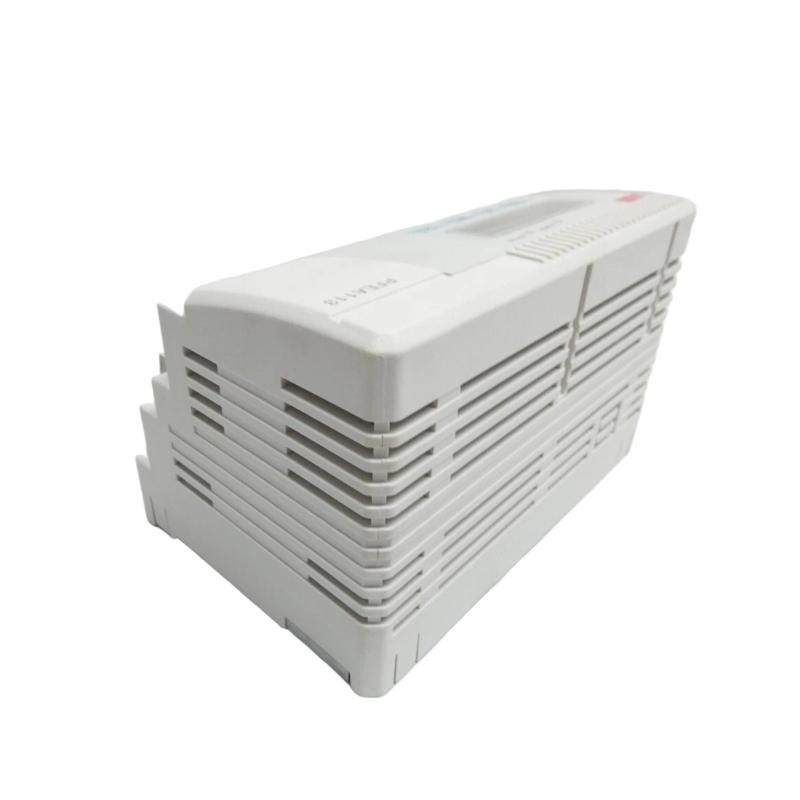

The ABB PFEA113-20 (3BSE028144R20) is an industrial Tension Sensor and Electronics Unit designed for precise web tension monitoring and control in continuous production systems. It accurately measures and regulates the tension of moving materials such as paper, film, foil, textiles, and metal strips, ensuring consistent product quality and stable process operation.
This module is widely used in industrial automation, material handling, and production line control systems requiring high-precision tension control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | PFEA113-20 |
| Part Number | 3BSE028144R20 |
| Product Type | Tension Sensor / Electronics Unit |
| Function | Material tension measurement and control |
| Application | Industrial web handling, process automation |
| Input Type | Load cell / tension transducer signals |
| Output Signals | Analog voltage/current outputs for control systems |
| Control Function | Real-time tension monitoring and feedback |
| Protection Class | IP20 |
| Mounting Type | Panel or DIN-rail mounting |
| Dimensions | 110 × 136 × 58 mm |
| Weight | 0.6 kg |
Function and Working Principle
The PFEA113-20 operates as a key tension control component in industrial systems.
- Receives input signals from load cells measuring web tension.
- Processes and filters the signals for stability and accuracy.
- Generates output control signals to adjust machinery speed or tensioning devices.
- Maintains consistent material tension throughout production.
- Provides real-time feedback for operator monitoring and automation systems.
This ensures precise tension control, preventing material breakage, uneven winding, or defects in the final product.
Key Features
- High-precision tension measurement
- Dual-channel input support for redundancy and accuracy
- Real-time signal processing and feedback
- Multiple monitoring and display modes
- Compact, industrial-grade design
- Reliable operation in continuous production
- Integration-ready with ABB automation and control systems
Industrial Applications
- Paper and pulp manufacturing lines
- Printing and packaging machinery
- Plastic and film processing
- Textile production equipment
- Metal strip and foil processing
- Continuous web handling and winding systems
Role in Industrial Systems
The PFEA113-20 serves as a critical process control module, responsible for:
- Monitoring and regulating mechanical tension in moving materials
- Providing real-time feedback for automated tension control systems
- Enhancing production quality and reducing material waste
- Supporting stable and efficient operation of industrial lines
- Acting as a central unit for closed-loop tension control
It ensures consistent and controlled material tension, improving overall production reliability.
Installation Notes
- Installed in industrial control panels or cabinets
- Requires proper connection to load cells or tension transducers
- Shielded cabling recommended for signal integrity
- Calibration required during commissioning
- Installation and handling should be performed by qualified personnel
- Proper grounding advised to minimize electrical interference
Compatible Equipment
- ABB tension control systems
- Industrial load cells and strain measurement sensors
- Web handling and winding machinery
- Process automation and control systems
- Production line monitoring equipment
Advantages
- Accurate and reliable tension monitoring
- Improves product quality and reduces material waste
- Stable real-time operation for continuous production
- Compact and durable industrial-grade design
- Easily integrates into ABB automation systems
- Supports closed-loop process control
Limitations
- Requires compatible load cells for operation
- Designed specifically for ABB industrial tension systems
- Calibration necessary for precision
- Not a standalone controller
Conclusion
The ABB PFEA113-20 (3BSE028144R20) Tension Sensor / Electronics Unit is a high-precision industrial module for real-time tension monitoring and control.
It ensures stable material tension, high product quality, and efficient industrial operation, making it essential for continuous web-handling and production line applications.
