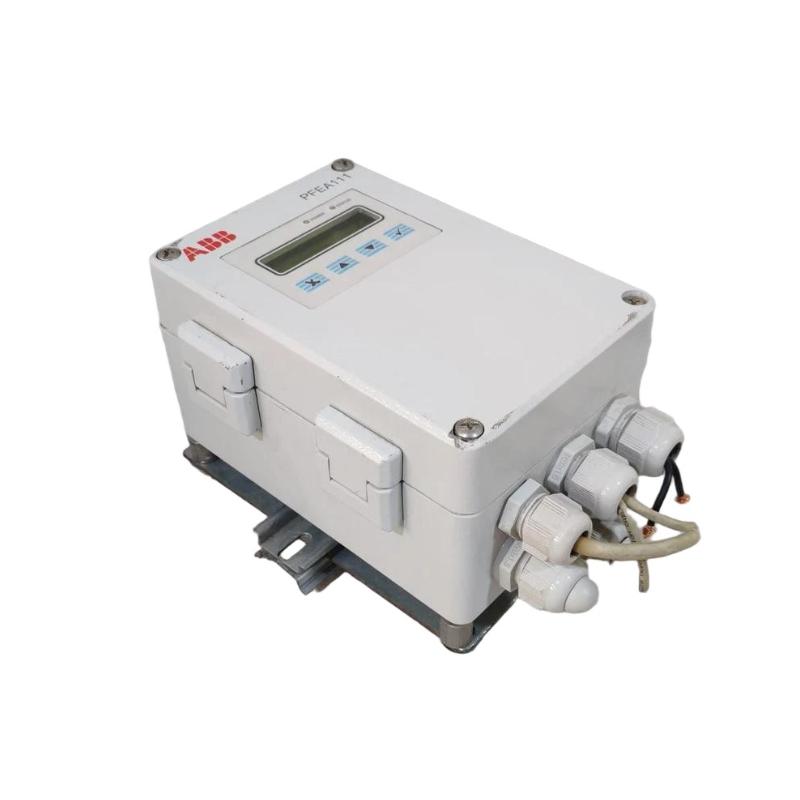

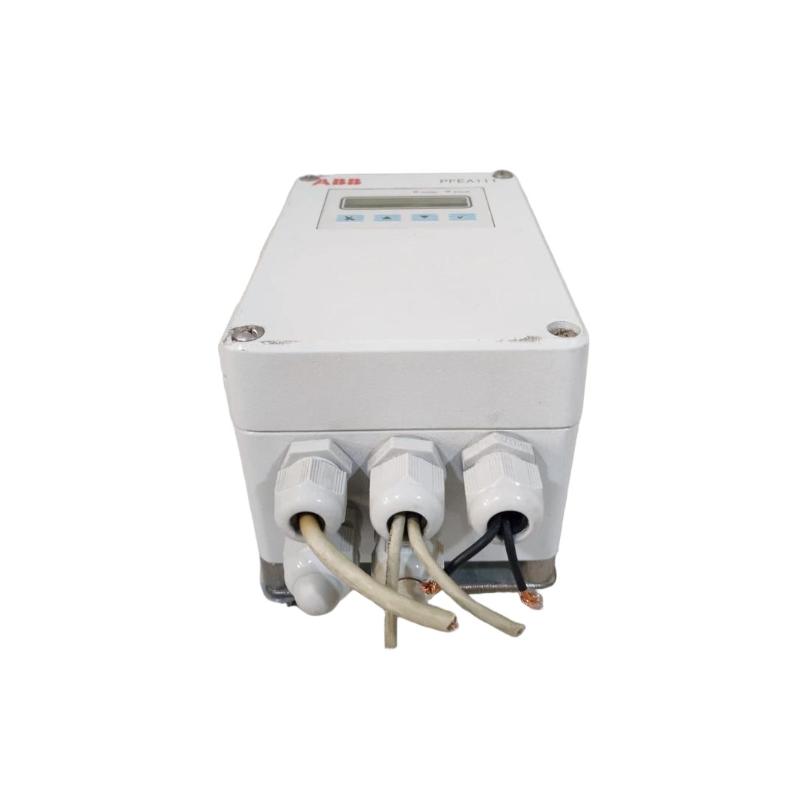

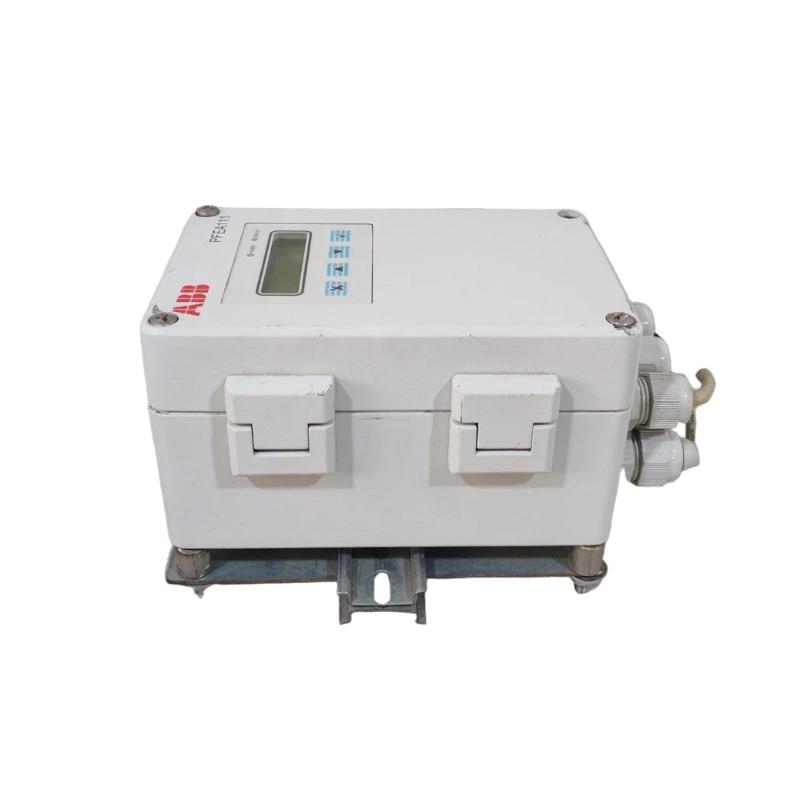

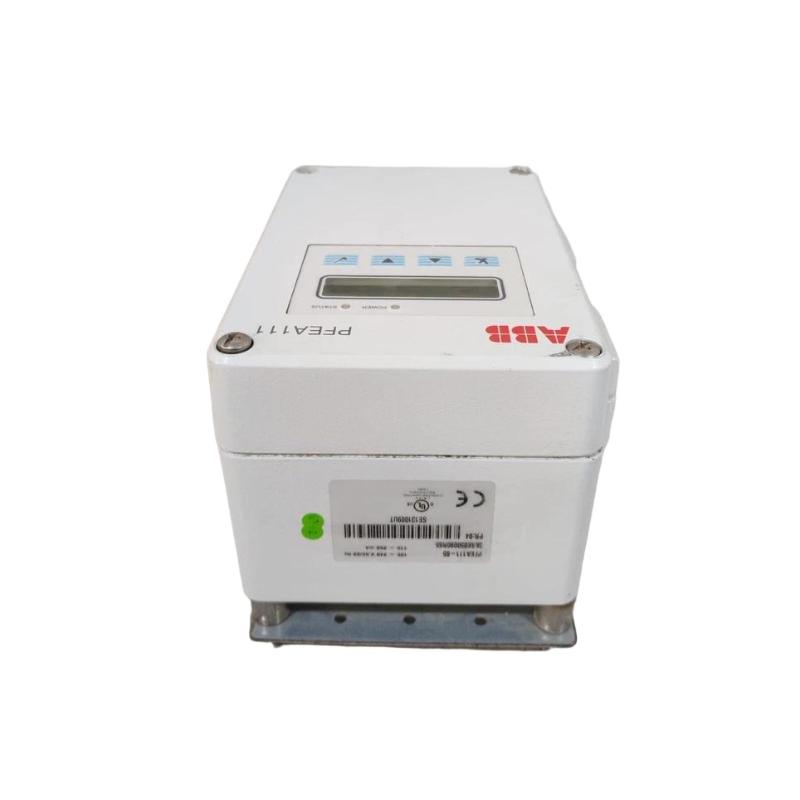

PFEA111-65 (3BSE050090R65 / 3BSE028140R65) – Industrial Force Measurement Module
Product Overview
The PFEA111-65, also referenced as 3BSE050090R65 / 3BSE028140R65, is an industrial-grade force measurement module capable of precise measurement of forces up to 65 kN. Designed for demanding industrial environments, this device is part of ABB’s PFEA series, which is engineered for high reliability, robust performance, and precise load measurement.
This module converts mechanical forces into stable analog electrical signals that can be integrated with automation, monitoring, and data acquisition systems. Its durable construction allows it to operate in harsh conditions, including vibration, dust, moderate moisture, and varying temperatures. The PFEA111-65 is particularly suitable for material testing, industrial weighing, automated production monitoring, and structural testing.
Its combination of accuracy, durability, and modularity ensures long-term reliability and seamless integration in industrial processes and laboratory testing setups.
Brand Information
| Item | Description |
|---|---|
| Brand | ABB |
| Product Model | PFEA111-65 |
| Part Numbers | 3BSE050090R65 / 3BSE028140R65 |
| Product Category | Industrial Force / Weight Measurement Module |
| Product Type | Precision Load Cell / Force Sensor |
| Application Industry | Industrial automation, manufacturing, material testing, quality control |
| Installation | Flange mount / direct mechanical integration |
Product Series
The PFEA Series is a line of industrial force and weight measurement modules with the following features:
-
High-precision measurement of forces ranging from low to high capacity
-
Rugged, durable design for industrial applications
-
Modular and compact construction for straightforward integration and maintenance
-
Compatible output signals for PLC, SCADA, or data acquisition systems
The series is widely used in automation, process monitoring, material testing, and R&D laboratories, providing reliable performance under demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PFEA111-65 |
| Part Numbers | 3BSE050090R65 / 3BSE028140R65 |
| Product Type | Industrial Force Measurement Module |
| Force Measurement Range | 0 – 65 kN |
| Accuracy | ±0.05% full scale |
| Output Signal | Analog mV/V, compatible with digital acquisition systems |
| Excitation Voltage | 5 – 15 VDC |
| Temperature Compensation | -10°C to +50°C operating |
| Maximum Overload | 150% of rated capacity |
| Protection Class | IP65 (dust and water resistant) |
| Mounting Method | Flange mount / direct mechanical integration |
| Dimensions | 200 × 100 × 85 mm |
| Weight | 3.8 kg ( ) |
Product Features
-
High-Precision Measurement: Accurate readings for both tension and compression applications.
-
Rugged Design: Resistant to dust, vibration, moisture, and temperature fluctuations.
-
Compact and Modular: Allows straightforward installation and integration.
-
Stable Signal Output: Reliable analog output for automation and data acquisition systems.
-
Overload Protection: Safeguards against mechanical overload to ensure longevity.
-
Versatile Applications: Suitable for industrial automation, material testing, weighing, and process monitoring.
Product Applications
-
Industrial Automation: Monitoring mechanical loads in production lines, robotic systems, and automated machinery.
-
Material Testing: Force measurement for tensile, compressive, and fatigue tests.
-
Manufacturing Quality Control: Ensures consistent production quality through precise force measurement.
-
Weighing and Batching Systems: Integration into industrial weighing applications.
-
Research and Development: Supports laboratories and engineering centers in load and stress testing.
Product Advantages
-
High Accuracy: ±0.05% full-scale precision for demanding industrial applications.
-
Durable Construction: Designed for industrial conditions and heavy-duty use.
-
Easy Integration: Modular and compact design simplifies installation and maintenance.
-
Protective Features: IP65 rating and overload protection increase operational reliability.
-
Wide Range of Applications: Useful for automation, material testing, structural monitoring, and R&D.
Recommended Models from the Same Series or Related Modules
| Model | Product Type | Key Function | Dimensions | Weight kg ( ) |
|---|---|---|---|---|
| PFEA111-10 | Load Cell | Force measurement up to 10 kN | 160 × 80 × 70 mm | 1.8 kg ( ) |
| PFEA111-20 | Load Cell | Force measurement up to 20 kN | 180 × 90 × 75 mm | 2.2 kg ( ) |
| PFEA111-30 | Load Cell | Force measurement up to 30 kN | 190 × 90 × 80 mm | 2.5 kg ( ) |
| PFEA111-50 | Load Cell | Force measurement up to 50 kN | 210 × 100 × 90 mm | 3.5 kg ( ) |
| PFEA111-100 | Load Cell | Force measurement up to 100 kN | 240 × 120 × 100 mm | 5.0 kg ( ) |
Popular Models from the Same Brand
| Model | Product Type | Key Function | Dimensions | Weight kg ( ) |
|---|---|---|---|---|
| ACS880‑01‑04A0‑3 | Variable Frequency Drive | Motor speed control | 520 × 220 × 280 mm | 8.5 kg ( ) |
| ACS580‑01‑046A‑4 | General Purpose Drive | Energy-efficient automation | 510 × 220 × 300 mm | 9.1 kg ( ) |
| ACS550‑01‑05A4‑4 | Industrial Drive | Pump and fan control | 480 × 200 × 260 mm | 7.2 kg ( ) |
| PFCA 401 | Power Factor Controller | Reactive power management | 150 × 130 × 70 mm | 0.6 kg ( ) |
| PP D113 B01‑10‑150000 | Industrial Controller | Automation system processing | 210 × 150 × 100 mm | 1.8 kg ( ) |
FAQ (Frequently Asked Questions)
Q1: What is the primary function of PFEA111-65?
A1: It measures mechanical forces up to 65 kN accurately for industrial and laboratory applications.
Q2: Can it measure both compression and tension?
A2: Yes, it accurately measures both tensile and compressive forces.
Q3: What environments is it suitable for?
A3: It works reliably in industrial environments with vibration, dust, moderate moisture, and temperature fluctuations.
Q4: How accurate is PFEA111-65?
A4: It provides ±0.05% full-scale accuracy.
Q5: Can this module integrate with automation systems?
A5: Yes, it provides analog output compatible with PLCs, SCADA systems, and data acquisition devices.
Q6: What is the maximum overload capacity?
A6: It can withstand up to 150% of its rated 65 kN force.
Q7: How is it installed?
A7: It can be flange-mounted or integrated directly into mechanical systems.
Q8: What protective features does it have?
A8: It has IP65 protection for dust and moisture and includes overload protection.
Q9: Is maintenance complicated?
A9: No, its modular design allows for easy installation, replacement, and integration.
Q10: Which industries benefit most from PFEA111-65?
A10: Industrial automation, manufacturing quality control, material testing, process monitoring, and research laboratories.
