Product Overview
In industrial automation and high-power drive systems, main circuit interface boards provide an important connection between control electronics and power conversion circuits. They support the transmission of control commands, monitoring signals, and feedback information between different sections of an inverter or drive system.

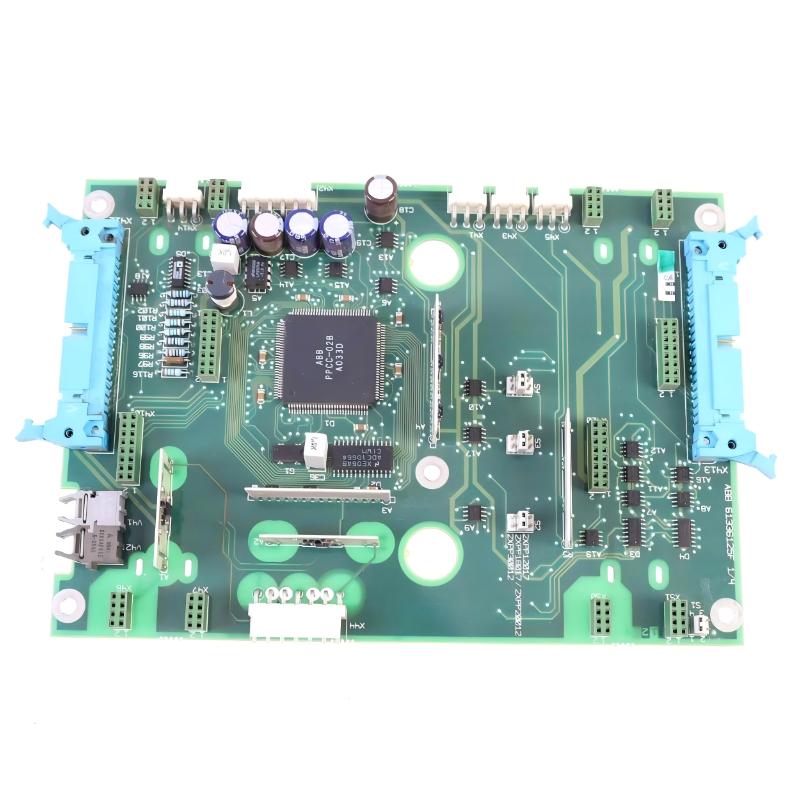

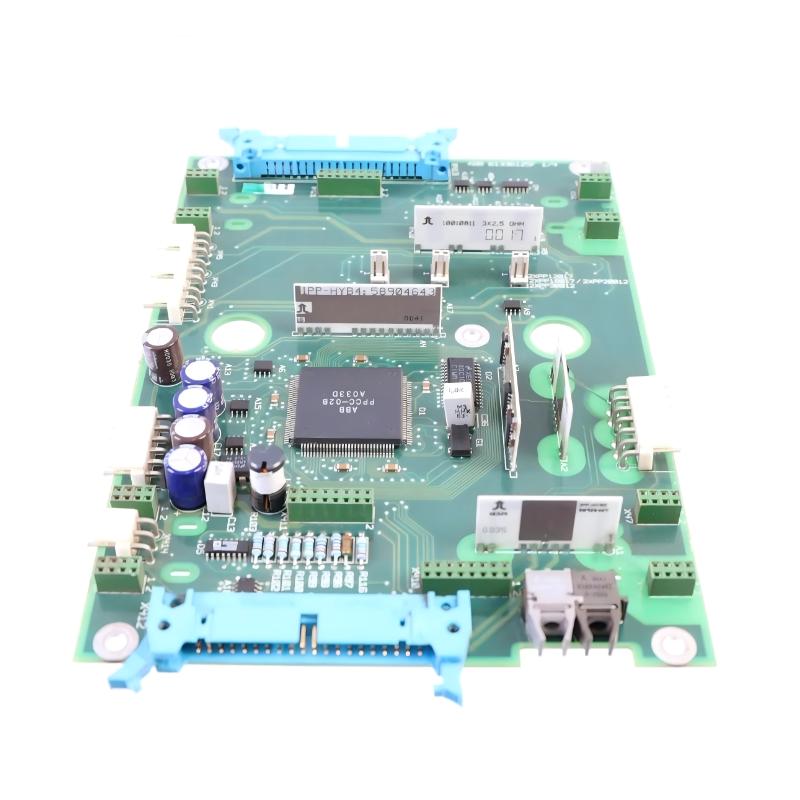

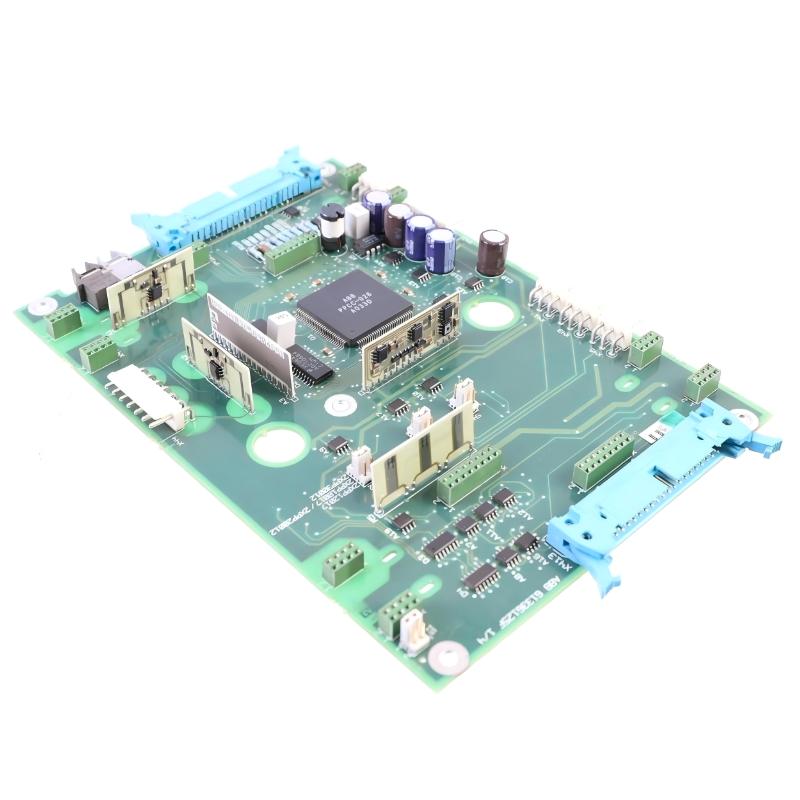

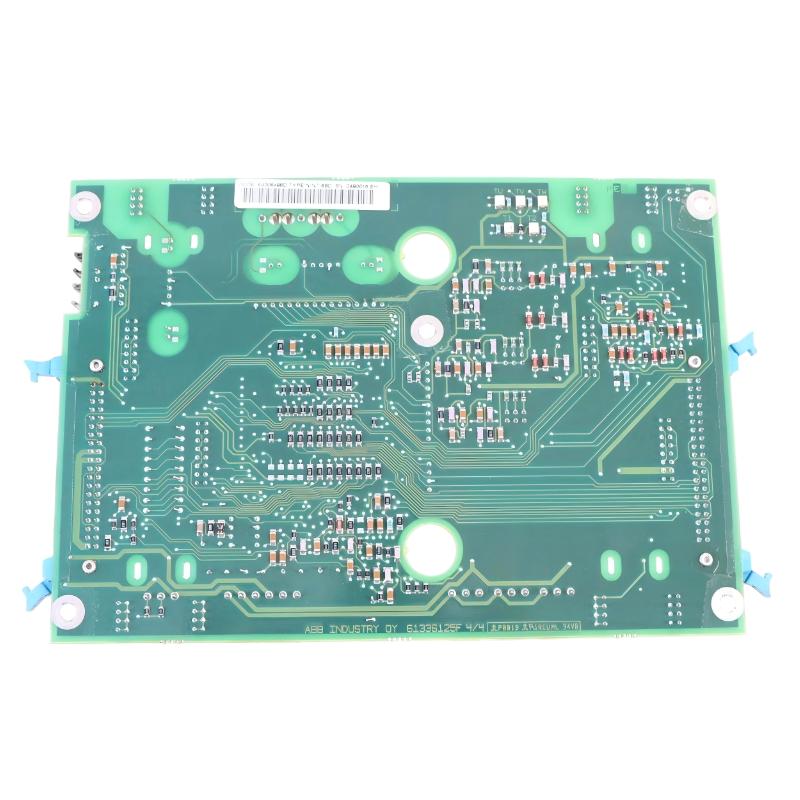

The ABB NINT-68C 61336125F Main Circuit Board Interface Board is an industrial drive interface board designed for ABB inverter and frequency converter applications. It functions as an internal communication and interface component between the drive control system and the main power circuit.
The NINT-68C board is designed to support reliable coordination between control electronics, power switching components, and other internal drive assemblies. Its role is particularly important in systems where accurate control signal transmission is required for stable motor operation.
With dimensions of 180 × 150 × 40 mm and a weight of 0.4 kg, the ABB NINT-68C 61336125F features a relatively large PCB structure suitable for integration into industrial drive equipment and power conversion systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | NINT-68C |
| Part Number | 61336125F |
| Product Type | Main Circuit Board Interface Board |
| Application | Industrial Drive / Inverter System |
| Function | Main Circuit Interface and Signal Communication |
| Installation Type | Internal Drive Installation |
| Dimensions | 180 × 150 × 40 mm |
| Weight | 0.4 kg |
Function and Working Principle
The ABB NINT-68C 61336125F serves as an interface between the control section and the main circuit of an industrial inverter system.
A simplified signal structure can be represented as:
Drive Control System → NINT-68C Interface Board → Power Control Section → Motor
During normal operation:
- The drive control system generates operating commands.
- The NINT-68C receives control information from the internal control electronics.
- The interface board transfers the required signals between different drive sections.
- Power-related components receive the appropriate control information.
- Feedback and monitoring information can be returned through the internal control architecture.
- The drive adjusts motor operation according to the control requirements.
This interface function helps separate the control electronics from the high-power section while maintaining reliable internal communication.
Role in Industrial Automation Systems
The ABB NINT-68C 61336125F plays an important role in industrial drive architectures.
Its main functions include:
- Connecting control and main circuit sections
- Transmitting internal control signals
- Supporting feedback signal communication
- Coordinating different electronic modules
- Supporting stable inverter operation
- Helping maintain accurate motor control
Typical applications include:
- Industrial frequency converters
- Variable speed drive systems
- AC motor control equipment
- Industrial power conversion systems
- Automation control cabinets
- Large motor drive installations
Main Features
Main Circuit Interface Function
The primary purpose of the NINT-68C is to provide an interface between the drive control electronics and the main circuit.
A reliable interface is important because industrial drives operate with high electrical power while their control electronics require precise and stable signals.
The board helps provide:
- Reliable signal transmission
- Stable internal communication
- Consistent control coordination
- Improved drive system reliability
Large PCB Structure
The ABB NINT-68C 61336125F has a 180 × 150 × 40 mm physical structure.
Its relatively large board format provides sufficient space for internal circuit connections and electronic components.
The design can support:
- Multiple internal signal connections
- Organized signal routing
- Integration with other drive boards
- Efficient internal drive architecture
Industrial Drive Integration
The NINT-68C is designed as an internal component rather than a standalone field device.
It works together with other drive components such as:
- Main control boards
- Gate driver circuits
- Power modules
- Feedback circuits
- Internal power supply sections
The combined architecture allows the drive system to control motor operation efficiently.
Maintenance and Replacement Application
The ABB NINT-68C 61336125F can be used during industrial drive maintenance and replacement operations.
Replacing a defective interface board may help restore communication between the control and power sections of a drive.
Potential maintenance benefits include:
- Reduced equipment downtime
- Faster drive troubleshooting
- Simplified component replacement
- Restoration of internal signal communication
- Extended service life of existing equipment
Industrial Applications
Variable Frequency Drives
Variable frequency drives use internal electronic boards to control motor voltage, frequency, and operating conditions.
The ABB NINT-68C can be relevant to drive architectures used for:
- Pump control
- Fan control
- Compressor systems
- Conveyor systems
- Industrial machinery
Industrial Motor Control
Motor control systems require reliable communication between their control and power sections.
Typical applications include:
- Manufacturing machinery
- Material handling systems
- Process equipment
- Industrial production lines
- Heavy-duty motor applications
The interface board supports the internal control architecture required for these systems.
Factory Automation
Industrial automation equipment frequently relies on variable speed drives for accurate motor control.
Applications include:
- Automated production lines
- Machine tools
- Conveyor equipment
- Processing machinery
- Material handling systems
The NINT-68C can form part of the internal electronics supporting these drive-based automation systems.
Power Conversion Systems
The board can also be associated with industrial power conversion architectures where control signals must be exchanged between electronic control circuits and power switching sections.
These applications may include:
- Industrial inverter systems
- Motor drive cabinets
- Power conversion equipment
- Electrical automation systems
Installation Guide
When replacing an ABB NINT-68C 61336125F, proper installation procedures should be followed.
Step 1: Isolate the Equipment
Completely disconnect the drive from its power source before beginning maintenance.
Step 2: Verify the Replacement Board
Confirm:
- Model: NINT-68C
- Part Number: 61336125F
- Dimensions: 180 × 150 × 40 mm
The replacement board should match the existing equipment configuration.
Step 3: Remove the Existing Board
Carefully disconnect the existing board and identify all connectors before removal.
Step 4: Install the New Board
Position the replacement board correctly and secure it using the original mounting hardware.
Step 5: Check Connections
Verify that:
- Connectors are correctly positioned
- Cables are properly secured
- No pins are bent
- The PCB is firmly mounted
Step 6: Test the Drive
After installation, restore power according to the equipment’s normal commissioning procedure and check drive operation.
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Drive fails to start | Interface board or related circuit fault |
| Internal communication error | Connector or signal transmission problem |
| Motor control becomes unstable | Control or feedback signal issue |
| Repeated drive alarms | Internal electronic fault |
| Intermittent operation | Aging components or connection problem |
| Power section does not respond correctly | Interface or control communication issue |
A failure symptom does not necessarily indicate that the NINT-68C itself is defective. Related control boards, connectors, power supplies, and wiring should also be checked during troubleshooting.
Troubleshooting Recommendations
When diagnosing an ABB NINT-68C-related problem, a systematic approach is recommended.
1. Check the Power Supply
Verify that the drive’s internal control power is available and stable.
2. Inspect Connectors
Check all connectors associated with the interface board for:
- Loose connections
- Oxidation
- Mechanical damage
- Contamination
3. Inspect the PCB
Look for visible signs such as:
- Burn marks
- Discoloration
- Damaged components
- Cracked solder joints
- Physical PCB damage
4. Check Related Boards
The interface board operates as part of a larger drive system. Related control and power boards should also be checked.
5. Review Drive Alarms
Drive fault information can help determine whether the problem is associated with communication, control, power conversion, or another subsystem.
Maintenance Recommendations
For long-term reliable operation of the ABB NINT-68C 61336125F:
- Keep the drive cabinet clean
- Prevent excessive dust accumulation
- Check connectors periodically
- Monitor abnormal temperature conditions
- Inspect the PCB during scheduled maintenance
- Keep cooling paths unobstructed
- Replace damaged components promptly
Proper environmental control is especially important for electronic boards installed inside industrial drive cabinets.
System Components
| Component | Main Function |
|---|---|
| Main Control Board | Processes drive control logic |
| NINT-68C Interface Board | Provides main circuit signal interface |
| Gate Driver Board | Controls power switching signals |
| Power Module | Handles high-power conversion |
| Feedback Circuit | Provides operating measurements |
| Motor | Converts electrical energy into mechanical output |
The NINT-68C should therefore be considered one part of a complete drive control architecture rather than an independent controller.
Key Advantages
- Reliable main circuit interface
- Stable internal signal communication
- Large industrial PCB structure
- Suitable for drive maintenance
- Supports internal control coordination
- Helps reduce equipment downtime
- Suitable for industrial automation environments
- Useful for replacement and refurbishment applications
Technical FAQs
What is ABB NINT-68C 61336125F?
The ABB NINT-68C 61336125F is a Main Circuit Board Interface Board used as an internal interface component in ABB industrial drive and inverter systems.
What does the NINT-68C interface board do?
It provides communication between the drive control electronics and main circuit sections, allowing control and feedback signals to be transferred between different internal modules.
What are the dimensions of ABB NINT-68C 61336125F?
The specified dimensions are 180 × 150 × 40 mm.
How much does the ABB NINT-68C 61336125F weigh?
The specified weight is 0.4 kg.
What equipment uses this type of board?
It is intended for industrial drive and inverter architectures where an internal main circuit interface is required.
Can the NINT-68C be replaced during drive maintenance?
Yes. When a compatible replacement is required, the board can be replaced as part of an industrial drive repair or refurbishment process. The exact board revision and drive configuration should be verified before installation.
Conclusion
The ABB NINT-68C 61336125F Main Circuit Board Interface Board is an important internal electronic component for industrial drive and inverter systems.
With dimensions of 180 × 150 × 40 mm and a weight of 0.4 kg, the board provides a substantial interface platform for communication between control electronics and the main circuit.
Its role in signal transmission, internal module coordination, and drive control makes it an important component for industrial automation maintenance and repair. For engineers, system integrators, and maintenance professionals, the ABB NINT-68C 61336125F can provide a practical replacement solution when servicing compatible ABB drive equipment.
