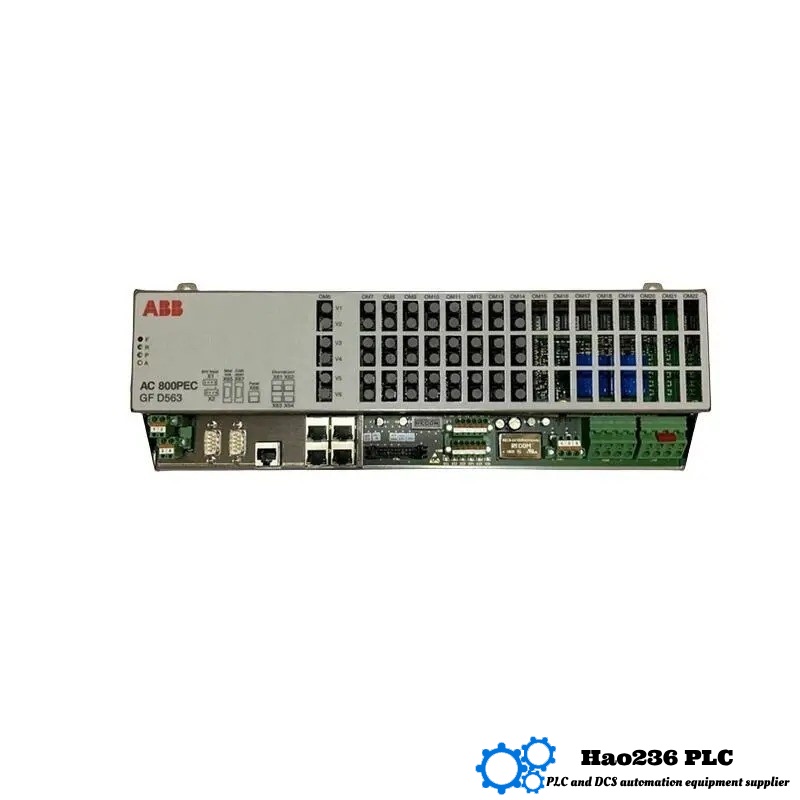

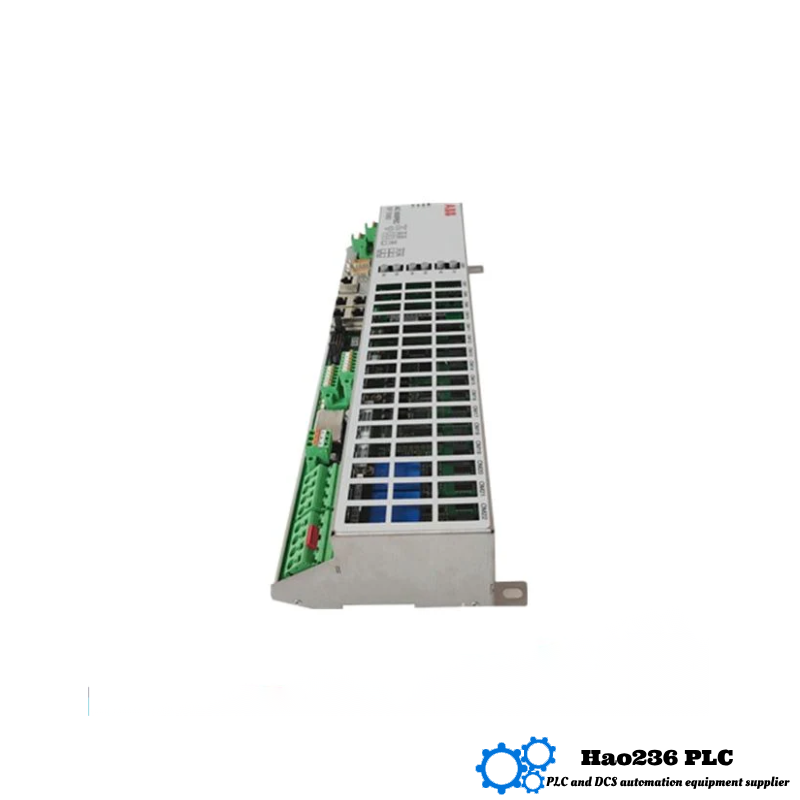

Product Overview: GFD563A101 (3BHE046836R0101)
Brand: ABB
Series: AC 800PEC high‑performance controller family
Introduction
The GFD563A101 excitation‑device control unit is a modular, rugged, high‑speed controller tailored for generator excitation and power‑electronic applications. It delivers reliable voltage and reactive‑power regulation, supports flexible communication, and endures harsh industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Series | AC 800PEC high‑performance family |
| Dimensions | 16.3 cm × 19.6 cm × 20.6 cm |
| Weight | 2.3 kg |
| Input Voltage | 24 V DC |
| Output Voltage | 0–10 V DC |
| Operating Temperature | –20 °C to +60 °C |
| Protection Level | IP‑level (e.g. IP54 as per one source) |
| Housing Material | Aluminum alloy (from chassis data) |
| Additional Features | Over‑voltage, over‑current, loss‑of‑step protection; modular design; high‑reliability components; multi‑protocol support (Modbus, PROFIBUS) |
(Note: some dimensions such as 200 × 150 × 100 mm and weight ~2.5 kg appear in other specs—this reflects varying definitions across sources.)
Applications & Usage
-
Generator excitation control in power plants to stabilize voltage and reactive‑power output.
-
Industrial automation for motor excitation, robotics coordination, and process control.
-
Use in demanding sectors like metallurgy, pulp & paper, water/waste‑water, petrochemicals, and glass manufacturing.
-
Functions seamlessly within DCS/PLC systems for robust automation tasks.
Key Advantages
-
High‑speed performance: Very fast response suitable for dynamic control loops.
-
Modular and scalable: Designed for easy expansion and maintenance.
-
Robust protection: Built‑in safeguards ensure safe, reliable operation.
-
Flexible communication: Supports widely used protocols for smooth system integration.
-
Durable design: Made for harsh environments and long service life.
Related Models in the Same Series
Here are five related or comparable products within the AC 800PEC family:
| Model | Description / Key Specs |
|---|---|
| GFD563A102 (3BHE046836R0102) | Dual‑core CPU + FPGA design, fastest cycle time ~25 ns, multiple I/O combos, optical/Ethernet links, temp range –20 °C to +70 °C |
| PPD113B03‑26‑100110 | Excitation controller module with rich I/O and protection features |
| PPD539A102 | Rectifier controller designed for excitation systems, high performance |
| PC D230 (3BHE022291R0101) | AC 800PEC module card for distributed control applications |
| GFD233A103 | LIN servo controller module compatible with AC 800PEC platform |
Five Other Popular ABB Models
These are widely used ABB modules (broader than just AC 800PEC):
| Model | Highlights |
|---|---|
| PPD113B03‑26‑100110 | Robust excitation control with flexible configuration |
| PPD539A102 | High‑performance rectifier/excitation controller |
| GFD563A102 (3BHE046836R0102) | Ultra‑fast dual‑core CPU/FPGA module for precision control |
Frequently Asked Questions (QA Format)
-
Q: What is the primary function of GFD563A101?
A: It precisely regulates generator excitation current to maintain stable voltage and reactive power. -
Q: Which series does this model belong to?
A: The high‑performance AC 800PEC controller family. -
Q: What are its approximate dimensions and weight?
A: Roughly 16.3 × 19.6 × 20.6 cm, weighing about 2.3 kg. -
Q: What input and output voltages does it support?
A: It accepts 24 V DC input and outputs 0–10 V DC. -
Q: What protections are built in?
A: It includes over‑voltage, over‑current, and ‘loss‑of‑step’ protection features. -
Q: Which communication protocols does it support?
A: Compatible with protocols such as Modbus and PROFIBUS for seamless integration. -
Q: Where is it typically used?
A: Deployed in power generation, industrial automation, robotics, pulp/paper production, metallurgy, water treatment, and similar sectors. -
Q: What advantages stand out for this model?
A: Notable for its high speed, modular design, reliable protection, communication flexibility, and durability. -
Q: How is GFD563A102 different?
A: It uses a dual‑core CPU+FPGA architecture, with ultra‑fast cycle time (~25 ns) and enhanced I/O and communication capabilities. -
Q: Is the unit easy to integrate into existing systems?
A: Yes. Its modular nature and flexible communication options make configuration and expansion straightforward.
