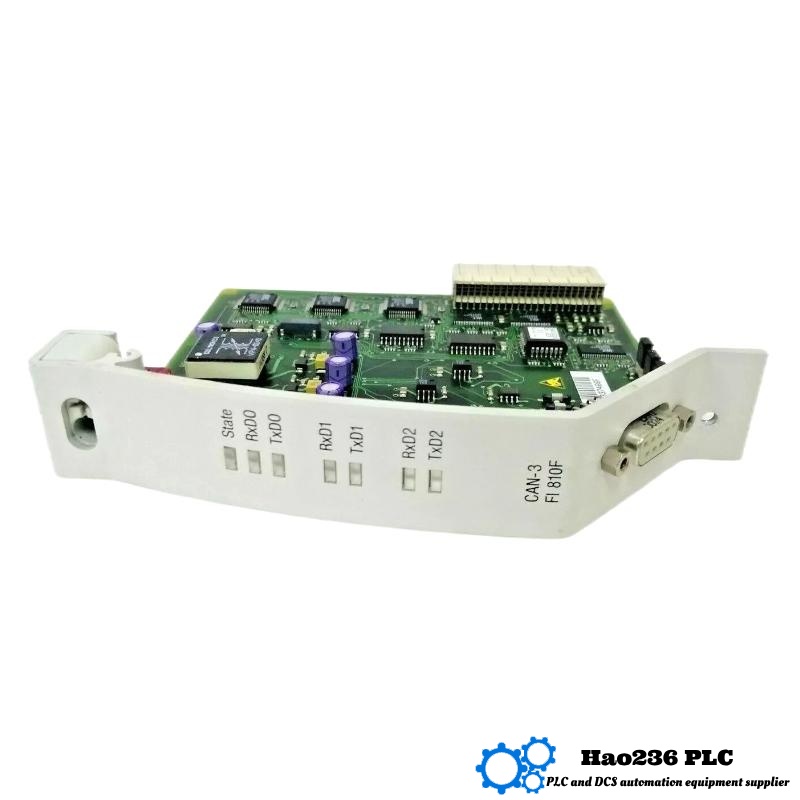

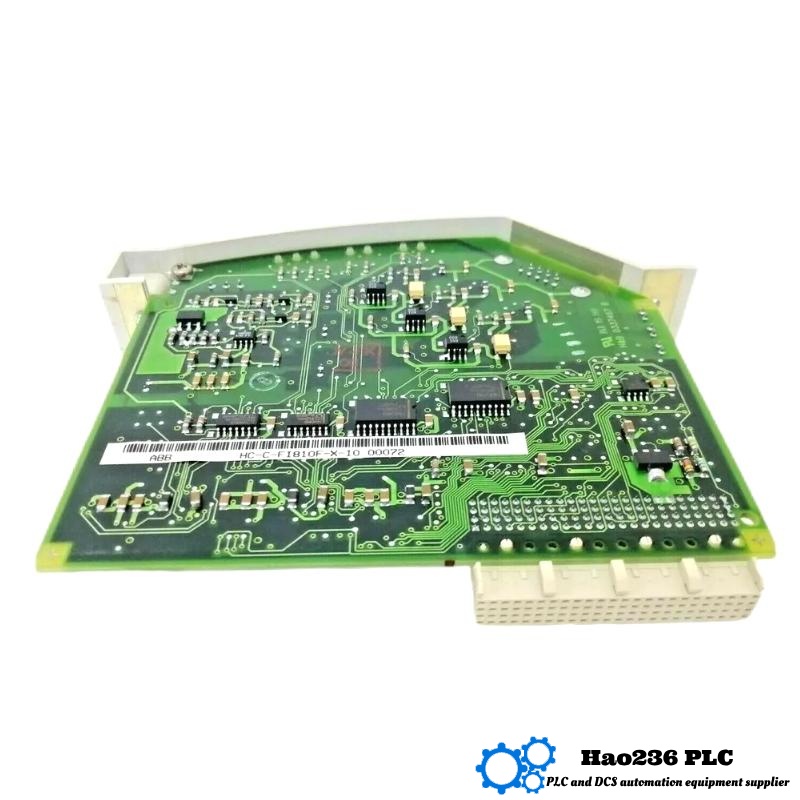

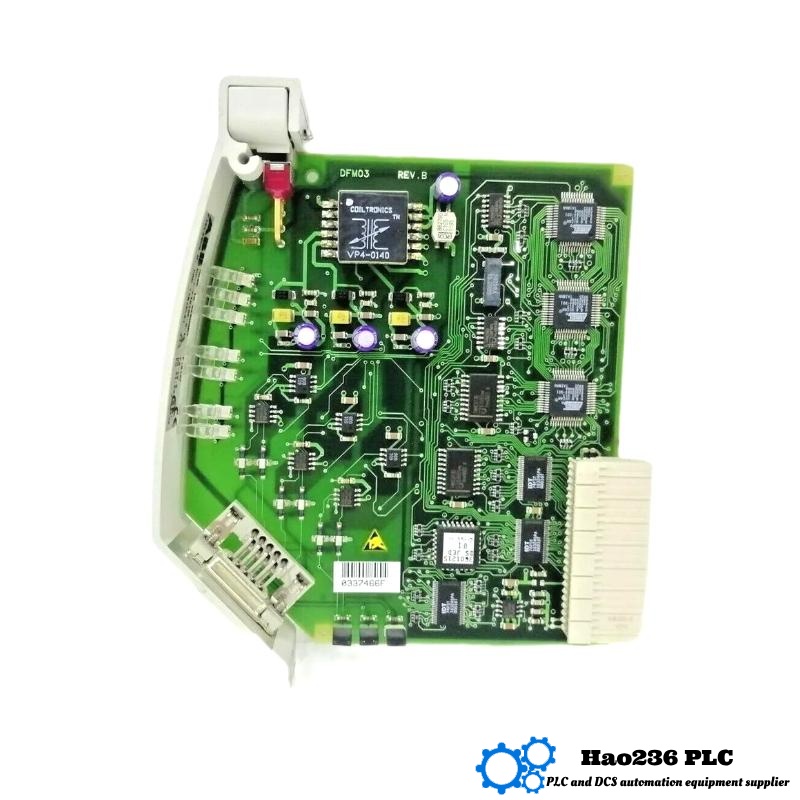

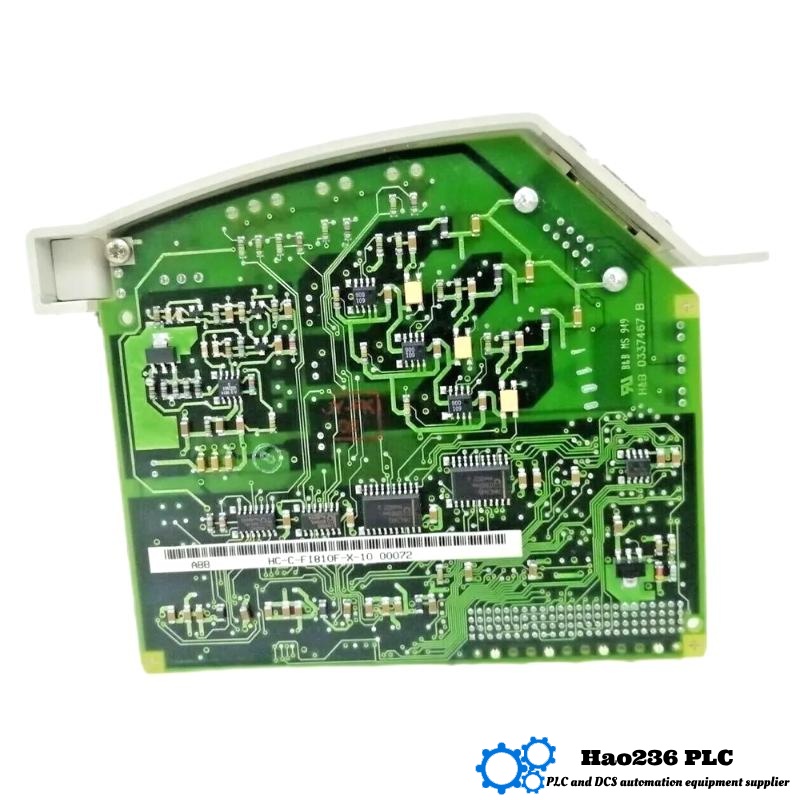

ABB FI 810F 3BDH000030R1 Fieldbus Module
Product Introduction
The ABB FI 810F 3BDH000030R1 is a Fieldbus Module designed for use in distributed control systems (DCS) to connect field devices with the automation system. This module facilitates communication between intelligent field devices, such as sensors, actuators, and control systems, over a digital fieldbus network.
Part of ABB’s comprehensive automation offering, the FI 810F is engineered to integrate seamlessly with ABB’s 800xA automation system, offering exceptional reliability and high-speed data exchange. The module supports both Profibus DP and FOUNDATION™ Fieldbus protocols, ensuring compatibility with a wide range of industrial networks and devices.
With a compact form factor and robust design, the FI 810F is perfect for a wide range of industries requiring field-level data communication, including chemical plants, oil & gas facilities, power generation, and manufacturing plants. It provides a highly reliable communication link, enabling real-time monitoring and control of the process.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | FI 810F 3BDH000030R1 |
| Input/Output Type | Fieldbus Module (Profibus DP, FOUNDATION™ Fieldbus) |
| Channels | 4 channels |
| Dimensions | 125 × 155 × 28 mm |
| Weight | 0.145 kg |
| Communication Protocol | Profibus DP, FOUNDATION™ Fieldbus |
| Power Supply | 24 V DC (nominal) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail |
| Signal Isolation | Galvanic Isolation |
| Communication Speed | 31.25 kbps to 12 Mbps (depends on protocol) |
| Max. Device Support | Up to 64 field devices per channel |
| Data Transfer Rate | 31.25 kbps to 12 Mbps |
| Compatibility | Compatible with 800xA, third-party systems |
| Certification | CE, UL, FM |
Product Applications
The ABB FI 810F Fieldbus Module is designed for industrial environments where reliable data communication is critical. Its flexibility and compatibility make it suitable for a wide range of applications:
-
Process Control: Used in continuous or batch processes in industries such as oil and gas, chemical, and petrochemical for remote monitoring and control.
-
Power Generation: Integrates with turbines, generators, and other equipment to transmit field data, enabling real-time control and optimization of power systems.
-
Manufacturing Automation: Facilitates communication between PLCs, SCADA systems, and industrial devices, helping automate production lines and improve efficiency.
-
Water Treatment: Enables remote control and monitoring of water and wastewater treatment plants, improving system efficiency and reducing downtime.
-
Pharmaceuticals: Assists in monitoring and controlling the environment within pharmaceutical production facilities to ensure regulatory compliance and product quality.
Product Advantages
-
Dual Protocol Support: The FI 810F supports both Profibus DP and FOUNDATION™ Fieldbus, making it a versatile solution compatible with a wide range of field devices and systems.
-
Compact and Lightweight: With dimensions of 125 x 155 x 28 mm and a weight of just 0.145 kg, it offers easy installation in space-constrained environments.
-
High Device Capacity: Supports up to 64 field devices per channel, ensuring scalability for larger applications and more extensive networks.
-
Reliable Communication: With galvanic isolation and high-speed data transfer rates (up to 12 Mbps), the FI 810F guarantees reliable communication even in electrically noisy environments.
-
Wide Temperature Range: Its ability to operate within a temperature range of -20°C to +60°C makes it suitable for use in harsh industrial conditions.
-
Seamless Integration: Easily integrates with ABB’s 800xA system and can communicate with third-party systems, providing flexibility for system upgrades or expansions.
-
Robust Design: Built to endure tough industrial environments, it features IP20 protection against dust and other contaminants.
Brand Information
ABB is a global leader in industrial automation, providing state-of-the-art solutions to improve efficiency, safety, and reliability across a wide range of industries. From automation systems to power grids and digital solutions, ABB offers comprehensive, integrated solutions that drive industrial transformation. The FI 810F is part of ABB’s fieldbus communication modules designed to connect field devices and control systems for effective data exchange and system optimization.
Related Models in the Same Series
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| FI 810A | 4-Channel Fieldbus Module (Profibus) | 4 | 125 × 155 × 28 | 0.145 |
| FI 820F | 8-Channel Fieldbus Module (FOUNDATION™ Fieldbus) | 8 | 130 × 160 × 32 | 0.2 |
| FI 810S | 8-Channel Fieldbus Module (Profibus DP) | 8 | 140 × 165 × 30 | 0.22 |
| FI 812 | 4-Channel Remote I/O Fieldbus Module | 4 | 150 × 160 × 35 | 0.25 |
| FI 830F | 8-Channel Multi-Protocol Fieldbus Module | 8 | 140 × 155 × 30 | 0.22 |
Popular ABB Models
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| FPBA-01 | Pressure sensor, analog output | 80 × 50 × 30 | 0.15 | High accuracy, fast response, rugged design |
| FPNO-21 | Normally open relay output module | 100 × 60 × 40 | 0.20 | SPST relay, 24 V coil, LED status indicator |
| FPBA-02 | Pressure sensor, digital output | 85 × 55 × 35 | 0.17 | Digital communication, temperature compensated |
| FPNO-22 | Normally closed relay output module | 100 × 60 × 40 | 0.21 | SPST relay, 24 V coil, diagnostic LEDs |
| FPBA-03 | Pressure sensor with extended range | 90 × 55 × 35 | 0.18 | Wide pressure range, corrosion resistant |
FAQs
Q1: What is the main function of the ABB FI 810F?
A1: The FI 810F is a Fieldbus Module that provides a communication link between field devices (e.g., sensors, actuators) and a control system over Profibus DP or FOUNDATION™ Fieldbus.
Q2: How many channels does the FI 810F module support?
A2: It supports 4 channels for field device communication.
Q3: What types of field devices can the module interface with?
A3: It supports communication with various field devices such as temperature sensors, pressure transmitters, flow meters, and actuators.
Q4: Can this module be used in harsh environments?
A4: Yes, it operates in temperatures ranging from -20°C to +60°C and has an IP20 protection rating, making it suitable for industrial environments.
Q5: What communication protocols does the FI 810F support?
A5: It supports Profibus DP and FOUNDATION™ Fieldbus communication protocols.
Q6: What is the power supply requirement for this module?
A6: It operates on a 24 V DC power supply.
Q7: How many field devices can be connected per channel?
A7: Each channel can support up to 64 field devices.
Q8: Is this module compatible with ABB’s 800xA system?
A8: Yes, it integrates seamlessly with ABB’s 800xA automation system.
Q9: How is the module mounted?
A9: The module is designed for DIN rail mounting, allowing easy installation in control panels.
Q10: What is the weight and size of the module?
A10: The FI 810F has dimensions of 125 × 155 × 28 mm and weighs 0.145 kg.
