Product Overview

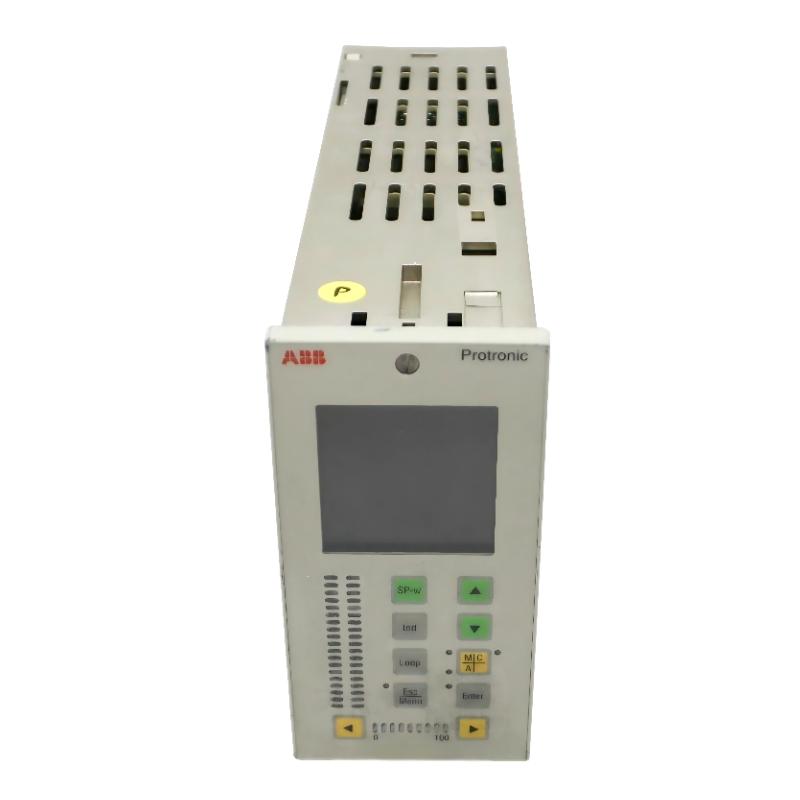

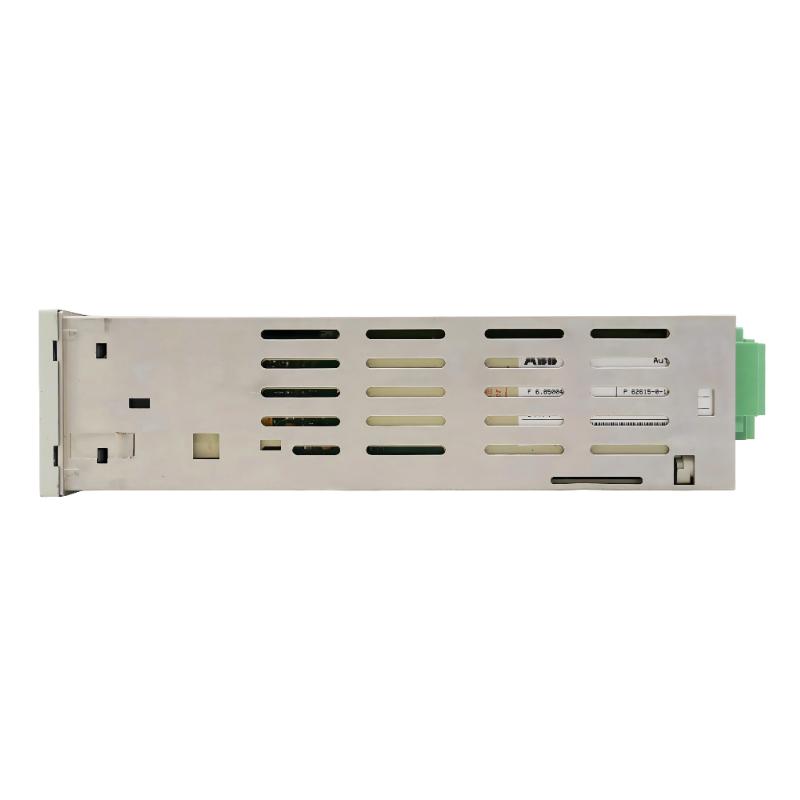

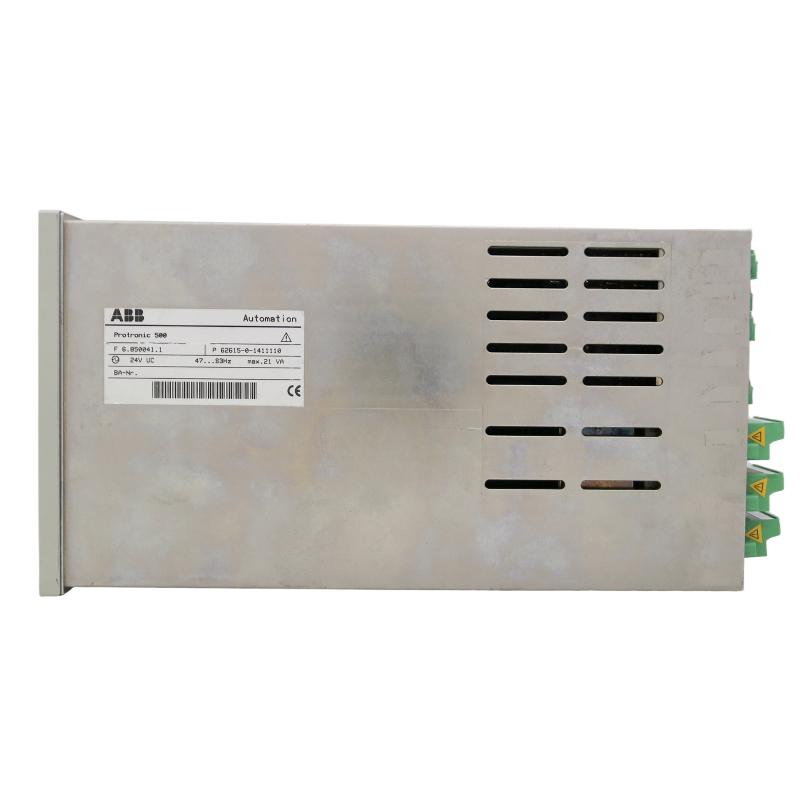

The ABB F 6.850041.1 P62615-0-1411110 Protronic 500 F Process Controller is a process control unit used for regulating industrial process variables and executing configured control functions. It is suited to applications where temperature, pressure, flow, level, or other process signals must be evaluated and controlled within a dedicated process control loop.
The Protronic 500 F platform is typically used in process equipment and industrial control panels where a controller must continuously compare measured process values with configured targets and generate corresponding control outputs. This makes it suitable for applications such as thermal systems, production machinery, process skids, and plant utility equipment.
In practical operation, the controller receives signals from connected measurement devices, processes them according to the configured control strategy, and sends output commands to the relevant actuator or control element. Proper configuration of the input signal, control parameters, output type, and connected field equipment is essential during commissioning.
For maintenance and replacement, engineers should verify the complete F 6.850041.1 / P62615-0-1411110 identification and compare the existing process configuration before removing the controller. Input wiring, output wiring, control parameters, and connected sensors or actuators should be checked as part of the replacement procedure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F 6.850041.1 |
| Part Number | P62615-0-1411110 |
| Product Family | ABB Protronic 500 F |
| Product Type | Process Controller |
| Primary Function | Process measurement, control, and regulation |
| System Role | Process control interface |
| Application | Industrial process automation and control |
| Dimensions | 272 × 72 × 144 mm |
| Weight | 1 kg |
Product Features
- ABB Protronic 500 F process control platform
- Continuous processing of connected process measurements
- Configurable process regulation functions
- Suitable for temperature and other industrial process variables
- Interfaces with measurement devices and control elements
- Suitable for standalone process control applications
- Supports closed-loop process regulation
- Applicable to industrial control panels and process equipment
- Useful for monitoring and regulating process conditions
- Suitable for maintenance and replacement of existing Protronic 500 F installations
Working Principle
The Protronic 500 F Process Controller operates by receiving a process measurement from a connected field sensor or transmitter and comparing the measured value with the configured process target. The controller processes the difference according to the configured control parameters and generates an output command for the associated actuator or final control element.
For example, in a temperature-control application, a temperature sensor supplies the measured value to the controller. The controller evaluates the measurement against the required temperature and adjusts the connected heating or cooling control element accordingly.
Process Sensor / Transmitter → Protronic 500 F Controller → Control Output → Actuator / Final Control Element → Process
During troubleshooting, the measurement input, controller configuration, output signal, and actuator should be checked separately. An incorrect process value does not necessarily indicate a controller failure; sensor wiring or input configuration can produce similar symptoms.
Role in a Protronic 500 F Process Control Architecture
The controller forms the central processing point of a dedicated process control loop. It receives field measurements, applies the configured control strategy, and sends commands to the final control equipment.
Field Sensor → Protronic 500 F → Control Output → Final Control Element → Process
| System Element | Function |
|---|---|
| Process Sensor / Transmitter | Measures the controlled process variable |
| Protronic 500 F Controller | Processes measurements and executes the configured control function |
| Control Output | Carries the controller’s command toward the final control equipment |
| Actuator / Control Element | Changes the process condition according to the controller output |
| Process Equipment | Contains the physical process being regulated |
| Operator Interface | Allows operators to monitor process values and controller status |
Industrial Applications
| Application | Typical Use |
|---|---|
| Temperature Control | Regulation of heaters, furnaces, ovens, and thermal processes |
| Process Machinery | Control of process variables in dedicated industrial equipment |
| Production Systems | Maintaining configured process conditions during manufacturing |
| Thermal Equipment | Closed-loop heating and cooling control |
| Process Skids | Local control of packaged process equipment |
| Industrial Utilities | Regulation of process-related utility equipment |
| Chemical Processing | Monitoring and regulating selected process variables |
| Manufacturing Equipment | Dedicated process control within production machinery |
Installation and Maintenance
- Verify the complete F 6.850041.1 / P62615-0-1411110 identification before replacement.
- Record the existing controller configuration before removing the unit.

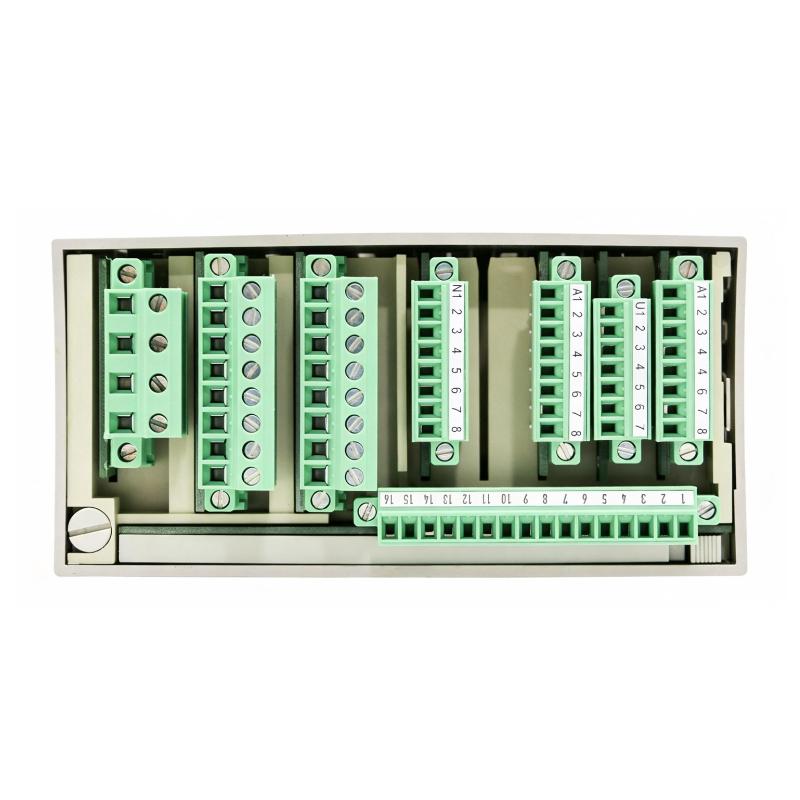

- Identify all process input and control output connections.
- Isolate the relevant control circuit before performing maintenance.
- Check sensor and transmitter wiring for loose, damaged, or incorrectly terminated connections.
- Verify that the configured input type matches the connected process measurement device.
- Check the configured process target and control parameters before commissioning.
- Inspect output wiring and confirm that the connected actuator or final control element is suitable for the control circuit.
- Verify controller status after power-up before enabling automatic process control.
- Compare the displayed process value with an independent measurement when troubleshooting abnormal readings.
- Test the controller output and confirm the corresponding response from the final control equipment.
- Record the final configuration and commissioning results for future maintenance.
Related Components
| Component | Function |
|---|---|
| ABB Protronic 500 F | Process control platform |
| Process Sensor | Measures the controlled process variable |
| Temperature Transmitter | Supplies temperature measurement to the controller |
| Process Transmitter | Provides pressure, flow, level, or other process measurements |
| Control Valve | Adjusts process flow according to the controller output |
| Heating / Cooling Equipment | Changes the controlled process condition |
| Actuator | Converts the controller output into physical movement or process action |
| Control Panel | Houses the process controller and associated wiring |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| F 6.850041.1 | Protronic 500 F Process Controller | Industrial process control |
| P62615-0-1411110 | Protronic 500 F Controller Part Number | Controller replacement |
| ABB Protronic 500 F | Process Controller Series | Process measurement and regulation |
| Protronic Process Controllers | Process Control Equipment | Industrial process regulation |
| ABB Process Controllers | Process Control Products | Temperature and process control |
| Process Transmitters | Measurement Equipment | Process variable acquisition |
| Control Valves | Final Control Equipment | Flow and process regulation |
| Process Sensors | Measurement Components | Industrial process measurement |
Key Advantages
- Provides dedicated process control functions
- Suitable for closed-loop industrial process regulation
- Interfaces directly with process measurement and control equipment
- Applicable to temperature and other process variables
- Supports local process control architectures
- Useful for dedicated industrial equipment and process systems
Technical FAQs
What type of process control application is the Protronic 500 F suitable for?
The controller is suitable for dedicated industrial process loops where a measured process variable must be compared with a configured target and regulated through a connected final control element. Temperature control is one typical application.
What should be checked if the displayed process value is incorrect?
First check the sensor or transmitter, field wiring, terminal connections, and configured input type. If the field measurement is correct but the controller display remains abnormal, the controller’s input configuration and hardware should then be investigated.
Why can a correct controller output still fail to produce the expected process response?
The final control element may be incorrectly wired, mechanically restricted, incorrectly configured, or unable to respond to the controller’s output. The complete path from controller output to actuator and process equipment should be checked.
What configuration information should be preserved before replacing the F 6.850041.1?
The existing input configuration, process target, control parameters, output configuration, alarm settings where applicable, and connected field-device information should be recorded before replacement. After installation, the controller should be tested against the existing process operating conditions.
