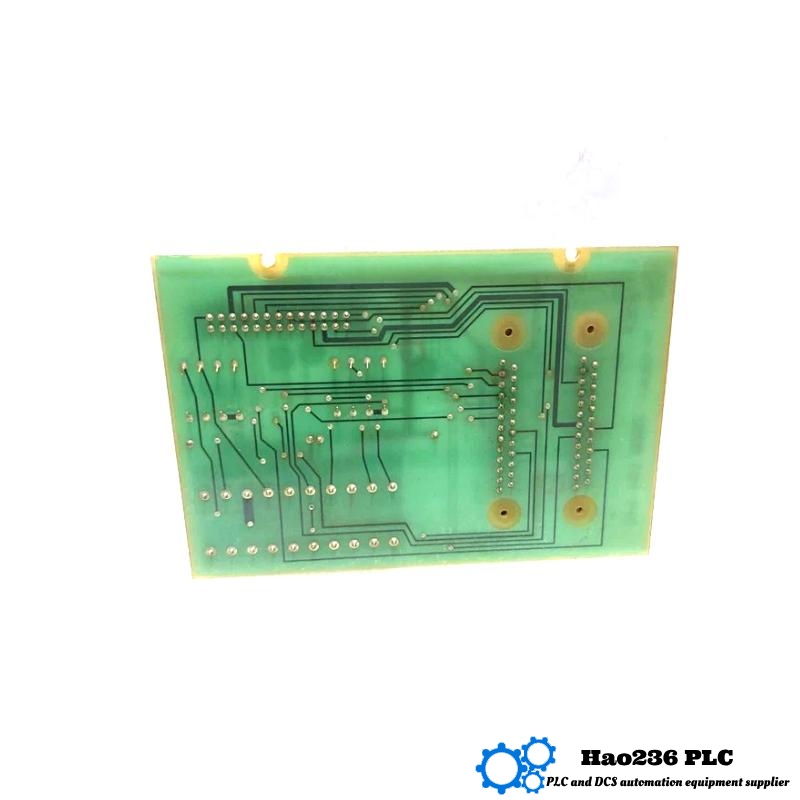

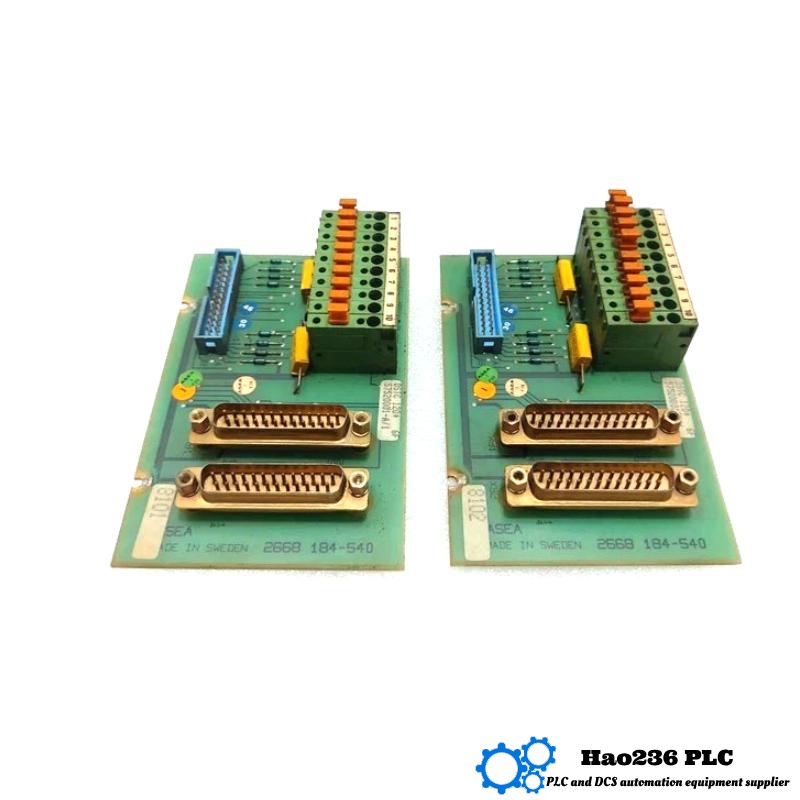

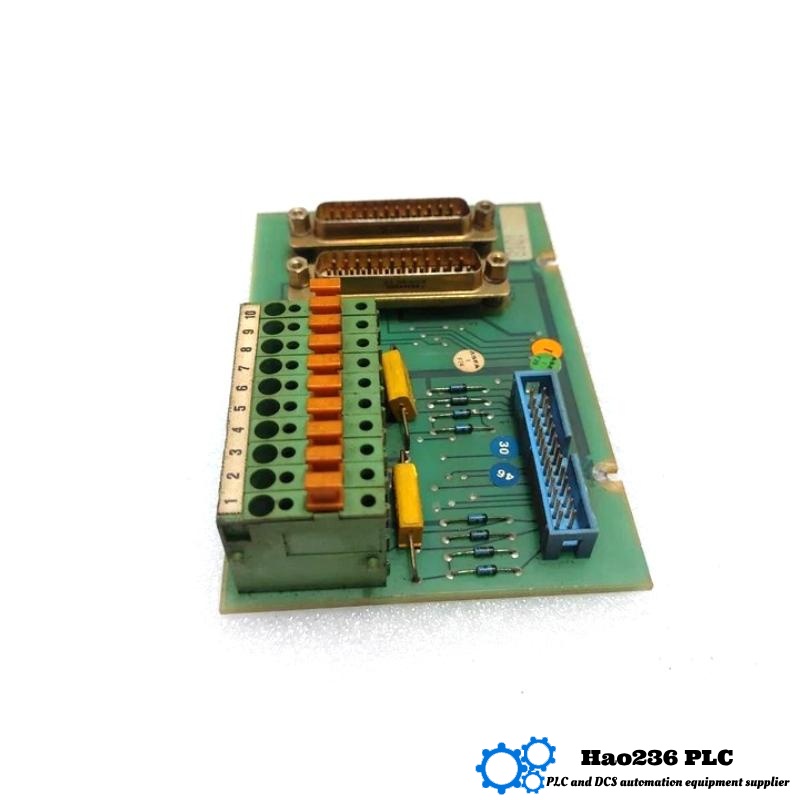

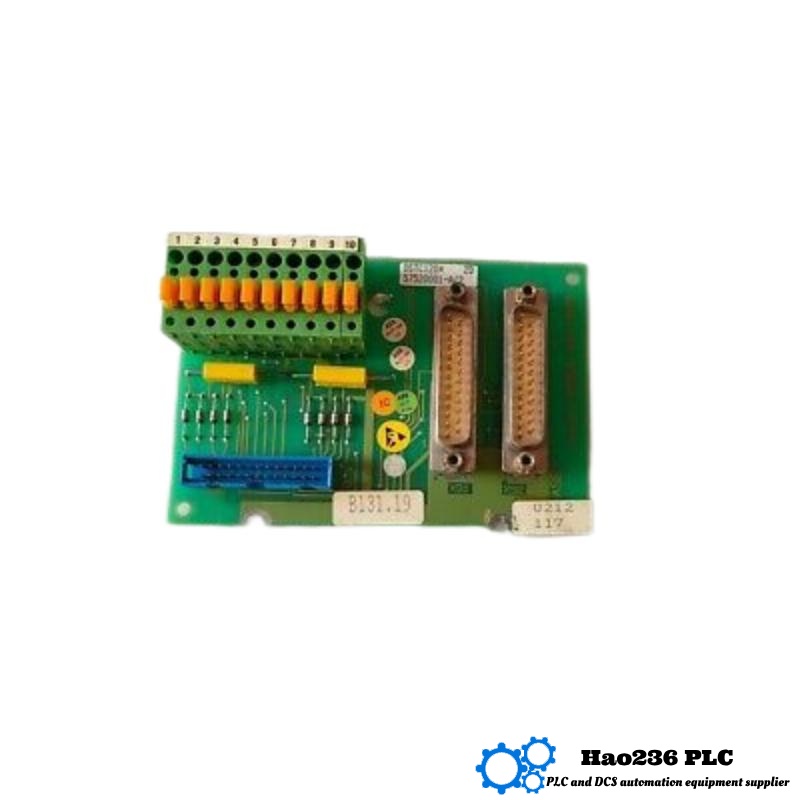

ABB DSTC 120 57520001-A Connection Unit
Product Introduction
The ABB DSTC 120 57520001-A is an advanced connection unit designed for seamless communication between different elements in an industrial automation system. This unit is part of the ABB Distributed Control Systems (DCS) portfolio, specifically engineered for providing reliable and efficient signal transmission in environments where consistent and real-time data transfer is critical.
The DSTC 120 is built to operate in harsh industrial conditions while ensuring high performance and uptime for continuous processes. It ensures secure and accurate communication across various parts of the automation network, including control units, field devices, and I/O systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | DSTC 120 |
| Part Number | 57520001-A |
| Function | Connection Unit |
| Voltage Range | 24 V DC |
| Communication Protocol | ABB Fieldbus Protocol |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 200 × 80 × 40 mm |
| Weight | 0.125 kg |
| Certifications | CE, RoHS, UL |
Product Applications
The DSTC 120 is commonly used in various industrial settings where robust and reliable communication between systems is essential:
-
Power Generation Plants: It ensures uninterrupted data exchange between monitoring and control systems.
-
Oil and Gas: Facilitates high-integrity connections in harsh environments, such as drilling platforms and refineries.
-
Chemical Plants: Ensures precise control system integration, improving process reliability.
-
Water Treatment Plants: Provides robust connectivity for real-time monitoring and control.
-
Manufacturing and Automation: Used in industrial robots, control systems, and assembly lines for precise communication.
Product Advantages
-
High Reliability: Designed to work in demanding environments with a high level of stability and minimal downtime.
-
Compact Size: Its compact design (200 x 80 x 40 mm) allows for flexible installation in control panels and tight spaces.
-
Robust Communication: Supports the ABB Fieldbus Protocol, ensuring secure and reliable signal transmission.
-
Wide Temperature Range: Operates in temperatures from -20°C to +60°C, making it suitable for diverse industrial environments.
-
Easy Installation: Mountable on DIN rails, facilitating quick and easy integration into existing control cabinets.
Brand Information
-
Brand: ABB
-
Category: Distributed Control Systems (DCS)
-
Reputation: ABB is a leading global provider of industrial automation and control solutions. With over a century of expertise, ABB products are trusted in industries worldwide for their high performance, reliability, and cutting-edge technology.
Recommended Related Models (Same Series or Function)
| Model | Function | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|
| DSTC 130 | Communication Interface | 200 × 80 × 40 | 0.13 | Enhanced signal processing capabilities |
| DSTC 110 | I/O Terminal Unit | 200 × 80 × 40 | 0.12 | Low-latency I/O connection |
| DSTC 140 | Fieldbus Gateway | 200 × 80 × 40 | 0.14 | Fieldbus-to-Ethernet communication |
| DSTC 150 | System Communication Hub | 200 × 80 × 40 | 0.16 | Scalable for larger control systems |
| DSTC 120L | Compact Connection Unit | 200 × 80 × 40 | 0.125 | Simplified installation with reduced size |
Popular ABB Models
| Model | Function | Dimensions (mm) | Weight (kg) | Feature |
|---|---|---|---|---|
| PM864AK01 | CPU Processor Unit | 186 × 107 × 186 | 1.2 | High-performance processing unit |
| AI810 | Analog Input Module | 186 × 107 × 120 | 0.4 | 8-channel analog input |
| DI810 | Digital Input Module | 186 × 107 × 120 | 0.35 | Efficient digital signal processing |
| DO820 | Digital Output Module | 186 × 107 × 120 | 0.35 | 16-channel digital output |
| CI860 | Communication Interface | 186 × 107 × 120 | 0.5 | Redundant communication protocol |
Product FAQ (Q&A)
Q1: What is the function of the DSTC 120 unit?
A1: The DSTC 120 serves as a connection unit, enabling reliable communication between various components in ABB control systems.
Q2: What communication protocol does the DSTC 120 support?
A2: It supports the ABB Fieldbus protocol for secure, real-time data transmission.
Q3: How does the DSTC 120 integrate with other control systems?
A3: The DSTC 120 can be easily integrated into control systems using the DIN rail mounting and supports various ABB DCS applications.
Q4: What is the operating temperature range of the DSTC 120?
A4: The unit operates in temperatures ranging from -20°C to +60°C.
Q5: Can the DSTC 120 be used in outdoor environments?
A5: The DSTC 120 is designed for indoor use, and additional protection may be required for outdoor applications.
Q6: How is the DSTC 120 installed?
A6: The unit can be mounted on a DIN rail, making installation quick and convenient.
Q7: What is the size and weight of the DSTC 120?
A7: The unit measures 200 × 80 × 40 mm and weighs 0.125 kg.
Q8: Is the DSTC 120 certified for industrial use?
A8: Yes, it is certified with CE, RoHS, and UL standards.
Q9: What is the maximum voltage for the DSTC 120?
A9: The unit operates at a voltage range of 24 V DC.
Q10: How does the DSTC 120 ensure communication reliability?
A10: It supports redundant communication paths to ensure continuous, reliable data transmission.
