Product Overview

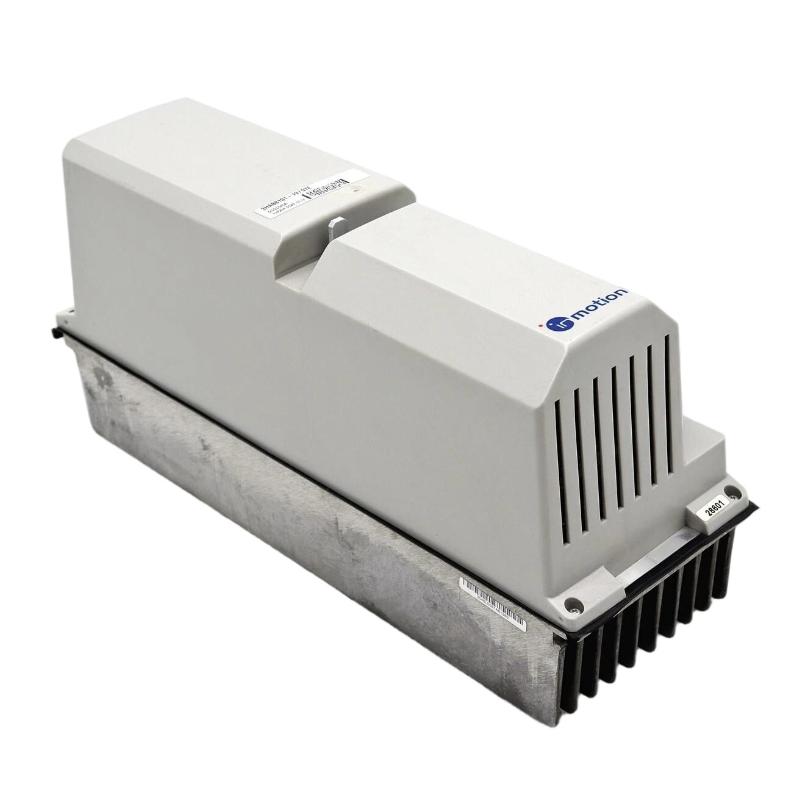

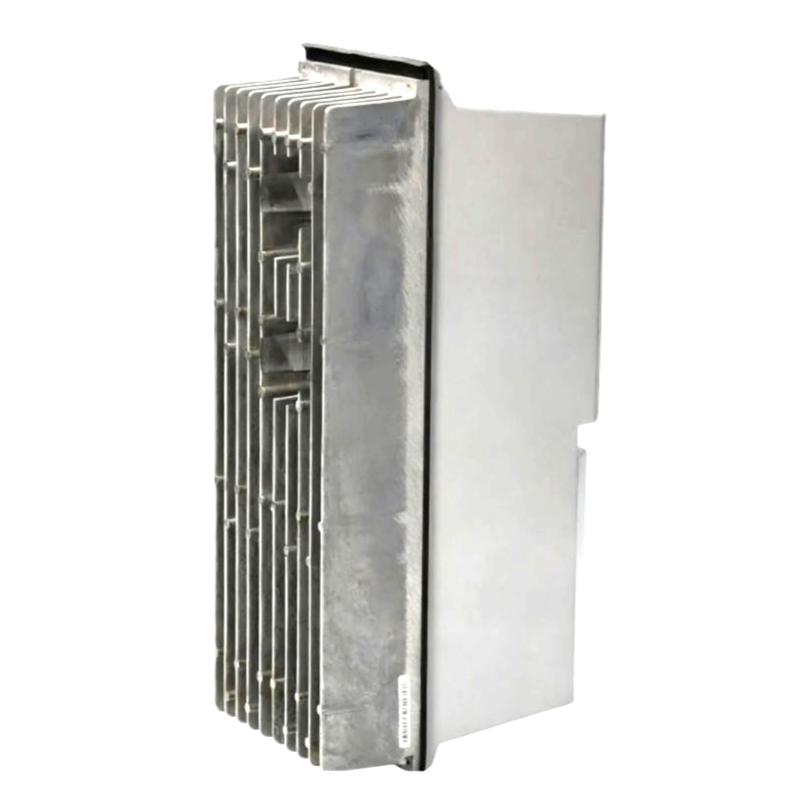

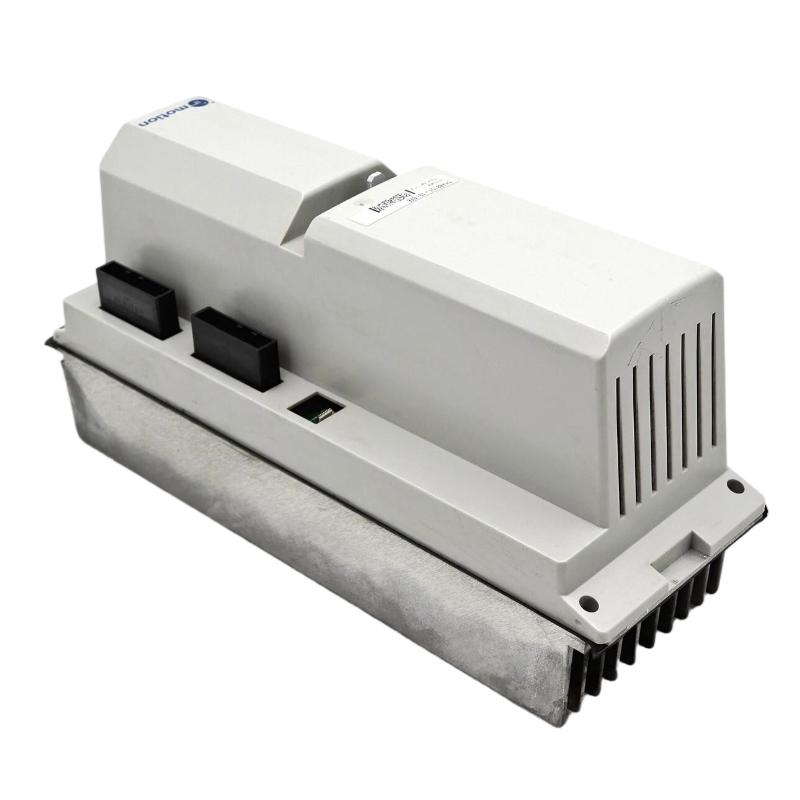

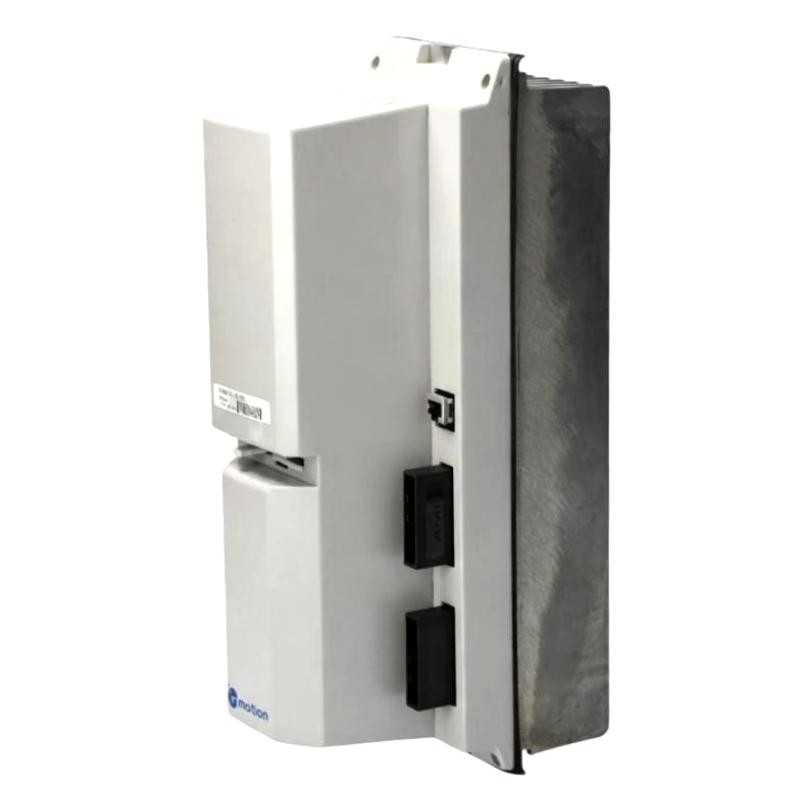

The ABB DSQC 545A 3HAB8101-19/07E InMotion Robot Servo Drive is a servo drive component used in ABB robotic control systems to regulate the electrical operation of robot servo motors. It forms part of the motion-control chain that converts controller commands into controlled motor movement.
In a multi-axis robot, the servo drive works between the robot controller and the servo motors. It receives motion commands from the control system, manages the associated motor power, and works with feedback information to support controlled axis movement.
The DSQC 545A is relevant to ABB robot systems where coordinated positioning, speed control, and repeatable axis movement are required. Typical applications include robotic welding, material handling, assembly, machine tending, and other automated production tasks.
For service work, the servo drive should be considered together with the controller, motor, feedback devices, power circuitry, and axis cabling. A drive-related fault does not necessarily indicate a failed drive; upstream power, controller commands, feedback signals, or motor-side conditions can produce similar symptoms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DSQC 545A 3HAB8101-19/07E |
| Product Family | InMotion |
| Product Type | Robot Servo Drive |
| Primary Function | Robot motor drive and motion control |
| System Role | Servo-axis power and motor control |
| Application | ABB industrial robot motion-control systems |
| Dimensions | 285 × 65 × 150 mm |
| Weight | 4.3 kg |
Product Features
- InMotion robot servo drive for compatible ABB robotic control systems
- Controls electrical operation of associated robot servo motors
- Forms part of the robot-axis motion-control chain
- Supports coordinated servo-axis movement
- Works with controller commands and motor feedback
- Suitable for multi-axis industrial robot applications
- Applicable to robot controller maintenance and drive replacement
- Integrates with associated ABB servo, feedback, and power-system components
Working Principle
The DSQC 545A receives motion-control information from the robot controller and uses the associated servo-drive circuitry to regulate power delivered to the connected motor. Feedback from the motor or axis is used by the overall control system to compare commanded and actual motion.
Robot Controller → DSQC 545A Servo Drive → Robot Servo Motor → Robot Axis
Motor / Axis Feedback → Controller / Drive System → Motion Correction
During operation, the controller calculates the required axis movement while the servo drive handles the electrical side of motor operation. The resulting motor torque and rotation move the robot axis toward the commanded position or operating state.
The drive does not independently determine the complete robot application sequence. Its role is concentrated on the servo-axis interface between motion commands, electrical motor power, and feedback within the larger robot-control system.
Role in an ABB InMotion Robot Motion Control Architecture
The DSQC 545A occupies the servo-drive layer between the robot controller and the robot’s motor and feedback system.
Robot Controller → DSQC 545A → Servo Motor → Robot Axis → Mechanical Load
Feedback Device → Controller / Servo System → DSQC 545A → Motor Correction
| System Element | Function |
|---|---|
| ABB Robot Controller | Executes robot application and motion-control logic |
| DSQC 545A | Regulates electrical operation of the servo motor |
| Servo Motor | Converts electrical energy into mechanical motion |
| Feedback Device | Reports motor or axis position and motion information |
| Axis Cabling | Carries motor power and feedback signals |
| Robot Mechanism | Converts servo movement into robot-axis motion |
| Mechanical Load | Represents the tooling, workpiece, or process load |
Servo performance depends on the complete control loop. Power quality, feedback integrity, motor condition, mechanical loading, and controller configuration can all influence the final axis behavior.
Industrial Applications
| Application | Typical Use |
|---|---|
| Robotic Welding | Coordinated robot-axis movement |
| Material Handling | Servo positioning of robot axes |
| Assembly Automation | Controlled multi-axis positioning |
| Automotive Production | High-repeatability robotic motion |
| Machine Tending | Robot positioning around machine tools |
| Palletizing Systems | Coordinated axis movement and positioning |
| Industrial Robot Cells | Servo control within automated production cells |
| Robot Maintenance Systems | Replacement of compatible servo-drive hardware |
Installation and Maintenance
- Confirm that the DSQC 545A 3HAB8101-19/07E matches the installed ABB InMotion controller configuration.
- Isolate the robot controller and servo power circuits before accessing the drive.
- Follow the applicable discharge and electrical safety procedures before handling the internal drive hardware.
- Record existing motor, feedback, power, and control connections before removing the drive.
- Inspect the replacement unit for physical damage or damaged connectors.
- Verify the drive mounting position and mechanical retention inside the controller.
- Reconnect motor power, feedback, and control wiring according to the approved system documentation.
- Check cable routing and connector seating before applying power.
- Restore power under controlled commissioning conditions and review controller and drive diagnostics.
- Verify servo initialization and check for abnormal drive or axis alarms.
- Perform controlled axis movement at reduced operating conditions before full-speed operation.
- After replacement, verify position feedback, axis movement, coordinated motion, and complete robot operation before returning the system to production.
Compatible System Components
| Component | Function |
|---|---|
| ABB InMotion Controller | Generates robot application and motion commands |
| DSQC 545A | Drives and regulates the associated servo motor |
| Robot Servo Motor | Produces mechanical axis movement |
| Motor Feedback Device | Provides position and motion feedback |
| Servo Power Circuit | Supplies electrical energy to the drive system |
| Motor Power Cable | Transfers controlled motor power |
| Feedback Cable | Transfers position and motion feedback |
| Robot Mechanical Axis | Converts motor rotation into robot movement |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB DSQC 545A | InMotion Robot Servo Drive | Robot-axis motion control |
| ABB 3HAB8101 Series | Servo Drive Component | ABB robot controller servo systems |
| ABB InMotion Servo Drives | Robot Servo Drive Family | Multi-axis robot motion control |
| ABB S4C+ Servo Drive Components | Servo Drive Component | Robot-axis power and motion control |
| ABB S4Cplus M2000 Servo Components | Servo Drive Component | Industrial robot motion systems |
| ABB Robot Servo Motors | Servo Motor | Robot-axis mechanical movement |
| ABB Robot Feedback Components | Feedback Device | Servo position feedback |
Key Advantages
- Provides the servo-drive interface between the ABB robot controller and motor system.
- Supports controlled electrical operation of compatible robot servo motors.
- Forms part of the closed-loop motion-control chain.
- Suitable for coordinated multi-axis industrial robot applications.
- Supports troubleshooting and replacement of compatible robot servo-drive hardware.
- Integrates with controller, motor, feedback, and mechanical-axis components.
Technical FAQs
How does the DSQC 545A differ from a servo drive power module?
The DSQC 545A is treated as a robot servo drive, with its function centered on controlling the associated servo motor within the robot motion system. A separate power module may serve primarily as a power-stage or supply component, while the servo drive participates directly in motor control.
What can cause a servo drive fault even when the drive itself is functioning?
A drive alarm can result from insufficient power, incorrect controller commands, feedback problems, motor-side faults, damaged cabling, or mechanical resistance. The complete axis circuit should therefore be checked before replacing the drive.
Why is feedback important when commissioning the DSQC 545A?
The robot controller needs accurate motion information to compare commanded movement with actual axis behavior. Incorrect or missing feedback can result in positioning errors, initialization faults, or abnormal servo operation.
What should be verified after replacing the DSQC 545A?
Check the drive identification, motor and feedback connections, controller diagnostics, servo initialization, and controlled axis movement. The robot should then be tested through its required motion sequence before returning to normal production.
