Product Overview

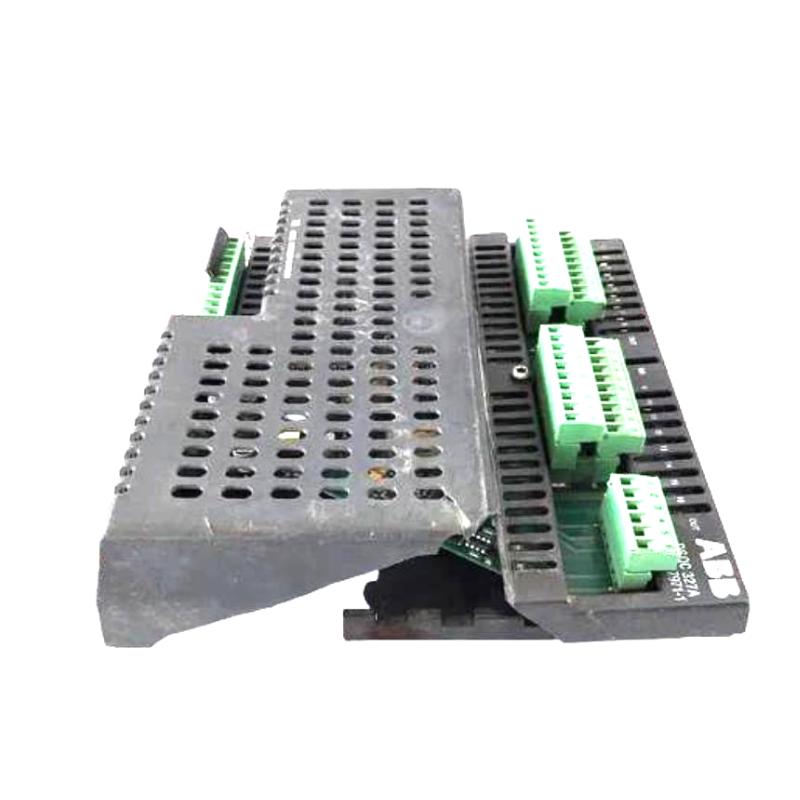

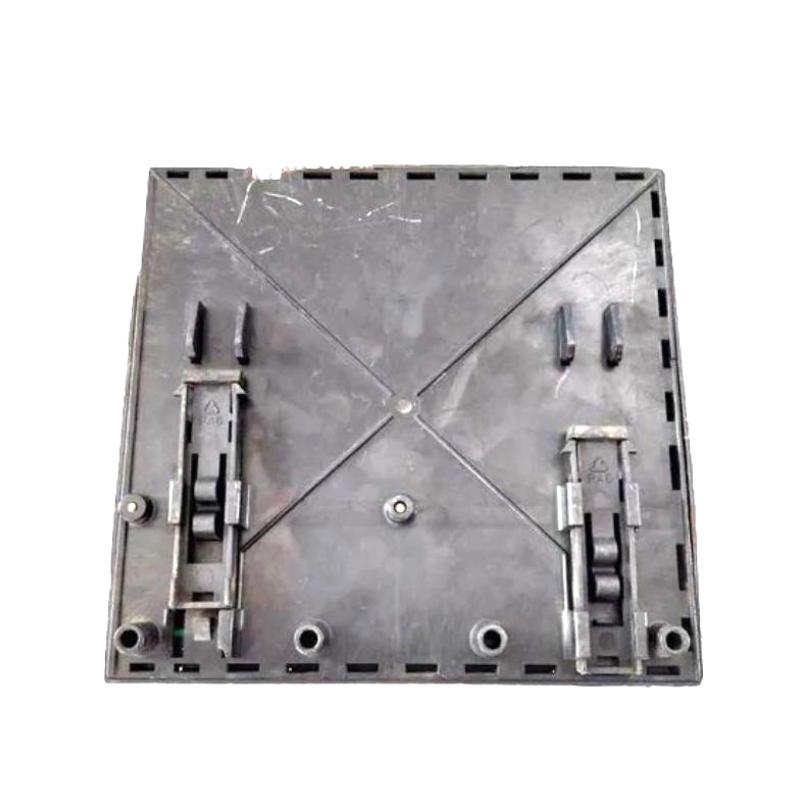

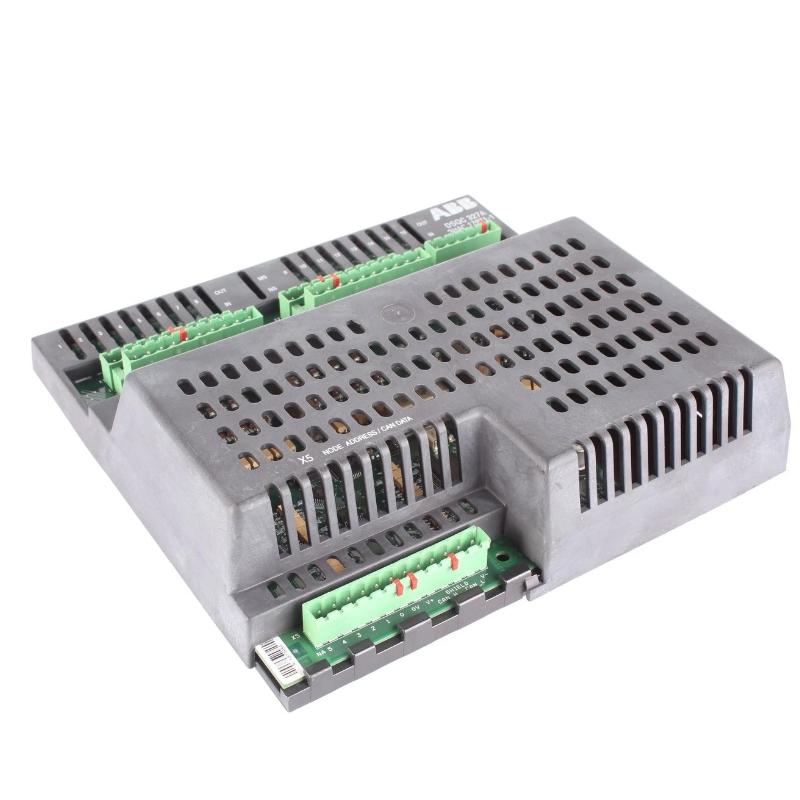

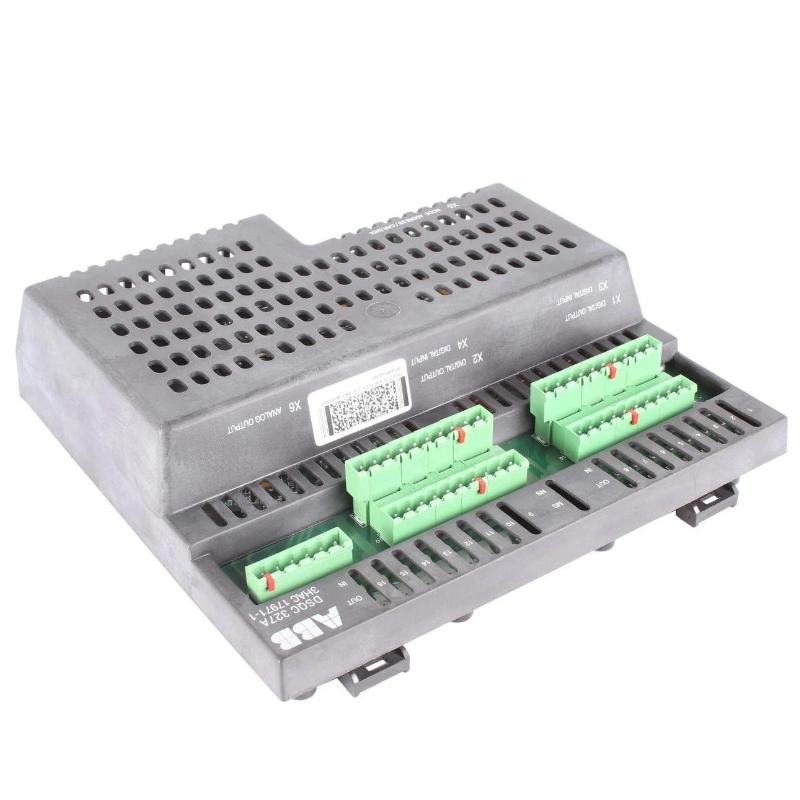

The ABB DSQC 327A 3HAC17971-1 S4C+ Combi I/O Card is a combination input/output interface card used within ABB S4C+ robot controller systems. It handles multiple controller-side I/O functions through a single hardware module, allowing the robot controller to exchange discrete signals with external equipment.
In a typical robotic cell, the controller needs to receive status signals from sensors, safety-related devices, switches, and machine interfaces while also sending commands to valves, relays, lamps, contactors, and other external devices. The DSQC 327A provides the I/O interface needed for these signal exchanges within the S4C+ controller architecture.
The card is particularly useful where robot operation depends on coordinated interaction with surrounding production equipment. For example, a robot may wait for a fixture-ready signal, activate a gripper, confirm a process condition, or exchange cycle-status information with an external machine.
During troubleshooting, the I/O card should be evaluated together with field wiring, terminal connections, controller configuration, and the connected sensors or actuators. A missing input or inactive output does not necessarily indicate a defective card.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DSQC 327A 3HAC17971-1 |
| Product Family | S4C+ |
| Product Type | Combi I/O Card |
| Primary Function | Combined digital input and output interfacing |
| System Role | Robot controller I/O interface |
| Application | ABB S4C+ industrial robot control systems |
| Dimensions | 185 × 43 × 160 mm |
| Weight | 0.66 kg |
Product Features
- S4C+ Combi I/O Card for compatible ABB robot controllers
- Combines input and output interface functions within one controller card
- Exchanges discrete status and command signals with external equipment
- Supports integration between robot control and surrounding machine systems
- Suitable for robotic cells requiring coordinated I/O interaction
- Provides a controller-side interface for sensors, switches, relays, and actuators
- Suitable for S4C+ controller maintenance and replacement
Working Principle
The DSQC 327A provides the electrical interface through which the S4C+ controller receives external input signals and sends output commands.
External Sensors / Switches → DSQC 327A Inputs → S4C+ Controller → DSQC 327A Outputs → Relays / Actuators / Machine Equipment
Input channels allow external devices to communicate their operating state to the robot controller. The controller program can then evaluate those states as part of the robot sequence.
For output operation, the controller generates a programmed command and the corresponding output interface changes state to control or signal an external device. This can be used for machine handshaking, fixture control, gripper operation, process indication, or other discrete control functions.
The card itself does not execute the complete robot program. It provides the electrical I/O interface that connects the controller’s logic with the surrounding production equipment.
Role in an ABB S4C+ Robot Controller I/O Architecture
The DSQC 327A occupies the controller I/O layer between the S4C+ control system and external machine signals.
Sensors / Switches → DSQC 327A → S4C+ Controller → DSQC 327A → Actuators / Machine Interface
| System Element | Function |
|---|---|
| External Sensors | Provide machine and process status information |
| Switches / Contacts | Supply discrete operating conditions |
| DSQC 327A | Provides combined controller input and output interface |
| S4C+ Controller | Executes robot application and sequence logic |
| Relays / Interface Devices | Transfers controller outputs to external circuits |
| Actuators | Perform commands generated by the control system |
| Production Equipment | Coordinates with the robot during automated cycles |
The I/O card forms the electrical boundary between controller logic and field-level discrete signals. Correct channel configuration and wiring are therefore essential to proper robot-cell operation.
Industrial Applications
| Application | Typical Use |
|---|---|
| Robotic Welding Cells | Machine and fixture signal exchange |
| Material Handling | Gripper, conveyor, and machine handshaking |
| Assembly Automation | Part-present and process-status signals |
| Automotive Robot Cells | Fixture and production-line I/O coordination |
| Machine Tending | Robot-to-machine discrete signal exchange |
| Packaging Automation | Equipment status and actuator commands |
| Pick-and-Place Systems | Sensor inputs and gripper outputs |
| Robot Controller Maintenance | Replacement of compatible I/O hardware |
Installation and Maintenance
- Confirm that the DSQC 327A 3HAC17971-1 matches the installed ABB S4C+ controller configuration.
- Isolate controller power before removing or installing the I/O card.
- Document existing I/O channel assignments and field wiring before disconnecting the original card.
- Inspect the replacement card and its connectors for visible damage or contamination.
- Install the card in the correct controller position and ensure proper mechanical seating.
- Reconnect field wiring according to the approved electrical drawings and channel assignments.
- Verify that input and output circuits are correctly separated and identified before energizing the system.
- Check terminal connections for secure contact and signs of mechanical stress.
- Restore controller power under controlled commissioning conditions.
- Verify that expected input states are correctly recognized by the controller.
- Test required output channels using controlled machine conditions and verify the response of connected equipment.
- After replacement, confirm the complete robot-cell sequence, including machine handshaking, sensors, actuators, and controller diagnostics.
Compatible System Components
| Component | Function |
|---|---|
| ABB S4C+ Robot Controller | Executes robot-control and sequence logic |
| DSQC 327A | Provides combined I/O interface functions |
| Proximity / Position Sensors | Supply discrete machine-status signals |
| Limit Switches | Provide position and equipment status information |
| Relay / Interface Modules | Isolate or switch external control circuits |
| Solenoid Valves | Perform pneumatic or hydraulic control functions |
| Gripper Equipment | Provides robot workpiece handling |
| Machine PLC / Controller | Exchanges production-line signals with the robot |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB DSQC 327A | S4C+ Combi I/O Card | Combined robot-controller I/O |
| ABB 3HAC17971 Series | I/O Card Component | S4C+ controller signal interfacing |
| ABB S4C+ I/O Cards | Controller I/O Module | Robot and machine signal exchange |
| ABB S4C+ Digital Input Modules | Digital Input Module | Discrete sensor and status signals |
| ABB S4C+ Digital Output Modules | Digital Output Module | Discrete actuator and control signals |
| ABB S4Cplus M2000 I/O Components | Robot Controller I/O | Industrial robot-cell interfacing |
| ABB Robot Controller I/O Components | I/O Component | Machine and production-line integration |
Key Advantages
- Combines controller input and output functions in a single I/O card.
- Provides a direct interface between S4C+ controller logic and discrete field signals.
- Supports robot-to-machine handshaking in automated production cells.
- Suitable for sensors, switches, relays, actuators, and machine interfaces.
- Simplifies the I/O layer of compatible ABB robot-controller systems.
- Useful for maintenance and replacement of S4C+ controller I/O hardware.
Technical FAQs
How does a Combi I/O Card differ from a dedicated input or output card?
A Combi I/O Card combines input and output interface functions within the same controller module. This allows one card to participate in both receiving external status signals and sending programmed commands to connected equipment.
What should be checked when an input signal is missing?
Start with the field device and wiring, then check the corresponding terminal connection and I/O channel status in the S4C+ controller. The channel configuration should also be verified before concluding that the I/O card has failed.
What can cause an output channel to appear inactive even when the robot program is running?
Possible causes include incorrect program conditions, an inactive output command, wiring problems, external circuit faults, or an issue with the I/O channel itself. Checking the controller’s output status against the actual field signal helps isolate the fault.
Why is I/O testing important after replacing the DSQC 327A?
The card is part of the electrical interface between the robot controller and external production equipment. Each required input and output should therefore be tested to confirm correct channel assignment, signal response, and machine handshaking before production resumes.
