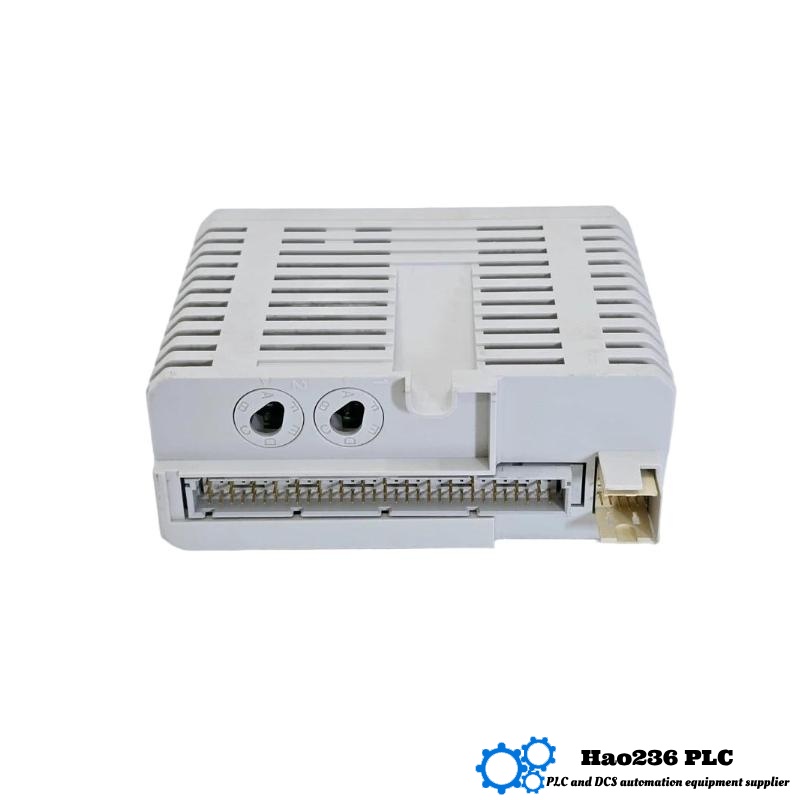

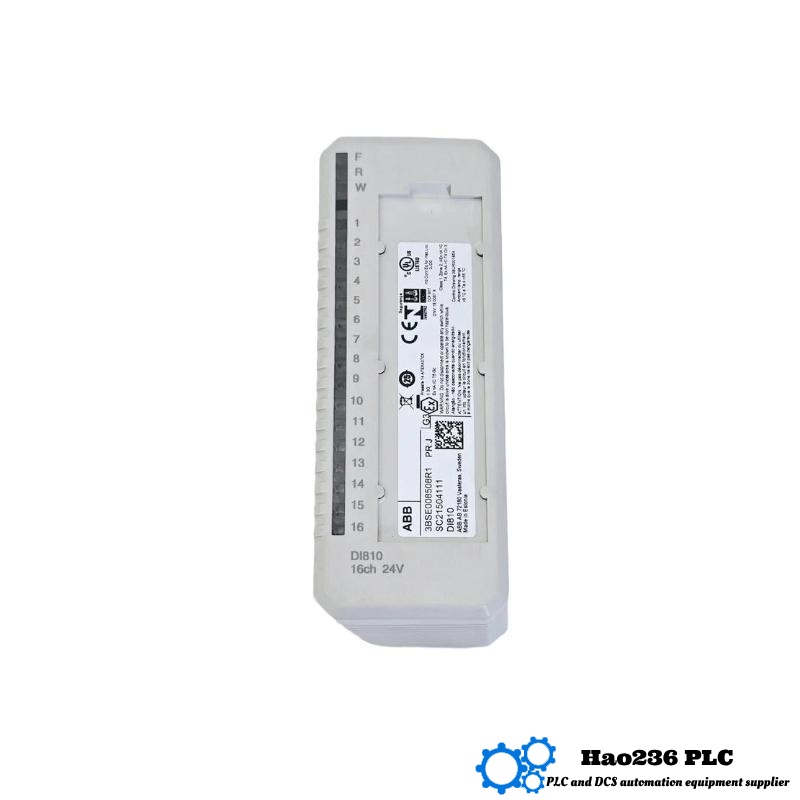

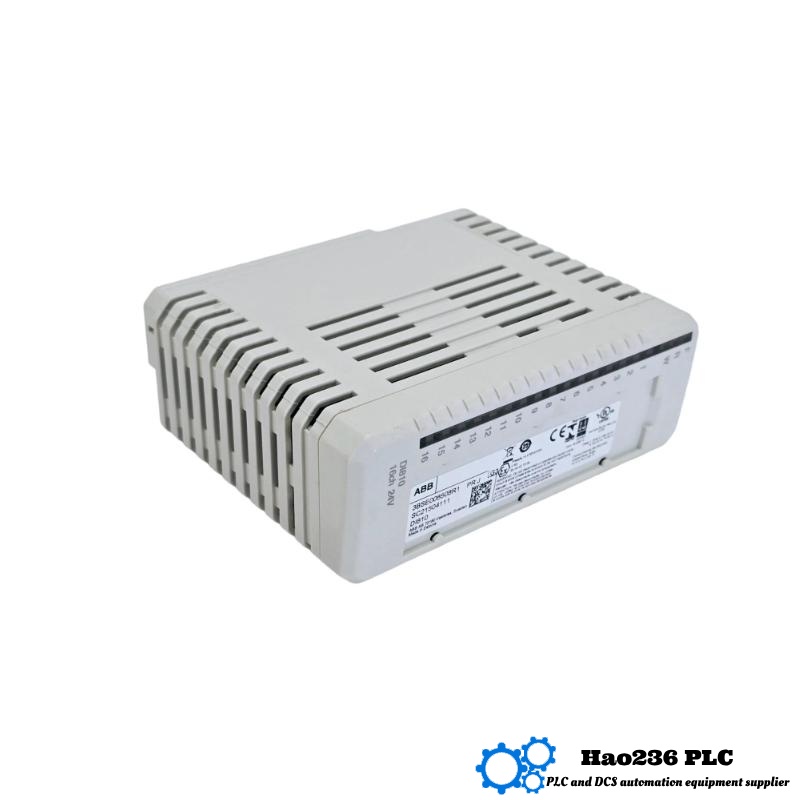

Product Overview – ABB DI810‑1 (3BSE008509R1)
Brand: ABB
Series: S800 I/O family
The ABB DI810‑1 is an industrial-grade digital input module tailored for integration with ABB’s control systems. It processes up to sixteen 24 V DC digital input signals, arranged across two isolated groups of eight channels each. The module supports both dry contacts and 24 V DC current‑sinking inputs, offering reliable signal detection with configurable filters and robust diagnostics.
Applications span across manufacturing, process control, building automation, and infrastructure systems—collecting signals from sensors, switches, and buttons for PLC or DCS interpretation.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Digital Input Module |
| Model / Part Number | DI810‑1 / 3BSE008509R1 |
| Input Channels | 16 (two isolated groups of 8) |
| Input Signal Type | 24 V DC, current sinking; supports dry contacts |
| Input Voltage Range | 18–30 V DC |
| Input Current | ~6 mA @ 24 V DC |
| Input Impedance | ≈3.5 kΩ |
| Filter Time Options | 2 ms, 4 ms, 8 ms, 16 ms |
| Max Cable Length | 600 m |
| Isolation Voltage | 50 V between groups; 500 V test insulation |
| Power Consumption | ~1.8 W |
| ModuleBus Power | +5 V, max 50 mA |
| Diagnostic Features | Input thresholds (>3 mA = ON, <1 mA = OFF), LEDs, fault detection |
| Operating Temperature | 0 °C to +55 °C (some sources indicate –40 °C to +70 °C) |
| Storage Temperature | –40 °C to +70 °C |
| Protection Level | IP20 |
| Mounting | DIN‑rail or panel |
| Compatible MTUs (Termination) | TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 |
| Dimensions (H × W × D) | 119 × 45 × 102 mm |
| Weight (kg) | ~0.15 kg |
Sources: DI810 specs—including isolation, filter time, dimensions, weight, electrical specs
Related / Same‑Series or Similar Modules
| Model | Function / Channels | Dimensions & Weight |
|---|---|---|
| DI811 (3BSE008552R1) | Digital Input, 48 V DC, 16 channels | Similar size (~119×45×102 mm), ~0.15 kg |
| DI814 | Digital Input, 24 V DC current source, 16 ch | Same footprint, ~0.15 kg |
| DI818 | Digital Input, 24 V, 32 channels | Doubled input density, similar size |
| DI820 | Digital Input, 110 V DC / 120 V AC, 8 ch | Similar module base, higher voltage spec |
| DI840 | Digital Input, 24 V, extended diagnostics | Enhanced diagnostics, ~0.18 kg |
Other Popular ABB Modules (Same Brand)
| Model | Function | Quick Specs |
|---|---|---|
| DO810 | Digital Output, 24 V, 16 ch | Current source, compact, ~0.18 kg |
| DO814 | Digital Output, 24 V, 16 ch, current sink | Short‑circuit protected, ~0.18 kg |
| AI810 | Analog Input, 0/4‑20 mA, 8 ch | Basic analog input, ~0.2 kg |
| AO810V2 | Analog Output, 0/4‑20 mA, 8 ch | Low‑power analog output, ~0.2 kg |
| CI854 | PROFIBUS Interface Module | Communications expansion module |
10 FAQs – Q&A Format
-
Q: What does the DI810‑1 module do?
A: It reads up to sixteen discrete input signals (24 V DC or dry contacts) and conveys them to the control system. -
Q: Can it handle both dry-contact and voltage inputs?
A: Yes. It supports both dry contacts and 24 V DC current-sinking inputs. -
Q: How are signals filtered?
A: Users can select input filter times of 2, 4, 8, or 16 ms to suit different signal characteristics. -
Q: What diagnostics are built-in?
A: The module tracks voltage thresholds, reports ON/OFF states, and provides LED status and fault detection. -
Q: How well isolated are the groups?
A: There is galvanic isolation between two groups (8 channels each) and tested insulation up to 500 V. -
Q: How hardy is it in extreme environments?
A: It operates from about 0 °C to +55 °C (some sources suggest –40 °C to +70 °C), with robust IP20-level protection. -
Q: Can it be installed while a system is running?
A: Yes — it supports hot-swap use with compatible termination units. -
Q: What are its physical dimensions and weight?
A: It measures approximately 119 × 45 × 102 mm and weighs around 0.15 kg. -
Q: What environment is it best suited for?
A: Ideal for process, manufacturing, building automation, and infrastructure where reliable signal acquisition is needed. -
Q: What termination units does it support?
A: Compatible with TU810, TU812, TU814, TU830, TU833, TU838, and TU850 termination units.
