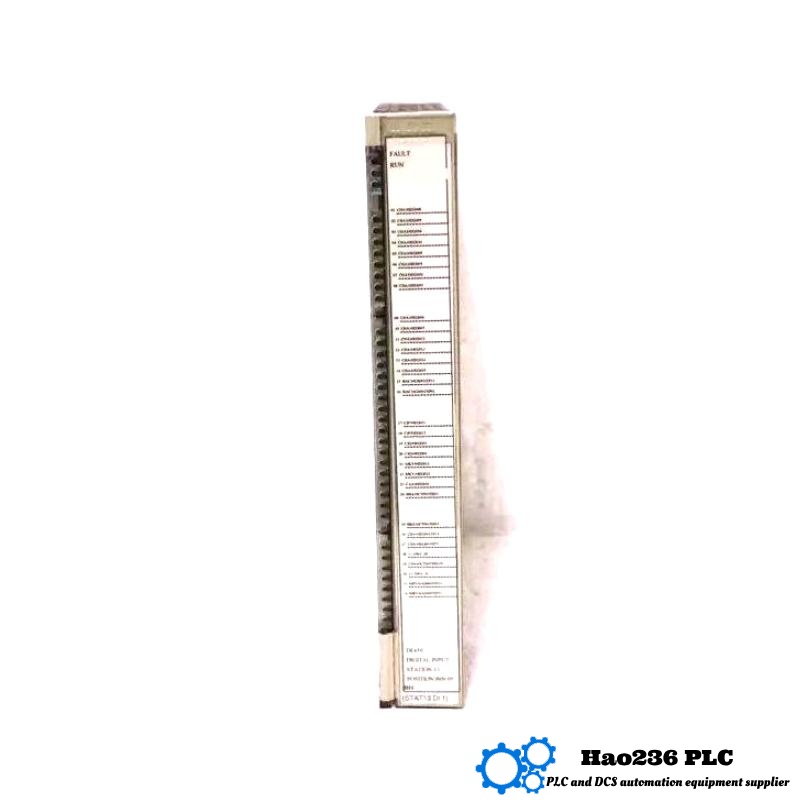

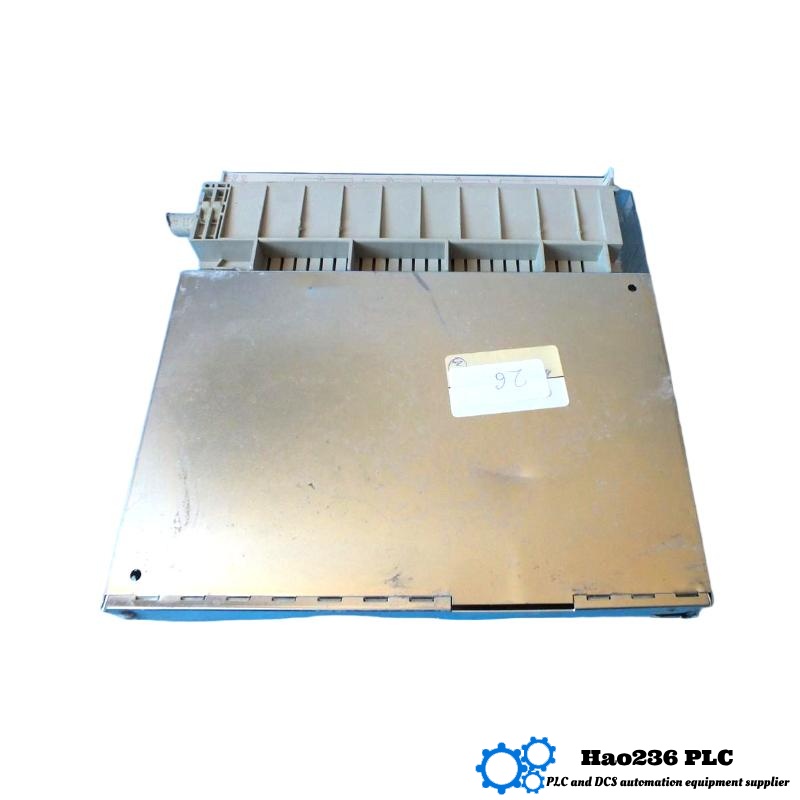

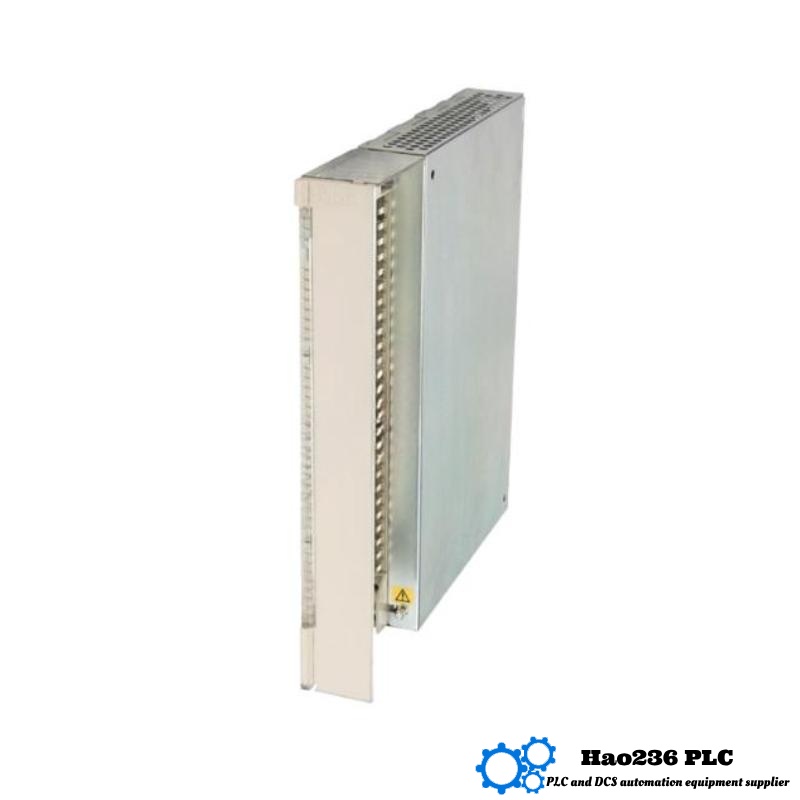

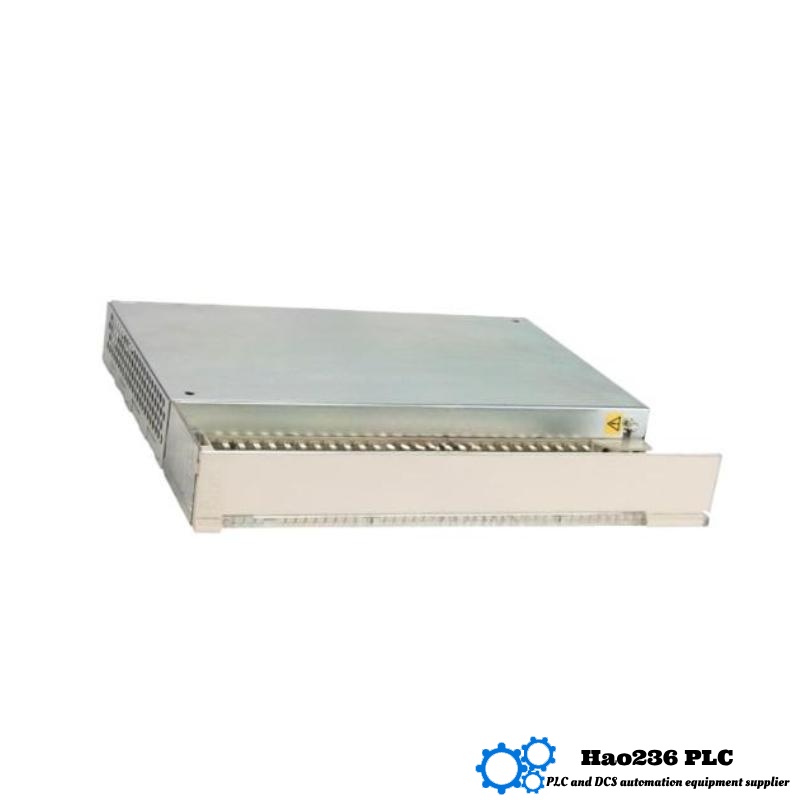

ABB DI650 3BHT300025R1 Digital Input Module
Product Introduction
The ABB DI650 3BHT300025R1 is a high-performance digital input module designed for industrial control and automation systems. This module provides reliable and precise monitoring of digital signals from a variety of input devices, such as switches, sensors, and other field equipment. It is a crucial component in systems where real-time input monitoring is essential for efficient operations.
The DI650 module is part of ABB’s comprehensive offering of automation components that enhance the performance, flexibility, and reliability of control systems in industries such as manufacturing, energy, and infrastructure. Its robust design allows for use in challenging industrial environments, providing high-quality and noise-resistant signal processing.
This module is compatible with ABB’s automation controllers, making it a versatile choice for systems requiring seamless integration. The DI650 offers flexible wiring options and features high-speed signal processing, contributing to the efficiency and accuracy of control processes.
Product Parameters
| Parameter | Value |
|---|---|
| Product Name | Digital Input Module |
| Model Number | DI650 3BHT300025R1 |
| Brand | ABB |
| Module Type | Digital Input |
| Input Channels | 8 Channels |
| Signal Type | Digital (On/Off) |
| Voltage Range | 24 V DC ± 20% |
| Input Voltage | 24 V DC |
| Module Width | 140 mm |
| Module Height | 130 mm |
| Module Depth | 40 mm |
| Weight | 0.6 kg |
| Operating Temperature | -20°C to +60°C |
| Protection | Overcurrent, Short-circuit, Surge Protection |
| Mounting Type | DIN Rail Mounting |
| Compatibility | ABB 800xA, AC500, S500, and other control systems |
| Status Indicators | LED Indicators (for each channel) |
| Compliance | CE, UL |
Product Applications
The ABB DI650 digital input module is widely used in industrial automation systems, where real-time monitoring and fast response to digital input signals are required. Some common applications include:
-
Manufacturing Automation: Used to interface with sensors, switches, and other digital input devices that monitor the status of machines, conveyors, and other equipment.
-
Process Control: In industries like chemical processing and food production, where digital input signals are essential for monitoring production parameters and machine statuses.
-
Energy Management: Common in power generation and distribution systems to capture digital signals related to system operations, such as ON/OFF status of critical machinery.
-
Building Automation: Used in HVAC and lighting control systems to monitor the status of switches, occupancy sensors, and other devices.
-
Infrastructure: Suitable for large infrastructure projects like water treatment plants, where precise monitoring of input signals is crucial for safe and efficient operations.
Product Advantages
-
Reliable Performance: The DI650 provides accurate and stable signal processing for digital inputs, even in environments with high electrical noise or extreme conditions.
-
Flexible Integration: It is compatible with a wide range of ABB automation systems, including 800xA, AC500, and S500, making it easy to integrate into existing installations.
-
High-Speed Signal Processing: The module processes digital input signals quickly, ensuring a fast and reliable response in real-time control applications.
-
Built-in Protection: With overcurrent, short-circuit, and surge protection, the DI650 enhances the durability and longevity of your automation system, preventing downtime due to electrical faults.
-
Compact Design: The module’s compact size (140 x 130 x 40 mm) and lightweight design (0.6 kg) allow for easy installation in space-constrained control panels.
-
LED Status Indicators: The built-in LED indicators provide clear visual feedback on the status of each input channel, making troubleshooting and maintenance easier.
Brand Information
-
Brand: ABB
-
Series: S500/S800 I/O Modules
-
ABB is a global leader in industrial automation, robotics, and electrical equipment. With decades of experience, ABB provides high-quality, reliable solutions for automation, power generation, and control systems across a wide range of industries.
Related Models from the Same Series
| Model | Description | Number of Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| DI640 3BHT300027R1 | Digital Input Module | 16 Channels | 140 x 130 x 40 | 0.6 |
| DI645 3BHT300030R1 | Digital Input Module | 16 Channels | 140 x 130 x 40 | 0.6 |
| DI630 3BHT300022R1 | Digital Input Module | 8 Channels | 140 x 130 x 40 | 0.6 |
| DI665 3BHT300029R1 | High-Speed Digital Input Module | 8 Channels | 140 x 130 x 40 | 0.6 |
| DI610 3BHT300015R1 | Digital Input Module for Extreme Conditions | 8 Channels | 140 x 130 x 40 | 0.6 |
Popular ABB Models
| Model | Description | Application Area | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI610 3BHT300018R1 | Analog Input Module | Power Control Systems | 140 x 130 x 40 | 0.7 |
| AO640 3BHT300021R1 | Analog Output Module | Industrial Automation | 140 x 130 x 40 | 0.8 |
| DO630 3BHT300023R1 | Digital Output Module | Manufacturing Systems | 140 x 130 x 40 | 0.7 |
| DO650 3BHT300024R1 | Digital Output Module | Automation & Control | 140 x 130 x 40 | 0.8 |
| AI650 3BHT300026R1 | Advanced Analog Input Module | Power Generation | 140 x 130 x 40 | 0.75 |
FAQ – Frequently Asked Questions
Q1: What does the ABB DI650 3BHT300025R1 module do?
A1: The DI650 is a digital input module used in industrial automation systems to monitor the status of digital input devices such as sensors, switches, and relays.
Q2: How many channels does the DI650 module have?
A2: The DI650 module has 8 input channels for monitoring digital signals.
Q3: What is the voltage range for the DI650 module?
A3: The DI650 operates with a 24V DC input, with a voltage tolerance of ± 20%.
Q4: Is the DI650 compatible with other ABB systems?
A4: Yes, the DI650 is compatible with ABB’s 800xA, AC500, and S500 control systems, among others.
Q5: Can this module be used in harsh environments?
A5: Yes, the DI650 is designed to function in harsh industrial environments with an operating temperature range of -20°C to +60°C.
Q6: How does the DI650 handle high electrical noise?
A6: The DI650 features robust signal processing that is resistant to electrical noise, ensuring stable performance even in challenging conditions.
Q7: What type of protection does the DI650 module offer?
A7: The module is equipped with overcurrent, short-circuit, and surge protection, safeguarding your automation system from electrical faults.
Q8: Can the DI650 be mounted in any industrial panel?
A8: Yes, the DI650 is designed for DIN rail mounting, making installation easy in most industrial control panels.
Q9: How do I monitor the status of the inputs?
A9: The DI650 module features LED indicators for each channel, providing clear visual feedback on the status of the digital inputs.
Q10: What is the weight and size of the DI650 module?
A10: The DI650 has a compact design with dimensions of 140 x 130 x 40 mm and weighs 0.6 kg, making it ideal for space-constrained installations.
