Product Overview

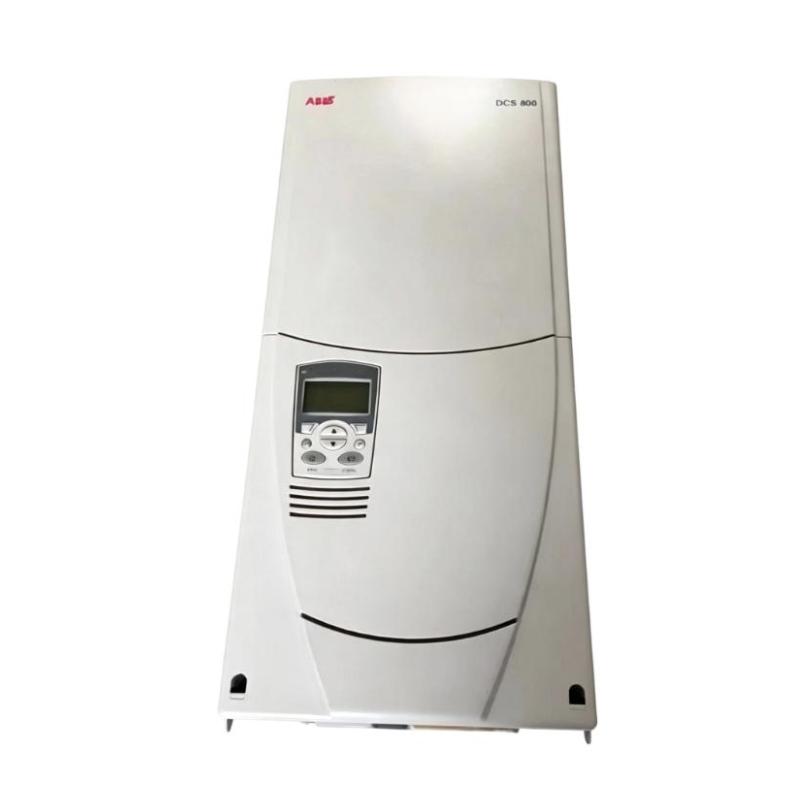

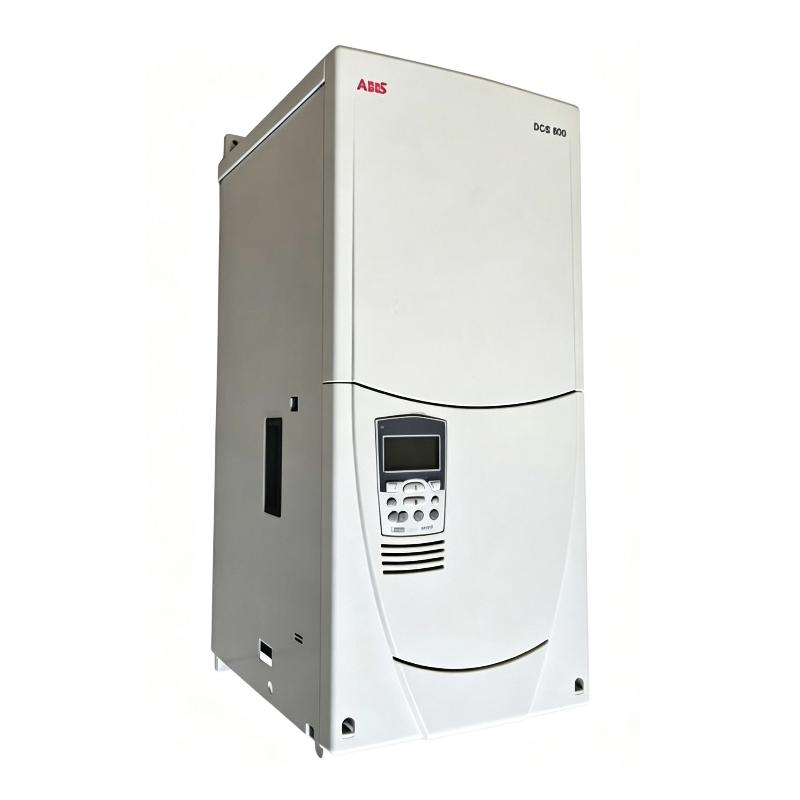

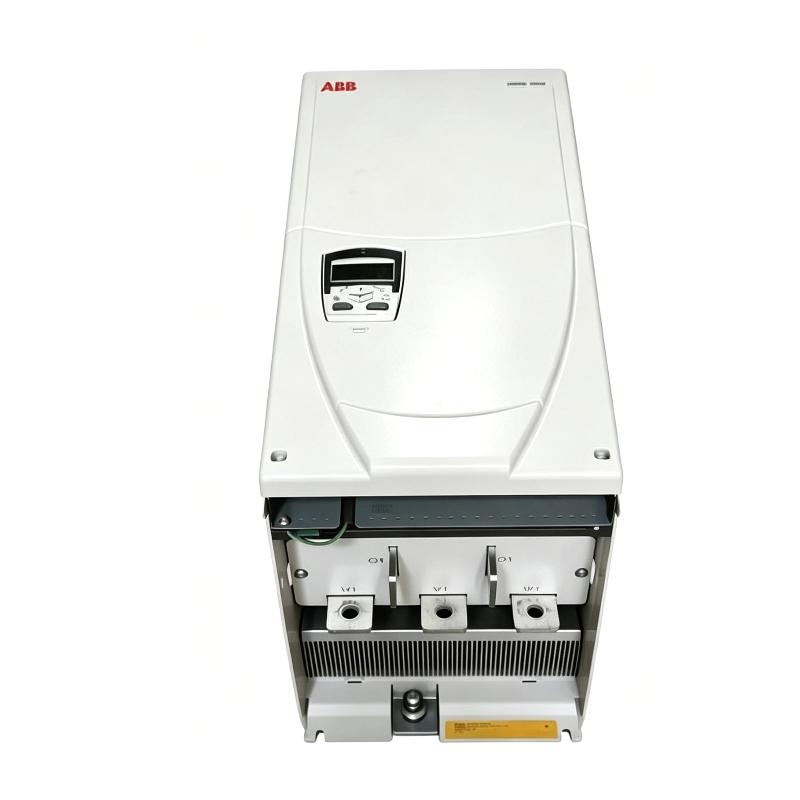

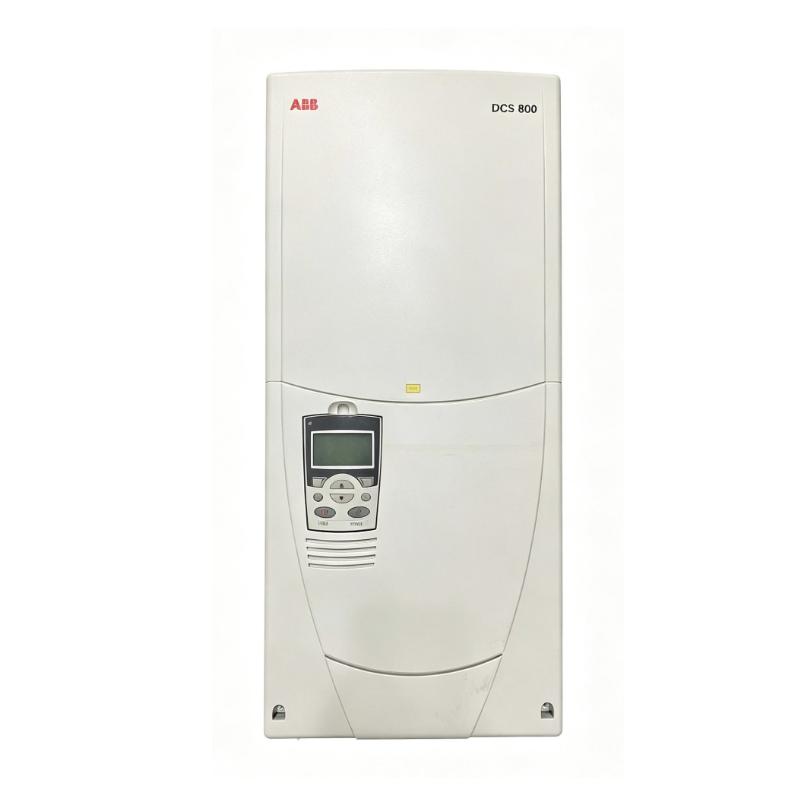

The ABB DCS800-S02-0820-05 (3AUA0000153659) DCS800 Industrial DC Drive is a high-current digital DC drive designed for large-scale industrial motor control applications. It belongs to the ABB DCS800 series and is mainly used in systems requiring precise DC motor regulation, high load capability, and stable operation under demanding industrial conditions.
Compared with lower-current models in the same series, the DCS800-S02-0820-05 is intended for applications involving larger DC motors and heavier mechanical loads. It provides controlled power conversion, motor current regulation, speed control, torque management, and system monitoring functions required for continuous industrial operation.
The drive supports four-quadrant operation, allowing DC motors to operate in forward and reverse directions while handling both motor-driven operation and regenerative braking conditions. This capability is valuable in production equipment where frequent acceleration, deceleration, reversing, or dynamic load changes occur.
The DCS800-S02-0820-05 is suitable for heavy industrial applications including metal processing equipment, large conveyors, cranes, mining machinery, and other automation systems where reliable DC motor control is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DCS800-S02-0820-05 |
| Order Number | 3AUA0000153659 |
| Product Family | DCS800 Series |
| Product Type | Industrial DC Drive |
| Drive Configuration | 4-Quadrant Reversing DC Drive |
| Application | High-Current Industrial DC Motor Control |
| Dimensions | 644 × 270 × 345 mm |
| Weight | 45.36 kg |
Product Features
The ABB DCS800-S02-0820-05 provides advanced motor control capability for large industrial DC drive systems.
Key characteristics include:
- ABB DCS800 Series digital DC drive
- Model DCS800-S02-0820-05
- Order number 3AUA0000153659
- Designed for high-current DC motor applications
- Supports four-quadrant reversing operation
- Provides precise speed and torque regulation
- Supports regenerative braking functions
- Suitable for continuous industrial operation
- Supports closed-loop motor control applications
- Provides motor monitoring and protection functions
- Supports integration with industrial automation systems
- Suitable for heavy-duty drive modernization projects
The drive is typically selected for applications where high motor performance, stable operation, and long service life are required.
Working Principle
The ABB DCS800-S02-0820-05 controls a DC motor by regulating the electrical energy delivered to the motor according to operating commands and feedback information.
A simplified operating structure is:
Industrial Power Supply → DCS800 DC Drive → Controlled DC Output → DC Motor → Mechanical Load
The automation controller sends operating references such as speed commands, torque requirements, and direction instructions. The drive processes these signals and adjusts the motor armature current and related control parameters to achieve the required operating condition.
During closed-loop operation, feedback devices provide real-time information about motor speed or position. The drive compares actual operating values with target values and continuously adjusts output performance.
The four-quadrant control capability allows the drive to manage:
- Forward acceleration
- Forward regenerative braking
- Reverse acceleration
- Reverse regenerative braking
This operating method enables smooth motor transitions and improved control performance in applications with heavy loads or frequent operating changes.
Role in a DC Motor Control Architecture
The DCS800-S02-0820-05 functions as the high-power motor control and energy conversion unit within an industrial automation system.
A typical architecture can be represented as:
PLC / DCS Controller → Communication Interface → ABB DCS800 Drive → DC Motor → Mechanical Equipment
The automation controller manages process sequences and operating commands, while the DCS800 performs the fast electrical regulation required by the DC motor.
The drive provides:
- Motor current control
- Speed regulation
- Torque adjustment
- Direction control
- Braking management
- Operating diagnostics
- Protection functions
In large industrial installations, the drive becomes a key component between the automation layer and the mechanical power system, ensuring that motor operation matches production requirements.
Industrial Applications
The ABB DCS800-S02-0820-05 is designed for industrial systems requiring high-capacity DC motor control.
| Application | Typical Use |
|---|---|
| Steel Production | Large rolling equipment drive control |
| Mining Systems | Heavy-duty motor operation |
| Paper Manufacturing | Continuous production line speed regulation |
| Cranes and Hoists | High-load lifting and reversing control |
| Conveyor Systems | Long-distance material handling |
| Metal Processing | Torque-controlled production equipment |
| Marine Equipment | Large DC motor applications |
| Industrial Test Systems | Controlled high-power motor operation |
| Retrofit Projects | Replacement of aging DC drive systems |
The drive is particularly suitable for applications where motor reliability and dynamic control performance directly affect production efficiency.
Installation and Maintenance
The installation of the DCS800-S02-0820-05 requires evaluation of the complete DC motor system, including power supply, motor characteristics, feedback devices, control communication, and mechanical load conditions.
Recommended practices include:
- Confirm the complete drive model and order number.
- Verify compatibility with the connected DC motor.
- Check motor armature and field specifications.
- Confirm power supply requirements.
- Inspect power terminals and control wiring.
- Verify grounding and protection systems.
- Check encoder or feedback connections.
- Configure motor parameters correctly.
- Perform controlled commissioning.
- Verify current and speed regulation.
- Test reversing operation.
- Check regenerative braking performance.
- Monitor alarms and diagnostic information.
- Record final operating parameters.
For maintenance troubleshooting, engineers should analyze the complete drive chain. Motor faults, feedback problems, mechanical overloads, incorrect tuning, and communication issues may affect system performance without indicating a drive hardware failure.
Related Components
The DCS800-S02-0820-05 is normally integrated with multiple industrial automation components.
| Component | Function |
|---|---|
| ABB DCS800 Control Platform | Executes DC motor control functions |
| Large Industrial DC Motor | Provides mechanical power output |
| PLC / DCS Controller | Provides process commands |
| Encoder / Tachometer | Provides motor feedback |
| Communication Interface Module | Enables automation network connection |
| Motor Field Components | Controls motor excitation |
| Power Distribution System | Supplies electrical energy |
| Braking Components | Supports controlled deceleration |
| Operator Interface | Provides monitoring and adjustment |
| Protection Equipment | Protects drive and motor circuits |
Correct coordination between these components ensures stable operation of high-power DC motor systems.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB DCS800-S02-0820-05 | High-Current Industrial DC Drive | Large DC motor control |
| ABB DCS800-S02-0260-05 | Industrial DC Drive | Medium-power DC applications |
| ABB DCS800-S02-0200-05 | Industrial DC Drive | General industrial DC motor control |
| ABB DCS800 Series | Digital DC Drive Platform | Heavy industrial automation |
| ABB DCS800-S01 Series | Non-Reversing DC Drive | Single-direction applications |
| ABB ACS880 Series | Modern Industrial Drive Platform | Advanced AC motor control |
Model selection should be based on motor current requirements, load characteristics, braking needs, and existing automation architecture.
Key Advantages
- ABB DCS800 Series industrial DC drive
- Model DCS800-S02-0820-05
- Order number 3AUA0000153659
- Designed for high-current DC motor applications
- Supports four-quadrant reversing operation
- Provides accurate speed and torque control
- Suitable for regenerative braking systems
- Supports industrial automation integration
- Designed for heavy-duty production environments
- Suitable for large DC drive modernization projects
- Provides stable control for demanding motor applications
Technical FAQs
What type of applications require the ABB DCS800-S02-0820-05?
The DCS800-S02-0820-05 is typically used in high-power industrial applications where large DC motors require precise speed, torque, and reversing control, such as steel processing, mining equipment, and heavy production machinery.
How does the DCS800-S02-0820-05 handle heavy mechanical loads?
The drive regulates motor current and torque output according to load requirements. Through feedback-based control, it can maintain stable motor performance even when mechanical conditions change during operation.
What should be considered when integrating this DC drive into an existing automation system?
Engineers should evaluate the PLC or DCS interface, communication method, motor feedback system, motor electrical characteristics, field excitation configuration, and existing control logic before integration.
Why might a high-power DC drive system require feedback devices?
Feedback devices provide real-time information about motor speed or position. This information allows the drive to adjust output accurately, improving speed stability, torque response, and overall system control performance.
