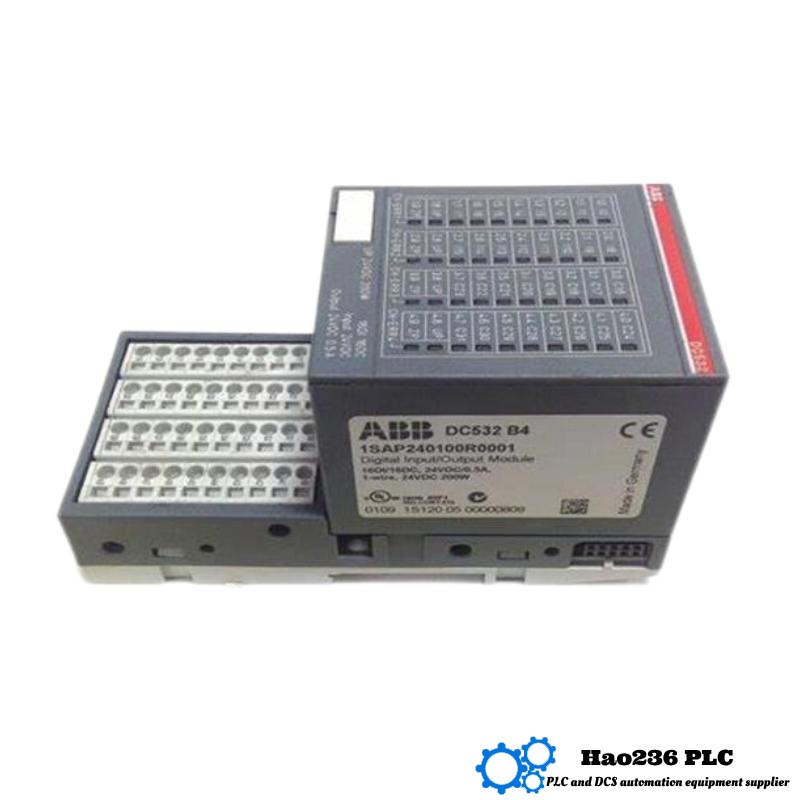

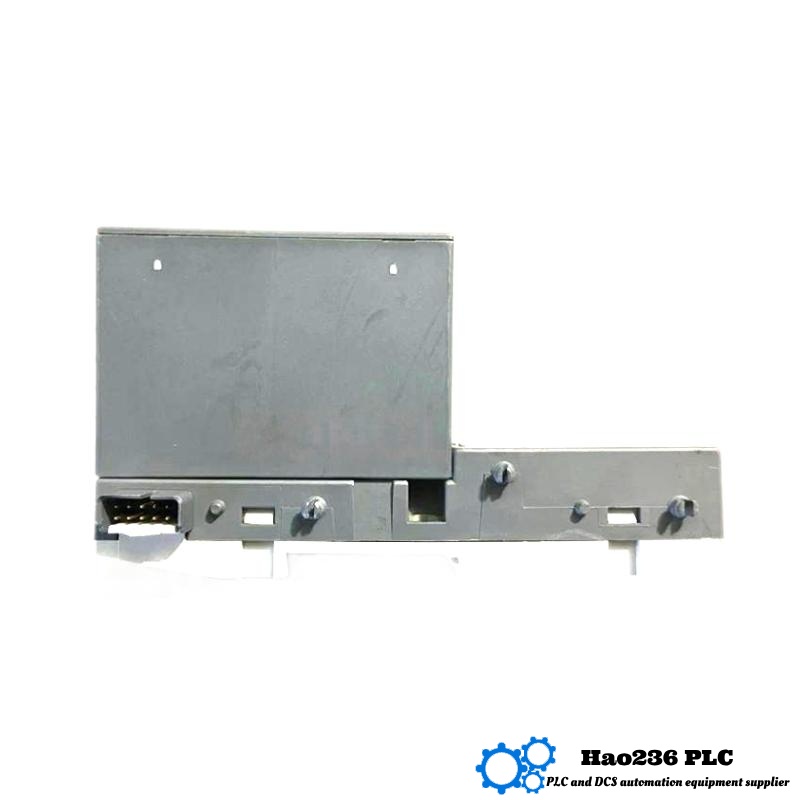

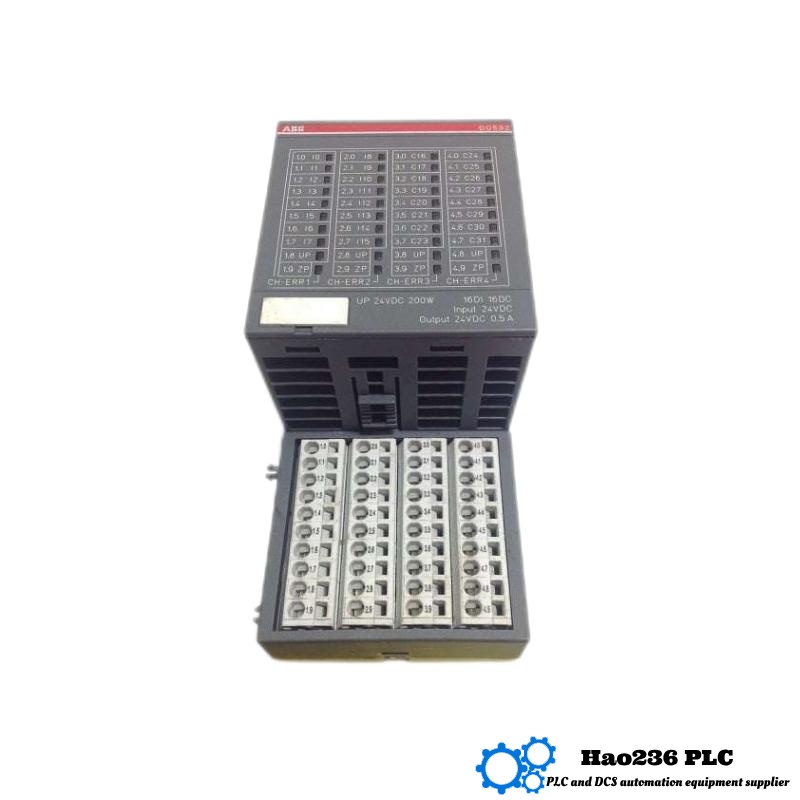

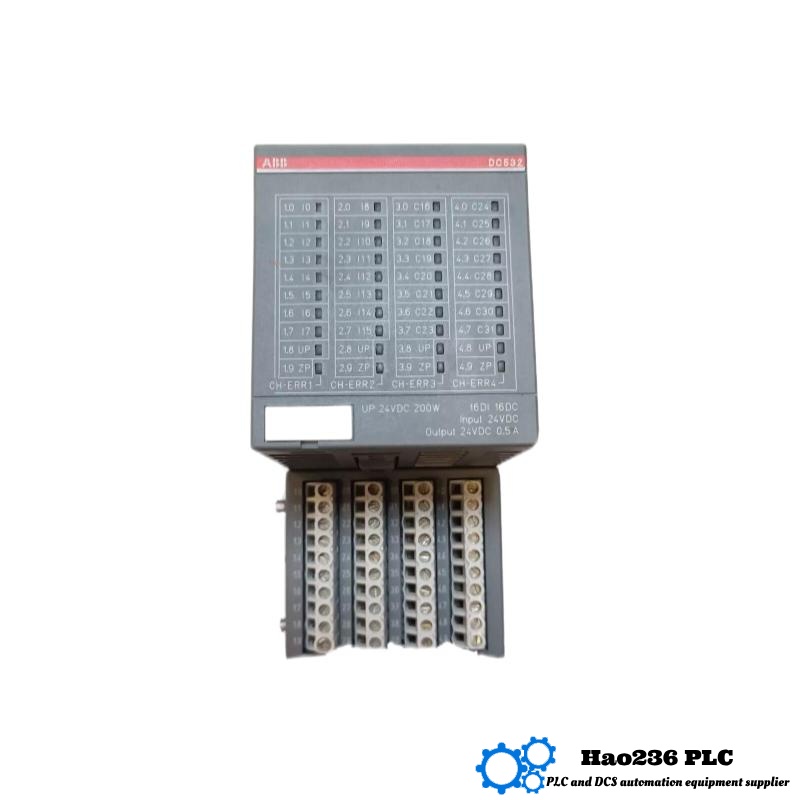

ABB DC532 1SAP240100R0001 Digital Input/Output Module
Product Introduction
The ABB DC532 1SAP240100R0001 is a versatile and compact digital input/output module developed for demanding industrial automation systems. It is part of ABB’s well-established portfolio of modular control products, designed to ensure efficient signal processing in a variety of digital control applications. The module handles both input and output signals, enabling flexible and seamless integration into programmable logic controllers (PLC) and distributed control systems (DCS).
The device offers high-speed digital response, robust build quality, and excellent reliability for use in complex process automation and control networks. With its modular DIN-rail design and LED status indicators, it simplifies installation, diagnostics, and maintenance tasks, while maintaining consistent performance across a wide range of operating environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ABB DC532 1SAP240100R0001 |
| Type | Digital Input/Output Module |
| Input Channels | 16 digital inputs |
| Output Channels | 16 digital outputs |
| Operating Voltage | 24 V DC |
| Isolation | Opto-isolated inputs |
| Communication Interface | ABB Standard PLC Backplane |
| Response Time | ≤ 10 ms |
| Operating Temperature | –25°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (W × H × D) | 62 × 76 × 67.5 mm |
| Weight | 0.114 kg |
| Mounting Type | DIN Rail Mountable |
| Status Indicators | Individual LED per Channel |
| Housing Material | Industrial-grade Thermoplastic |
| Protection Rating | IP20 |
| Certifications | CE, RoHS, cULus |
Product Applications
Industrial Automation: Widely used in factory automation for controlling and monitoring various machinery, robotics, and production lines.
Process Industries: Suitable for applications in the oil & gas, chemical, pharmaceutical, and food industries that require accurate and fast digital signal control.
Building Automation: Ideal for managing digital inputs and outputs in HVAC, lighting, fire alarm, and access control systems.
Energy Sector: Implements control logic in substations, wind farms, and power plants to monitor and regulate system operations.
Transportation Infrastructure: Provides signal processing for railway systems, airport controls, intelligent traffic management, and vehicle assembly systems.
Product Advantages
Compact and Lightweight: The small footprint (62 × 76 × 67.5 mm) and low weight (0.114 kg) reduce space usage in crowded control cabinets.
Modular and Scalable: Easily integrates into ABB automation systems with modular expandability for future needs.
High-Speed Response: Delivers sub-10 ms response times for real-time control in high-performance applications.
Improved Diagnostics: Onboard LED indicators allow for rapid fault identification and operational verification.
Industrial Durability: Designed to operate in a wide temperature range and challenging industrial conditions with reliable performance.
Noise-Resistant Design: Opto-isolated inputs ensure signal integrity in electrically noisy environments.
Seamless Integration: Compatible with other ABB modules, supporting a plug-and-play configuration in larger systems.
Brand Information
ABB (Asea Brown Boveri) is a world-renowned leader in power and automation technologies, offering a broad range of products and services for utility, industry, and transport sectors. With over 130 years of innovation, ABB has established a global presence for delivering state-of-the-art control systems, robotics, power solutions, and automation components that drive energy efficiency and productivity across industries.
Recommended Related Models (Same Series or Similar Modules)
| Model Number | Type | Inputs | Outputs | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|---|
| ABB DC534 1SAP240200R0001 | Digital I/O Module | 32 | 16 | 62 × 120 × 67.5 | 0.130 | Increased input channels |
| ABB DI532 1SAP230100R0001 | Digital Input Module | 32 | 0 | 62 × 76 × 67.5 | 0.110 | Dedicated input-only configuration |
| ABB DO532 1SAP240300R0001 | Digital Output Module | 0 | 32 | 62 × 76 × 67.5 | 0.115 | Dedicated high-current outputs |
| ABB DC530 1SAP230200R0001 | Digital I/O Module | 16 | 16 | 62 × 76 × 67.5 | 0.110 | Entry-level digital I/O module |
| ABB DC536 1SAP240400R0001 | Digital I/O Module | 24 | 24 | 62 × 100 × 67.5 | 0.125 | Balanced I/O configuration |
Popular ABB Models (Same Brand)
| Model Number | Type | Inputs | Outputs | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|---|
| ABB AC500 PM573-ETH | PLC CPU Module | N/A | N/A | 125 × 100 × 70 | 0.500 | High-performance Ethernet-enabled CPU |
| ABB AI813 1SAM250000R1001 | Analog Input Module | 8 | 0 | 62 × 76 × 67.5 | 0.120 | High-resolution analog signal capture |
| ABB AO830 1SAM250010R1001 | Analog Output Module | 0 | 8 | 62 × 76 × 67.5 | 0.120 | Precision analog output control |
| ABB DI840 1SAM220100R1001 | Digital Input Module | 24 | 0 | 62 × 120 × 67.5 | 0.140 | Wide voltage range support |
| ABB DO840 1SAM240100R1001 | Digital Output Module | 0 | 24 | 62 × 120 × 67.5 | 0.140 | High current and fast output switching |
Frequently Asked Questions (FAQ)
Q1: What voltage does the ABB DC532 module require?
A1: It operates on a standard 24 V DC power supply.
Q2: How many input and output channels are available on this module?
A2: It features 16 digital inputs and 16 digital outputs.
Q3: Can this module be mounted on a standard DIN rail?
A3: Yes, it is designed for DIN rail mounting for easy integration into control cabinets.
Q4: What is the operating temperature range?
A4: The module operates effectively in environments from –25°C to +60°C.
Q5: Is there electrical isolation on the input channels?
A5: Yes, the digital inputs are opto-isolated to protect against electrical noise and interference.
Q6: Does the module provide diagnostic indicators?
A6: Yes, each channel has a corresponding LED indicator for status and fault monitoring.
Q7: How fast can the module process digital signals?
A7: It has a response time of less than or equal to 10 milliseconds.
Q8: What are the physical specifications of the unit?
A8: The module measures 62 × 76 × 67.5 mm and weighs 0.114 kg.
Q9: Can it be used in hazardous or industrial environments?
A9: Yes, it is built with industrial-grade materials and certified for various industrial standards.
Q10: What types of systems is this module compatible with?
A10: It integrates seamlessly with ABB PLCs and other modular ABB automation systems.
