Product Overview

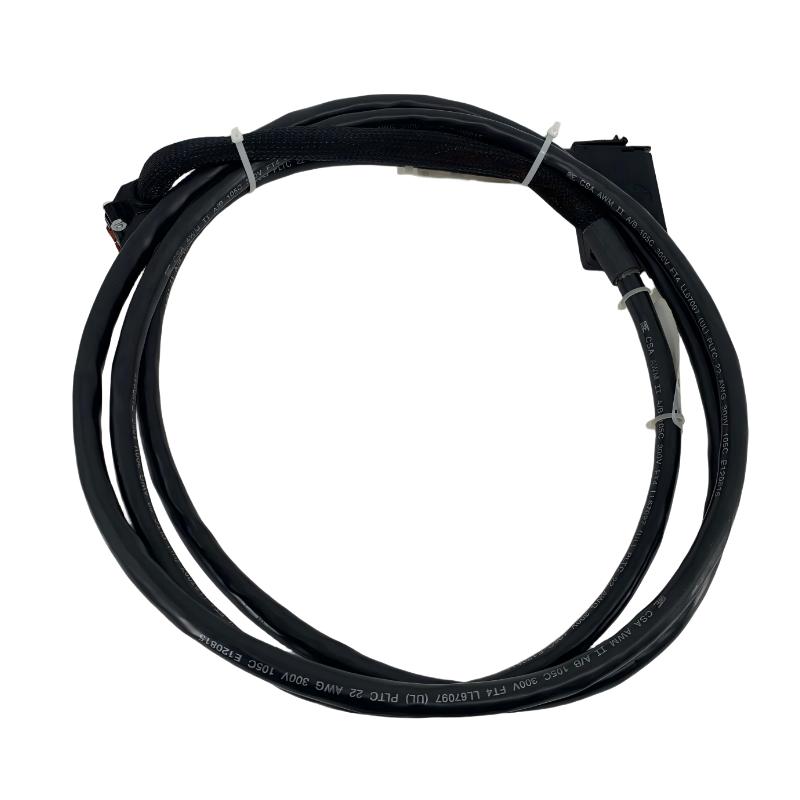

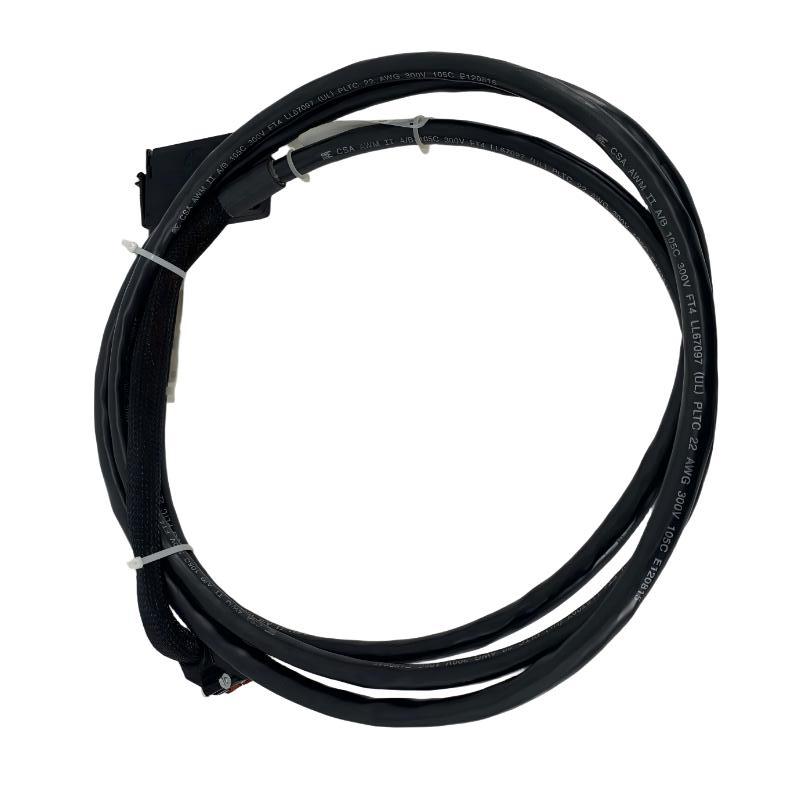

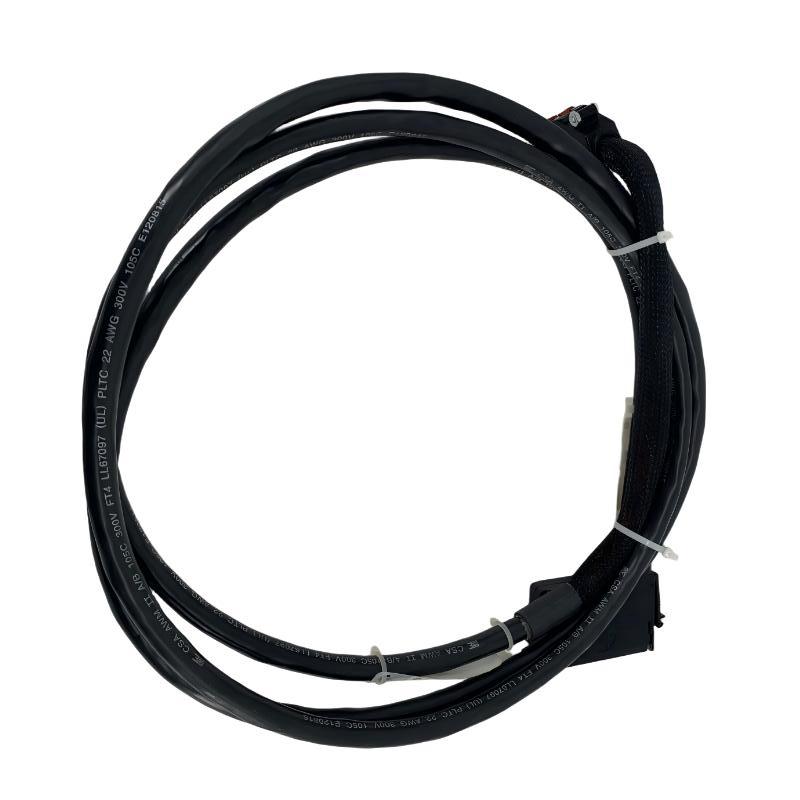

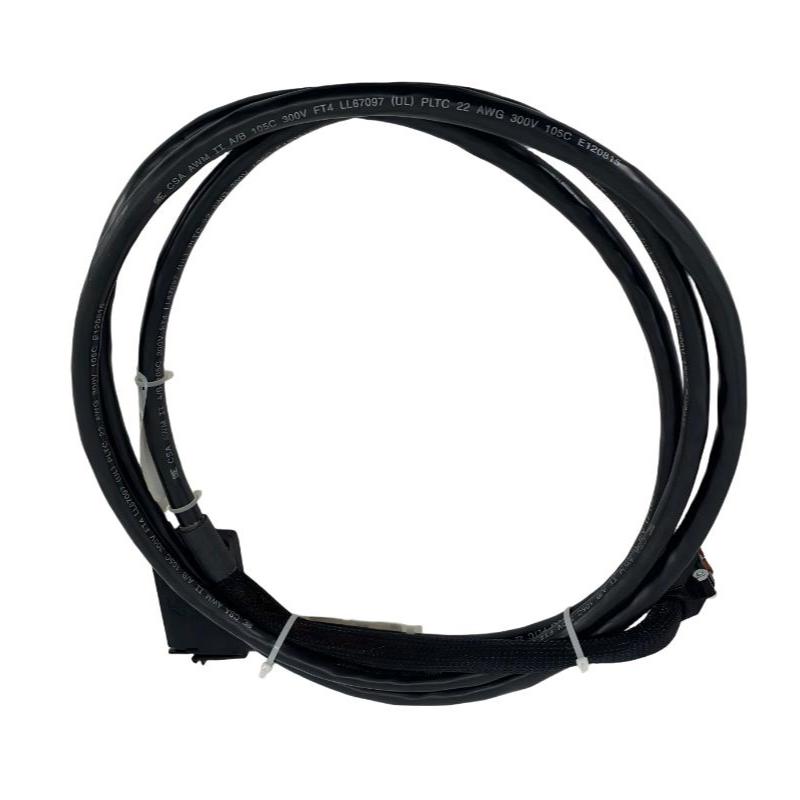

The ABB Bailey NKTK11 INFI 90 SOE Time Synchronization Cable is a synchronization cable used in ABB Bailey INFI 90 Sequence of Events (SOE) applications.
SOE systems require a common time reference to establish the chronological relationship between alarms, trips, status changes, and other control-system events. The NKTK11 provides the physical connection required within the applicable synchronization path.
The NKTK11 uses an optional cable-length configuration for INFI 90 installations with different equipment arrangements. It functions as a passive interconnection component rather than an independent timing or event-processing device.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / System | ABB Bailey |
| Model | NKTK11 |
| Product Family | INFI 90 |
| Product Type | SOE Time Synchronization Cable |
| Application | Sequence of Events Time Synchronization |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- ABB Bailey INFI 90 SOE Time Synchronization Cable
- Model NKTK11
- Optional cable-length configuration
- Supports Sequence of Events synchronization
- Provides a physical timing-signal connection
- Suitable for INFI 90 control-system installations
- Passive interconnection component
- Supports synchronized event recording
- Useful for alarm and trip sequence analysis
- Applicable to maintenance and replacement work
Working Principle
The NKTK11 carries synchronization information between the applicable timing source and receiving equipment.
Time Reference → Synchronization Interface → NKTK11 → SOE Hardware → Event Timestamping
The synchronization equipment establishes the common time reference, while the cable transfers the timing signal to the associated SOE hardware.
The synchronized SOE system can then associate detected events with the common time reference, allowing events from different system points to be arranged chronologically.
Role in INFI 90 SOE Architecture
| System Element | Function |
|---|---|
| Time Reference | Establishes the timing reference |
| Synchronization Equipment | Distributes timing information |
| NKTK11 | Provides the physical synchronization connection |
| SOE Hardware | Records event information |
| Event Sources | Generate process and equipment events |
| INFI 90 Control System | Provides control and monitoring |
| Operator Interface | Displays alarms and event records |
SOE Event Recording
| Event Information | Engineering Use |
|---|---|
| Event Timestamp | Determines event occurrence |
| Status Change | Identifies equipment-state transitions |
| Alarm Event | Tracks abnormal conditions |
| Trip Event | Supports disturbance investigation |
| Event Sequence | Establishes chronological relationships |
| Historical Record | Supports post-event analysis |
Cable Configuration
The NKTK11 is specified with an optional cable length.
| Model | Cable Length |
|---|---|
| NKTK11 | Optional |
| NKTK11-10 | 10 feet |
| NKTK11-15 | 15 feet |
| NKTK11-20 | 20 feet |
| NKTK11-30 | 30 feet |
Industrial Applications
| Application | Typical Use |
|---|---|
| Power Generation | SOE event recording |
| Thermal Power Plants | Trip sequence analysis |
| Turbine Control | Event time correlation |
| Boiler Control | Alarm sequence monitoring |
| Process Automation | Time-synchronized event analysis |
| Industrial Utilities | SOE timing infrastructure |
| Plant Automation | Chronological event reconstruction |
| INFI 90 Maintenance | Synchronization cable replacement |
Installation and Maintenance
- Confirm the NKTK11 model.
- Determine the required cable-length configuration.
- Identify the relevant synchronization interfaces.
- Record the existing connection arrangement.
- Isolate applicable equipment when required.
- Inspect connectors for contamination or physical damage.
- Check the cable for cuts, deformation, or excessive bending.
- Route the cable without unnecessary mechanical stress.
- Connect both ends to the designated interfaces.
- Verify connector engagement.
- Restore the applicable system connections.
- Check synchronization status.
- Review SOE event timestamps.
- Compare event records from multiple system points.
Compatible System Components
| Component | Function |
|---|---|
| ABB Bailey NKTK11 | SOE Time Synchronization Cable |
| INFI 90 SOE Hardware | Sequence of Events recording |
| Time Synchronization Equipment | Provides timing reference |
| Synchronization Interface | Distributes timing information |
| Event Input Hardware | Captures system events |
| INFI 90 Controllers | Control-system processing |
| Operator Interface | Alarm and event monitoring |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB Bailey NKTK11 | INFI 90 SOE Time Synchronization Cable | Optional-length synchronization |
| ABB Bailey NKST11 | INFI 90 SOE Time Synchronization Cable | SOE synchronization |
| ABB Bailey NKST11-10 | INFI 90 SOE Time Synchronization Cable | 10-foot connection |
| ABB Bailey NKST11-15 | INFI 90 SOE Time Synchronization Cable | 15-foot connection |
| ABB Bailey NKST11-20 | INFI 90 SOE Time Synchronization Cable | 20-foot connection |
| ABB Bailey NKST11-30 | INFI 90 SOE Time Synchronization Cable | 30-foot connection |
| ABB Bailey NKST01-10 | INFI 90 SOE Time Synchronization Cable | SOE synchronization |
Key Advantages
- ABB Bailey INFI 90 SOE Time Synchronization Cable.
- Model NKTK11.
- Optional cable-length configuration.
- Supports Sequence of Events synchronization.
- Provides the physical timing-signal connection.
- Supports chronological event recording.
- Useful for alarm and trip analysis.
- Suitable for INFI 90 control-system installations.
- Applicable to maintenance and replacement applications.
Technical FAQs
How does synchronized timing help identify the initiating event during a trip?
A common time reference allows events from different system points to be compared on the same timeline. This can help distinguish the initial event from subsequent alarms, interlocks, and equipment responses.
When is an optional-length NKTK11 configuration useful?
It is useful when the distance between the relevant synchronization interfaces varies between INFI 90 installations. The cable can therefore be matched to the physical arrangement of the associated equipment.
What information can engineers obtain from synchronized SOE records?
SOE records can show the timing and sequence of discrete events, including equipment state changes, alarms, trips, and other status transitions. This information is useful for reconstructing operating sequences.
What should be evaluated when replacing an NKTK11 in an existing system?
The connection points, cable routing, synchronization status, and resulting SOE timestamps should be checked. The replacement should also maintain the intended timing path between the associated INFI 90 synchronization equipment.
