Product Overview

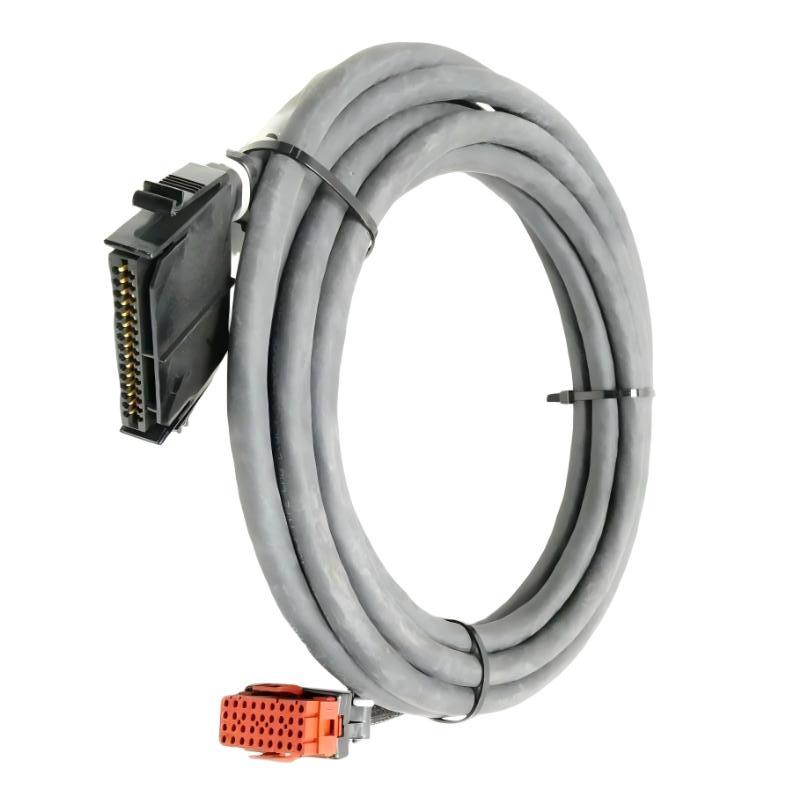

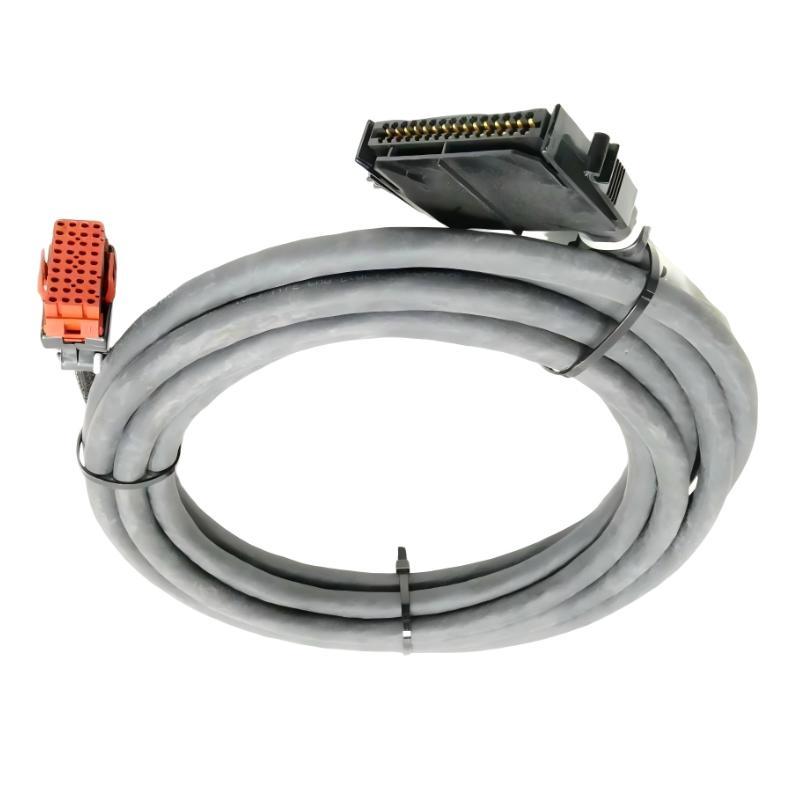

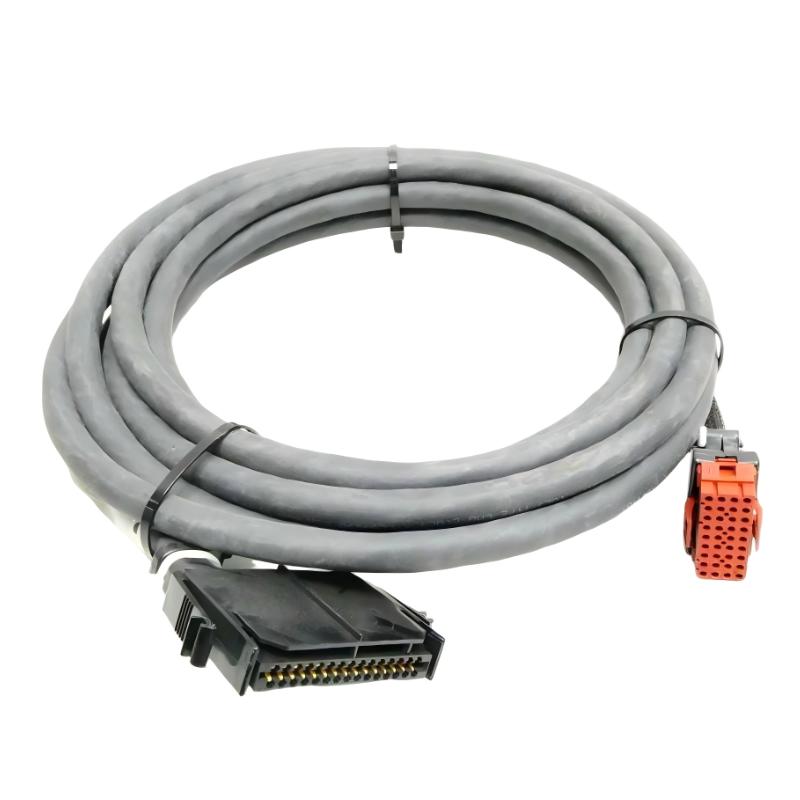

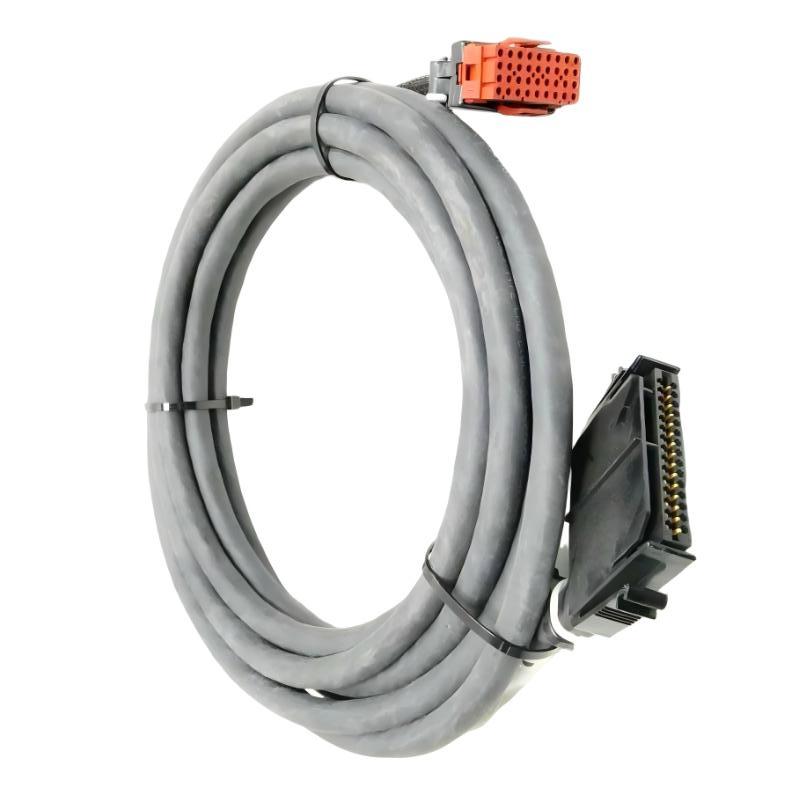

The ABB Bailey NKTK01-15 INFI 90 SOE Time Synchronization Cable is a dedicated cable for time synchronization in ABB Bailey INFI 90 Sequence of Events (SOE) applications.
SOE systems use a common time reference to associate events with accurate timestamps and establish the chronological relationship between multiple alarms, trips, status changes, and process events. The NKTK01-15 provides the physical connection for the applicable synchronization path.
The NKTK01-15 is the 15-foot version of the NKTK01 cable family. It is suited to INFI 90 installations where the synchronization interfaces require a 15-foot connection.
The cable functions as a passive interconnection component and does not independently generate timestamps or process SOE events.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / System | ABB Bailey |
| Model | NKTK01-15 |
| Product Family | INFI 90 |
| Product Type | SOE Time Synchronization Cable |
| Application | Sequence of Events Time Synchronization |
| Cable Length | 15 feet |
| Shipping Weight | 3 kg |
Product Features
- ABB Bailey INFI 90 SOE Time Synchronization Cable
- Model NKTK01-15
- 15-foot cable configuration
- Supports SOE time synchronization
- Provides the physical timing-signal connection
- Suitable for INFI 90 control-system installations
- Passive cable component
- Supports synchronized event recording
- Useful for alarm and trip sequence analysis
- Suitable for maintenance and replacement applications
Working Principle
The NKTK01-15 transfers the applicable synchronization signal between designated interfaces in an INFI 90 SOE system.
A simplified signal path is:
Time Reference → Synchronization Interface → NKTK01-15 → SOE Hardware → Event Timestamping
The synchronization equipment supplies the time reference, while the cable maintains the physical connection to the receiving SOE hardware.
Once synchronized, the SOE system can associate detected events with the common time reference. This allows events generated by different system points to be arranged chronologically.
Accurate event ordering is particularly useful during equipment trips, process disturbances, and sequences involving multiple alarms or status changes.
Role in INFI 90 SOE Architecture
The NKTK01-15 belongs to the physical interconnection layer of the SOE timing architecture.
| System Element | Function |
|---|---|
| Time Reference | Establishes system time |
| Synchronization Interface | Distributes timing information |
| NKTK01-15 | Carries the synchronization connection |
| SOE Hardware | Records event information |
| Event Sources | Generate system events |
| INFI 90 Control System | Provides control and monitoring |
| Operator Interface | Displays alarms and event records |
15-Foot Cable Configuration
The NKTK01-15 identifies the 15-foot configuration within the NKTK01 family.
| Model | Cable Length |
|---|---|
| NKTK01 | Optional |
| NKTK01-10 | 10 feet |
| NKTK01-15 | 15 feet |
| NKTK01-20 | 20 feet |
| NKTK01-30 | 30 feet |
The fixed 15-foot configuration can be used where the physical separation between the relevant synchronization interfaces matches this connection requirement.
SOE Event Correlation
Synchronized timing allows control-system events to be analyzed against a common chronological reference.
| Event Information | Purpose |
|---|---|
| Event Timestamp | Identifies when an event occurred |
| Event Sequence | Establishes the order of events |
| Alarm Record | Tracks abnormal conditions |
| Trip Record | Supports equipment-trip investigation |
| Status Change | Shows equipment-state transitions |
| Historical Data | Supports post-event analysis |
This information can help engineers reconstruct the progression of a plant disturbance and identify the relationship between multiple events.
Industrial Applications
| Application | Typical Use |
|---|---|
| Power Generation | SOE event synchronization |
| Thermal Power Plants | Alarm and trip analysis |
| Turbine Systems | Event sequence monitoring |
| Boiler Control | Process disturbance analysis |
| Process Automation | Time-correlated event recording |
| Industrial Utilities | SOE timing |
| Plant Automation | Chronological event analysis |
| INFI 90 Maintenance | Synchronization cable replacement |
Installation and Maintenance
- Confirm the NKTK01-15 model.
- Verify the required 15-foot configuration.
- Identify the synchronization source and receiving interface.
- Record the existing cable connection arrangement.
- Isolate applicable equipment when required by the maintenance procedure.
- Inspect connectors for contamination or physical damage.
- Check the cable for cuts, deformation, or excessive bending.
- Route the cable without unnecessary mechanical stress.
- Connect the cable to the designated interfaces.
- Confirm secure connector engagement.
- Restore the applicable system connections.
- Verify synchronization status.
- Check SOE event timestamps.
- Compare event records from multiple system points.
- Monitor for synchronization-related alarms.
Compatible System Components
| Component | Function |
|---|---|
| ABB Bailey NKTK01-15 | SOE Time Synchronization Cable |
| INFI 90 SOE Hardware | Event recording |
| Time Synchronization Equipment | Provides timing reference |
| Synchronization Interface | Timing-signal distribution |
| Event Input Hardware | Event acquisition |
| INFI 90 Controllers | Control-system processing |
| Operator Interface | Event and alarm monitoring |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB Bailey NKTK01 | INFI 90 SOE Time Synchronization Cable | Optional-length configuration |
| ABB Bailey NKTK01-10 | INFI 90 SOE Time Synchronization Cable | 10-foot connection |
| ABB Bailey NKTK01-15 | INFI 90 SOE Time Synchronization Cable | 15-foot connection |
| ABB Bailey NKTK01-20 | INFI 90 SOE Time Synchronization Cable | 20-foot connection |
| ABB Bailey NKTK01-30 | INFI 90 SOE Time Synchronization Cable | 30-foot connection |
| ABB Bailey NKST11-15 | INFI 90 SOE Time Synchronization Cable | 15-foot synchronization |
| ABB Bailey NKST01-10 | INFI 90 SOE Time Synchronization Cable | SOE synchronization |
Key Advantages
- ABB Bailey INFI 90 SOE Time Synchronization Cable.
- Model NKTK01-15.
- 15-foot cable configuration.
- Supports Sequence of Events synchronization.
- Provides the physical path for timing information.
- Supports chronological event recording.
- Useful for alarm and trip analysis.
- Suitable for INFI 90 control-system installations.
- Applicable to maintenance and replacement work.
Technical FAQs
What does the “-15” designation indicate?
The “-15” identifies the 15-foot cable configuration of the NKTK01 family.
What role does NKTK01-15 play in SOE recording?
It provides the physical connection through which the applicable synchronization signal reaches the associated INFI 90 SOE equipment.
Does the cable determine the timestamp of an event?
No. The cable transfers the synchronization signal. Timestamp generation and SOE event processing are handled by the associated system hardware.
What should be checked if event times are inconsistent?
Check the synchronization source, interface hardware, cable connections, receiving SOE equipment, and system diagnostics. Comparing timestamps from several event sources can help locate the affected section of the timing path.
