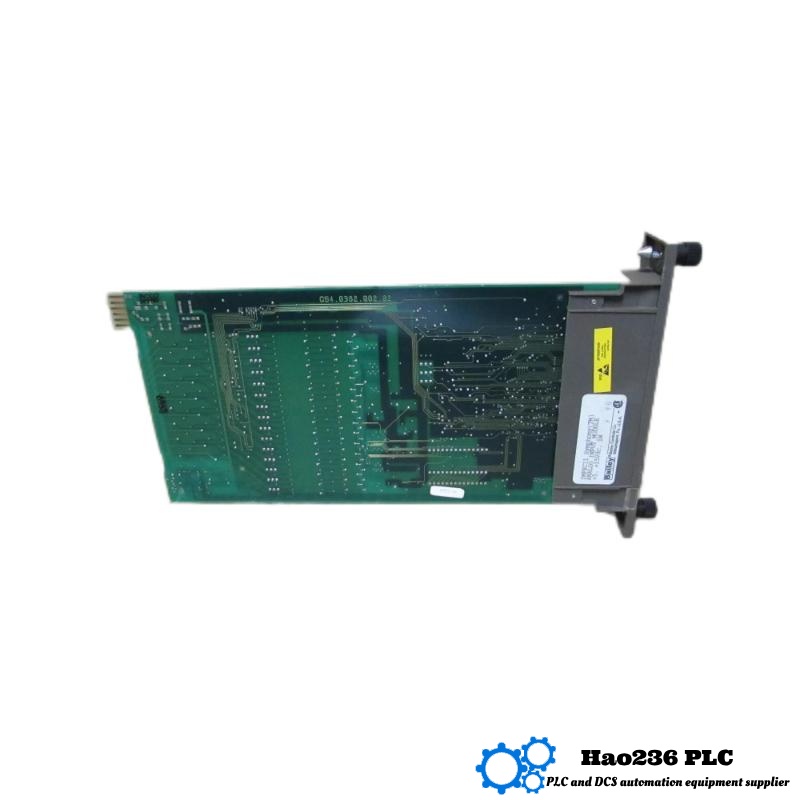

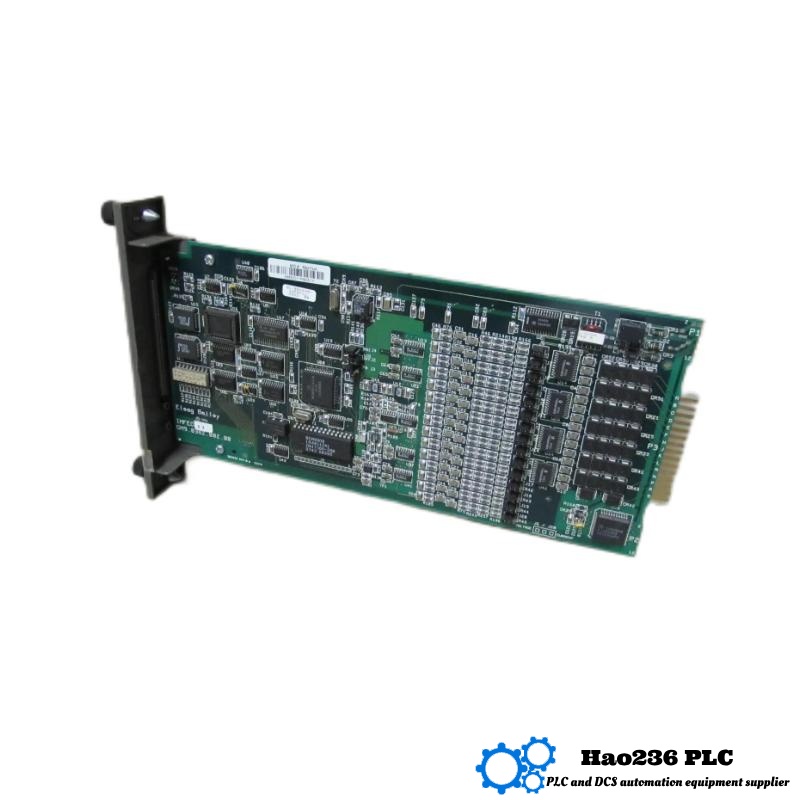

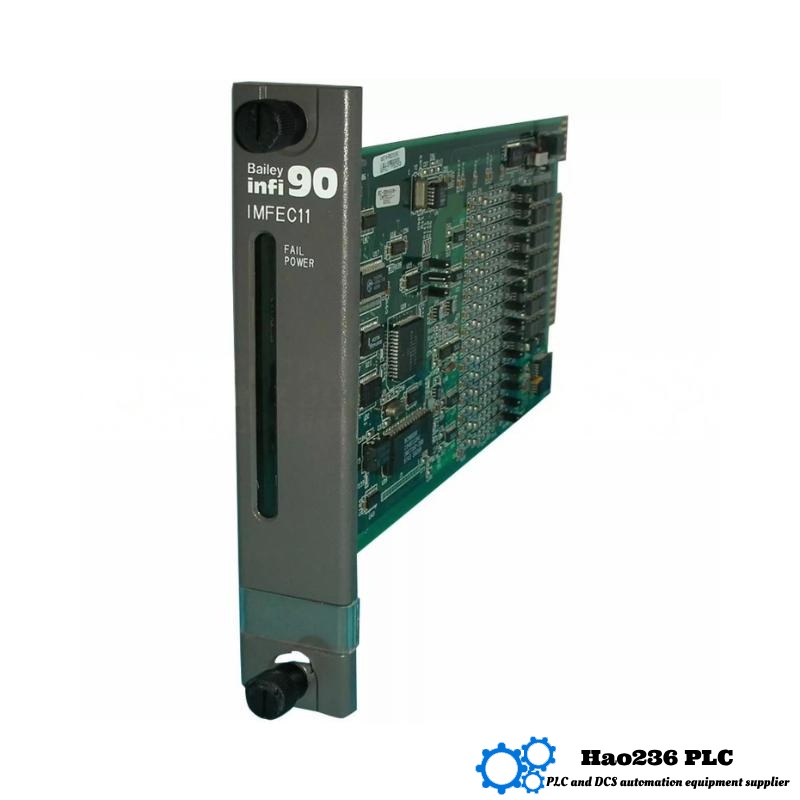

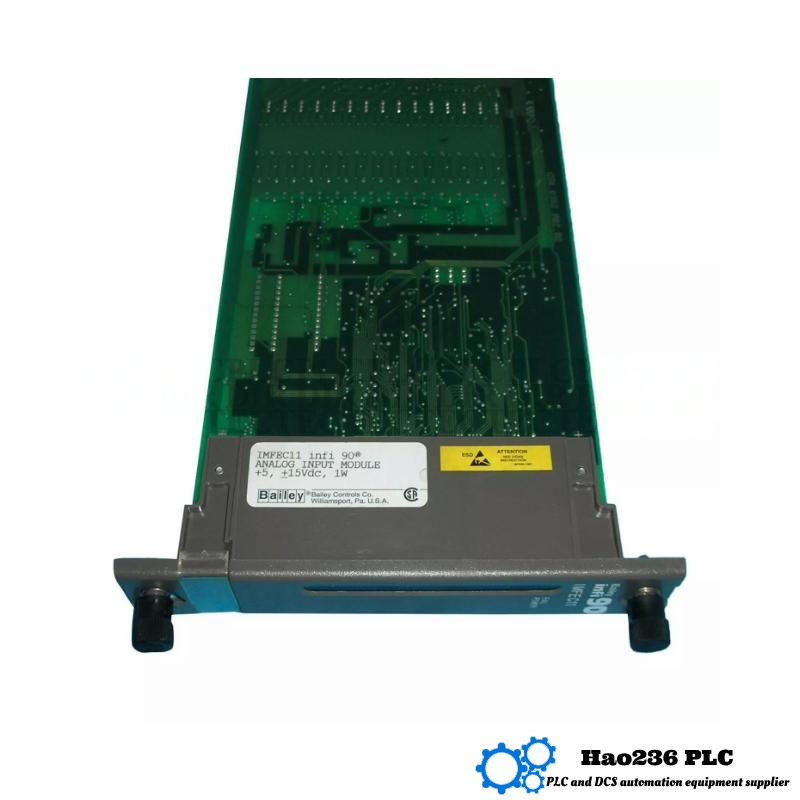

ABB Bailey IMFEC11 Analog Input Module
Product Overview
The IMFEC11 is a high-performance analog input module from ABB Bailey, designed for use in the INFI-90 series control systems. This module is capable of handling multiple input signals and providing high-precision data acquisition for industrial control applications. It is ideal for processing analog signals in real-time, offering exceptional accuracy and speed for critical industrial processes.
Product Features
-
High-precision analog input handling: Designed to interface with a wide range of analog devices, ensuring accurate data collection and reliable control in industrial environments.
-
Multiple signal processing: Capable of managing up to 8 input channels, providing flexibility for various sensor types and signal ranges.
-
Integrated diagnostics: Includes self-check capabilities to ensure operational reliability and minimize downtime.
-
Real-time processing: Provides continuous monitoring with minimal delay, supporting critical applications that require real-time data processing.
-
Durability and reliability: Built to withstand harsh industrial environments, ensuring long-term performance.
Applications
The IMFEC11 is designed for a wide range of applications within industrial automation, including:
-
Manufacturing plants: For real-time monitoring of process variables such as temperature, pressure, and flow.
-
Oil & gas: To monitor equipment status and performance in oil rigs, pipelines, and refineries.
-
Energy and utilities: For power generation systems, including monitoring of turbine performance and energy distribution.
-
Chemical processing: To maintain stable conditions and ensure the quality of chemical products.
-
Water and wastewater treatment: Monitoring sensor data for control of treatment processes.
Advantages
-
Accuracy: Delivers high-precision measurements, improving the overall efficiency of industrial processes.
-
Scalability: Easily integrated with other modules within the INFI-90 series, offering expandability as system requirements grow.
-
Flexibility: Supports various types of analog sensors, which makes it suitable for different industrial sectors.
-
Ease of integration: Can be easily connected with other components within the ABB Bailey control systems for seamless automation.
-
Reliable diagnostics: Built-in diagnostic features help in identifying faults quickly, ensuring continuous system operation with minimal maintenance downtime.
Brand
-
ABB Bailey is a recognized leader in the automation and control industry, known for their innovative solutions in process control, safety systems, and industrial automation. Their products, such as the INFI-90 series, are widely adopted in industries that require high-precision and reliable performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IMFEC11 |
| Input Channels | 8 Analog Inputs |
| Input Type | Voltage/Current Input |
| Signal Range | 4-20 mA, 0-10 V |
| Resolution | 16-bit |
| Sampling Rate | 100 ms per channel |
| Accuracy | ±0.1% Full Scale |
| Dimensions (mm) | 132 x 25 x 125 |
| Weight | 0.567 kg |
| Power Supply | 24 VDC ±20% |
| Temperature Range | –40°C to +70°C |
| Mounting | DIN Rail Mountable |
| Communication | Modbus, Profibus |
Related Models (Same Series/Relevant Models)
| Model | Description | Channels | Signal Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IMFEA10 | Analog Input Module | 4 | Voltage/Current | 132 x 25 x 125 | 0.55 kg |
| IMFEA11 | High-Precision Analog Input Module | 8 | Voltage/Current | 132 x 25 x 125 | 0.58 kg |
| IMFEC12 | 16-Channel Analog Input Module | 16 | Voltage/Current | 132 x 25 x 125 | 0.6 kg |
| IMFEC14 | Differential Input Analog Module | 8 | Differential | 132 x 25 x 125 | 0.57 kg |
| IMFEC15 | High-Speed Analog Input Module | 8 | Voltage/Current | 132 x 25 x 125 | 0.55 kg |
Popular ABB Bailey Models
| Model | Description | Type | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IMDSM04 | Pulse Input Slave Module | Pulse Input Module | 8 | 132 x 25 x 125 | 0.259 kg |
| IMMFP12 | Multifunction Processor Module | CPU/Logic Module | N/A | 180 x 130 x 110 | 1.4 kg |
| INNPM22 | Network Processing Module | Network Interface | N/A | 150 x 30 x 100 | 0.9 kg |
| IEPAS02 | Power Supply Module | Power Supply Module | N/A | 250 x 200 x 100 | 2.5 kg |
| IMCPM02 | Control Processor Module | CPU Module | N/A | 180 x 100 x 150 | 1.2 kg |
FAQ
Q1: What is the primary function of the IMFEC11 module?
A1: The IMFEC11 is designed for handling analog input signals in industrial control systems, ensuring high-precision data collection from various sensors.
Q2: How many channels does the IMFEC11 support?
A2: The IMFEC11 supports 8 analog input channels.
Q3: What types of signals can the IMFEC11 process?
A3: It can process both voltage and current signals, including standard ranges like 4-20 mA and 0-10 V.
Q4: What is the accuracy of the IMFEC11 module?
A4: The module has an accuracy of ±0.1% of full scale.
Q5: What is the resolution of the IMFEC11?
A5: The IMFEC11 offers a 16-bit resolution for precise signal conversion.
Q6: Can the IMFEC11 module be used in outdoor environments?
A6: Yes, it is designed to operate in temperatures ranging from –40°C to +70°C, making it suitable for harsh environments.
Q7: How does the IMFEC11 communicate with other modules?
A7: The IMFEC11 supports Modbus and Profibus communication protocols for easy integration with other devices.
Q8: How is the IMFEC11 mounted?
A8: The module can be mounted on a DIN rail, allowing for easy installation in control panels.
Q9: What is the power requirement for the IMFEC11?
A9: The module requires a 24 VDC power supply with a tolerance of ±20%.
Q10: What is the weight of the IMFEC11 module?
A10: The IMFEC11 weighs 0.567 kg.
