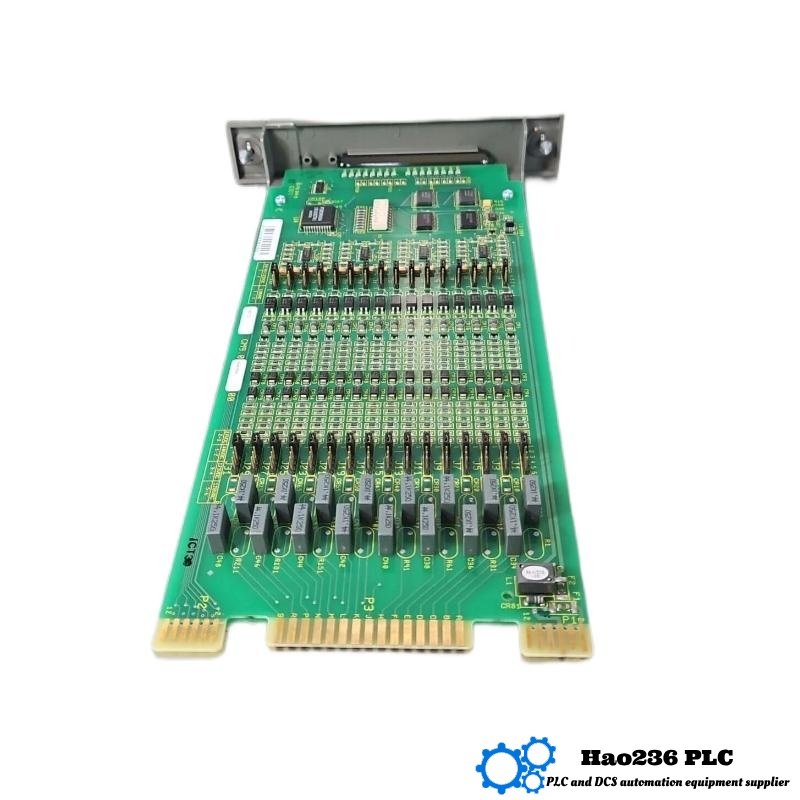

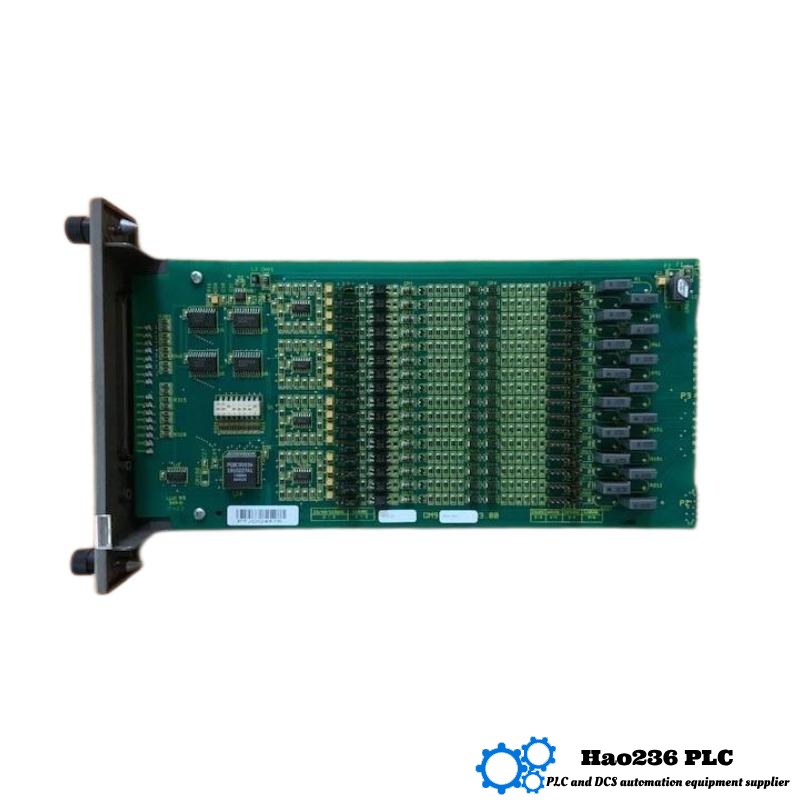

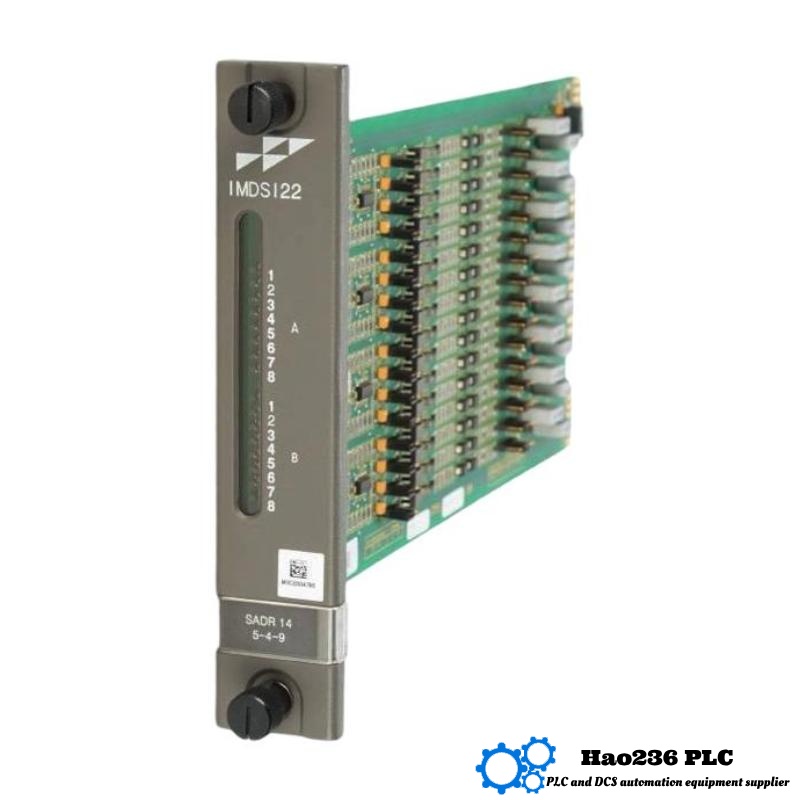

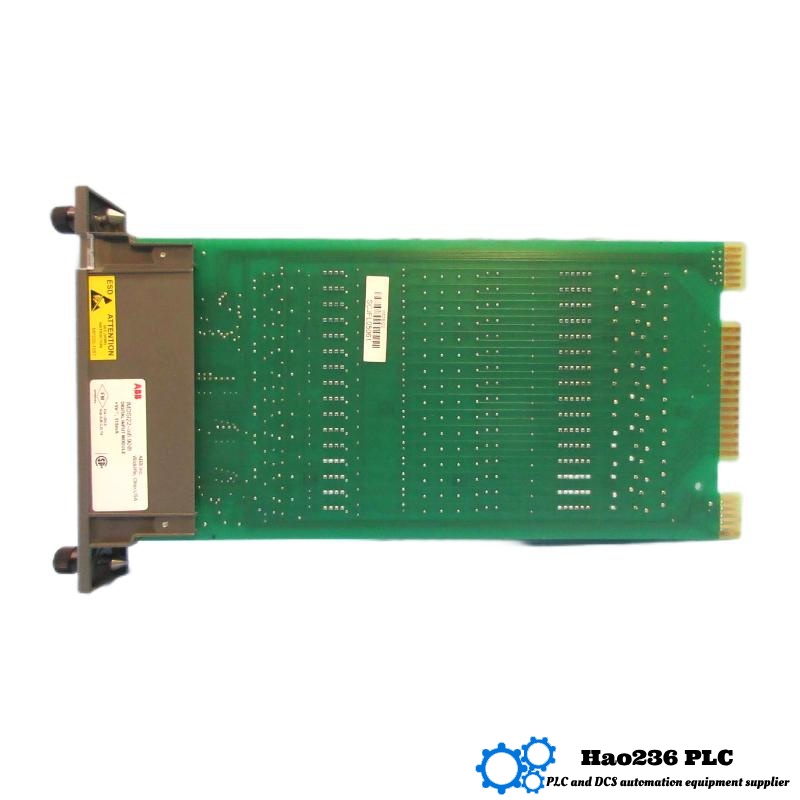

ABB Bailey IMDSI22 Digital Input Slave Module
Product Introduction
The ABB Bailey IMDSI22 is a digital input slave module designed for use within the ABB Infi-90 Distributed Control System (DCS) platform. This module extends the capabilities of the Infi-90 system by providing additional digital input channels for reliable signal acquisition from field devices. The IMDSI22 is optimized for use in complex industrial automation environments, offering robust, accurate, and timely input processing.
Built with ABB’s hallmark reliability, the IMDSI22 facilitates the integration of discrete signals such as status indications, switch positions, and on/off states into the control system. Its compact size and lightweight design allow for efficient use of control cabinet space, making it ideal for large-scale control applications that demand modularity and scalability.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IMDSI22 |
| Module Type | Digital Input Slave Module |
| Dimensions (W x H x D) | 160 x 90 x 45 mm |
| Weight | 0.222 kg |
| Number of Input Channels | 16 |
| Input Voltage | 24 V DC nominal |
| Input Signal Type | Digital discrete signals |
| Communication Interface | Infi-90 proprietary bus |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0°C to +60°C |
| Safety Certification | Meets industrial standards |
Product Applications
-
Process automation in oil and gas refineries
-
Power generation plants requiring reliable digital inputs
-
Chemical manufacturing process control
-
Large industrial plants with complex distributed control requirements
-
Water and wastewater treatment automation
-
Manufacturing automation systems requiring scalable I/O expansion
Product Advantages
-
Compact and lightweight design for easy installation and space-saving
-
Seamless integration with ABB Infi-90 DCS for consistent system performance
-
Provides 16 reliable digital input channels for broad signal coverage
-
Low power consumption reducing overall system energy use
-
Robust design built to withstand industrial environmental conditions
-
Supports fast and accurate digital signal processing
-
Modular approach enables flexible system expansion
-
Proven track record within ABB’s extensive DCS installations worldwide
Brand Information
Brand: ABB (Bailey)
ABB is a global leader in power and automation technologies. The Bailey brand, part of ABB’s product suite, is well recognized for its comprehensive and reliable Distributed Control System solutions, particularly the Infi-90 series which has been a benchmark in process control for decades.
Recommended Related Models in ABB Infi-90 Series
| Model Number | Module Type | Dimensions (mm) | Weight (kg) | Input Channels | Notes |
|---|---|---|---|---|---|
| IMDSI22 | Digital Input Slave | 160 x 90 x 45 | 0.222 | 16 | Standard digital input slave |
| IMDSO22 | Digital Output Slave | 160 x 90 x 45 | 0.225 | 16 | Digital output slave module |
| IMASI22 | Analog Input Slave | 160 x 90 x 45 | 0.230 | 8 | Analog input slave module |
| IMASO22 | Analog Output Slave | 160 x 90 x 45 | 0.235 | 8 | Analog output slave module |
| IMDCI22 | Discrete Control Input | 160 x 90 x 45 | 0.220 | 16 | Discrete control input module |
Recommended Popular ABB Bailey Models
| Model Number | Module Type | Dimensions (mm) | Weight (kg) | Application | Notes |
|---|---|---|---|---|---|
| IMDSI22 | Digital Input Slave | 160 x 90 x 45 | 0.222 | Digital input expansion | Reliable input acquisition |
| IMDSO22 | Digital Output Slave | 160 x 90 x 45 | 0.225 | Digital output control | Precise output signaling |
| IMASI22 | Analog Input Slave | 160 x 90 x 45 | 0.230 | Analog signal input | Accurate analog data handling |
| INPSI22 | Processor Interface | 160 x 90 x 45 | 0.240 | System communication interface | Enhances data throughput |
| IMCTI22 | Temperature Input | 160 x 90 x 45 | 0.220 | Temperature sensor inputs | Reliable temperature sensing |
FAQ (Q&A)
Q1: How many digital input channels does the IMDSI22 provide?
A1: The module provides 16 digital input channels.
Q2: What are the dimensions and weight of the IMDSI22?
A2: The dimensions are 160 x 90 x 45 mm and it weighs approximately 0.222 kg.
Q3: What input voltage does the module require?
A3: The IMDSI22 operates on a nominal 24 V DC input voltage.
Q4: Is the IMDSI22 compatible with other ABB Infi-90 system modules?
A4: Yes, it integrates seamlessly within the ABB Infi-90 distributed control system.
Q5: What type of signals does the IMDSI22 process?
A5: It processes digital discrete signals from field devices such as switches and sensors.
Q6: What is the typical operating temperature range for this module?
A6: The module operates reliably between 0°C and +60°C.
Q7: What communication interface does the IMDSI22 use?
A7: It uses ABB’s proprietary Infi-90 bus interface.
Q8: What is the power consumption of the module?
A8: The module consumes approximately 3 Watts during normal operation.
Q9: Is the IMDSI22 designed for harsh industrial environments?
A9: Yes, it is built with industrial-grade components suitable for demanding conditions.
Q10: Can the IMDSI22 module be used for expanding I/O in large-scale automation projects?
A10: Yes, it is ideal for scalable I/O expansion in complex distributed control systems.
