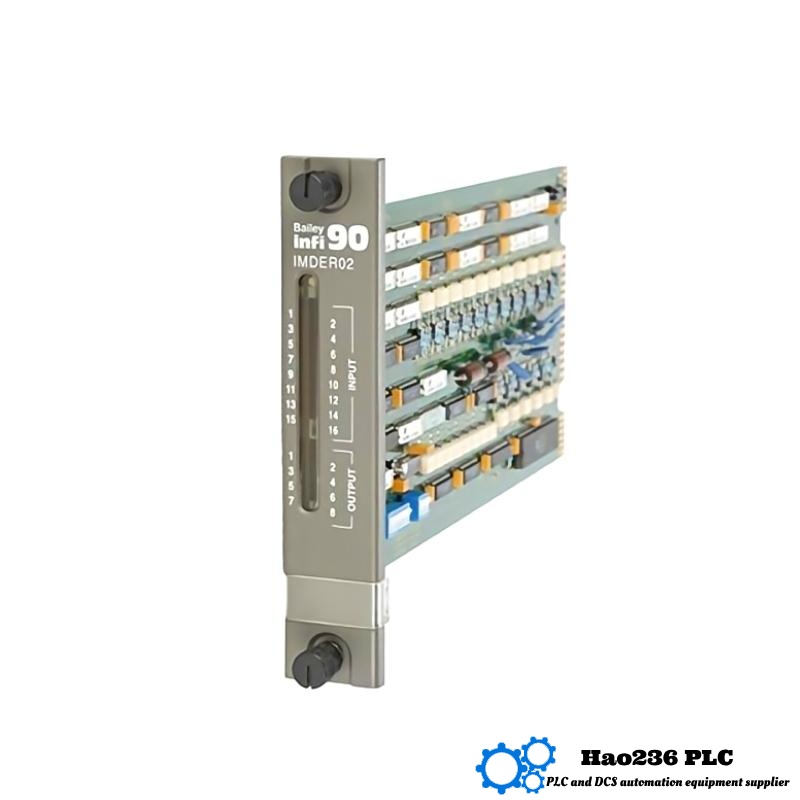

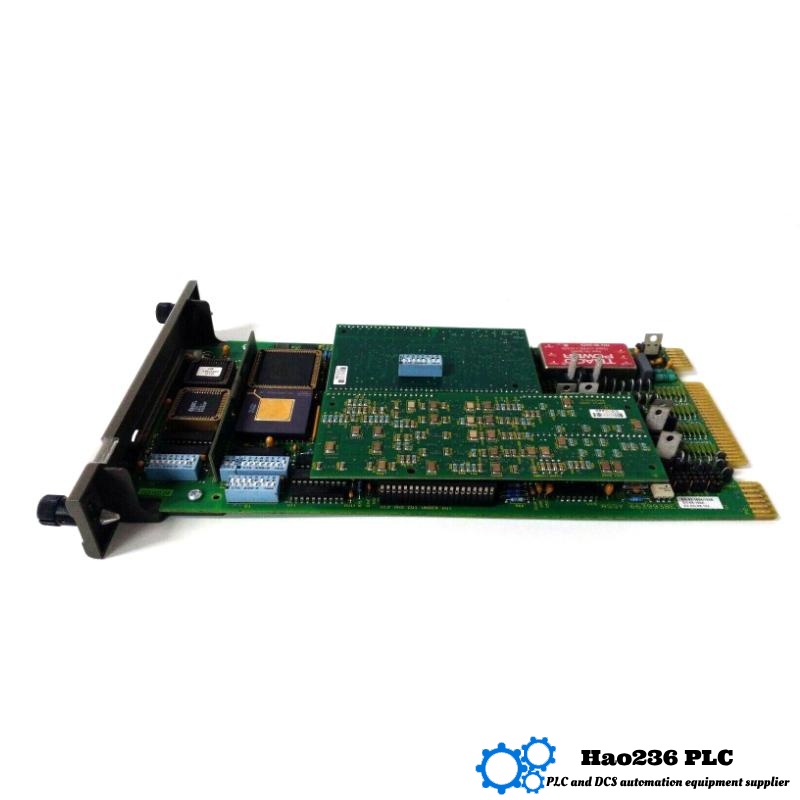

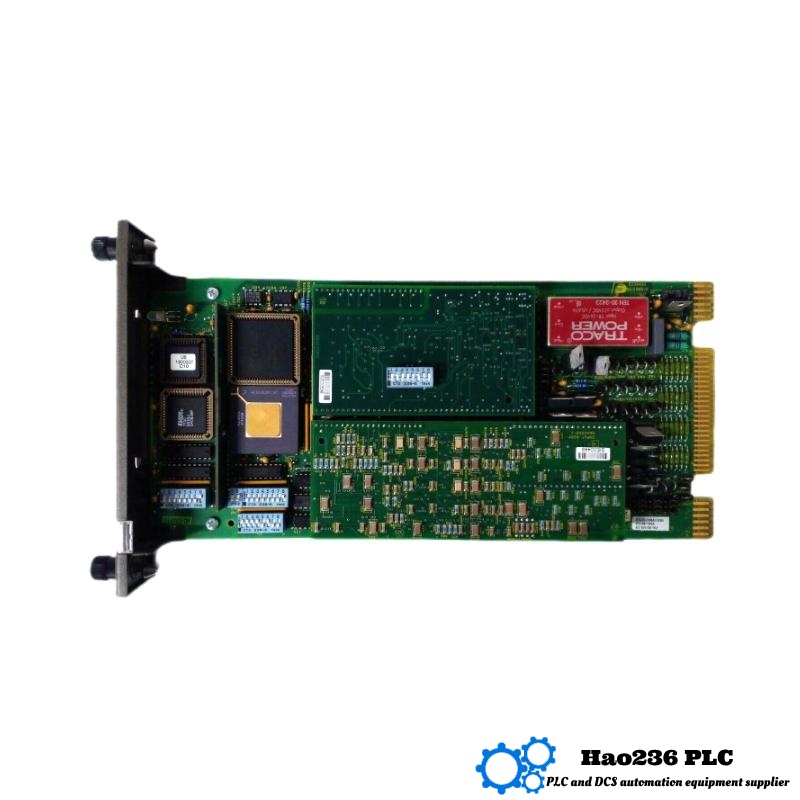

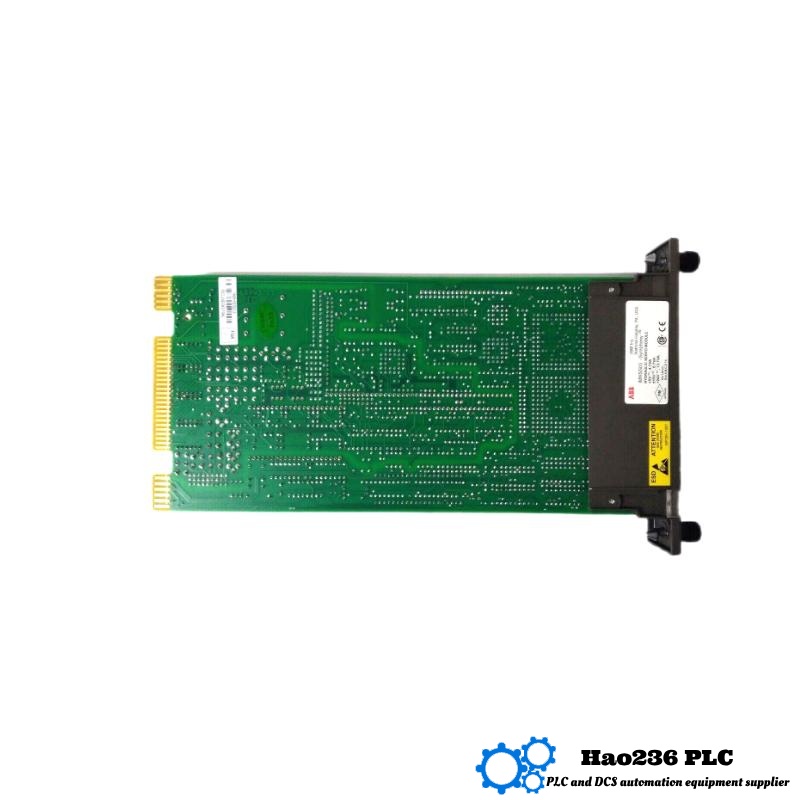

ABB Bailey IMDER02 Digital Exchange Repeater
Product Introduction
The ABB Bailey IMDER02 is a robust digital exchange repeater module designed to facilitate seamless data communication within the Bailey INFI 90 distributed control system (DCS). It serves as a communication bridge that enhances signal transmission reliability and extends communication distances between distributed system components.
The IMDER02 module plays a crucial role in maintaining data integrity and ensuring uninterrupted communication across large industrial networks. It is especially suited for demanding environments requiring high levels of system availability and fault tolerance, such as power plants, chemical processing, and manufacturing industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | IMDER02 |
| Type | Digital Exchange Repeater |
| Series | Bailey INFI 90 Series |
| Communication Protocol | Bailey Digital Signal Transmission |
| Input/Output Interface | Serial communication lines |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 5 W |
| Dimensions | 240 × 120 × 40 mm |
| Weight | 0.45 kg |
| Operating Temperature | -10°C to +60°C |
| Mounting | DIN rail or panel mount |
| Signal Boosting Capability | Extends communication distances |
| Environmental Protection | IP20 |
Product Applications
-
Distributed Control Systems (DCS)
Used extensively in ABB Bailey INFI 90 systems to maintain communication between controllers and remote I/O. -
Power Plants
Ensures reliable data exchange for critical control and monitoring functions. -
Chemical and Petrochemical Plants
Facilitates stable communication in complex, large-scale process automation networks. -
Manufacturing Automation
Supports signal integrity across production line controllers and instrumentation. -
Water and Wastewater Treatment
Maintains stable network communication for process monitoring and control.
Product Advantages
-
Enhanced Communication Reliability
Strengthens signal integrity and reduces communication errors over long distances. -
Extended Transmission Range
Effectively boosts digital signals, allowing flexible network design without data loss. -
Compact and Lightweight Design
Easy installation in constrained control panels or DIN rail systems. -
Low Power Consumption
Energy-efficient operation reduces overall system load. -
Flexible Mounting Options
Can be mounted on DIN rails or directly on panels to suit installation needs. -
Seamless Integration with INFI 90 Systems
Fully compatible with Bailey INFI 90 series equipment and protocols.
Brand Information
ABB Bailey is a distinguished brand recognized for its innovative control system solutions, especially the INFI 90 series, widely used in process industries worldwide. The IMDER02 module is a core component of this series, providing reliable communication solutions that uphold ABB Bailey’s reputation for robustness and reliability.
Related Models in Bailey INFI 90 Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| IMDEI02 | Digital Exchange Interface | 240 × 120 × 40 | 0.48 |
| IMDOR02 | Digital Output Relay Module | 240 × 120 × 40 | 0.50 |
| IMDIA02 | Digital Input Module | 240 × 120 × 40 | 0.47 |
| IMDIO02 | Digital Input/Output Module | 240 × 120 × 40 | 0.49 |
| IMDAC02 | Analog Converter Module | 240 × 120 × 40 | 0.46 |
Popular ABB Bailey Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| IMRMC01 | Remote I/O Controller | 300 × 150 × 60 | 1.2 |
| IMCPR01 | Central Processing Unit | 350 × 180 × 75 | 2.5 |
| IMDTR01 | Data Transfer Module | 260 × 130 × 50 | 0.9 |
| IMDPL01 | Digital Pulse Input Module | 240 × 120 × 40 | 0.5 |
| IMDRO01 | Relay Output Module | 240 × 120 × 40 | 0.5 |
FAQs
Q1: What is the primary function of the IMDER02 module?
A1: It acts as a digital repeater to boost communication signals within the Bailey INFI 90 system.
Q2: What communication protocol does the IMDER02 support?
A2: It supports Bailey’s proprietary digital communication protocol.
Q3: What are the physical dimensions of the module?
A3: 240 × 120 × 40 mm.
Q4: How much does the IMDER02 weigh?
A4: Approximately 0.45 kg.
Q5: What operating temperature range is supported?
A5: From -10°C to +60°C.
Q6: Can the module be mounted on a DIN rail?
A6: Yes, it supports DIN rail and panel mounting.
Q7: What is the power consumption of the IMDER02?
A7: Approximately 5 Watts.
Q8: Is the module compatible with other ABB Bailey INFI 90 modules?
A8: Yes, it fully integrates with the INFI 90 system.
Q9: Does the IMDER02 provide signal isolation?
A9: It primarily acts as a repeater; isolation depends on the overall system design.
Q10: What industries commonly use this module?
A10: Power plants, petrochemical, manufacturing, and water treatment sectors.
