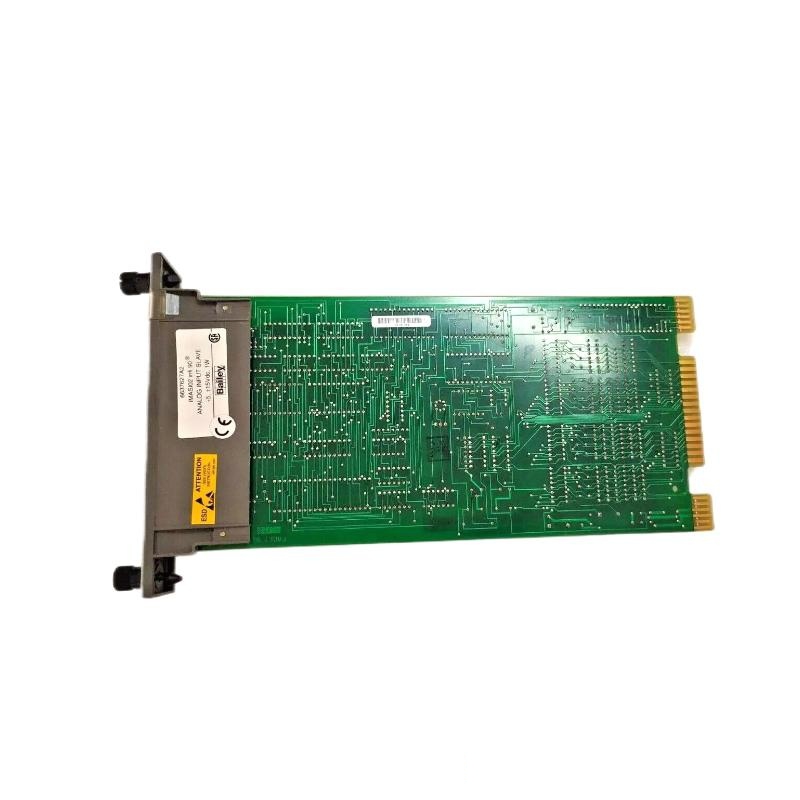

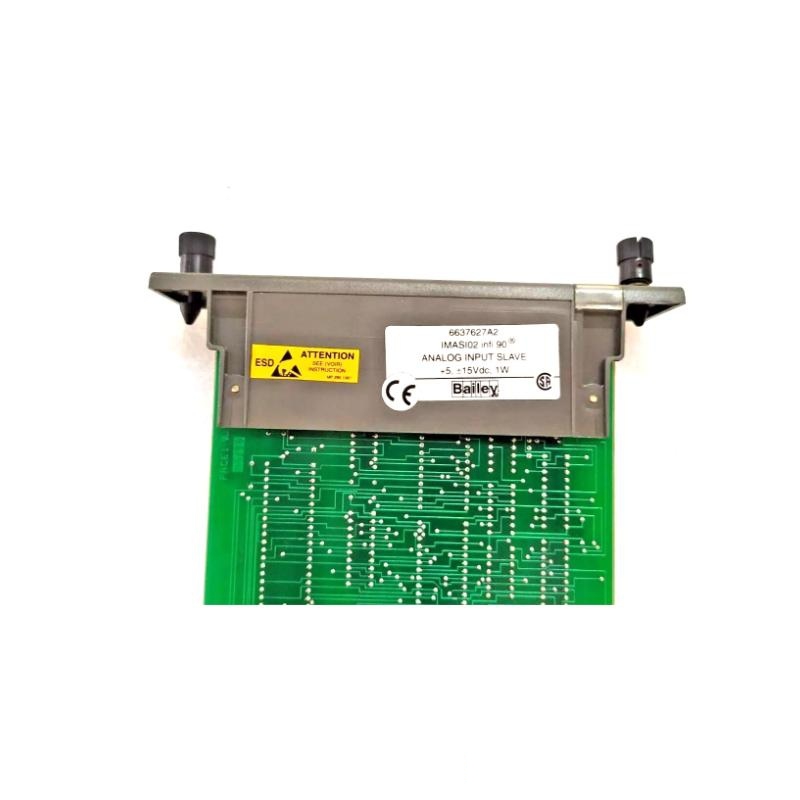

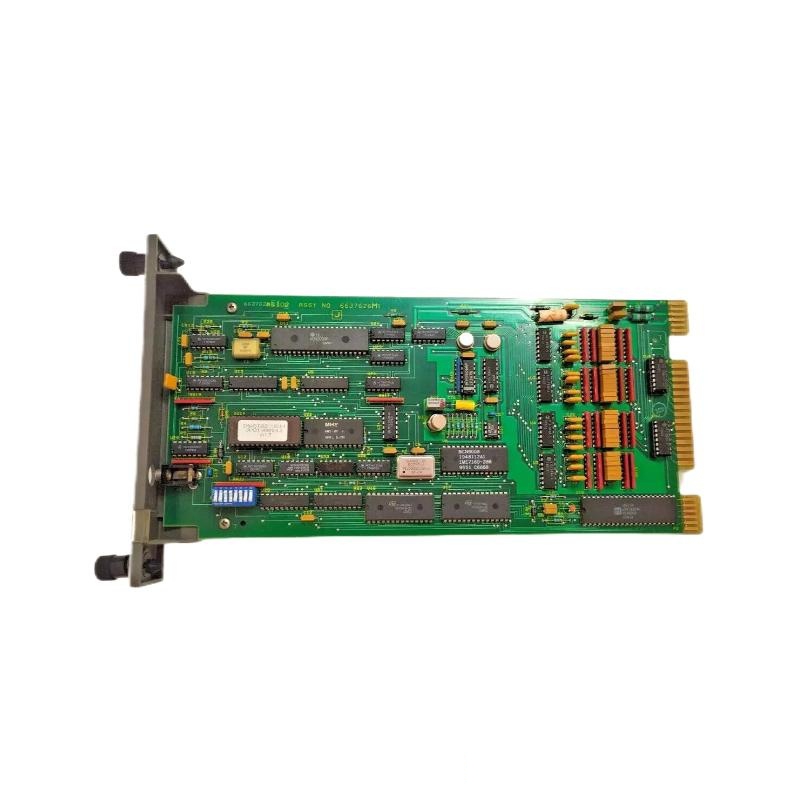

ABB Bailey IMASI02S Analog Input Module
Product Overview
The ABB Bailey IMASI02S is a highly reliable and versatile analog input module designed for use in industrial automation systems. As part of the Bailey Series, it provides accurate and real-time signal conversion, ensuring the precise monitoring of various process parameters such as temperature, pressure, and flow. This module is an essential component in ABB’s suite of automation solutions, providing superior integration capabilities with existing systems.
The IMASI02S is engineered to handle a wide range of input signals, including voltage, current, and resistance. This flexibility makes it ideal for applications across various industries, including process control, energy management, and environmental monitoring. The module boasts a 16-bit resolution, ensuring high precision in data acquisition, making it suitable for critical operations in industries that require reliable data for decision-making.
With built-in diagnostics and fault tolerance, the IMASI02S guarantees high availability and minimal downtime, making it an excellent choice for demanding environments where continuous monitoring is necessary. It seamlessly integrates with ABB’s control systems and other automation platforms, allowing for easy installation and enhanced operational efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IMASI02S |
| Order Code | 3BSE010517R1 |
| Module Type | Analog Input Module |
| Input Type | Voltage, Current, Resistance |
| Input Range | ±10V, ±20mA, 0-100kΩ |
| Resolution | 16-bit |
| Accuracy | ±0.1% |
| Power Supply | 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Dimensions (mm) | 200 x 150 x 40 |
| Weight | 0.5 kg |
| Mounting | DIN Rail |
| Signal Conditioning | Programmable |
| Communication Protocol | Profibus, Modbus (optional) |
Applications
-
Process Automation: The IMASI02S module is ideal for real-time measurement of parameters like pressure, temperature, and flow in industrial automation systems.
-
Energy Management: This module can be used in power plants, utilities, and industrial applications to monitor energy consumption and optimize energy usage.
-
Environmental Monitoring: The IMASI02S helps in monitoring environmental parameters such as air quality and temperature, ensuring compliance with regulations.
-
Manufacturing Control: It is used to interface with sensors in manufacturing processes to ensure products are created within the required parameters, thereby enhancing production quality and efficiency.
-
Industrial Control Systems: The module is widely applied in control systems where precise analog signal processing is required for process control.
Advantages
-
High Precision: With a 16-bit resolution and ±0.1% accuracy, the IMASI02S offers high precision in acquiring analog signals for critical processes.
-
Flexible Input Types: The IMASI02S supports various input types, including voltage, current, and resistance, which makes it compatible with a wide range of sensors and measurement devices.
-
Reliable Performance: Designed with built-in diagnostics, the IMASI02S ensures continuous and reliable performance even under harsh industrial conditions.
-
Easy Integration: The module is designed to integrate seamlessly with ABB’s control systems and other industrial platforms, ensuring a hassle-free setup.
-
Compact and Durable: The compact size of 200 x 150 x 40 mm allows for easy installation in confined spaces, and its robust design ensures long-lasting durability.
-
Wide Operating Range: With an operating temperature range of -20°C to +60°C, the IMASI02S is suitable for use in various environmental conditions.
Brand
Recommended Models (Same Series or Related)
| Model | Input Type | Input Range | Resolution | Accuracy | Dimensions (mm) | Weight | Application |
|---|---|---|---|---|---|---|---|
| IMASI01S | Voltage, Current, Resistance | ±10V, ±20mA, 0-100kΩ | 16-bit | ±0.1% | 200 x 150 x 40 | 0.5 kg | Basic analog input for industrial systems |
| IMASI03S | Voltage, Current, Resistance | ±10V, ±20mA, 0-100kΩ | 16-bit | ±0.05% | 200 x 150 x 40 | 0.5 kg | Advanced analog input module |
| IMASI04S | Voltage, Current, Resistance | ±10V, ±20mA, 0-100kΩ | 16-bit | ±0.1% | 200 x 150 x 40 | 0.5 kg | Enhanced input module for complex systems |
| IMASI05S | Voltage, Current, Resistance | ±10V, ±20mA, 0-100kΩ | 16-bit | ±0.1% | 200 x 150 x 40 | 0.5 kg | High-performance analog input |
| IMASI06S | Voltage, Current, Resistance | ±10V, ±20mA, 0-100kΩ | 16-bit | ±0.05% | 200 x 150 x 40 | 0.5 kg | For high-precision process control |
Recommended Models (Popular ABB Bailey Products)
| Model | Dimensions | Voltage Rating | Weight | Protocol | Applications |
|---|---|---|---|---|---|
| IMCIS02 | 140 x 110 x 30 mm | 24V DC | 0.1 kg | CEX-Bus, Modbus | Industrial automation, Monitoring |
| IMCIS12 | 140 x 110 x 30 mm | 24V DC | 0.1 kg | CEX-Bus, Modbus | Control systems, Data acquisition |
| IMCIS22 | 140 x 110 x 30 mm | 24V DC | 0.1 kg | CEX-Bus, Modbus | Smart grids, Power management |
| IMCKN01 | 140 x 110 x 30 mm | 24V DC | 0.1 kg | CEX-Bus, Modbus | Equipment monitoring, Analytics |
| IMCKN02 | 140 x 110 x 30 mm | 24V DC | 0.1 kg | CEX-Bus, Modbus | Energy monitoring, Control loops |
FAQs
Q1: What types of signals can the IMASI02S module accept?
A: The IMASI02S accepts voltage, current, and resistance signals from sensors and transducers.
Q2: What is the accuracy of the IMASI02S module?
A: The accuracy of the IMASI02S module is ±0.1%.
Q3: What is the resolution of the IMASI02S module?
A: The module has a 16-bit resolution for precise signal processing.
Q4: What is the power supply requirement for the IMASI02S module?
A: The module requires a 24 VDC power supply.
Q5: Can the IMASI02S module be used in extreme temperatures?
A: Yes, the IMASI02S operates within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.
Q6: How is the IMASI02S module mounted?
A: The IMASI02S module can be mounted on a DIN rail for easy installation.
Q7: Is the IMASI02S compatible with other ABB systems?
A: Yes, the module is compatible with ABB’s DCS systems and other automation platforms.
Q8: What is the weight of the IMASI02S module?
A: The IMASI02S module weighs 0.5 kg.
Q9: What applications are best suited for the IMASI02S?
A: The IMASI02S is ideal for process automation, energy management, and industrial control systems.
Q10: What is the input range for the IMASI02S module?
A: The IMASI02S module supports input ranges of ±10V, ±20mA, and 0-100kΩ.
