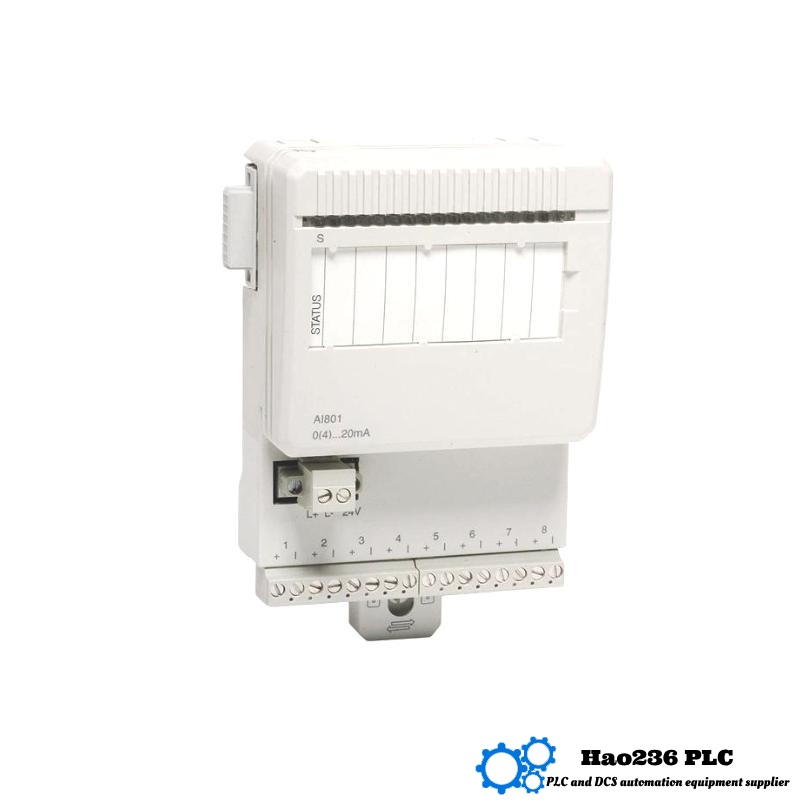

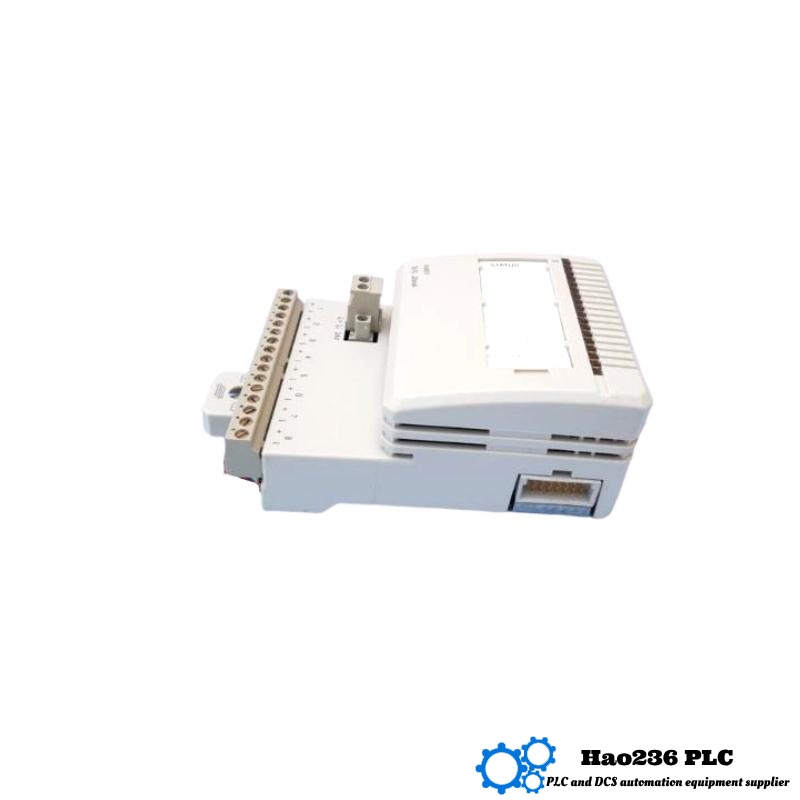

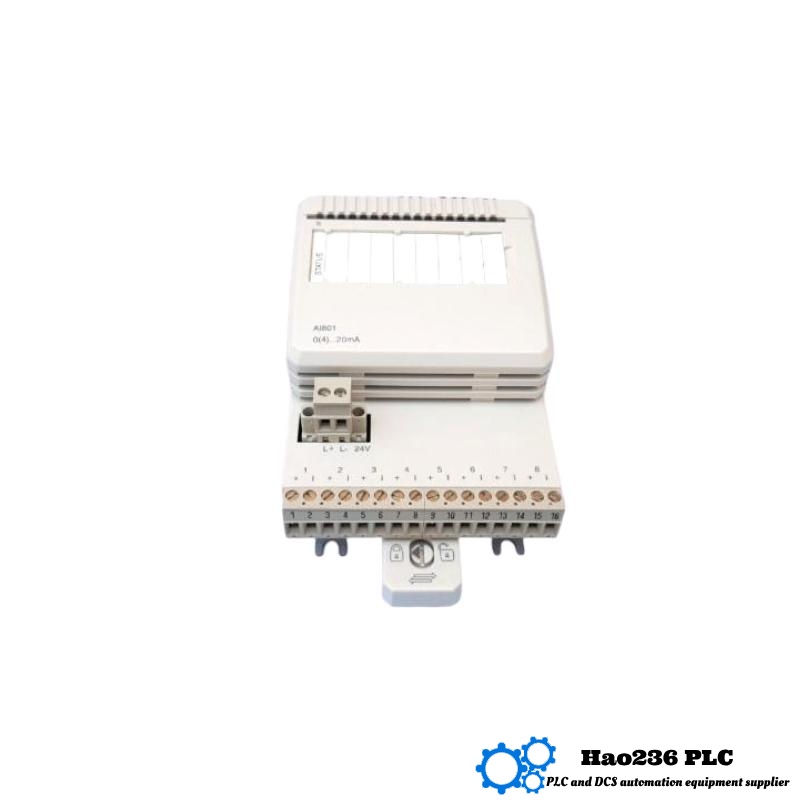

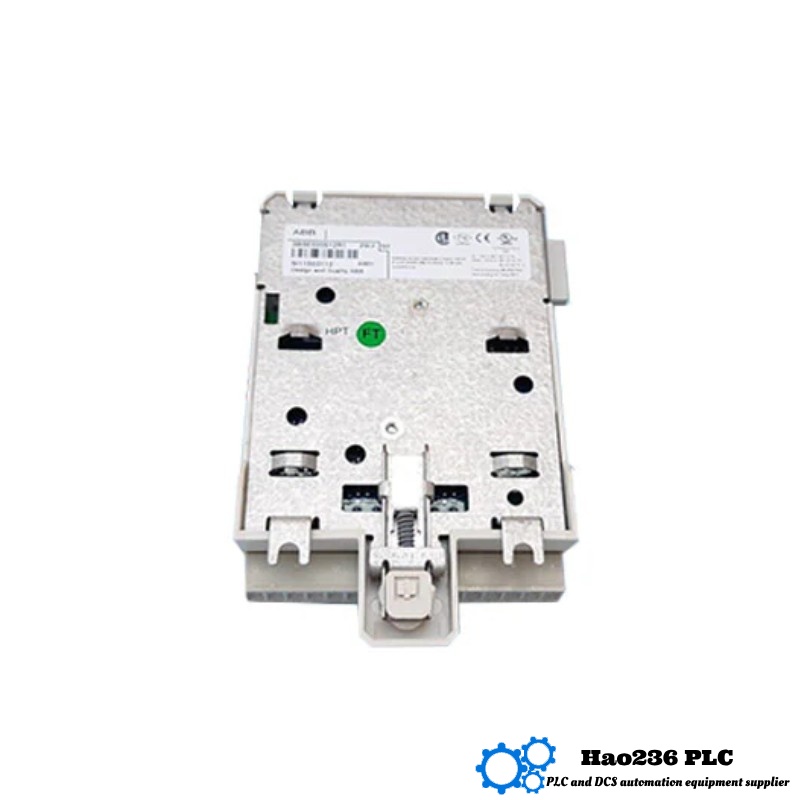

ABB AI801 3BSE020512R1 Analog Input Module
Product Introduction
The ABB AI801 3BSE020512R1 is an 8-channel analog input module in the S800 I/O family. It converts field signals—voltage or current—into digital values for high-resolution processing by ABB’s AC800M or Freelance control systems. Designed for demanding industrial environments, the AI801 offers precision measurement, robust signal conditioning, and seamless integration into distributed I/O architectures.
Brand & Series
-
Brand: ABB – a global leader in electrification and automation technologies.
-
Series: S800 I/O – ABB’s modular, hot-swappable I/O platform for process and discrete automation.
Key Applications
-
Process Automation: Monitoring tank levels, flow rates, and temperatures in chemical, petrochemical, and food & beverage plants.
-
Building Management: Collecting analog signals from HVAC sensors, energy meters, and environmental monitors.
-
Water & Wastewater: Measuring pH, conductivity, and pressure in treatment facilities.
-
Power Generation: Tracking voltage and current in generator sets, transformers, and switchgear.
-
Machine Control: Feedback from strain gauges, load cells, and analog transducers on packaging and assembly lines.
Main Advantages
-
High Accuracy: 16-bit A/D conversion yields resolution down to 0.001% of span.
-
Flexible Input Ranges: Configurable for ±10 V, 0–10 V, or 0/4–20 mA, adapting to diverse sensor types.
-
Low Noise & Drift: Advanced filtering and temperature compensation ensure measurement stability.
-
Hot-Swap Capability: Field-replaceable without interrupting the rest of the I/O bus.
-
Diagnostic Transparency: Per-channel status bits for open-circuit, over-range, and short-circuit detection.
-
Compact Footprint: Slim module profile maximizes rack density.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | AI801 3BSE020512R1 |
| Series | ABB S800 I/O |
| Channels | 8 analog inputs |
| Input Ranges | ±10 V, 0–10 V, 0/4–20 mA |
| Resolution | 16 bits |
| Linearity Error | ≤ ±0.05% FS |
| Isolation | 1 kV channel-to-backplane |
| Response Time | 2 ms |
| Dimensions (W × H × D) | 86.1 × 58.5 × 110 mm |
| Weight | 0.24 kg |
| Operating Temperature | –20 °C to +60 °C |
| Power Consumption | 2 W |
Recommended Models (S800 I/O or Related)
| Model | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI810 | 8 | ±10 V / 0–20 mA | 119 × 45 × 120 | 0.25 |
| AI820 | 4 | ±20 mA / 0–50 mA | 86 × 58.5 × 110 | 0.24 |
| AO811 | 8 | 0–10 V / 0–20 mA | 86.1 × 58.5 × 110 | 0.24 |
| DI831 | 16 | Digital inputs | 86.1 × 58.5 × 110 | 0.23 |
| DO840 | 16 | Digital outputs | 119 × 45 × 120 | 0.26 |
Top 5 Popular ABB Models
| Model | Product Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CI845 | Ethernet interface | 30 × 121.7 × 135 | 0.225 |
| PM866 | Control processor | 215 × 115 × 30 | 0.45 |
| CI833 | Profibus-DP interface | 30 × 121.7 × 135 | 0.22 |
| DSQC679 | Robot I/O interface | 160 × 120 × 30 | 0.30 |
| AI801 | Analog input module | 86.1 × 58.5 × 110 | 0.24 |
FAQ (Q&A Format)
Q1: What analog ranges does the AI801 support?
A1: Configurable for ±10 V, 0–10 V, or 0/4–20 mA on each channel.
Q2: How accurate is the AI801 module?
A2: It features 16-bit resolution with ≤ ±0.05% full-scale linearity error.
Q3: Can I replace it without shutting down the system?
A3: Yes, hot-swap capability allows module exchange on a live backplane.
Q4: What diagnostic features are available?
A4: Per-channel indicators for open circuits, over-range, and short circuits are available to the controller.
Q5: How fast does it respond?
A5: Typical A/D conversion and update time is 2 ms.
Q6: What is its operating temperature range?
A6: –20 °C to +60 °C.
Q7: How much rack space does it occupy?
A7: It is a slim module: 86.1 mm wide, 58.5 mm high, and 110 mm deep.
Q8: What isolation rating does it provide?
A8: 1 kV isolation from each channel to the backplane.
Q9: Which controllers support the AI801?
A9: Compatible with ABB AC800M, Freelance, and other S800-based processors.
Q10: What is the module’s weight?
A10: Approximately 0.24 kg.
