ABB AI561 Product Overview, Specifications, Applications, and FAQs

1. Product Overview

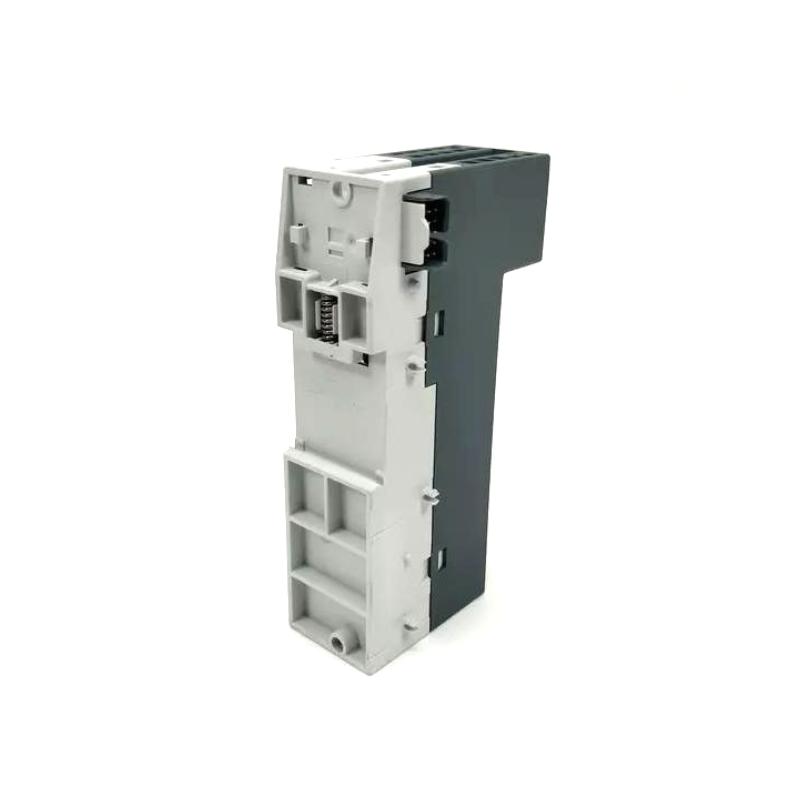

The ABB AI561 (Part Number: 1TNE968902R1101) is an analog input module designed for high-performance applications in industrial automation systems. Part of ABB’s Automation and Control Series, the AI561 module is specifically designed to acquire and digitally process analog signals from sensors, transducers, and other analog devices. This enables users to gather real-time data from various industrial processes, facilitating precise monitoring and control of different parameters such as temperature, pressure, and flow.

The AI561 is built for demanding industrial environments, offering high precision, reliable performance, and easy integration into larger automation systems. The module supports a variety of analog signals and ensures fast processing speeds, making it ideal for a wide range of industrial applications.

2. Product Specifications

3. Product Description

The ABB AI561 is a versatile and high-performance analog input module designed to handle 16 analog input channels. These inputs can accept voltage signals (0-10 V) or current signals (4-20 mA), providing flexibility for use with a wide range of industrial sensors and transducers.

The module provides 16-bit resolution for precise analog-to-digital conversion, ensuring accurate data transmission to control systems. With its ability to sample at rates of up to 250 Hz per channel, it is suitable for applications that require fast data acquisition and processing.

Key Features:

• Multiple Input Types: Supports both voltage (0–10 V) and current (4–20 mA) inputs for greater flexibility in sensor integration.

• High Precision: With a 16-bit resolution, the AI561 ensures high accuracy in signal conversion, providing reliable data for control and monitoring systems.

• Fast Sampling Rate: The AI561 supports a sampling rate of up to 250 Hz per channel, ensuring fast and continuous data collection.

• Compact Design: The device is designed to be mounted on a DIN rail, allowing for efficient and space-saving installation in control panels and cabinets.

• Wide Operating Temperature Range: The AI561 can operate in environments with temperatures ranging from -25°C to +70°C, making it suitable for a variety of industrial environments.

• Reliable Communication: It supports both Ethernet/IP and Modbus TCP communication protocols, making it easy to integrate into modern automation networks.

The AI561 is designed for use in industrial automation, process control, machine control, and environmental monitoring applications, ensuring that users can monitor and control their systems with high precision and speed.

4. Product Applications

The ABB AI561 is used in various applications where high-speed data collection and accurate signal conversion are critical. Some of the key applications include:

• Process Control: The AI561 can handle signals from temperature sensors, pressure sensors, and flow meters to monitor and control industrial processes.

• Machine Control: In machine automation, the AI561 is used to acquire signals from devices such as motors, actuators, and machine sensors to optimize performance and efficiency.

• Building Automation: It can be used in HVAC systems, lighting controls, and energy management systems to provide accurate data for monitoring and controlling systems in commercial buildings.

• Environmental Monitoring: The module is ideal for acquiring data from environmental sensors that monitor factors like air quality, humidity, and pollutants in industrial or outdoor environments.

• Testing and Measurement: In test systems, the AI561 can handle data from laboratory instruments, test benches, and calibration equipment for precise data acquisition and analysis.

5. Product Advantages

The ABB AI561 offers several advantages that make it a reliable and effective solution for industrial applications:

• High Accuracy and Precision: With 16-bit resolution, it ensures precise signal conversion, minimizing errors and providing reliable data for system control.

• Fast Sampling: The 250 Hz sampling rate allows for continuous and fast data collection, essential for dynamic industrial processes.

• Versatility in Signal Types: The AI561 can handle both voltage and current inputs, making it adaptable for a wide range of industrial sensors.

• Compact and Space-Saving Design: Its DIN rail mounting feature makes it easy to install and saves valuable space in industrial control panels.

• Wide Temperature Range: The device is designed to function in harsh environments, with an operating temperature range from -25°C to +70°C.

• Easy Integration: With support for Ethernet/IP and Modbus TCP, it is simple to integrate the AI561 into existing control networks.

6. Brand and Product Series

The ABB AI561 is part of ABB’s Automation and Control Series, which includes various input and output modules designed to optimize industrial control and automation systems. ABB is recognized for its high-quality industrial solutions that meet the demanding needs of modern industrial environments.
