Product Overview

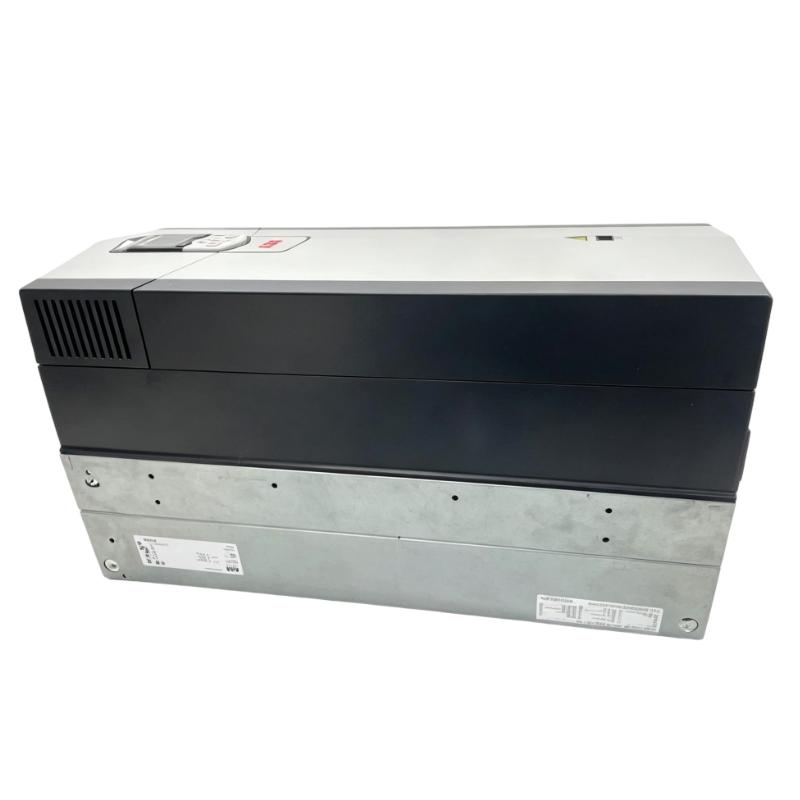

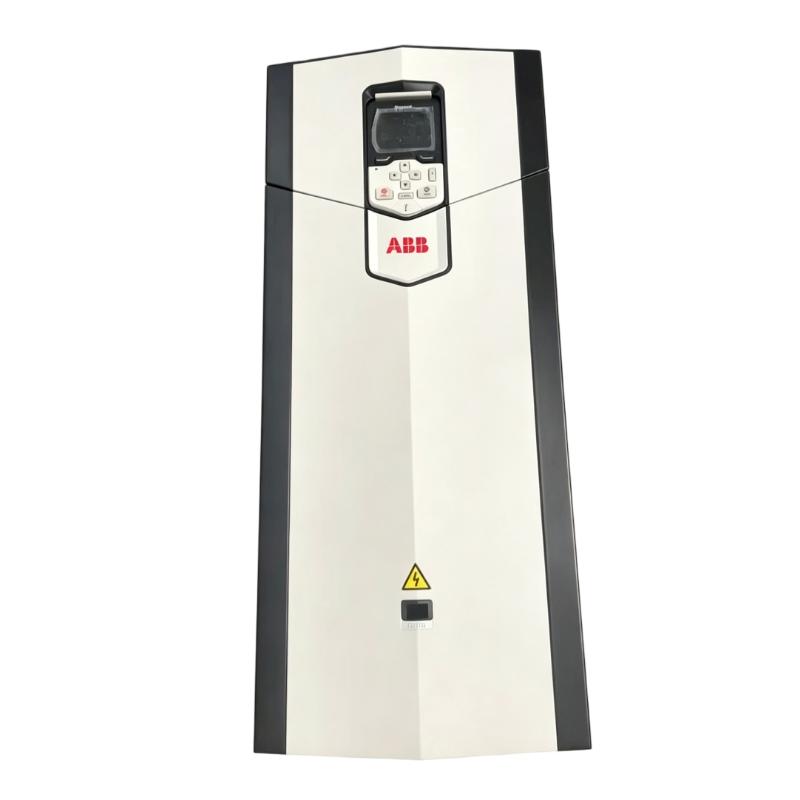

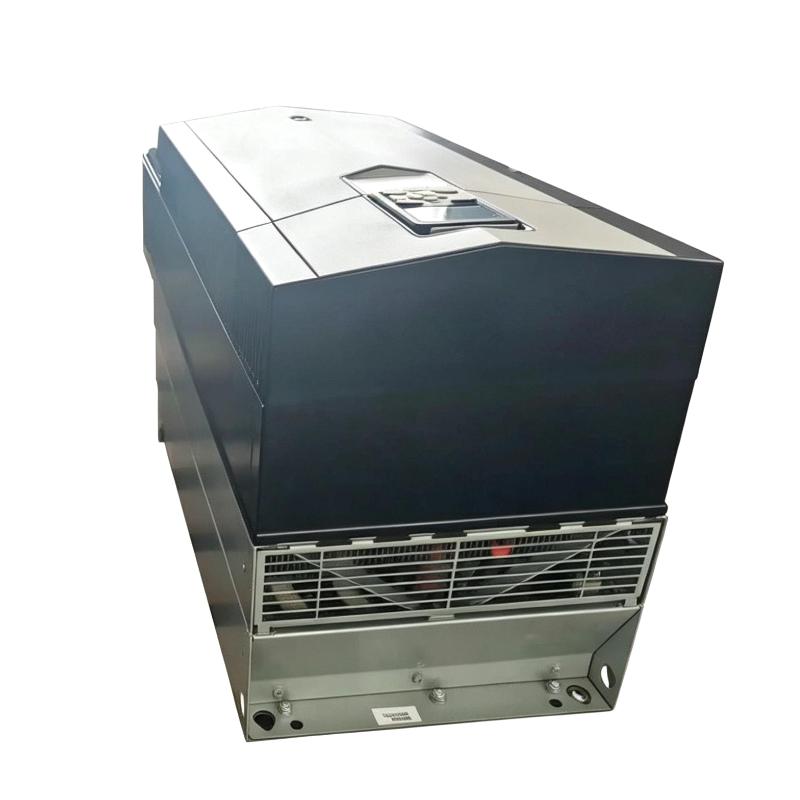

In modern industrial automation systems, high-power motor control solutions are essential for improving production efficiency, optimizing energy consumption, and ensuring reliable operation of large mechanical equipment. The ABB ACS880-01-293A-3 (3ABD00035955-D) Frequency Converter is a high-performance industrial AC drive designed for applications requiring strong output capability, precise motor control, and stable operation under demanding industrial conditions.
The ACS880-01-293A-3 is part of ABB’s advanced ACS880 single drive family and is designed for controlling large industrial motors used in heavy-duty applications. With a rated output current of 293 A and a power capacity suitable for 160 kW motor applications, this frequency converter provides excellent performance for industries that require continuous operation and accurate speed regulation.
This drive integrates advanced motor control technology, flexible system integration capability, and intelligent protection functions. It is suitable for controlling pumps, compressors, conveyors, fans, mixers, crushers, and other large motor-driven equipment where reliability and efficiency are critical.
The ABB ACS880-01-293A-3 provides a reliable solution for industrial automation systems requiring high torque performance, smooth motor operation, and long service life.
Technical Specifications

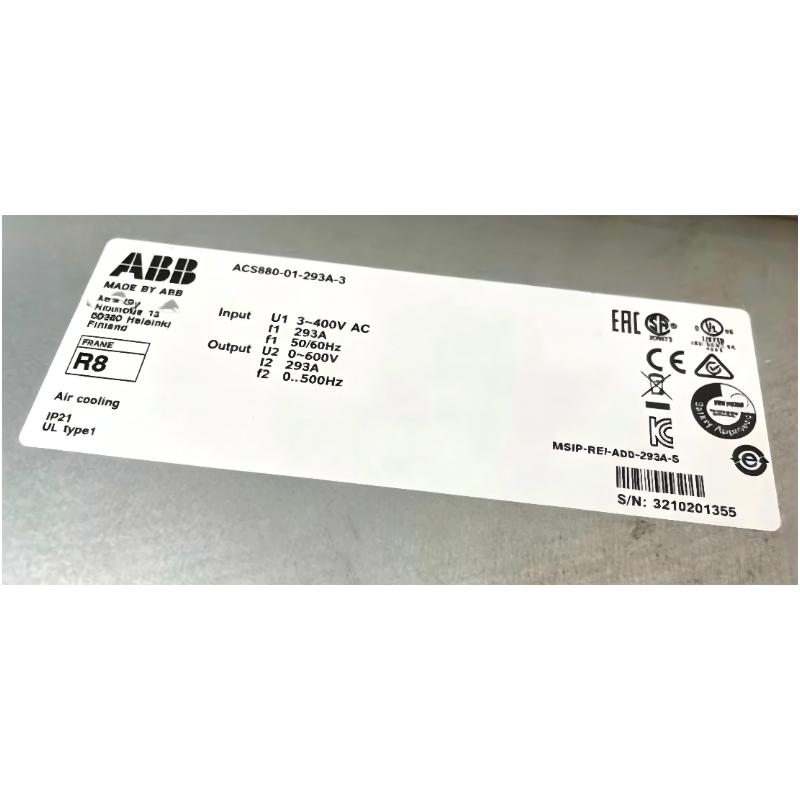

| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-293A-3 |
| Part Number | 3ABD00035955-D |
| Product Type | Frequency Converter |
| Series | ACS880-01 |
| Drive Type | Industrial AC Drive |
| Rated Power | 160 kW |
| Rated Output Current | 293 A |
| Heavy Duty Output Current | 246 A |
| Input Voltage | 380–415 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Frame Size | R8 |
| Control Technology | Direct Torque Control (DTC) |
| Motor Control Type | Induction Motor and Permanent Magnet Motor Control |
| Installation Type | Wall-mounted |
| Cooling Method | Air cooling |
| Protection Class | IP21 |
| Dimensions | 963 × 300 × 386 mm |
| Weight | 70 kg |
| Communication Capability | Industrial network communication support |
| Application | High-power motor control systems |
| Operating Environment | Industrial automation and process applications |
Function and Working Principle
The ABB ACS880-01-293A-3 Frequency Converter controls high-power motor operation by converting fixed-frequency AC input power into adjustable-frequency and adjustable-voltage output power.
The working process includes:
- Receiving three-phase AC input power
- Converting AC power into DC power through the rectifier section
- Maintaining stable DC link voltage
- Generating variable-frequency AC output through inverter technology
- Adjusting motor speed and torque according to production requirements
The integrated Direct Torque Control (DTC) technology enables accurate motor management by directly controlling torque and magnetic flux. This allows the frequency converter to respond quickly to load changes while maintaining smooth and stable motor operation.
Main functions include:
- High torque output capability
- Accurate speed regulation
- Fast dynamic response
- Smooth acceleration and deceleration
- Reduced mechanical stress
- Improved energy efficiency
- Stable performance under heavy loads
The ACS880-01-293A-3 is designed for applications where motor control accuracy and system reliability are essential.
Role in Industrial Control Systems
The ABB ACS880-01-293A-3 acts as a key motor control component in industrial automation systems. It provides intelligent control between automation equipment and high-power motors, allowing machines to operate efficiently according to production requirements.
The frequency converter commonly works together with:
| System Component | Function |
|---|---|
| PLC Controllers | Provides automatic control commands and process management |
| HMI Panels | Enables operator monitoring and parameter adjustment |
| Communication Modules | Connects the drive with industrial networks |
| Encoder Feedback Devices | Improves motor speed and position accuracy |
| Safety Modules | Supports industrial safety functions |
| Motor Protection Components | Enhances electrical protection and system reliability |
By integrating with these components, the ACS880-01-293A-3 helps create flexible and reliable industrial drive systems.
Industrial Applications
The ABB ACS880-01-293A-3 Frequency Converter is widely used in industries requiring high-power motor control and continuous operation.
| Industry | Application |
|---|---|
| Manufacturing | Large automated production equipment |
| Oil and Gas | Pumps, compressors, and process machinery |
| Mining Industry | Heavy conveyors and material handling systems |
| Cement Industry | Crushers, mills, and rotating equipment |
| Water Treatment | Large pumping systems and flow control equipment |
| Chemical Industry | Mixers, reactors, and process systems |
| Pulp and Paper | Production line drive systems |
| Marine Industry | Heavy mechanical drive applications |
| Power Generation | Auxiliary motor control systems |
Its powerful output capability makes it suitable for demanding industrial environments where stable operation is required.
Installation and System Integration
Proper installation and commissioning are important for ensuring reliable performance of the ABB ACS880-01-293A-3.
Recommended installation procedures include:
- Install the drive vertically in a suitable control cabinet or mounting location
- Ensure sufficient ventilation around the cooling system
- Select power cables according to motor current requirements
- Connect motor wiring and control signals correctly
- Configure motor parameters before startup
- Verify communication settings before operation
During commissioning, engineers normally configure:
- Motor rated voltage
- Motor rated current
- Motor speed parameters
- Acceleration and deceleration settings
- Control mode selection
- Communication parameters
- Protection functions
Correct commissioning improves system stability and reduces unexpected equipment downtime.
Compatible System Components
The ABB ACS880-01-293A-3 can be integrated with various automation accessories and drive components.
| Compatible Component | Function |
|---|---|
| ABB Control Unit | Main drive control and processing |
| ABB Control Panel | Local operation and parameter configuration |
| Fieldbus Adapter Modules | Industrial communication connection |
| I/O Extension Modules | Additional control signal expansion |
| Encoder Interface Modules | High-precision motor feedback |
| Braking Resistors | Handles braking energy during deceleration |
| EMC Filters | Improves electromagnetic compatibility |
| Output Filters | Enhances motor protection and cable performance |
These components allow engineers to customize the drive system according to different industrial requirements.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ABB ACS880-01-293A-3 | Frequency Converter | 160 kW high-performance industrial drive | Large motor applications |
| ABB ACS880-01-246A-3 | Frequency Converter | 132 kW motor control solution | Heavy-duty machinery |
| ABB ACS880-01-363A-3 | Frequency Converter | Higher current output capability | Larger industrial systems |
| ABB ACS580 Series | Frequency Converter | General-purpose industrial drive | Pumps and fans |
| ABB ACS800 Series | Industrial Drive Platform | Reliable industrial drive solution | Existing system replacement |
Key Advantages
- High-power motor control capability
- Advanced Direct Torque Control technology
- Excellent torque response under heavy loads
- Suitable for continuous industrial operation
- Flexible PLC and automation integration
- Improves energy efficiency of motor-driven equipment
- Reduces mechanical stress during operation
- Provides reliable long-term industrial performance
Technical FAQs
What is the ABB ACS880-01-293A-3 used for?
The ABB ACS880-01-293A-3 is used for controlling high-power industrial motors in applications requiring accurate speed control, strong torque performance, and reliable operation.
What is the rated power of this frequency converter?
The ACS880-01-293A-3 is designed for 160 kW motor applications with a rated output current of 293 A.
What type of motors can this frequency converter control?
It supports compatible AC motors, including induction motors and permanent magnet motors.
Where is the ACS880-01-293A-3 installed?
It is commonly installed in industrial control cabinets, production systems, process automation equipment, and heavy machinery.
Which components can work with this drive?
It can be integrated with communication modules, I/O expansion modules, encoder interfaces, control panels, braking components, and filtering accessories.
Conclusion
The ABB ACS880-01-293A-3 (3ABD00035955-D) Frequency Converter is a powerful industrial AC drive designed for high-performance motor control applications.
With advanced control technology, high current capability, and flexible integration options, this frequency converter provides reliable performance for heavy machinery, process industries, pumps, compressors, conveyors, and large automation systems.
For industrial engineers, system integrators, and maintenance professionals, the ABB ACS880-01-293A-3 provides an effective solution for improving motor efficiency, increasing equipment reliability, and maintaining stable long-term industrial operation.
