Product Overview

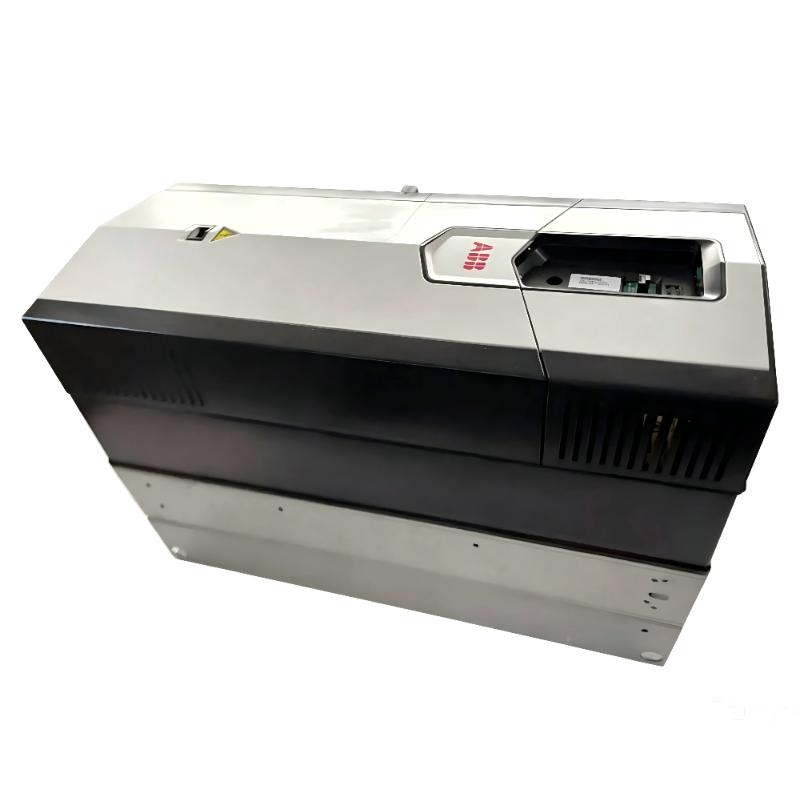

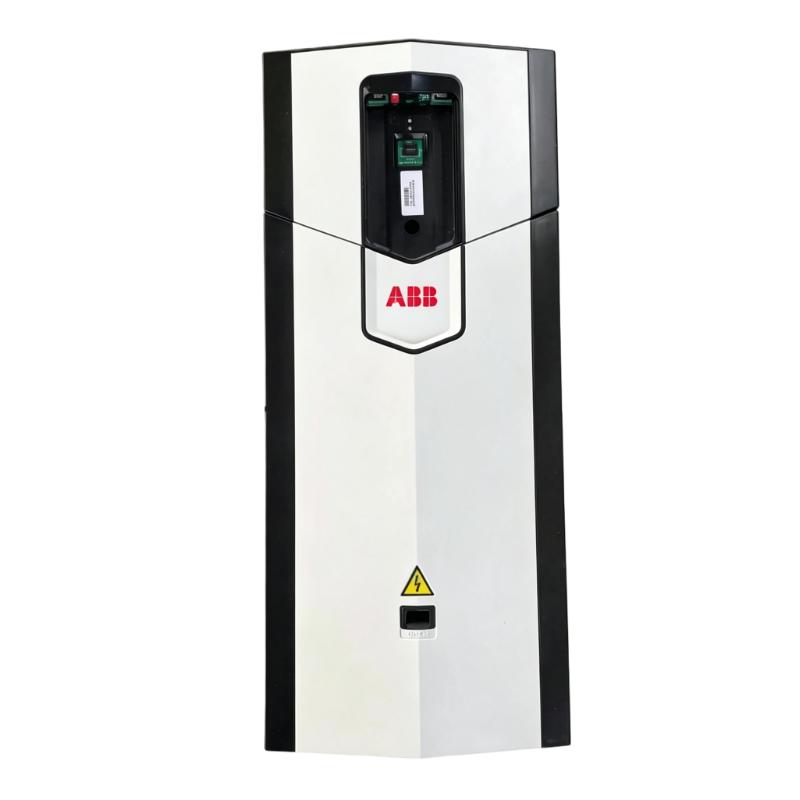

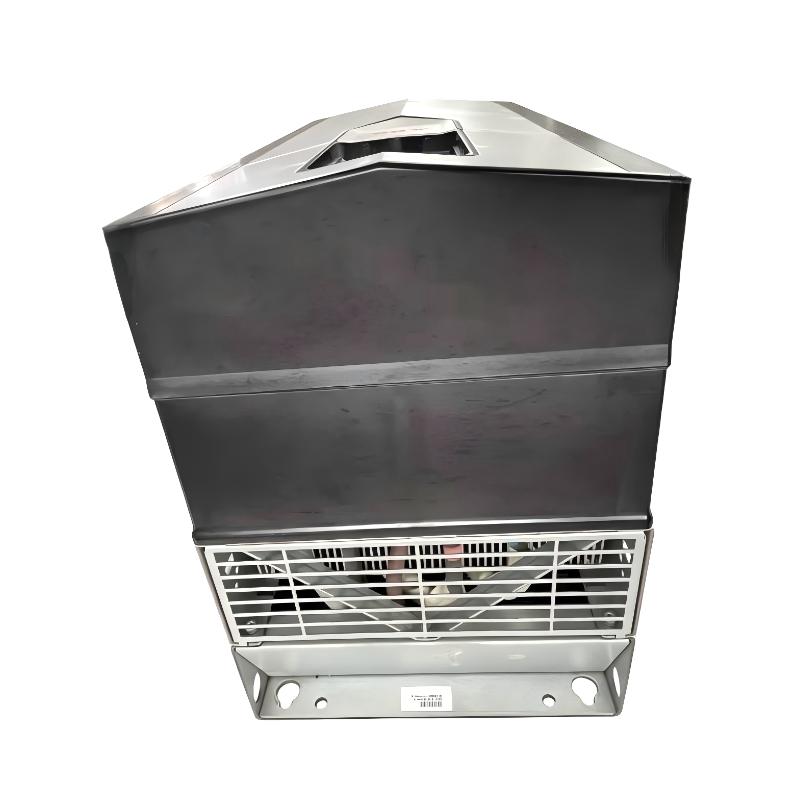

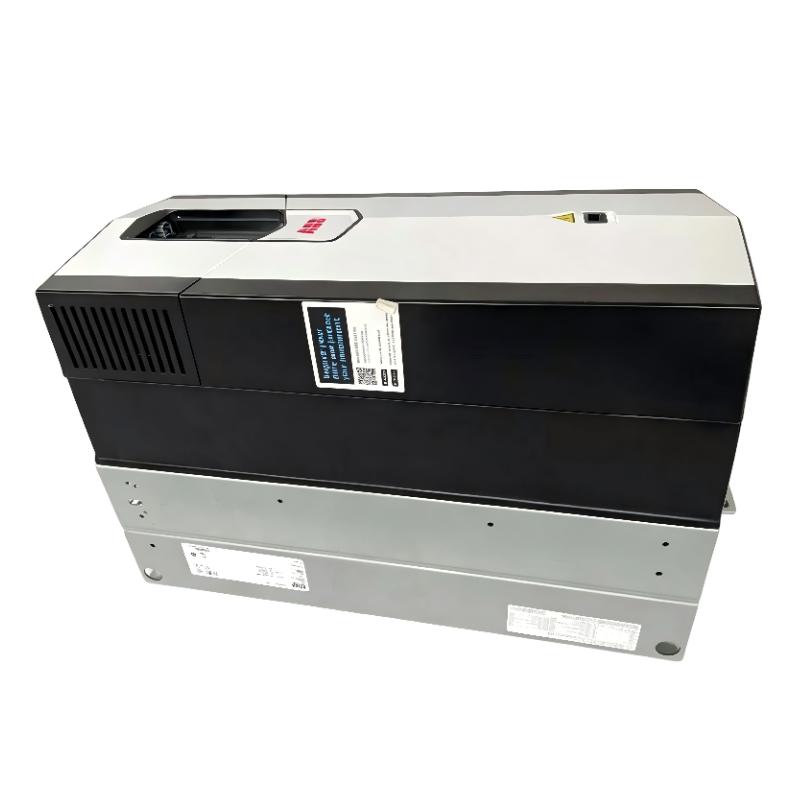

In large-scale industrial automation systems, high-power motor control solutions are essential for maintaining production efficiency, reducing energy consumption, and ensuring stable operation of critical equipment. The ABB ACS880-01-145A-3 (3AUA0000108026) Frequency Converter is a high-performance industrial AC drive designed for demanding applications that require precise motor control, strong torque capability, and reliable long-term operation.
The ACS880-01-145A-3 belongs to ABB’s advanced ACS880 single drive family and is designed for controlling high-power motors in industries such as manufacturing, process automation, energy, marine, and material handling. With a rated output current of 145 A and a power rating suitable for 75 kW class applications, this frequency converter provides excellent performance for heavy-duty machinery and continuous production systems.
By combining Direct Torque Control (DTC), flexible communication options, and integrated protection functions, the ABB ACS880-01-145A-3 provides engineers with a reliable solution for improving motor efficiency, optimizing machine performance, and increasing system availability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-145A-3 |
| Part Number | 3AUA0000108026 |
| Product Type | Frequency Converter |
| Series | ACS880-01 |
| Drive Type | Low Voltage AC Industrial Drive |
| Rated Power | 75 kW |
| Rated Output Current | 145 A |
| Light Overload Output Current | 138 A |
| Heavy Duty Output Current | 105 A |
| Input Voltage | 380–415 V AC |
| Input Phase | Three-phase |
| Input Frequency | 50/60 Hz |
| Control Technology | Direct Torque Control (DTC) |
| Motor Control Type | Induction Motor and Permanent Magnet Motor Control |
| Frame Size | R6 |
| Installation Type | Wall-mounted |
| Cooling Method | Air cooling |
| Protection Class | IP21 |
| Dimensions | 727 × 252 × 357 mm |
| Weight | 42.2 kg |
| Communication Capability | Supports industrial fieldbus communication |
| Application | Heavy-duty industrial motor control |
| Operating Environment | Industrial automation and process applications |
Function and Working Principle
The ABB ACS880-01-145A-3 Frequency Converter is designed to control motor speed and torque by converting fixed-frequency AC input power into adjustable-frequency output power.
The drive operation process includes:
- Receiving three-phase AC input power
- Converting AC power into DC power through the rectifier section
- Stabilizing energy through the DC link circuit
- Producing adjustable AC output through inverter technology
- Continuously monitoring motor performance and adjusting control parameters
The integrated Direct Torque Control technology allows the drive to directly control motor torque and magnetic flux, providing fast response and high accuracy during changing load conditions.
The main functions include:
- High torque performance at low speeds
- Accurate speed regulation
- Smooth motor acceleration and stopping
- Improved energy efficiency
- Reduced mechanical wear
- Stable operation under variable loads
This makes the ACS880-01-145A-3 suitable for applications where precise and reliable motor control is required.
Role in Industrial Control Systems
The ABB ACS880-01-145A-3 serves as a key power control component in industrial automation systems. It provides the connection between automation controllers and high-power motors, allowing production equipment to operate efficiently according to process requirements.
The frequency converter commonly works together with:
| System Component | Function |
|---|---|
| PLC Controllers | Provides automatic start, stop, speed, and process commands |
| HMI Panels | Allows operators to monitor and adjust drive parameters |
| Industrial Communication Modules | Enables integration with automation networks |
| Encoder Feedback Devices | Provides accurate speed and position feedback |
| Safety Modules | Supports machine safety functions |
| Motor Protection Devices | Enhances electrical system protection |
Through integration with these components, the ACS880-01-145A-3 helps create reliable and intelligent industrial drive systems.
Industrial Applications
The ABB ACS880-01-145A-3 Frequency Converter is widely used in industries that require powerful and reliable motor control.
| Industry | Application |
|---|---|
| Manufacturing | Large production equipment and automated machinery |
| Oil and Gas | Pumps, compressors, and process systems |
| Mining | Heavy-duty conveyors and material handling equipment |
| Water Treatment | High-capacity pumping systems |
| Chemical Processing | Mixers, reactors, and production equipment |
| Pulp and Paper | Roll drives and processing machinery |
| Energy Industry | Auxiliary motor control systems |
| Marine Industry | Heavy mechanical drive applications |
| Cement Industry | Crushers, conveyors, and rotating equipment |
Its high current capability and stable performance make it suitable for continuous industrial operation.
Installation and System Integration
Proper installation and commissioning are important to ensure maximum performance and reliability of the ABB ACS880-01-145A-3.
Recommended installation procedures include:
- Install the frequency converter vertically inside a suitable control cabinet or mounting area
- Maintain sufficient ventilation around the cooling system
- Select power cables according to motor current requirements
- Connect control signals and communication wiring correctly
- Configure motor parameters before startup
- Perform commissioning tests before full production operation
During commissioning, engineers normally configure:
- Motor rated voltage
- Motor rated current
- Motor speed
- Acceleration and deceleration parameters
- Control mode settings
- Communication parameters
- Protection functions
Correct configuration helps reduce downtime and improves overall system stability.
Compatible System Components
The ACS880-01-145A-3 can be combined with ABB drive accessories and automation modules to meet different application requirements.
| Compatible Component | Function |
|---|---|
| ABB ZCU Control Unit | Main drive control and processing |
| ABB Control Panel | Local operation and parameter adjustment |
| ABB Fieldbus Adapter Modules | Industrial network communication |
| ABB I/O Extension Modules | Additional digital and analog signal expansion |
| ABB Encoder Interface Modules | High-precision motor feedback control |
| ABB Braking Resistors | Handles regenerative braking energy |
| ABB EMC Filters | Improves electromagnetic compatibility |
| ABB Output Filters | Enhances motor protection and cable performance |
These components allow flexible system configuration for different industrial automation projects.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ABB ACS880-01-145A-3 | Frequency Converter | 75 kW high-performance industrial drive | Heavy-duty machinery |
| ABB ACS880-01-105A-3 | Frequency Converter | Lower current drive configuration | Medium-power equipment |
| ABB ACS880-01-169A-3 | Frequency Converter | Higher current capability | Large motor applications |
| ABB ACS580 Series | Frequency Converter | Cost-effective industrial motor control | Pumps and fans |
| ABB ACS800 Series | Industrial Drive Platform | Reliable solution for existing systems | Industrial replacement projects |
Key Advantages
- High-performance control for large industrial motors
- Advanced Direct Torque Control technology
- Excellent torque response and speed regulation
- Suitable for continuous heavy-duty operation
- Supports flexible PLC and automation system integration
- Provides reliable operation in demanding environments
- Helps improve energy efficiency and production performance
- Compatible with ABB communication and expansion solutions
Technical FAQs
What is the ABB ACS880-01-145A-3 used for?
The ABB ACS880-01-145A-3 is used for controlling high-power industrial motors in applications requiring accurate speed control, high torque performance, and reliable operation.
What is the rated power of this frequency converter?
The ACS880-01-145A-3 provides a rated power of approximately 75 kW with a rated output current of 145 A.
What type of motors can this frequency converter control?
It supports compatible AC motors, including induction motors and permanent magnet motors.
Where is the ACS880-01-145A-3 installed?
It is commonly installed in industrial control systems, electrical cabinets, production lines, and heavy machinery applications.
Which accessories can be connected to this drive?
Common accessories include ABB communication modules, I/O expansion modules, encoder interfaces, control panels, braking components, and filtering solutions.
Conclusion
The ABB ACS880-01-145A-3 (3AUA0000108026) Frequency Converter is a powerful industrial drive solution designed for high-performance motor control applications.
With advanced control technology, strong output capability, and flexible integration options, this frequency converter provides reliable operation for heavy machinery, process industries, pumps, compressors, conveyors, and large automation systems.
For industrial engineers, system integrators, and maintenance professionals, the ABB ACS880-01-145A-3 offers an effective solution for improving motor efficiency, increasing equipment reliability, and maintaining stable long-term industrial operation.
