Product Overview

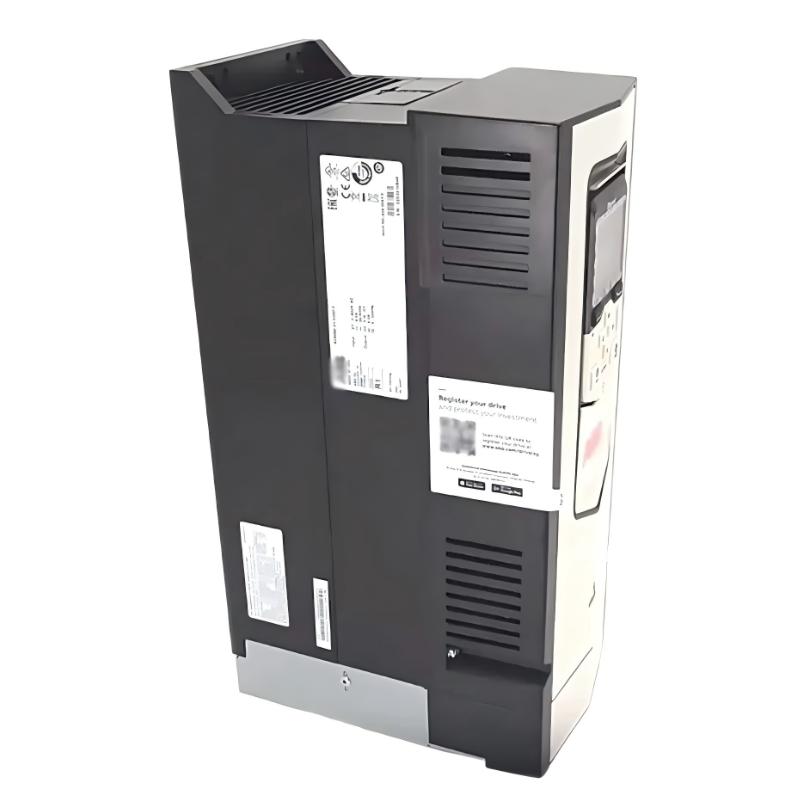

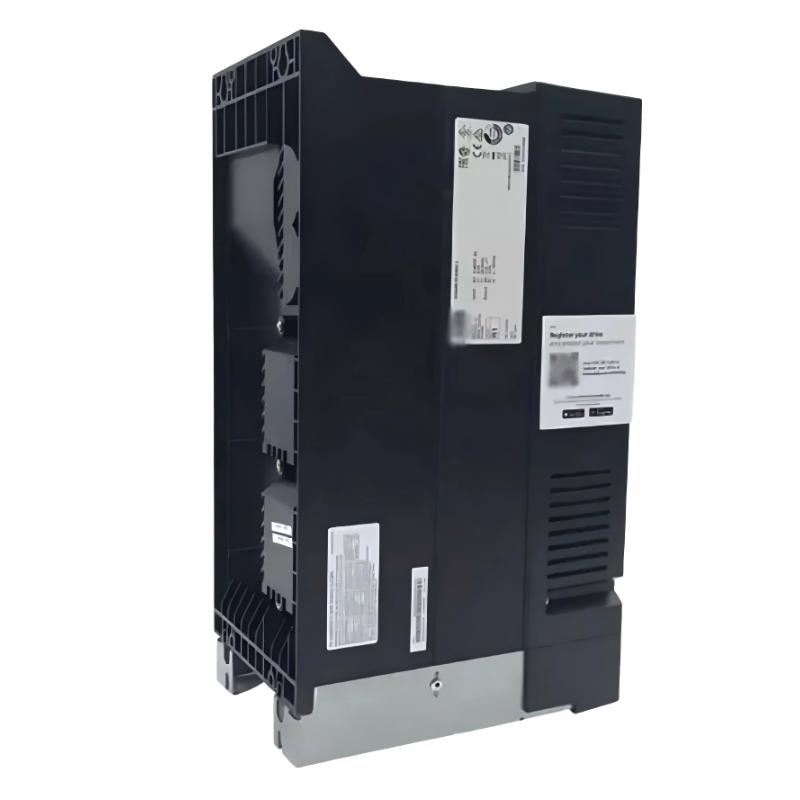

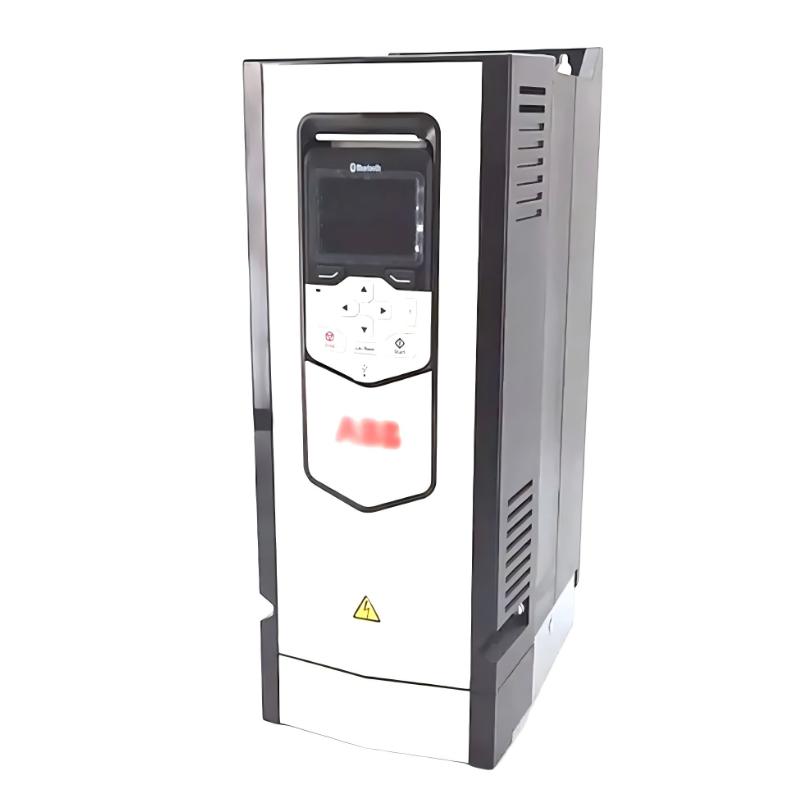

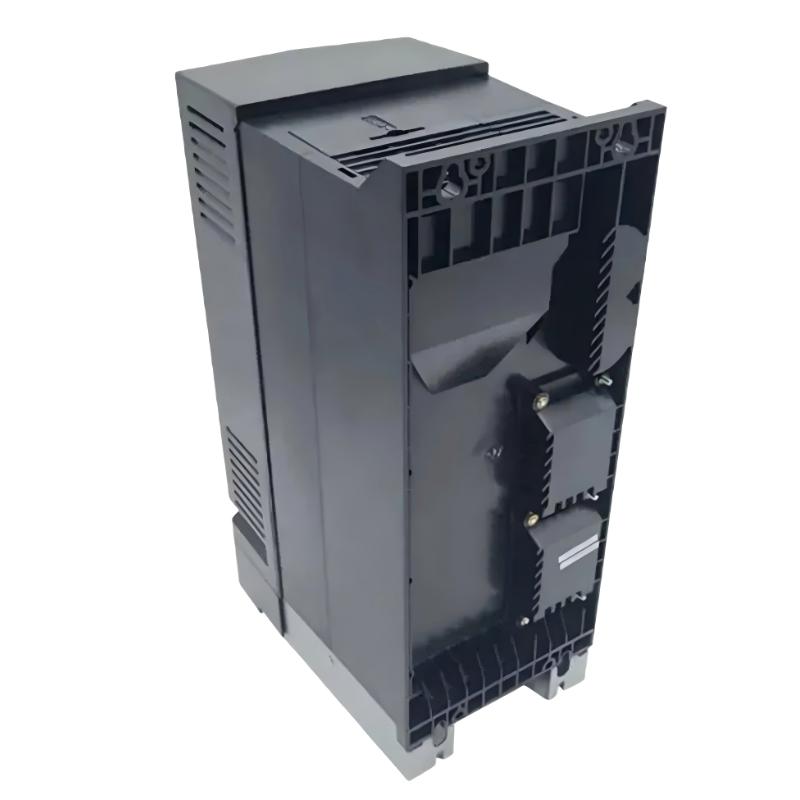

In advanced industrial automation environments, reliable motor control and efficient energy management are essential for maintaining production stability and improving operational performance. The ABB ACS880-01-12A6-3 (3AUA0000107990) Frequency Converter is a compact industrial AC drive designed for precise speed control, torque regulation, and high-performance motor operation in demanding applications.
The ACS880-01 series provides a flexible drive platform for industries requiring accurate control of motors, machinery, and process equipment. This model is engineered to support a wide range of applications, including pumps, fans, conveyors, compressors, mixers, and automated production systems.
With advanced motor control technology, built-in protection functions, and flexible system integration capability, the ABB ACS880-01-12A6-3 helps improve machine efficiency, reduce energy consumption, and maintain reliable operation in industrial control systems.
Technical Specifications
| Parameter |
Details |
| Manufacturer |
ABB |
| Model |
ACS880-01-12A6-3 |
| Part Number |
3AUA0000107990 |
| Product Type |
Frequency Converter |
| Series |
ACS880-01 |
| Drive Type |
Low Voltage AC Industrial Drive |
| Rated Power |
5.5 kW |
| Rated Output Current |
12.6 A |
| Normal Duty Output Current |
12.6 A |
| Heavy Duty Output Current |
9.4 A |
| Input Voltage |
380–415 V AC |
| Input Phase |
Three-phase |
| Input Frequency |
50/60 Hz |
| Control Technology |
Direct Torque Control (DTC) |
| Motor Control Type |
Induction Motor and Permanent Magnet Motor Control |
| Installation Type |
Wall-mounted |
| Cooling Method |
Air cooling |
| Protection Class |
IP21 |
| Dimensions |
409 × 155 × 226 mm |
| Weight |
7 kg |
| Communication Support |
Fieldbus communication options available |
| Application |
Industrial motor control and automation systems |
| Operating Environment |
Industrial production and process environments |
Function and Working Principle
The ABB ACS880-01-12A6-3 Frequency Converter is designed to regulate motor operation by converting incoming fixed-frequency AC power into adjustable voltage and frequency output.
The drive operates through several main stages:
- Three-phase AC power input processing
- Conversion of AC power into DC power through the rectifier section
- DC link voltage management
- Inverter switching control for adjustable motor output
- Real-time motor performance monitoring and adjustment
The integrated Direct Torque Control technology allows the frequency converter to control motor torque and speed with high accuracy without requiring traditional speed feedback in many applications.
The main functions include:
- Precise speed regulation
- Fast torque response
- Smooth motor acceleration and stopping
- Improved energy efficiency
- Stable operation under changing load conditions
This makes the ACS880-01-12A6-3 suitable for applications where machine performance and reliability are critical.
Role in Industrial Control Systems
The ABB ACS880-01-12A6-3 works as a key motor control device in industrial automation architectures. It connects automation controllers with electric motors and ensures accurate operation according to production requirements.
The frequency converter is commonly integrated with:
| System Component |
Function |
| PLC Controllers |
Provides start, stop, speed, and process control commands |
| HMI Systems |
Allows operators to monitor and adjust drive parameters |
| Industrial Communication Modules |
Enables connection with automation networks |
| Encoder Feedback Devices |
Provides accurate motor position and speed information |
| Safety Modules |
Supports machine safety functions |
| Motor Protection Devices |
Improves electrical system reliability |
By working together with these components, the ACS880-01-12A6-3 provides a complete motor control solution for automated industrial equipment.
Industrial Applications
The ABB ACS880-01-12A6-3 Frequency Converter is widely applied in industries that require reliable variable speed motor control.
| Industry |
Application |
| Manufacturing Automation |
CNC machines, production lines, and automated equipment |
| Oil and Gas |
Pumps, compressors, and process equipment |
| Water and Wastewater |
Pumping stations and flow control systems |
| Chemical Industry |
Mixers, reactors, and process machinery |
| Food and Beverage |
Packaging and processing equipment |
| Material Handling |
Conveyors, lifting systems, and logistics equipment |
| Power Generation |
Auxiliary motor systems |
| Marine Industry |
Shipboard mechanical drive applications |
Its compact design and advanced control capability allow it to operate effectively in both standalone machines and complex automation systems.
Installation and System Integration
Proper installation and commissioning are essential for achieving reliable operation of the ABB ACS880-01-12A6-3.
Recommended installation procedures include:
- Install the drive vertically in a suitable control cabinet or machine enclosure
- Ensure adequate ventilation around the cooling area
- Connect input power and motor cables according to electrical requirements
- Configure motor parameters before startup
- Set communication parameters when integrating with PLC systems
- Perform commissioning tests before production operation
Important commissioning parameters include:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration and deceleration time
- Control mode selection
- Protection settings
Correct configuration improves system stability and extends equipment service life.
Compatible System Components
The ABB ACS880-01-12A6-3 can be combined with various ABB accessories and automation components.
| Compatible Component |
Function |
| ABB ZCU Control Unit |
Main drive control and processing |
| ABB Control Panel |
Local parameter setup and operation |
| ABB F-series Communication Adapter |
Industrial network integration |
| ABB I/O Extension Modules |
Additional control signal expansion |
| ABB Encoder Interface Module |
Closed-loop motor control |
| ABB Braking Resistor |
Handles regenerative braking energy |
| ABB EMC Filter |
Reduces electromagnetic interference |
| ABB Output Filter |
Protects motors and improves cable performance |
These components allow engineers to customize the drive system according to different industrial requirements.
Recommended Alternative Models
| Model |
Type |
Key Feature |
Application |
| ABB ACS880-01-12A6-3 |
Frequency Converter |
5.5 kW industrial AC drive with advanced control |
General automation applications |
| ABB ACS880-01-09A4-3 |
Frequency Converter |
Lower current configuration |
Small motor systems |
| ABB ACS880-01-017A-3 |
Frequency Converter |
Higher output capacity |
Larger machinery applications |
| ABB ACS580 Series |
Frequency Converter |
Cost-effective industrial drive solution |
Pumps, fans, HVAC systems |
| ABB ACS800 Series |
Industrial Drive |
Proven performance for existing systems |
Industrial retrofit projects |
Key Advantages
- Advanced Direct Torque Control technology
- High accuracy motor speed and torque management
- Compact wall-mounted installation design
- Supports multiple industrial automation applications
- Flexible communication and expansion options
- Improves energy efficiency of motor systems
- Provides stable operation under variable loads
- Suitable for continuous industrial operation
Technical FAQs
What is the ABB ACS880-01-12A6-3 used for?
The ABB ACS880-01-12A6-3 is used for controlling industrial motors in applications requiring adjustable speed, accurate torque control, and reliable performance.
What is the difference between 3AUA0000107990 and other ACS880-01-12A6-3 models?
3AUA0000107990 is the ABB product identification number for this specific ACS880-01-12A6-3 frequency converter configuration.
What motor types can this frequency converter control?
It supports various AC motors, including induction motors and permanent magnet motors.
Where is this drive normally installed?
It is commonly installed in industrial control cabinets, machinery systems, production lines, and process automation equipment.
Which accessories can be connected to this frequency converter?
It supports ABB communication modules, I/O expansion modules, encoder interfaces, control panels, and braking components.
Conclusion
The ABB ACS880-01-12A6-3 (3AUA0000107990) Frequency Converter is a reliable industrial drive solution designed for modern automation and motor control applications.
With advanced control performance, compact dimensions, and strong integration capability, this frequency converter provides stable operation for manufacturing equipment, process industries, pumps, fans, conveyors, and other industrial systems.
For automation engineers, machine builders, and maintenance professionals, the ACS880-01-12A6-3 delivers an effective solution for improving motor efficiency, reducing downtime, and achieving reliable long-term industrial operation.
