Product Overview

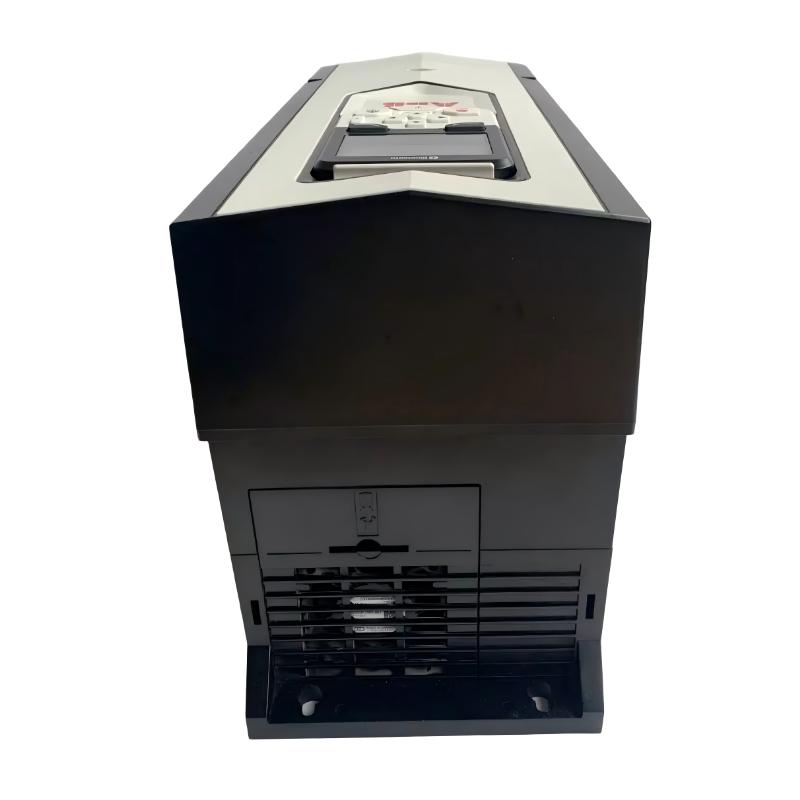

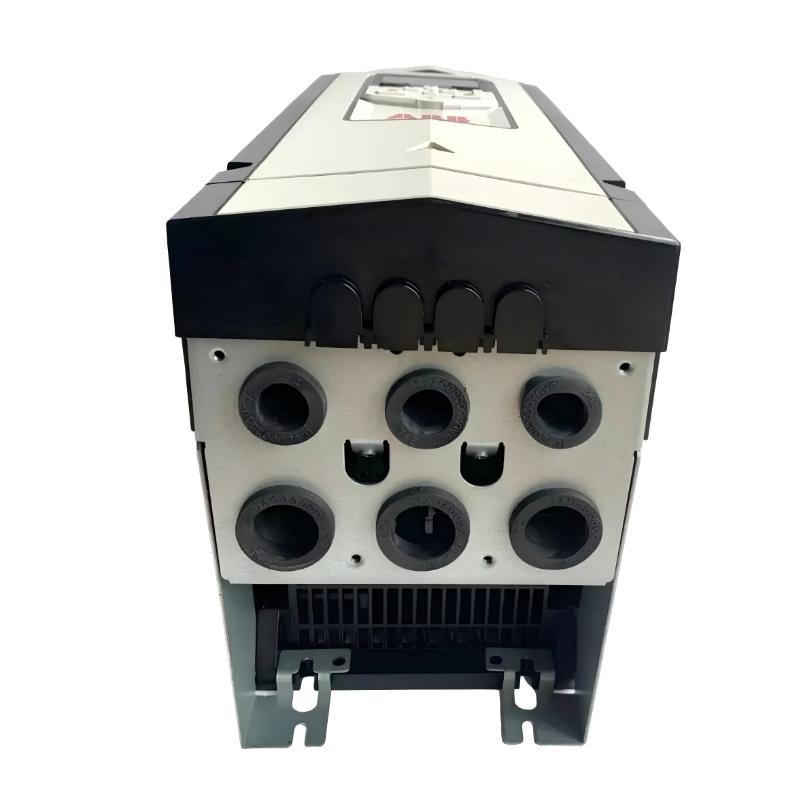

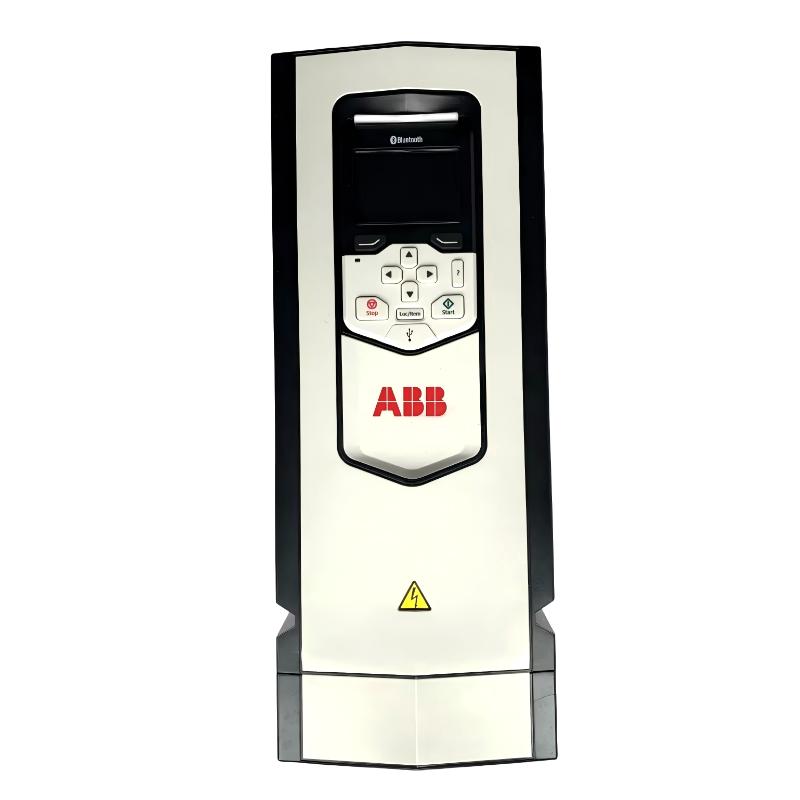

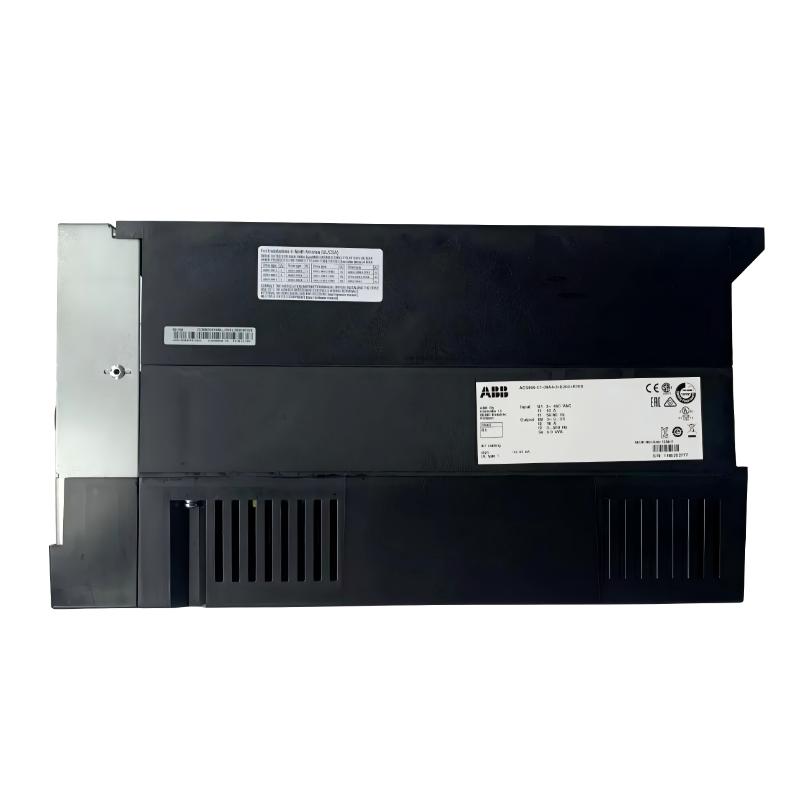

The ABB ACS880-01-09A4-3 Frequency Converter (3AUA0000107989) is a compact industrial variable frequency drive designed for efficient AC motor control, precise speed adjustment, and reliable operation in industrial automation systems.
The ACS880 series is designed for demanding industrial applications that require stable motor performance, accurate torque control, and flexible integration with automation equipment. The ACS880-01-09A4-3 provides reliable operation for applications such as pumps, fans, conveyors, compressors, mixers, and various production machines.
By controlling motor speed and torque according to process requirements, the ABB ACS880-01-09A4-3 helps improve system efficiency, reduce mechanical stress, and maintain stable equipment operation.
This model features a compact R1 frame structure with dimensions of 409 x 155 x 226 mm and a weight of approximately 7 kg, making it suitable for installation in control cabinets and machinery with limited mounting space.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-09A4-3 |
| Product ID | 3AUA0000107989 |
| Product Type | Frequency Converter |
| Series | ACS880 |
| Rated Output Current | 10 A |
| Rated Power | 4 kW |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Frame Size | R1 |
| Mounting Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 409 x 155 x 226 mm |
| Weight | 7 kg |
| Application | Industrial Motor Control |
Product Features
Reliable Motor Control Performance
The ABB ACS880-01-09A4-3 provides accurate motor control for industrial equipment requiring stable operation.
Key features:
- Precise speed regulation
- Stable torque control
- Smooth acceleration and deceleration
- Improved response to load changes
- Reliable continuous operation
The drive helps maintain consistent production performance and improves machine operating stability.
Compact R1 Frame Design
The compact R1 frame allows flexible installation in industrial environments.
Main advantages:
- Space-saving design
- Easy cabinet installation
- Reduced equipment footprint
- Convenient wiring access
- Simple maintenance process
The 7 kg lightweight structure makes installation and replacement easier.
Efficient Energy Management
The frequency converter optimizes motor operation by adjusting speed according to actual application requirements.
Energy efficiency benefits:
- Reduced unnecessary motor operation
- Lower power consumption
- Reduced mechanical wear
- Improved system efficiency
- Extended motor service life
Industrial Automation Integration
The ABB ACS880-01-09A4-3 is suitable for integration with different automation systems.
Typical applications:
- PLC-controlled machinery
- Factory automation systems
- Conveyor equipment
- Pump applications
- Fan systems
- Process control equipment
Working Principle
The ABB ACS880-01-09A4-3 regulates motor operation by converting fixed-frequency AC power into adjustable-frequency AC output.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC circuit stabilizes the electrical energy.
- The inverter generates variable-frequency AC output.
- The control system adjusts output voltage and frequency.
- The motor operates according to required speed and torque.
This process provides smooth motor operation and accurate control performance.
Industrial Applications
Pump Systems
The ACS880-01-09A4-3 is suitable for industrial pump applications.
Common uses:
- Water circulation systems
- Cooling equipment
- Process pumps
- Fluid handling systems
Advantages:
- Stable flow adjustment
- Reduced energy consumption
- Smooth startup operation
- Improved system reliability
Fan and Ventilation Equipment
The frequency converter provides efficient variable-speed control for industrial fans.
Benefits:
- Adjustable airflow
- Reduced operating costs
- Lower motor stress
- Improved ventilation efficiency
Conveyor Systems
The drive provides accurate speed control for conveyor applications.
Applications:
- Packaging machines
- Material handling systems
- Manufacturing lines
Benefits:
- Smooth acceleration
- Stable running speed
- Reduced mechanical impact
- Improved production consistency
Automated Machinery
The compact structure makes the ACS880-01-09A4-3 suitable for automated equipment.
Applications:
- Assembly machines
- Processing equipment
- Auxiliary motor drives
- Production machinery
Installation Guide
Installation Preparation
Before installing the ABB ACS880-01-09A4-3, confirm:
- Correct drive model
- Compatible motor specifications
- Proper power supply
- Suitable installation environment
- Adequate ventilation space
Step 1: Inspect the Frequency Converter
Before installation:
- Check the drive housing for damage.
- Confirm the model and product identification.
- Inspect electrical terminals.
- Verify installation accessories.
Do not install a damaged frequency converter.
Step 2: Select Installation Location
The installation location should provide:
- Good ventilation
- Stable mounting surface
- Suitable operating temperature
- Low dust exposure
- Easy maintenance access
Avoid locations with:
- Excessive humidity
- Strong vibration
- Direct heat sources
- Poor airflow
Step 3: Mount the Drive
Installation steps:
- Install the frequency converter vertically.
- Secure the unit firmly.
- Maintain sufficient ventilation clearance.
- Keep cooling openings unobstructed.
Proper mounting improves heat dissipation and operating reliability.
Step 4: Electrical Wiring
Connect:
- Three-phase input power
- Motor output terminals
- Protective grounding
- Control wiring
- Communication wiring
Before startup:
- Check wiring accuracy.
- Confirm grounding connection.
- Tighten all terminals.
Step 5: Parameter Configuration
Configure the main drive parameters:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
- Speed reference source
Correct parameter settings ensure stable motor operation.
Step 6: Commissioning Test
After installation:
- Power on the converter.
- Check drive status.
- Confirm motor rotation direction.
- Test speed adjustment.
- Verify system operation.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Missing input power
- Incorrect start command
- Safety circuit interruption
- Incorrect parameter configuration
Solutions
- Check power supply
- Verify control signals
- Inspect safety connections
- Review parameter settings
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit in motor wiring
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Check motor load
- Inspect cables
- Verify motor data
- Check mechanical system
Overvoltage Fault
Possible Causes
- Short deceleration time
- Excessive regenerative energy
- Unstable supply voltage
Solutions
- Increase deceleration time
- Check braking requirements
- Verify power quality
Overtemperature Fault
Possible Causes
- Poor ventilation
- Blocked cooling channels
- High ambient temperature
- Excessive operating load
Solutions
- Clean cooling areas
- Improve airflow
- Reduce motor load
- Check installation conditions
Communication Fault
Possible Causes
- Incorrect communication settings
- Damaged cables
- Incorrect PLC configuration
Solutions
- Check communication parameters
- Inspect cables
- Verify automation settings
Motor Speed Instability
Possible Causes
- Incorrect motor parameters
- Unstable speed reference
- Incorrect control mode
- Changing mechanical load
Solutions
- Verify motor data
- Adjust control parameters
- Check reference signals
- Inspect mechanical equipment
Maintenance Recommendations
To maintain reliable operation:
- Clean cooling channels regularly
- Check electrical connections
- Inspect motor cables
- Monitor operating temperature
- Review fault history
- Backup parameter settings
Regular maintenance helps reduce unexpected downtime and improves equipment service life.
Key Advantages
Compact Installation
The 409 x 155 x 226 mm design allows installation in compact industrial systems.
Lightweight Structure
The 7 kg weight simplifies handling, mounting, and replacement.
Reliable Motor Control
Provides accurate speed and torque control for industrial motors.
Energy Efficiency
Helps optimize motor operation and reduce unnecessary energy consumption.
Wide Application Range
Suitable for pumps, fans, conveyors, and automated machinery.
Technical FAQs
What is ABB ACS880-01-09A4-3?
The ABB ACS880-01-09A4-3 is an industrial frequency converter designed for AC motor speed and torque control.
What is the product ID?
The product ID is 3AUA0000107989.
What is the rated power?
The rated power is 4 kW.
What is the rated current?
The rated output current is approximately 10 A.
What are the dimensions?
The dimensions are 409 x 155 x 226 mm.
What is the weight?
The weight is approximately 7 kg.
Conclusion
The ABB ACS880-01-09A4-3 3AUA0000107989 Frequency Converter is a compact and reliable industrial drive solution designed for efficient motor control, stable automation performance, and long-term operation.
With its 4 kW power capability, 10 A current capacity, R1 frame structure, and advanced motor control functions, it provides dependable performance for a wide range of industrial automation applications.
Proper installation, correct parameter configuration, and regular maintenance help ensure stable operation, reduce downtime, and extend equipment service life.
