Product Overview

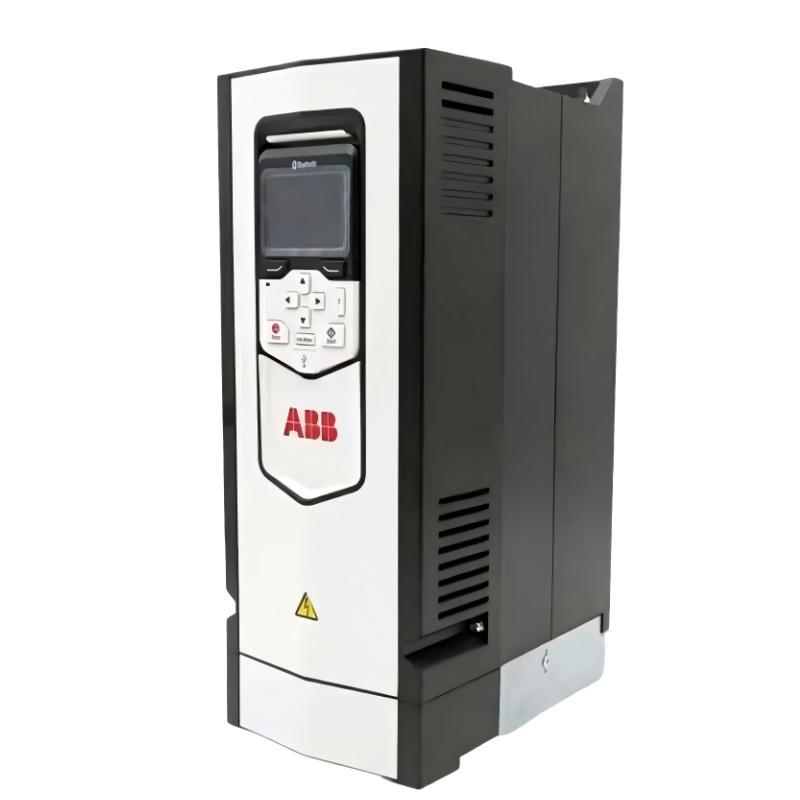

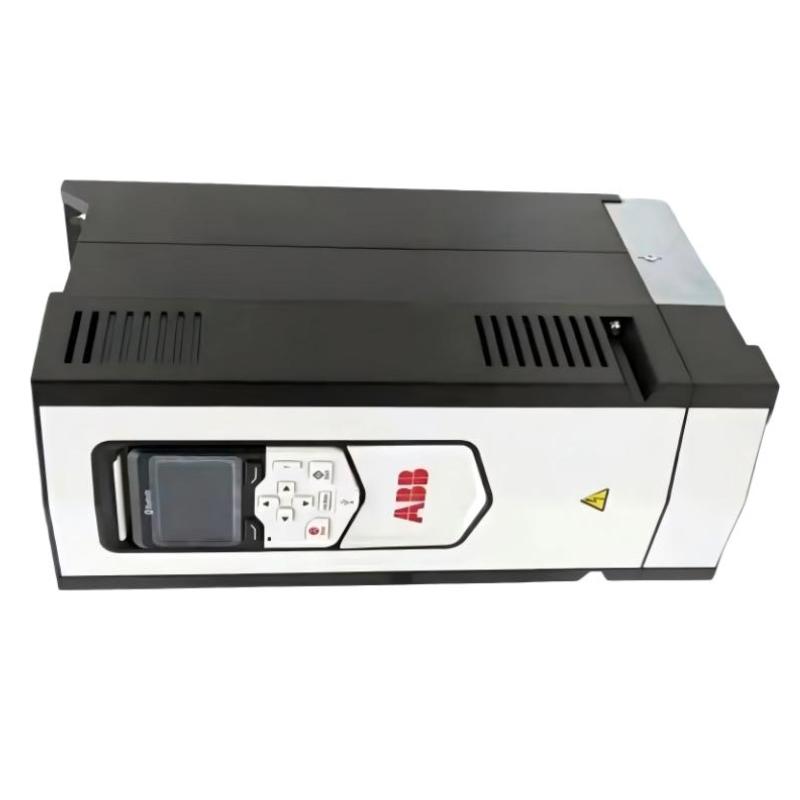

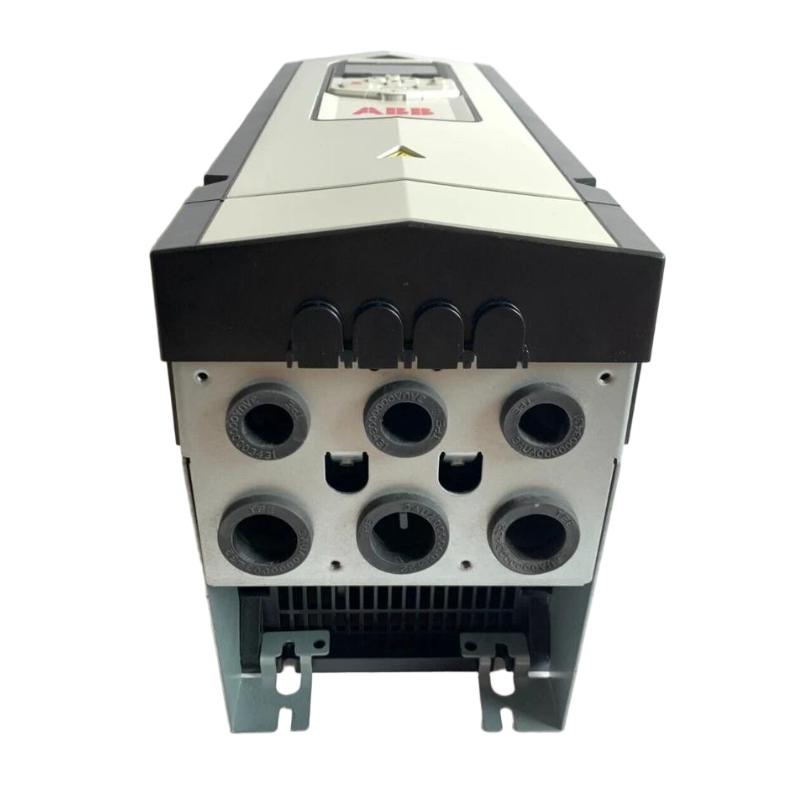

The ABB ACS880-01-09A4-3 Frequency Converter (3ABD00035963-D) is a compact industrial variable frequency drive designed for precise AC motor control, reliable operation, and efficient performance in industrial automation applications.
The ACS880 series frequency converter provides advanced motor control capability for demanding industrial environments. It is designed to deliver stable speed regulation, accurate torque control, and flexible integration with automation systems.
The ABB ACS880-01-09A4-3 is commonly used in applications such as pumps, fans, conveyors, compressors, and automated machinery. By adjusting motor speed according to process requirements, the drive helps improve energy efficiency, reduce mechanical stress, and maintain stable production performance.

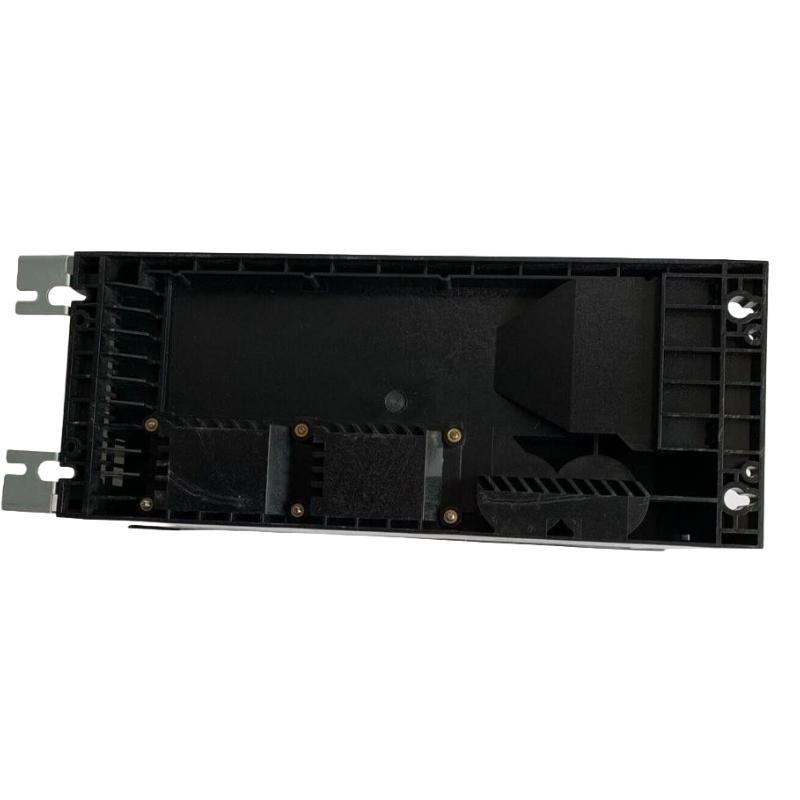

This model features a compact R1 frame structure with dimensions of 409 x 155 x 226 mm and a weight of approximately 6 kg, making it suitable for space-limited control cabinets and machine installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-09A4-3 |
| Product ID | 3ABD00035963-D |
| Product Type | Frequency Converter |
| Series | ACS880 |
| Rated Output Current | 10 A |
| Rated Power | 4 kW |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Frame Size | R1 |
| Mounting Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 409 x 155 x 226 mm |
| Weight | 6 kg |
| Application | Industrial Motor Control |
Product Features
High-Performance Motor Control
The ABB ACS880-01-09A4-3 provides accurate and stable motor control for industrial applications.
Main features:
- Precise speed adjustment
- Reliable torque control
- Smooth acceleration and deceleration
- Improved motor response
- Stable operation under changing loads
The frequency converter helps maintain consistent machine performance and improves overall process reliability.
Compact R1 Frame Design
The compact R1 structure allows easy installation in industrial environments with limited space.
Advantages:
- Small installation footprint
- Reduced cabinet requirements
- Easy machine integration
- Convenient wiring access
- Simplified maintenance
The lightweight 6 kg design also makes transportation and replacement easier.
Energy Efficient Operation
The ACS880-01-09A4-3 improves energy utilization by adjusting motor operation according to actual load requirements.
Energy-saving benefits:
- Reduced unnecessary motor speed
- Lower operating energy consumption
- Improved equipment efficiency
- Reduced mechanical wear
- Extended motor service life
Flexible Industrial Integration
The drive is suitable for various industrial automation applications.
Typical uses:
- PLC-controlled machines
- Production equipment
- Pump systems
- Fan systems
- Conveyor applications
- Process automation equipment
Working Principle
The ABB ACS880-01-09A4-3 controls motor operation by converting fixed AC input power into adjustable AC output power.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC link stabilizes the electrical energy.
- The inverter generates variable-frequency AC output.
- The control system adjusts output voltage and frequency.
- The motor runs according to the required speed and torque.
This conversion process provides accurate motor control and improves system efficiency.
Industrial Applications
Pump Applications
The ACS880-01-09A4-3 is suitable for industrial pump control systems.
Common applications:
- Water circulation systems
- Cooling systems
- Process pumps
- Fluid handling equipment
Benefits:
- Stable flow regulation
- Reduced energy usage
- Smooth startup operation
- Improved equipment reliability
Fan and Ventilation Systems
The frequency converter provides efficient speed regulation for industrial fans.
Advantages:
- Adjustable airflow control
- Reduced operating costs
- Lower motor stress
- Improved system efficiency
Conveyor Systems
The drive provides precise speed control for conveyor equipment.
Applications:
- Packaging machinery
- Material handling systems
- Automated production lines
Benefits:
- Smooth acceleration
- Stable operation
- Reduced mechanical impact
- Improved production consistency
Automated Machinery
The compact design makes the ACS880-01-09A4-3 suitable for various machine automation applications.
Examples:
- Assembly equipment
- Processing machines
- Auxiliary motor systems
- Manufacturing equipment
Installation Guide
Installation Preparation
Before installing the ABB ACS880-01-09A4-3, confirm:
- Correct frequency converter model
- Compatible motor specifications
- Proper power supply
- Suitable installation environment
- Adequate ventilation clearance
Step 1: Check the Frequency Converter
Before mounting:
- Inspect the converter enclosure.
- Confirm the model and product identification.
- Check terminals and connectors.
- Verify installation accessories.
Do not install equipment with visible damage.
Step 2: Select Installation Location
The installation location should provide:
- Good airflow
- Stable mounting surface
- Suitable ambient temperature
- Low dust exposure
- Easy maintenance access
Avoid areas with:
- Excessive moisture
- Strong vibration
- Direct heat sources
- Poor ventilation
Step 3: Mount the Drive
Installation steps:
- Install the converter vertically.
- Secure the unit firmly.
- Maintain ventilation clearance.
- Ensure cooling openings remain unobstructed.
Proper mounting improves heat dissipation and operational reliability.
Step 4: Electrical Connection
Connect:
- Three-phase input power
- Motor output cables
- Protective grounding
- Control terminals
- Communication wiring
Before energizing:
- Verify all wiring connections.
- Check grounding.
- Tighten electrical terminals.
Step 5: Parameter Setup
Configure essential parameters:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
- Speed reference source
Correct configuration ensures stable motor operation.
Step 6: Commissioning Procedure
After installation:
- Switch on the power supply.
- Check the drive status.
- Confirm motor rotation direction.
- Test speed control.
- Verify normal operation.
Fault Diagnosis and Troubleshooting
Drive Does Not Start
Possible Causes
- No input power
- Incorrect start command
- Safety function active
- Incorrect parameters
Solutions
- Check power supply
- Verify control signals
- Inspect safety circuits
- Review parameter settings
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Check motor load
- Inspect motor cables
- Verify motor data
- Check mechanical equipment
Overvoltage Fault
Possible Causes
- Deceleration time too short
- Excessive regenerative energy
- Input voltage fluctuation
Solutions
- Increase deceleration time
- Check braking requirements
- Verify supply voltage
Overtemperature Fault
Possible Causes
- Poor ventilation
- Blocked cooling channels
- High ambient temperature
- Excessive load operation
Solutions
- Clean cooling passages
- Improve airflow
- Reduce operating load
- Check installation conditions
Communication Fault
Possible Causes
- Incorrect communication settings
- Damaged communication cables
- Incorrect PLC configuration
Solutions
- Check communication parameters
- Inspect cables
- Verify automation system settings
Motor Speed Instability
Possible Causes
- Incorrect motor parameters
- Unstable reference signal
- Incorrect control mode
- Load fluctuation
Solutions
- Verify motor settings
- Adjust control parameters
- Check input signals
- Inspect mechanical load
Maintenance Recommendations
For reliable long-term operation:
- Clean cooling channels regularly
- Check power connections
- Inspect motor cables
- Monitor operating temperature
- Review fault history
- Backup parameter settings
Regular maintenance helps reduce downtime and improves equipment reliability.
Key Advantages
Compact Installation
The 409 x 155 x 226 mm structure allows installation in small control cabinets and machines.
Lightweight Design
The 6 kg weight simplifies installation and replacement.
Reliable Motor Control
Provides accurate speed and torque management for industrial motors.
Energy Optimization
Helps improve motor efficiency and reduce operating costs.
Wide Application Compatibility
Suitable for pumps, fans, conveyors, and automated machinery.
Technical FAQs
What is ABB ACS880-01-09A4-3?
The ABB ACS880-01-09A4-3 is an industrial frequency converter designed for AC motor speed and torque control.
What is the product ID?
The product ID is 3ABD00035963-D.
What is the rated output current?
The rated output current is 10 A.
What is the rated power?
The rated power is 4 kW.
What are the dimensions?
The dimensions are 409 x 155 x 226 mm.
What is the weight?
The weight is approximately 6 kg.
Conclusion
The ABB ACS880-01-09A4-3 3ABD00035963-D Frequency Converter is a compact and reliable industrial drive solution designed for efficient motor control, stable automation performance, and long-term operation.
With its 10 A current capability, 4 kW power rating, R1 frame structure, and advanced control functions, it provides dependable performance for a wide range of industrial automation applications.
Proper installation, correct parameter configuration, and regular maintenance help ensure stable operation, reduce downtime, and extend equipment service life.
