Product Overview

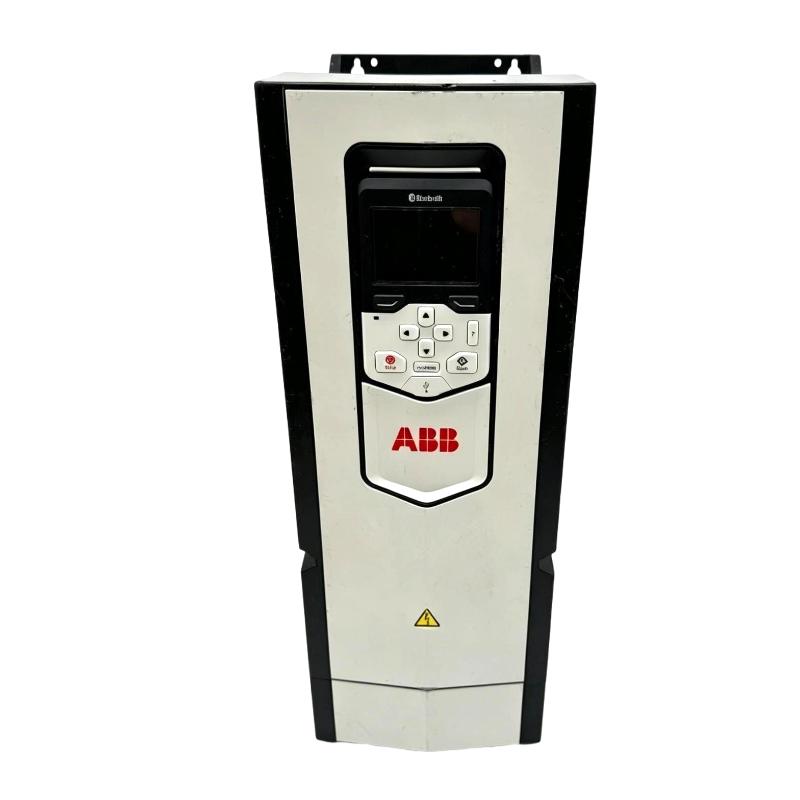

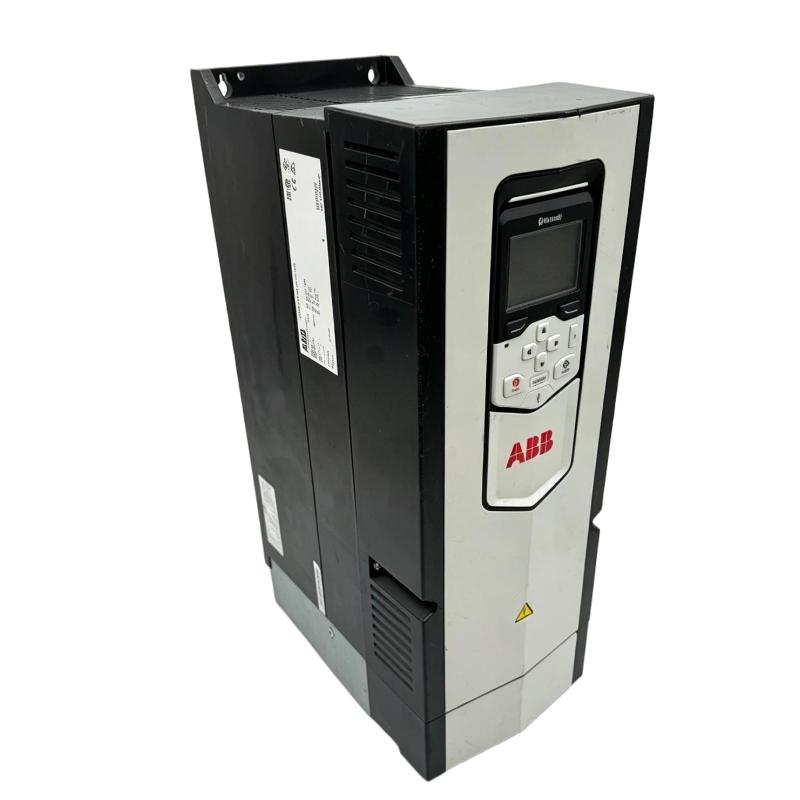

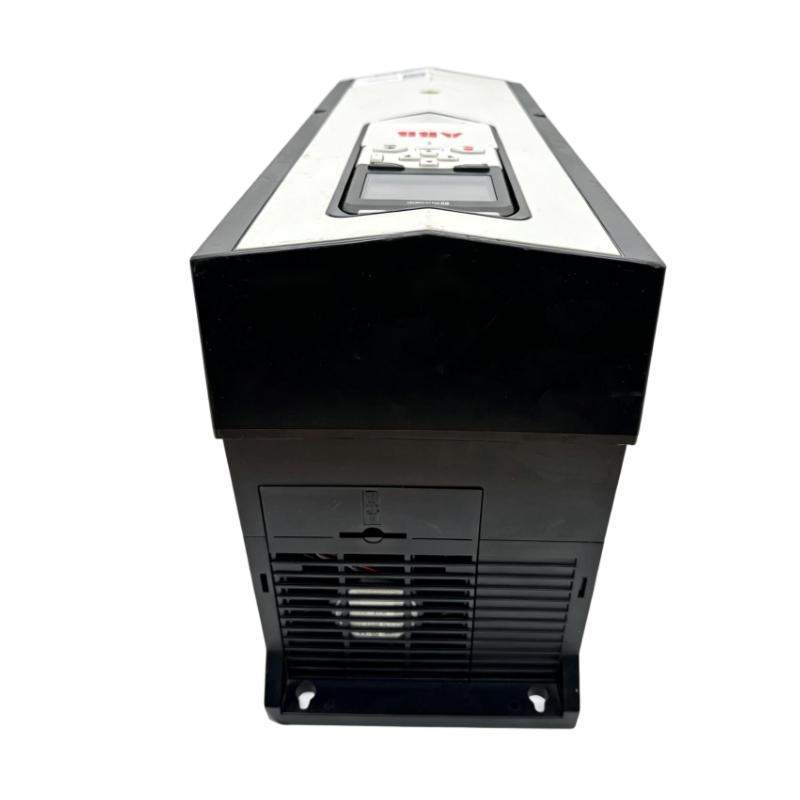

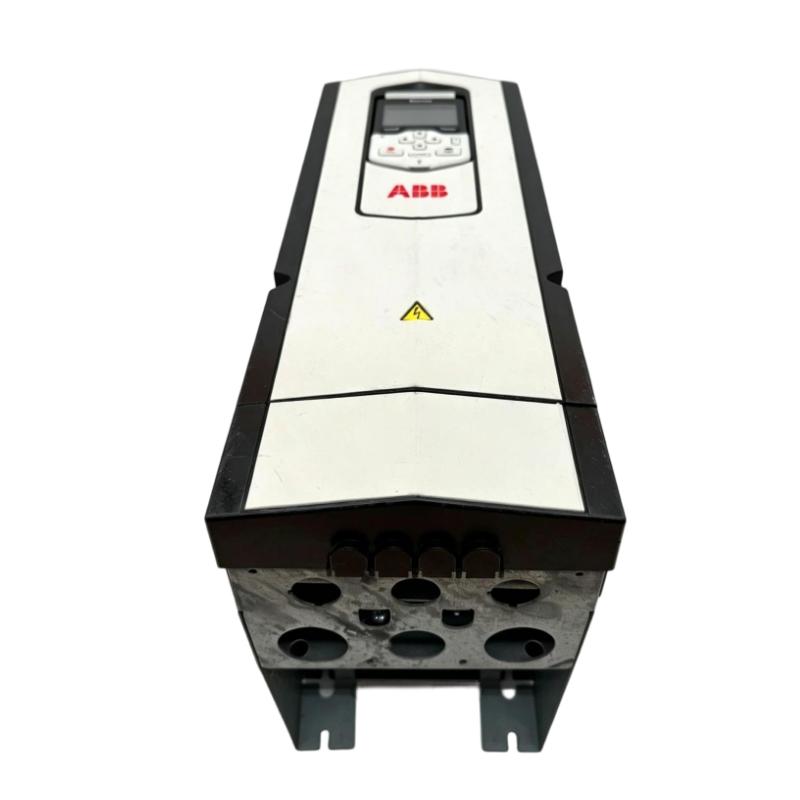

The ABB ACS880-01-038A-3 Frequency Converter (3ABD00035968-D) is a high-performance industrial drive designed for advanced motor control applications. It provides accurate speed, torque, and process control for a wide range of industrial automation systems.
As part of the ABB ACS880 series, this frequency converter is designed for applications requiring reliable operation, flexible configuration, and high energy efficiency. It is suitable for controlling different types of AC motors, including induction motors, permanent magnet motors, and synchronous reluctance motors.
The drive provides stable operation in demanding industrial environments and is commonly applied in pumps, fans, conveyors, compressors, mixers, and other motor-driven equipment.
The ABB ACS880-01-038A-3 features a compact wall-mounted structure with dimensions of 475 x 172 x 261 mm and a weight of approximately 10 kg, making it suitable for installations where space efficiency and reliable performance are both required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-038A-3 |
| Product ID | 3ABD00035968-D |
| Product Type | Frequency Converter |
| Series | ACS880 |
| Rated Output Current | 38 A |
| Rated Power | 18.5 kW |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Frame Size | R3 |
| Protection Class | IP21 |
| Mounting Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Dimensions | 475 x 172 x 261 mm |
| Weight | 10 kg |
| Application | Industrial Motor Control |
Product Features
Advanced Motor Control Technology
The ABB ACS880-01-038A-3 provides accurate motor control performance for industrial applications requiring stable operation and fast response.
Main features:
- Precise speed regulation
- High torque accuracy
- Smooth acceleration and deceleration
- Improved machine performance
- Reliable operation under variable loads
The drive helps maintain consistent production processes by automatically adjusting motor operation according to system requirements.
Compact Industrial Design
The compact dimensions of 475 x 172 x 261 mm allow the ACS880-01-038A-3 to be installed in limited spaces.
Advantages:
- Reduced control cabinet requirements
- Flexible installation options
- Easy system integration
- Convenient maintenance access
- Space-saving industrial solution
The compact structure makes it suitable for both new installations and retrofit projects.
Energy Efficient Operation
The frequency converter improves overall system efficiency by controlling motor speed according to actual process demand.
Energy-saving benefits include:
- Reduced unnecessary motor operation
- Lower power consumption
- Improved equipment efficiency
- Reduced mechanical stress
- Extended motor service life
Flexible Application Capability
The ACS880-01-038A-3 can support many industrial automation applications.
Typical applications:
- Pumps
- Fans
- Conveyors
- Compressors
- Mixers
- Material handling systems
- Process machinery
Working Principle
The ABB ACS880-01-038A-3 frequency converter controls motor operation through power conversion and intelligent control technology.
Operating process:
- The converter receives three-phase AC power input.
- The rectifier converts AC power into DC power.
- The DC circuit stabilizes the electrical energy.
- The inverter converts DC power into adjustable AC output.
- Output frequency and voltage are controlled according to motor requirements.
- The motor speed and torque are adjusted to match the production process.
This allows precise motor control while improving energy efficiency and operational stability.
Industrial Applications
Pump Control Applications
The ACS880-01-038A-3 is widely used in industrial pumping systems.
Applications:
- Water treatment systems
- Cooling pumps
- Process pumps
- Industrial circulation systems
Benefits:
- Stable flow regulation
- Reduced energy consumption
- Smooth motor starting
- Improved pump reliability
Fan and Ventilation Systems
The drive provides efficient speed control for industrial fan systems.
Advantages:
- Adjustable airflow control
- Reduced operating costs
- Lower mechanical wear
- Improved system efficiency
Conveyor Systems
The ACS880-01-038A-3 provides accurate speed control for conveyor equipment.
Applications:
- Manufacturing lines
- Packaging machines
- Material transport systems
Benefits:
- Smooth acceleration
- Stable production speed
- Reduced mechanical impact
Compressor Applications
The frequency converter is suitable for compressor motor control.
Benefits:
- Stable pressure control
- Improved energy efficiency
- Reduced mechanical stress
- Reliable continuous operation
Installation Guide
Installation Preparation
Before installing the ABB ACS880-01-038A-3, confirm:
- Correct drive model
- Suitable input voltage
- Compatible motor specifications
- Proper mounting location
- Adequate ventilation conditions
Step 1: Inspect the Frequency Converter
Before installation:
- Check the converter housing for damage.
- Verify terminal condition.
- Confirm accessories and connectors.
- Ensure the product model matches the application requirement.
Step 2: Select Installation Location
The installation area should:
- Provide sufficient airflow
- Avoid excessive dust and moisture
- Allow maintenance access
- Have a stable mounting surface
Proper installation conditions help prevent overheating and improve reliability.
Step 3: Mount the Drive
Installation procedure:
- Install the converter vertically on the mounting surface.
- Secure the unit using appropriate fasteners.
- Maintain required clearance around the drive.
- Ensure cooling airflow is not blocked.
Step 4: Complete Electrical Wiring
Connect:
- Three-phase power input
- Motor output cables
- Protective grounding
- Control wiring
- Communication connections
Before startup:
- Check wiring polarity
- Tighten terminals
- Verify grounding
Step 5: Configure Parameters
Initial configuration includes:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
- Speed reference settings
Correct parameter setup ensures stable motor operation.
Step 6: Perform Commissioning Test
After configuration:
- Start the drive without load
- Check motor rotation direction
- Monitor current values
- Test speed control
- Verify system response
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Missing input power
- Incorrect start command
- Safety input active
- Incorrect parameter settings
Solutions
- Check incoming power
- Verify control signals
- Reset safety functions
- Review drive configuration
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Check motor load
- Inspect cables
- Verify motor settings
- Check mechanical equipment
Overvoltage Fault
Possible Causes
- Excessive deceleration speed
- Regenerative energy
- Unstable supply voltage
Solutions
- Increase deceleration time
- Check braking requirements
- Verify power supply stability
Overtemperature Fault
Possible Causes
- Poor ventilation
- Blocked cooling path
- High ambient temperature
- Continuous overload operation
Solutions
- Clean cooling areas
- Improve ventilation
- Reduce operating load
- Check installation environment
Communication Fault
Possible Causes
- Incorrect communication settings
- Damaged communication cable
- Network configuration error
Solutions
- Check communication parameters
- Inspect cables
- Verify PLC communication settings
Motor Speed Instability
Possible Causes
- Incorrect parameter settings
- Unstable speed reference
- Motor data mismatch
- Load fluctuation
Solutions
- Check motor parameters
- Adjust control settings
- Verify reference signals
- Inspect mechanical load
Maintenance Recommendations
To maintain reliable operation:
- Clean the cooling system regularly
- Check electrical connections
- Monitor operating temperature
- Review fault records
- Inspect cables and terminals
- Verify parameter settings periodically
Regular maintenance improves drive performance and reduces unexpected downtime.
Key Advantages
High Performance Control
Provides accurate speed and torque regulation for industrial motors.
Compact Size
The 475 x 172 x 261 mm design supports flexible installation.
Reliable Industrial Operation
Designed for continuous operation in demanding automation environments.
Energy Saving Capability
Optimizes motor operation and improves system efficiency.
Wide Application Range
Suitable for pumps, fans, conveyors, compressors, and process equipment.
Technical FAQs
What is ABB ACS880-01-038A-3?
The ABB ACS880-01-038A-3 is an industrial frequency converter used for AC motor speed and torque control.
What is the product ID?
The product ID is 3ABD00035968-D.
What is the rated current?
The rated output current is 38 A.
What are the dimensions?
The dimensions are 475 x 172 x 261 mm.
What is the weight?
The weight is approximately 10 kg.
What applications use this frequency converter?
It is commonly used in pumps, fans, conveyors, compressors, mixers, and industrial automation systems.
Conclusion
The ABB ACS880-01-038A-3 3ABD00035968-D Frequency Converter is a reliable industrial drive solution designed for precise motor control, energy-efficient operation, and flexible automation applications.
With its 38 A output capability, compact R3 frame structure, advanced control functions, and reliable industrial performance, it provides an effective solution for modern motor-driven systems.
Proper installation, accurate parameter configuration, and regular maintenance ensure stable operation, improved equipment reliability, and longer service life in demanding industrial environments.
