ProductPRODUCT
Featured products
Contact Us
- ABB
- ACS880-01-032A-3 3ABD00035967-D
- Frequency Converter
- Sweden (SE)
- 475 x 172 x 261 mm
- 10 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

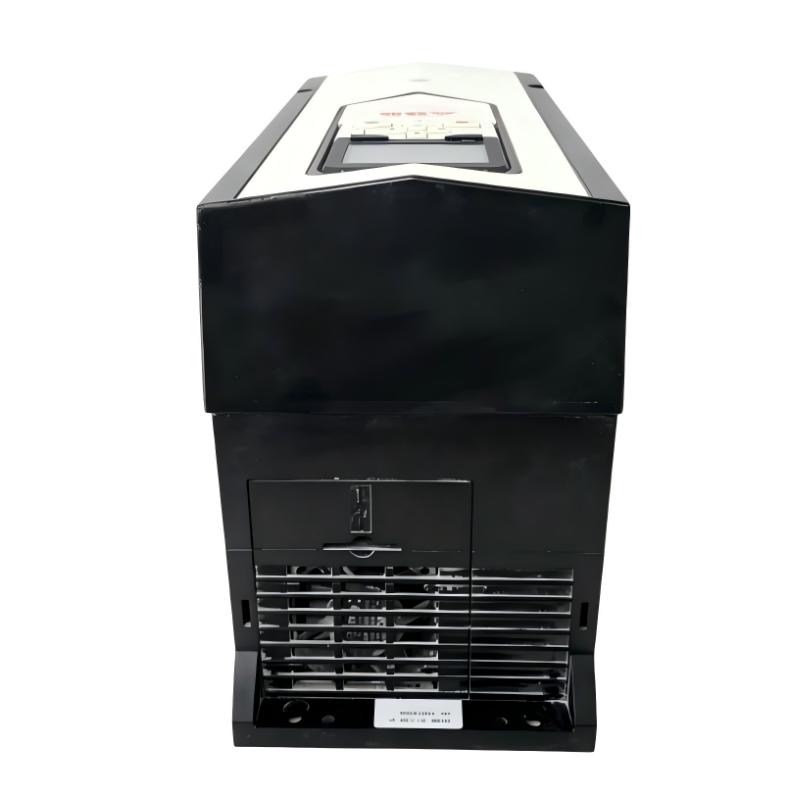

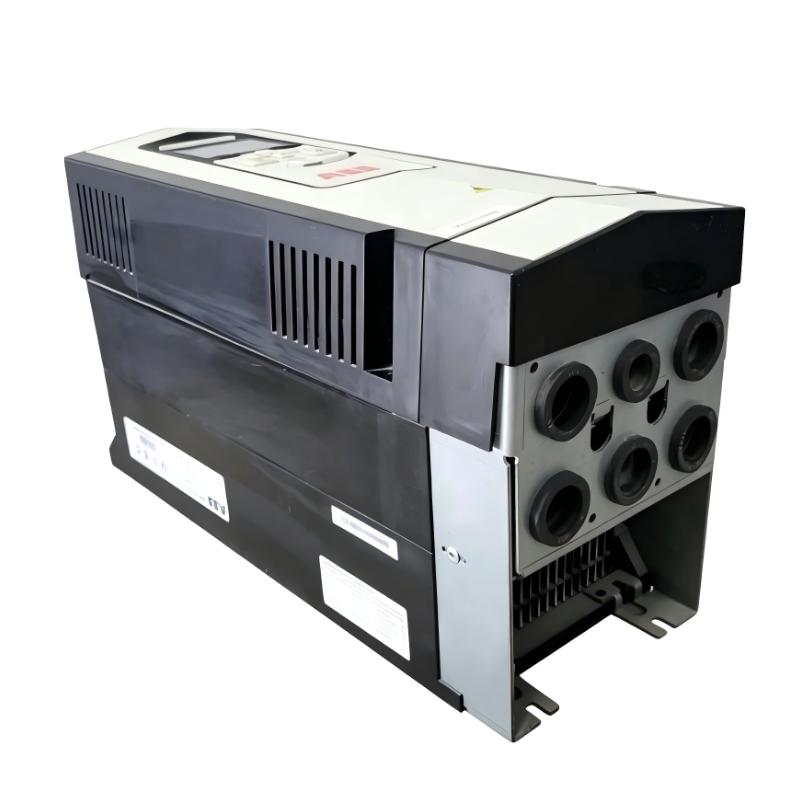

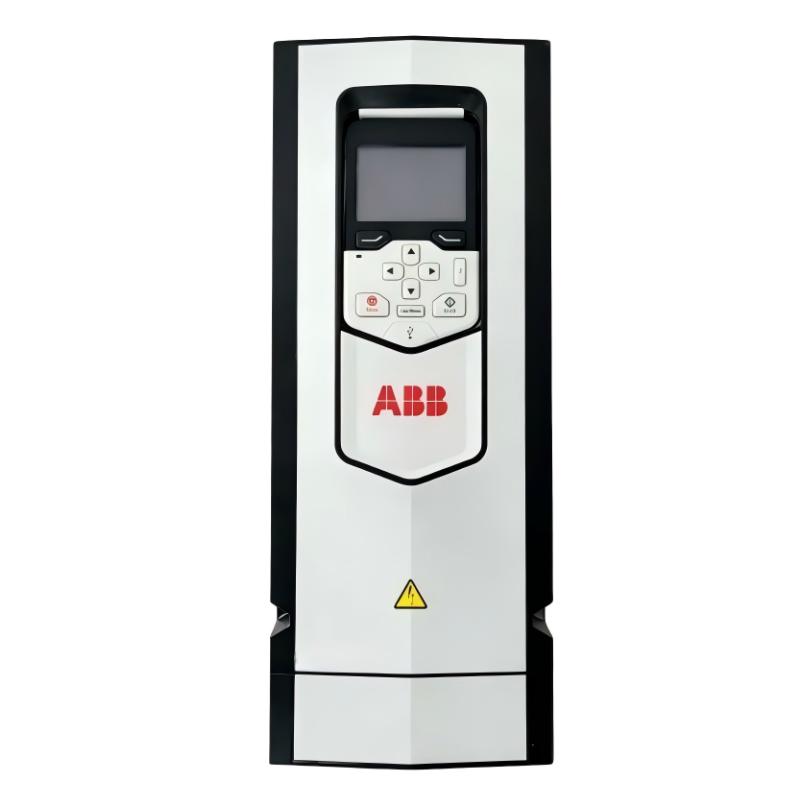

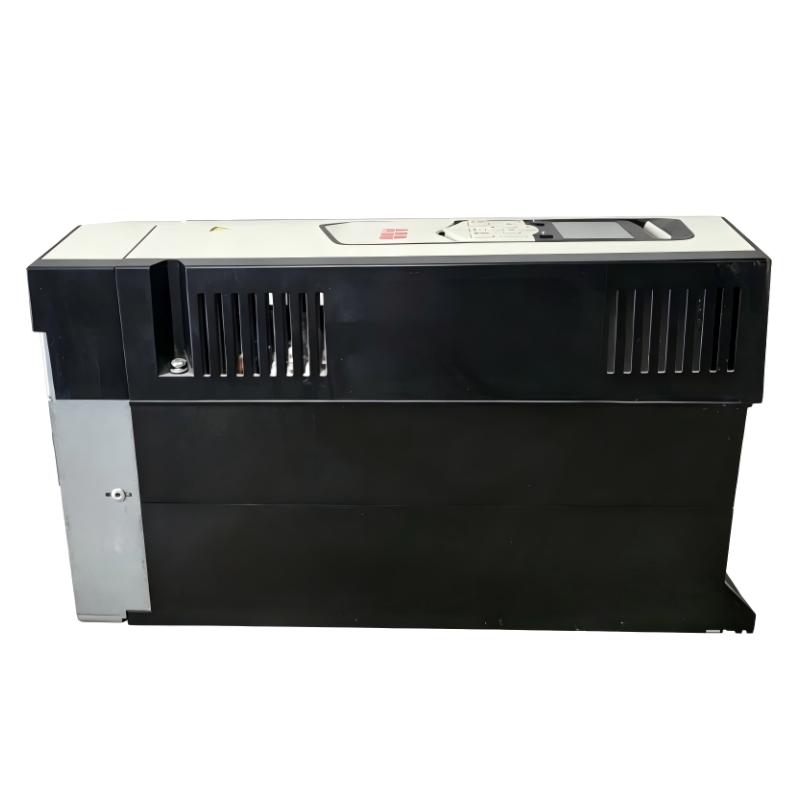

The ABB ACS880-01-032A-3 Frequency Converter (3ABD00035967-D) is a high-performance industrial AC drive designed for precise motor speed and torque control in modern automation systems. As part of the ABB ACS880 series, this frequency converter is developed for demanding industrial applications requiring reliable operation, flexible configuration, and efficient motor control.
The drive uses advanced control technology to regulate motor speed, torque, and operating performance. It is suitable for applications where accurate process control, energy efficiency, and stable operation are important, including pumps, fans, conveyors, compressors, and various industrial machinery.
The ABB ACS880-01-032A-3 features a compact wall-mounted design with dimensions of 475 x 172 x 261 mm and a weight of approximately 10 kg. Its compact structure allows convenient installation in industrial control cabinets and machinery systems with limited space requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-032A-3 |
| Product ID | 3ABD00035967-D |
| Product Type | Frequency Converter |
| Series | ACS880 |
| Rated Output Current | 32 A |
| Rated Power | 15 kW |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Frequency Range | 47.5–63 Hz |
| Frame Size | R3 |
| Protection Class | IP21 |
| Mounting Type | Wall Mounted |
| Dimensions | 475 x 172 x 261 mm |
| Weight | 10 kg |
| Cooling Method | Air Cooling |
| Application | Industrial Motor Control |
Product Features
High-Performance Motor Control
The ABB ACS880-01-032A-3 provides accurate and dynamic control for industrial AC motors.
Main advantages:
- Precise speed regulation
- Stable torque control
- Fast response to load changes
- Improved process performance
- Reduced mechanical stress on equipment
The drive helps maintain stable machine operation even under changing production conditions.
Compact Wall-Mounted Design
With its compact dimensions of 475 x 172 x 261 mm, the ACS880-01-032A-3 is suitable for applications where installation space is limited.
Benefits:
- Saves control cabinet space
- Simplifies equipment integration
- Allows flexible installation
- Reduces system footprint
- Improves maintenance accessibility
Energy-Efficient Operation
The frequency converter improves motor efficiency by adjusting motor speed according to actual process requirements.
Energy-saving benefits:
- Reduced unnecessary motor operation
- Lower power consumption
- Improved system efficiency
- Reduced operating costs
- Better process control
Flexible Industrial Communication Capability
The ACS880 series supports integration with modern automation systems.
Typical communication applications:
- PLC control systems
- Industrial networks
- Process automation systems
- Remote monitoring applications
This allows the drive to be integrated into complex industrial control environments.
Working Principle
The ABB ACS880-01-032A-3 frequency converter controls motor operation through power conversion technology.
Operating process:
- Incoming AC power is supplied to the converter.
- The rectifier converts AC power into DC power.
- The DC bus stores and stabilizes electrical energy.
- The inverter converts DC power into adjustable AC output.
- Output frequency and voltage are controlled according to motor requirements.
- The motor speed and torque are adjusted to match the application.
This process provides smooth motor operation and accurate speed control.
Industrial Applications
Pump Systems
The ACS880-01-032A-3 is widely used in industrial pump control applications.
Common uses:
- Water circulation systems
- Process pumps
- Cooling systems
- Industrial fluid handling equipment
Advantages:
- Maintains stable flow control
- Reduces energy consumption
- Provides smooth starting and stopping
- Extends pump service life
Fan and Ventilation Systems
The drive is suitable for variable-speed fan applications.
Benefits:
- Adjustable airflow control
- Reduced power usage
- Improved system efficiency
- Lower mechanical wear
Applications include:
- Industrial ventilation
- Cooling systems
- HVAC equipment
Conveyor Systems
The frequency converter provides accurate speed control for conveyor machinery.
Applications:
- Production lines
- Material handling systems
- Packaging equipment
Advantages:
- Smooth acceleration
- Stable speed control
- Improved production efficiency
Compressor Applications
The ACS880-01-032A-3 can control compressor motor operation.
Benefits:
- Stable pressure control
- Reduced mechanical impact
- Improved energy efficiency
- Reliable continuous operation
Installation Guide
Installation Preparation
Before installing the ABB ACS880-01-032A-3, confirm the following:
- Correct drive model
- Suitable power supply
- Compatible motor specifications
- Proper installation environment
- Adequate ventilation space
Step 1: Check Installation Environment
Ensure:
- The installation location is dry and clean.
- Ambient temperature is within acceptable limits.
- Air circulation is sufficient.
- Excessive dust and moisture are avoided.
A suitable environment improves drive reliability and service life.
Step 2: Mount the Frequency Converter
Installation procedure:
- Select a vertical mounting position.
- Secure the drive firmly to the mounting surface.
- Maintain required ventilation clearance.
- Ensure cooling airflow is not blocked.
Correct mounting helps prevent overheating problems.
Step 3: Perform Electrical Wiring
Connect the following:
- Incoming power supply terminals
- Motor output terminals
- Protective grounding
- Control terminals
- Communication connections
Before powering on:
- Check wiring accuracy.
- Confirm terminal tightening.
- Verify grounding connections.
Step 4: Configure Parameters
Initial setup includes:
- Entering motor nameplate data
- Selecting control mode
- Setting acceleration time
- Setting deceleration time
- Configuring speed references
- Adjusting protection parameters
Correct parameter settings ensure stable operation.
Step 5: Commission the Drive
Commissioning steps:
- Start the drive without load.
- Check motor rotation direction.
- Monitor current and voltage values.
- Test speed control response.
- Verify communication signals.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- No incoming power
- Incorrect control command
- Safety circuit activated
- Incorrect parameter configuration
Solutions
- Check power supply
- Verify control wiring
- Reset safety inputs
- Review drive parameters
Overcurrent Fault
Possible Causes
- Excessive motor load
- Motor cable short circuit
- Incorrect motor data
- Mechanical blockage
Solutions
- Check motor load
- Inspect cables
- Verify motor parameters
- Check mechanical equipment
Overvoltage Fault
Possible Causes
- Rapid deceleration
- Regenerative energy
- Unstable supply voltage
Solutions
- Increase deceleration time
- Check braking requirements
- Verify input power stability
Overtemperature Fault
Possible Causes
- Poor ventilation
- Blocked cooling path
- High ambient temperature
- Excessive load operation
Solutions
- Clean cooling areas
- Improve ventilation
- Reduce excessive load
- Check installation conditions
Communication Failure
Possible Causes
- Incorrect communication settings
- Damaged communication cable
- Network configuration problems
Solutions
- Verify communication parameters
- Check cables
- Confirm PLC/network settings
Motor Runs Abnormally
Possible Causes
- Incorrect parameter settings
- Motor mismatch
- Speed reference problem
- Load variation
Solutions
- Check motor data
- Reconfigure parameters
- Verify control signals
- Inspect mechanical load
Maintenance Recommendations
To ensure reliable long-term operation:
- Inspect cooling airflow regularly
- Keep the drive clean
- Check power and motor connections
- Monitor operating temperature
- Review fault history
- Verify parameter settings periodically
Regular maintenance reduces unexpected downtime and improves system reliability.
Key Advantages
Compact Industrial Structure
The 475 x 172 x 261 mm design allows flexible installation in automation systems.
Reliable Motor Control
Provides accurate speed and torque regulation for industrial applications.
Energy Efficiency
Helps optimize motor operation and reduce unnecessary energy consumption.
Wide Application Range
Suitable for pumps, fans, conveyors, compressors, and process machinery.
Easy System Integration
Designed for modern industrial automation environments.
Technical FAQs
What is ABB ACS880-01-032A-3?
The ABB ACS880-01-032A-3 is a three-phase industrial frequency converter designed for AC motor speed and torque control.
What is the product ID?
The product ID is 3ABD00035967-D.
What are the dimensions?
The dimensions are 475 x 172 x 261 mm.
What is the weight?
The weight is approximately 10 kg.
What applications use this frequency converter?
It is commonly used for pumps, fans, conveyors, compressors, and other industrial motor-driven equipment.
Conclusion
The ABB ACS880-01-032A-3 3ABD00035967-D Frequency Converter is a reliable industrial drive solution designed for precise motor control and efficient operation.
With its 32 A output capability, compact R3 frame design, advanced control performance, and flexible industrial application support, it provides dependable performance for modern automation systems.
Proper installation, correct parameter configuration, and regular maintenance help maximize drive performance, improve equipment reliability, and ensure stable operation in demanding industrial environments.
