- ABB
- ACS800-01-0060-3 64576496
- Frequency Converter
- Sweden (SE)
- 739 x 265 x 286 mm
- 34 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

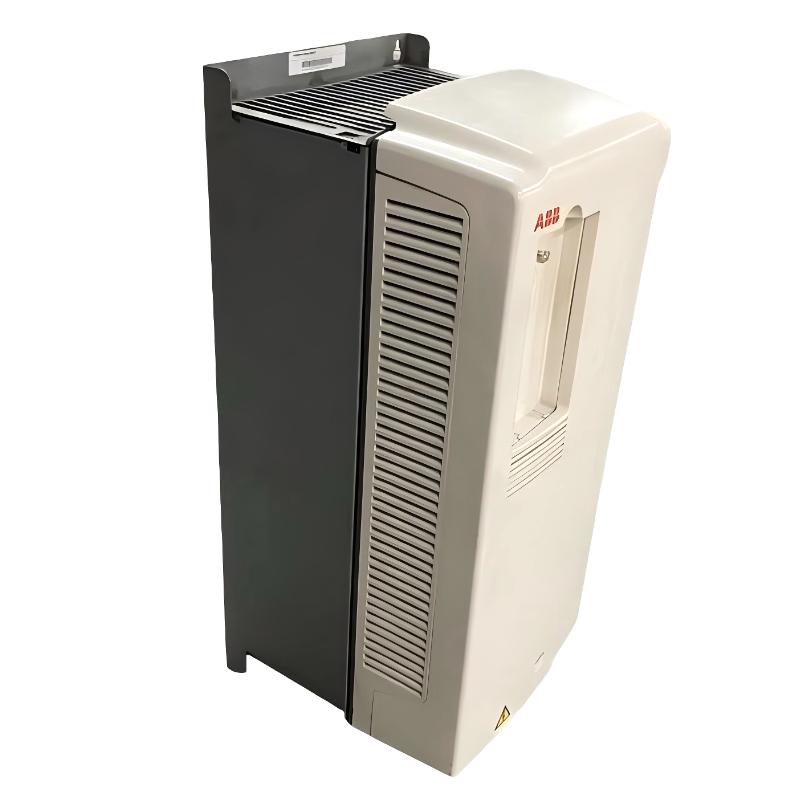

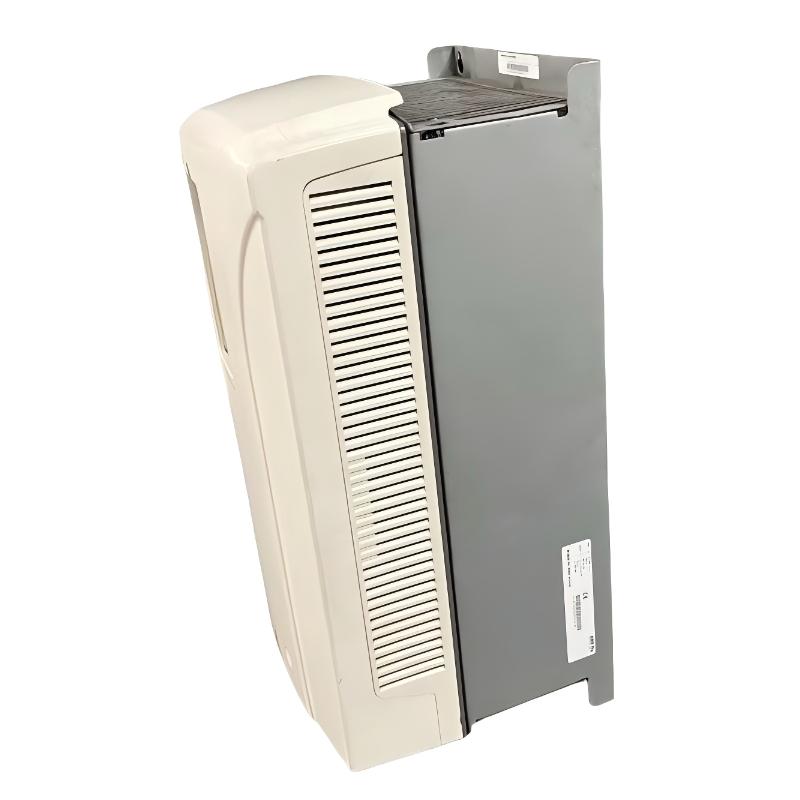

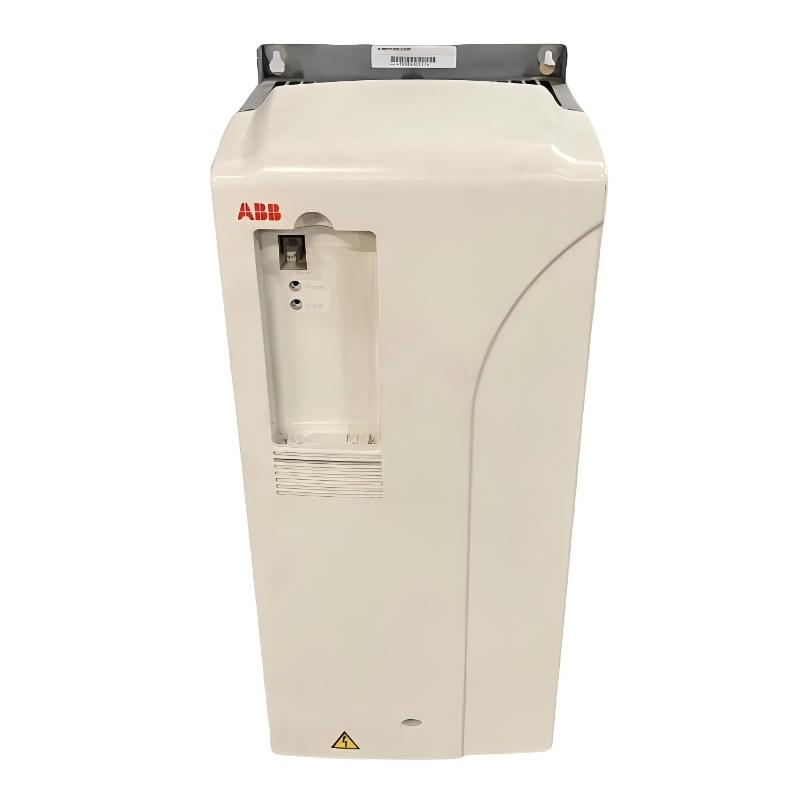

The ABB ACS800-01-0060-3 (64576496) Frequency Converter is a high-performance industrial AC drive designed for precise motor control, reliable operation, and efficient performance in demanding automation and process industry applications.
As part of the ABB ACS800 single drive family, this frequency converter provides advanced motor control capabilities, excellent torque response, and stable speed regulation for industrial machinery requiring high reliability and continuous operation.
The ACS800-01-0060-3 is designed for 55 kW class motor applications and provides a powerful solution for medium-power industrial motors. It is widely used in applications including pumps, fans, conveyors, compressors, mixers, material handling systems, and production equipment requiring accurate variable speed control.
With dimensions of 739 x 265 x 286 mm and a weight of 34 kg, this frequency converter combines compact installation characteristics with strong industrial performance, making it suitable for various automation and manufacturing environments.
Technical Specifications

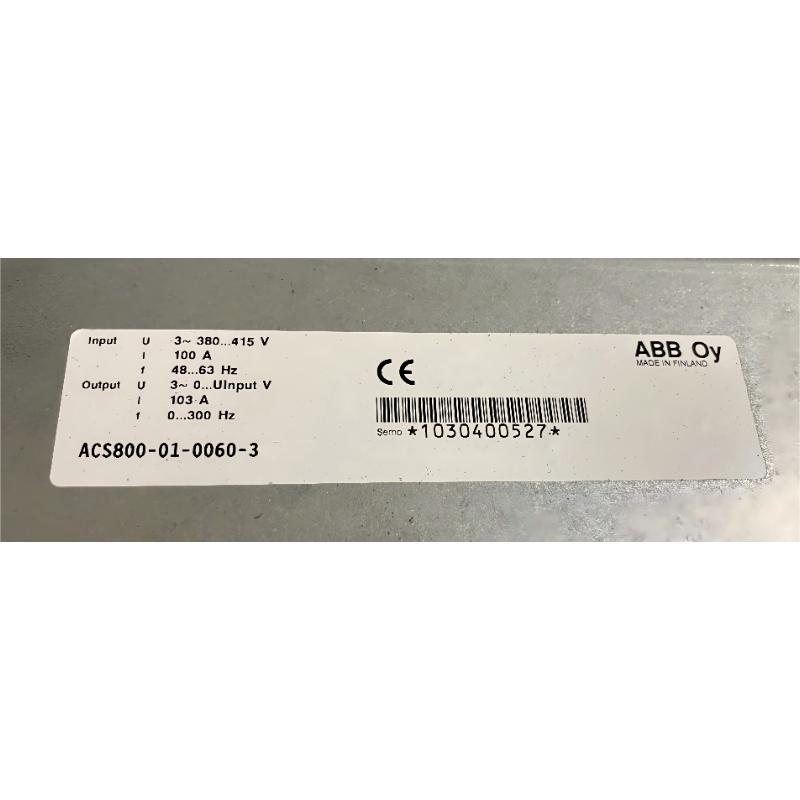

| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS800-01-0060-3 |
| Part Number | 64576496 |
| Product Type | Frequency Converter |
| Series | ACS800 |
| Drive Type | Industrial AC Drive |
| Rated Power | 55 kW |
| Rated Output Current | 103 A |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Control Technology | Direct Torque Control (DTC) |
| Installation Type | Wall Mounted |
| Frame Size | R5 |
| Dimensions | 739 x 265 x 286 mm |
| Weight | 34 kg |
| Application | Industrial Motor Control |
Product Features
High-Power Motor Control Capability
The ABB ACS800-01-0060-3 provides reliable control for medium-power industrial motors requiring stable operation and accurate performance.
Main features:
- 55 kW motor control capability
- High output current capacity
- Precise speed regulation
- Excellent torque response
- Stable operation under variable loads
The drive is suitable for industrial systems where motor performance directly impacts production efficiency and equipment reliability.
Advanced Direct Torque Control Technology
The ACS800-01-0060-3 uses advanced motor control technology to provide fast response and accurate torque management.
Advantages:
- High torque accuracy
- Rapid response to load changes
- Improved motor efficiency
- Smooth operation at different speeds
- Reliable performance without complicated control systems
This makes the frequency converter suitable for applications requiring dynamic motor control.
Flexible Industrial Installation
The ACS800-01-0060-3 adopts a compact wall-mounted structure designed for industrial environments.
Installation advantages:
- Space-saving design
- Easy integration into automation systems
- Convenient maintenance access
- Flexible mounting options
The compact structure allows engineers to install the drive in different industrial control solutions.
Energy-Efficient Variable Speed Operation
The frequency converter improves energy efficiency by adjusting motor speed according to actual operating conditions.
Energy-saving benefits:
- Reduced electricity consumption
- Improved process efficiency
- Lower mechanical stress
- Optimized motor performance
- Reduced operating costs
Variable speed control is especially effective for pumps, fans, compressors, and other variable-load equipment.
Working Principle
The ABB ACS800-01-0060-3 controls motor speed by converting fixed-frequency AC input power into adjustable-frequency output power.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC bus stabilizes electrical energy.
- The inverter converts DC power into adjustable AC output.
- Controlled voltage and frequency are supplied to the motor.
- Motor speed and torque are adjusted according to application requirements.
This conversion process enables efficient motor control and improves system stability.
Industrial Applications
Pump Systems
The ACS800-01-0060-3 is suitable for industrial pumping applications.
Typical applications:
- Water circulation systems
- Process pumps
- Cooling systems
- Industrial fluid handling
Benefits:
- Smooth motor startup
- Accurate flow control
- Reduced energy consumption
- Reduced mechanical impact
Fan and Ventilation Equipment
The frequency converter provides efficient control for industrial ventilation systems.
Applications:
- Cooling fans
- Air handling equipment
- Exhaust systems
- Factory ventilation
Advantages:
- Adjustable airflow
- Improved efficiency
- Stable operation
- Reduced equipment wear
Conveyor Systems
The drive provides reliable speed control for conveyor applications.
Applications:
- Manufacturing conveyors
- Material handling equipment
- Packaging lines
- Production systems
Benefits:
- Accurate speed adjustment
- Smooth acceleration
- Improved production stability
Compressor Applications
The ACS800-01-0060-3 is suitable for industrial compressor control.
Applications:
- Air compressors
- Process compressors
- Industrial production equipment
Advantages:
- Stable pressure control
- Improved energy efficiency
- Reduced motor stress
- Reliable operation
Installation Guide
Installation Preparation
Before installing the ABB ACS800-01-0060-3, confirm:
- Correct frequency converter model
- Compatible motor specifications
- Proper installation environment
- Suitable power supply
- Reliable grounding system
- Adequate cooling space
Step 1: Select Installation Location
Choose an installation location with:
- Good ventilation
- Suitable operating temperature
- Protection from dust and moisture
- Enough maintenance clearance
Install the frequency converter vertically to maintain proper cooling performance.
Step 2: Mount the Frequency Converter
Installation steps:
- Place the drive on the mounting surface.
- Secure the unit using suitable mounting hardware.
- Confirm mechanical stability.
- Ensure ventilation openings remain clear.
Step 3: Connect Power Wiring
Connect:
- Three-phase input power cables
- Motor output cables
- Protective grounding cable
Check all power connections carefully before startup.
Step 4: Connect Control Wiring
Connect:
- Start/stop commands
- Speed reference signals
- Digital inputs
- Analog signals
- Communication interfaces
Keep control wiring separated from power cables to minimize interference.
Step 5: Configure Drive Parameters
Set the required parameters:
- Motor rated voltage
- Motor rated current
- Motor speed
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Correct parameter configuration ensures reliable operation.
Step 6: Commissioning Test
Perform:
- Electrical inspection
- Power-up test
- Motor rotation verification
- Parameter checking
- Load testing
- Fault monitoring
Confirm normal operation before connecting the drive to production equipment.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Incorrect input power
- Missing start command
- Incorrect parameters
- Control circuit problems
Solutions
- Check incoming power
- Verify start signals
- Review parameter settings
- Inspect control wiring
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Check motor condition
- Inspect motor cables
- Verify motor data
- Reduce excessive load
Overvoltage Fault
Possible Causes
- Fast deceleration
- Regenerative energy
- Incorrect braking configuration
Solutions
- Increase deceleration time
- Adjust braking settings
- Check load characteristics
Overheating Fault
Possible Causes
- Poor ventilation
- Cooling fan failure
- High ambient temperature
- Continuous overload operation
Solutions
- Improve airflow
- Check cooling fans
- Clean ventilation areas
- Reduce operating load
Communication Fault
Possible Causes
- Incorrect communication settings
- Damaged cables
- Network configuration problems
Solutions
- Check communication parameters
- Inspect cables
- Verify control system configuration
Maintenance Recommendations
To maintain reliable operation:
- Clean cooling areas regularly
- Inspect power terminals
- Check cooling fan operation
- Monitor operating temperature
- Review fault history
- Verify drive parameters
Regular maintenance helps extend the service life of the frequency converter and improves system reliability.
Key Advantages
55 kW Motor Control Capability
Suitable for medium-power industrial motor applications.
103 A Output Capacity
Provides reliable current performance for demanding motor systems.
Advanced Torque Control
Ensures accurate speed and torque regulation.
Compact Industrial Design
Supports flexible installation in automation equipment.
Reliable Long-Term Performance
Designed for continuous industrial operation.
Technical FAQs
What is ABB ACS800-01-0060-3?
The ABB ACS800-01-0060-3 is an industrial frequency converter designed for AC motor speed and torque control.
What is the part number?
The part number is 64576496.
What is the rated power?
The frequency converter is designed for 55 kW motor applications.
What is the rated output current?
The rated output current is 103 A.
What are the dimensions?
The dimensions are 739 x 265 x 286 mm.
What is the weight?
The weight is 34 kg.
Conclusion
The ABB ACS800-01-0060-3 64576496 Frequency Converter is a powerful industrial AC drive designed for precise motor control, energy-efficient operation, and reliable performance in automation and manufacturing applications.
With its 55 kW power capability, 103 A output capacity, advanced motor control technology, compact structure, and industrial-grade reliability, it provides an effective solution for pumps, fans, conveyors, compressors, and various heavy-duty motor systems.
The ACS800-01-0060-3 helps improve energy efficiency, optimize production processes, reduce mechanical stress, and maintain stable operation in modern industrial environments.
