Product Overview

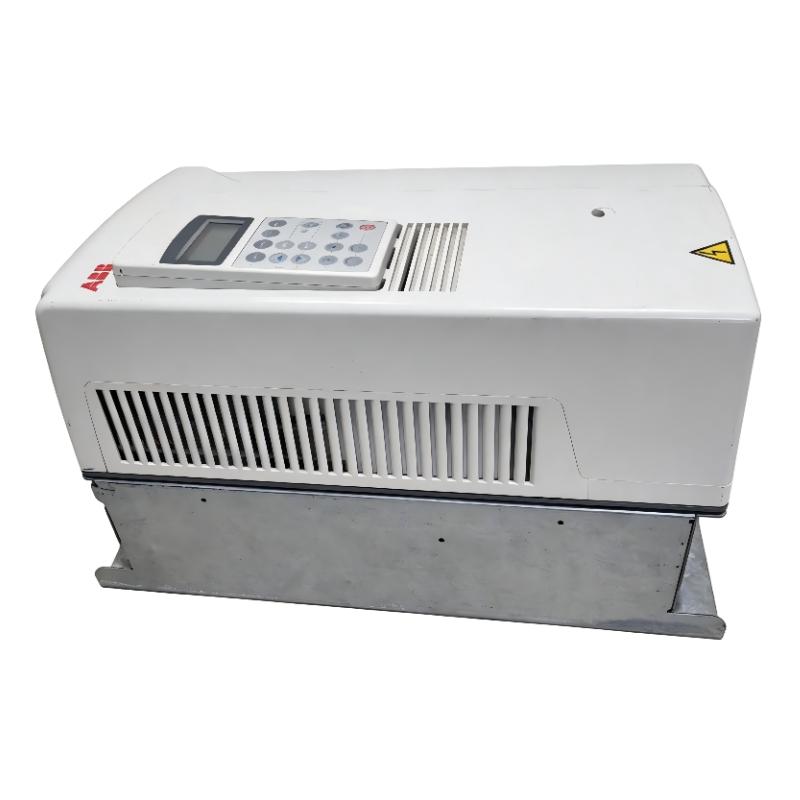

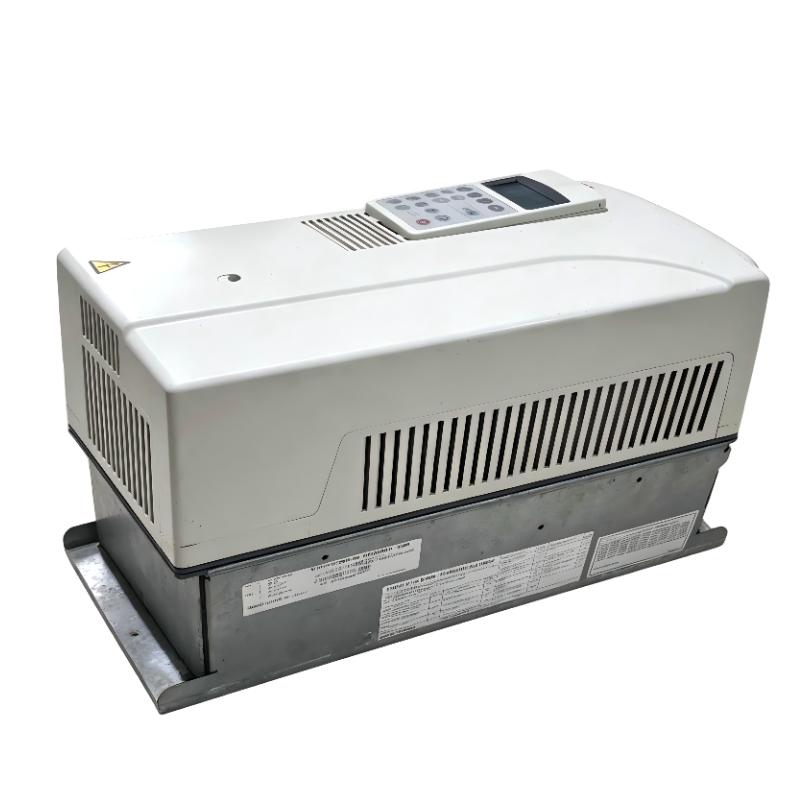

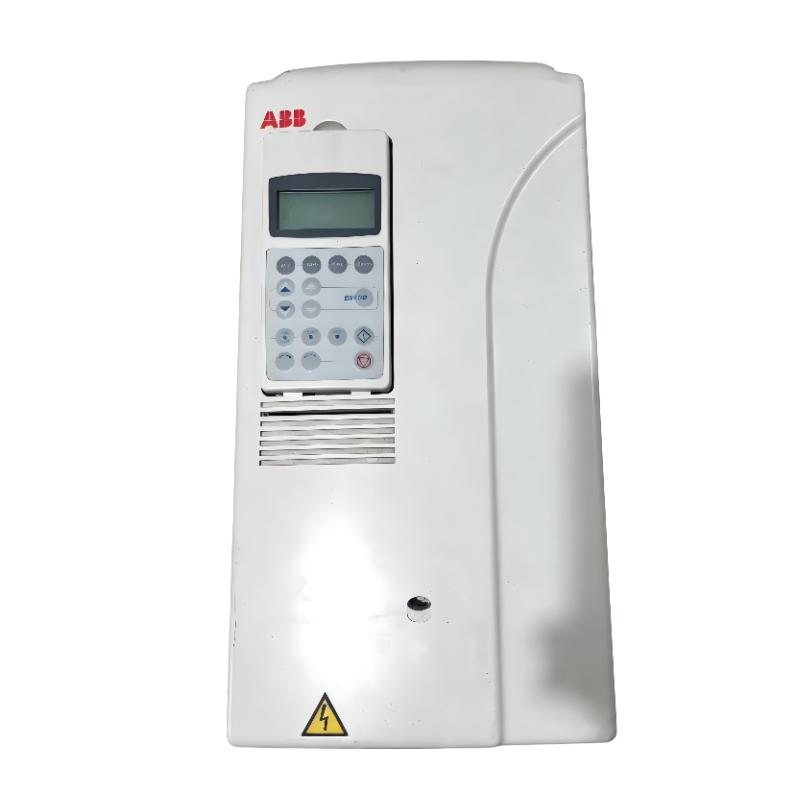

The ABB ACS800-01-0025-3 (64576283) Frequency Converter is an industrial AC drive designed for reliable motor speed control in automation systems, manufacturing equipment, and process industry applications.
As part of the ABB ACS800 single drive family, this frequency converter provides advanced motor control performance, precise speed regulation, and stable operation for demanding industrial environments. The ACS800 series is widely recognized for applications requiring high dynamic performance, strong torque control, and reliable long-term operation.
The ACS800-01-0025-3 is designed for 22 kW class motor applications with a continuous output current capability suitable for industrial machinery and process equipment. It supports applications such as pumps, fans, conveyors, compressors, mixers, and other motor-driven systems requiring efficient variable speed control.
With dimensions of 607 x 240 x 274 mm and a weight of 26 kg, this frequency converter provides a compact solution for industrial installations where reliable performance and space efficiency are important.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS800-01-0025-3 |
| Part Number | 64576283 |
| Product Type | Frequency Converter |
| Series | ACS800 |
| Drive Type | AC Drive |
| Rated Power | 22 kW |
| Rated Current | 44 A |
| Input Voltage | Three Phase 380–415 V AC |
| Control Technology | Direct Torque Control (DTC) |
| Installation Type | Wall Mounted |
| Protection Class | Industrial Enclosure |
| Dimensions | 607 x 240 x 274 mm |
| Weight | 26 kg |
| Application | Industrial Motor Control |
Product Features
Advanced Motor Control Technology
The ABB ACS800-01-0025-3 provides high-performance motor control through advanced drive technology.
Main advantages:
- Precise motor speed regulation
- Excellent torque response
- Stable operation under changing loads
- Smooth acceleration and deceleration
- Improved motor efficiency
The drive is suitable for applications requiring accurate control and reliable motor performance.
Compact Industrial Design
The ACS800-01 series features a compact structure designed for industrial installation.
Benefits:
- Reduced installation space requirements
- Easy integration into control panels
- Convenient maintenance access
- Flexible machine installation
The compact design makes it suitable for various automation equipment and industrial machinery.
Energy-Efficient Operation
The frequency converter improves energy efficiency by adjusting motor speed according to actual operating requirements.
Energy-saving benefits:
- Lower power consumption
- Reduced mechanical losses
- Improved process efficiency
- Optimized motor operation
- Reduced operating costs
Variable speed control helps industries achieve better energy management compared with fixed-speed motor operation.
Reliable Industrial Performance
The ABB ACS800-01-0025-3 is designed for continuous industrial operation.
Reliability features:
- Robust electrical components
- Stable control performance
- Strong overload capability
- Durable construction
- Long operational lifetime
It provides dependable performance in manufacturing plants, production lines, and industrial automation systems.
Working Principle
The ABB ACS800-01-0025-3 controls motor operation by converting fixed-frequency AC input power into adjustable-frequency output power.
The operating process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC bus stores and stabilizes electrical energy.
- The inverter generates adjustable AC output.
- Controlled voltage and frequency are supplied to the motor.
- Motor speed and torque are adjusted according to application requirements.
This process enables accurate motor control while improving system efficiency and operational stability.
Industrial Applications
Pump Systems
The ACS800-01-0025-3 is suitable for industrial pumping applications.
Typical uses:
- Water circulation systems
- Process pumps
- Cooling systems
- Industrial fluid handling equipment
Advantages:
- Smooth startup
- Improved flow adjustment
- Reduced energy consumption
- Reduced mechanical impact
Fan and Ventilation Equipment
The frequency converter is suitable for industrial ventilation systems.
Applications:
- Cooling fans
- Air handling equipment
- Factory ventilation
- Exhaust systems
Benefits:
- Adjustable airflow control
- Improved efficiency
- Stable motor operation
- Reduced equipment wear
Conveyor Systems
The ACS800-01-0025-3 provides reliable speed control for conveyor applications.
Applications:
- Material handling systems
- Production conveyors
- Packaging equipment
Advantages:
- Accurate speed adjustment
- Smooth acceleration
- Improved production stability
Industrial Machinery
The drive can be used in various manufacturing machines.
Applications:
- Mixers
- Extruders
- Machine tools
- Processing equipment
Benefits:
- Precise motor control
- Stable operation
- Improved equipment performance
Installation Guide
Installation Preparation
Before installing the ABB ACS800-01-0025-3, check:
- Correct drive model
- Compatible motor specifications
- Proper installation environment
- Suitable power supply
- Reliable grounding system
- Adequate ventilation space
Step 1: Mount the Frequency Converter
Installation steps:
- Select a suitable mounting location.
- Install the frequency converter vertically.
- Secure the unit using proper mounting hardware.
- Ensure sufficient airflow around the drive.
Proper installation helps maintain cooling performance and operational reliability.
Step 2: Connect Power Supply
Connect:
- Incoming three-phase power cables
- Protective grounding cable
- Motor output cables
Check all electrical connections carefully before applying power.
Step 3: Connect Control Wiring
Connect required control signals:
- Start/stop commands
- Speed reference signals
- Digital inputs
- Analog inputs
- Communication interfaces
Ensure control wiring is separated from high-power cables to reduce interference.
Step 4: Configure Drive Parameters
Set the required parameters:
- Motor rated voltage
- Motor rated current
- Motor speed
- Acceleration time
- Deceleration time
- Control mode
Correct parameter configuration ensures stable motor operation.
Step 5: Commissioning Test
Perform:
- Wiring inspection
- Power-up test
- Motor rotation check
- Parameter verification
- Load operation test
- Fault monitoring
Confirm proper operation before placing the equipment into service.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Incorrect power connection
- Missing start command
- Incorrect parameter settings
- Control signal failure
Solutions
- Check incoming power
- Verify control signals
- Review parameters
- Inspect control wiring
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions
- Check motor condition
- Inspect motor cables
- Verify motor parameters
- Reduce mechanical load
Overvoltage Fault
Possible Causes
- Excessive regeneration
- Short deceleration time
- Incorrect braking settings
Solutions
- Increase deceleration time
- Check braking configuration
- Analyze load conditions
Overtemperature Fault
Possible Causes
- Poor ventilation
- Cooling fan failure
- Excessive load
- High ambient temperature
Solutions
- Improve airflow
- Check cooling fans
- Clean ventilation areas
- Reduce overload operation
Communication Failure
Possible Causes
- Incorrect communication settings
- Cable problems
- Network configuration errors
Solutions
- Check communication parameters
- Inspect cables
- Verify automation network settings
Maintenance Recommendations
To maintain reliable operation:
- Clean cooling areas regularly
- Check electrical terminals
- Monitor operating temperature
- Inspect cooling fans
- Review fault history
- Verify parameter settings
Regular maintenance helps extend the service life of the frequency converter and improves system reliability.
Key Advantages
22 kW Motor Control Capability
Suitable for medium-power industrial motor applications.
High Dynamic Performance
Provides accurate torque and speed control.
Compact Installation
The compact design supports flexible industrial integration.
Energy Efficiency
Variable speed control reduces unnecessary energy consumption.
Reliable Industrial Operation
Designed for demanding automation and manufacturing environments.
Technical FAQs
What is ABB ACS800-01-0025-3?
The ABB ACS800-01-0025-3 is an industrial frequency converter designed for controlling AC motors in automation and process applications.
What is the part number?
The part number is 64576283.
What is the rated power?
The frequency converter is designed for 22 kW motor applications.
What is the rated current?
The rated output current is 44 A.
What are the dimensions?
The dimensions are 607 x 240 x 274 mm.
What is the weight?
The weight is 26 kg.
Conclusion
The ABB ACS800-01-0025-3 64576283 Frequency Converter is a reliable industrial AC drive designed for precise motor control and efficient operation in automation systems.
With its 22 kW power capability, advanced motor control performance, compact design, and industrial reliability, it provides an effective solution for pumps, fans, conveyors, machinery, and other motor-driven applications.
The ACS800-01-0025-3 helps improve production efficiency, optimize energy usage, and maintain stable operation in modern industrial environments.
