Product Overview

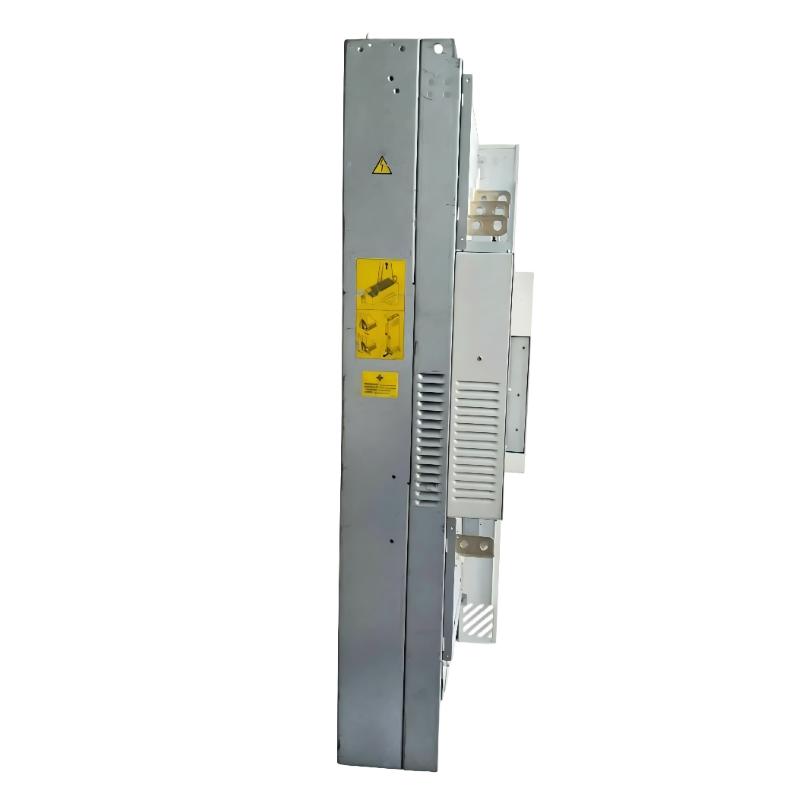

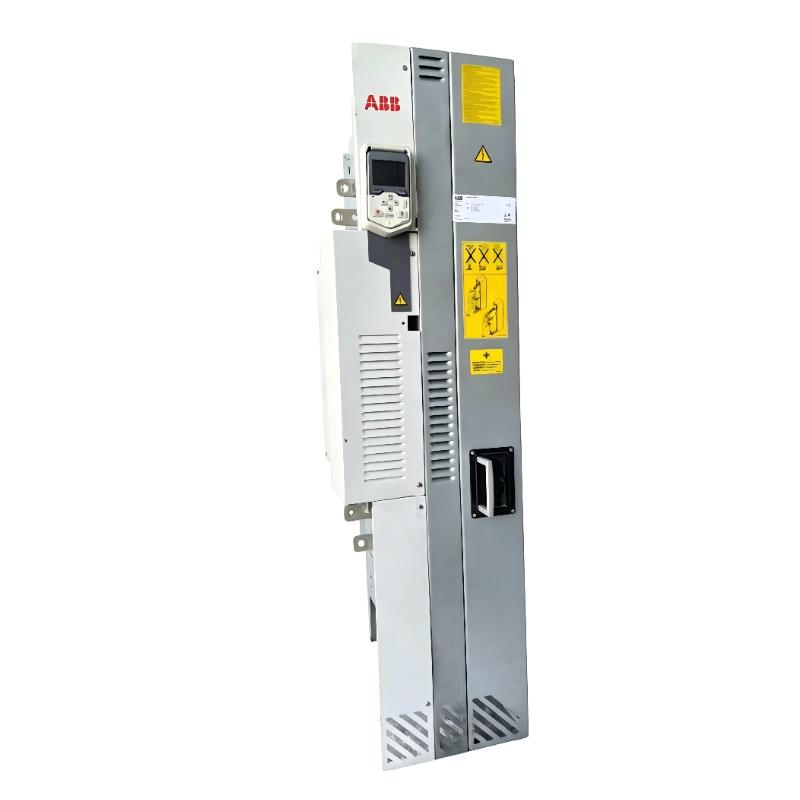

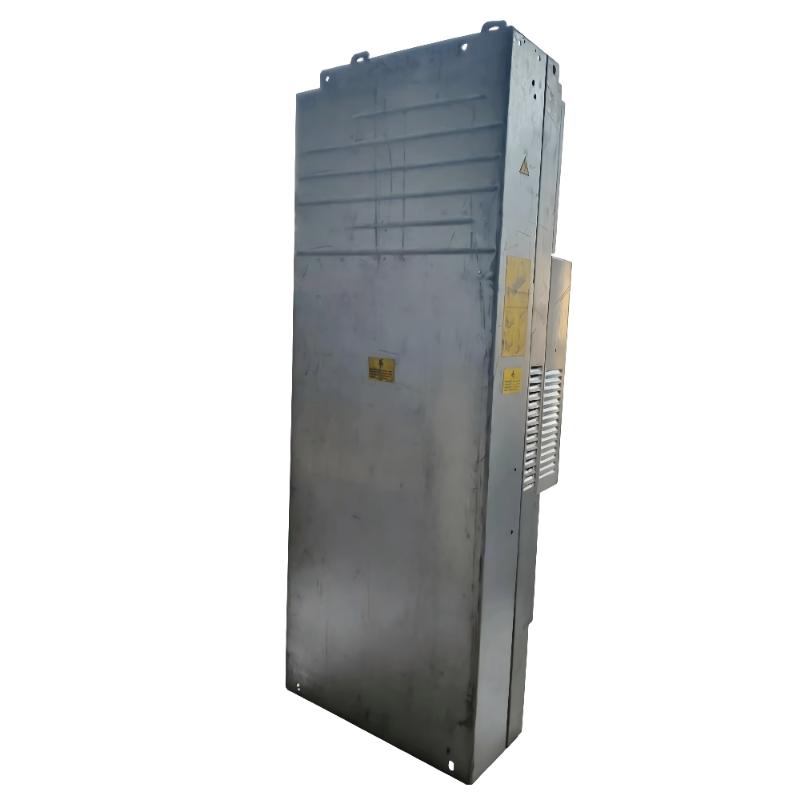

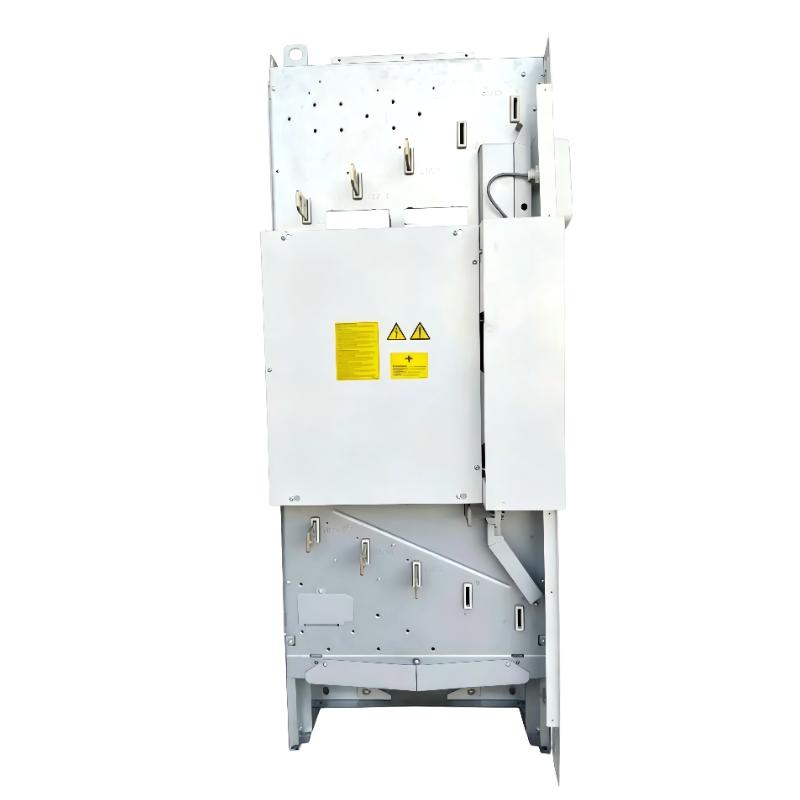

The ABB ACS580-04-585A-4 (3ABD00036862-D) Frequency Converter is a high-power industrial drive module designed for advanced AC motor control applications in demanding automation, manufacturing, and process industries.
As part of the ABB ACS580-04 drive module series, this frequency converter provides reliable motor speed regulation, efficient energy management, and stable operation for large industrial motor systems. The ACS580-04 series is designed for cabinet installation, offering a flexible solution for system integrators who require high-performance drive technology in customized electrical panels.
The ACS580-04-585A-4 provides a rated output current of 585 A and is suitable for 315 kW class motor applications. It is commonly applied in large pumps, compressors, fans, conveyors, mixers, extruders, centrifuges, and other heavy-duty industrial equipment requiring precise speed control and reliable continuous operation.
With dimensions of 1462 x 345 x 529 mm and a weight of 161 kg, this frequency converter is designed for large industrial cabinet installations requiring high power capacity, efficient cooling, and robust mechanical construction.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-04-585A-4 |
| Part Number | 3ABD00036862-D |
| Product Type | Frequency Converter |
| Series | ACS580-04 |
| Drive Type | Drive Module |
| Rated Output Current | 585 A |
| Power Class | 315 kW |
| Input Voltage | 380–480 V AC |
| Phase | Three Phase |
| Frame Size | R10 |
| Installation Type | Cabinet Installation |
| Protection Class | IP00 |
| Dimensions | 1462 x 345 x 529 mm |
| Weight | 161 kg |
| Application | Industrial Motor Control |
Product Features
High-Power Industrial Drive Capability
The ABB ACS580-04-585A-4 is designed for large motor applications requiring high current output and stable performance.
Key features:
- 585 A high output current capability
- Reliable motor speed control
- Stable torque performance
- Smooth acceleration and deceleration
- Suitable for continuous industrial operation
The drive module provides dependable control for heavy-duty equipment where production stability and operational reliability are critical.
Cabinet-Based Modular Design
The ACS580-04-585A-4 adopts a modular structure designed for integration into industrial control cabinets.
Advantages:
- Flexible cabinet installation
- Suitable for customized drive systems
- Efficient space utilization
- Simplified system integration
This design allows engineers to create application-specific motor control solutions for different industrial projects.
Energy-Efficient Motor Operation
The frequency converter improves system efficiency by adjusting motor speed according to actual operating requirements.
Benefits:
- Reduced energy consumption
- Improved process efficiency
- Lower mechanical stress
- Optimized equipment performance
- Reduced operating expenses
Variable frequency control is especially effective in applications where motor load changes during operation.
Robust Industrial Construction
The ACS580-04-585A-4 is built for demanding industrial environments.
Design advantages:
- Strong mechanical structure
- Efficient cooling performance
- High-power electrical design
- Durable internal components
- Long operational lifetime
The drive module provides reliable operation in factories, production lines, and process automation systems.
Working Principle
A frequency converter controls AC motor speed by converting fixed-frequency electrical power into adjustable-frequency output power.
The operating sequence:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC link stabilizes the electrical energy.
- The inverter generates adjustable AC output.
- Controlled voltage and frequency are supplied to the motor.
- Motor speed and torque are adjusted according to process requirements.
This method provides accurate motor control while improving energy efficiency and system performance.
Industrial Applications
Pump Systems
The ABB ACS580-04-585A-4 is suitable for large industrial pump applications.
Typical uses:
- Water treatment systems
- Industrial process pumps
- Cooling circulation systems
- Fluid handling equipment
Benefits:
- Smooth startup operation
- Improved flow control
- Reduced energy usage
- Reduced mechanical stress
Fan and Ventilation Equipment
The frequency converter is widely used in high-power ventilation systems.
Applications:
- Industrial cooling fans
- Air handling systems
- Exhaust equipment
- Large ventilation machines
Advantages:
- Adjustable airflow control
- Improved efficiency
- Stable motor operation
- Reduced wear on mechanical components
Compressor Applications
The ACS580-04-585A-4 provides reliable control for industrial compressor systems.
Applications:
- Air compression equipment
- Process compressors
- Manufacturing systems
Benefits:
- Stable pressure control
- Smooth motor operation
- Improved equipment protection
- Reduced maintenance requirements
Heavy Industrial Machinery
The drive module is suitable for demanding industrial machines.
Applications:
- Conveyors
- Extrusion equipment
- Mixing systems
- Centrifuges
- Material handling equipment
Advantages:
- Accurate speed regulation
- Stable production operation
- Reliable performance under heavy loads
Installation Guide
Installation Preparation
Before installing the ABB ACS580-04-585A-4, check:
- Correct frequency converter model
- Compatible motor specifications
- Suitable cabinet dimensions
- Proper cooling design
- Correct supply voltage
- Reliable grounding system
Step 1: Prepare the Electrical Cabinet
Confirm:
- Cabinet size is suitable for the drive module
- Cooling airflow is sufficient
- Internal clearance meets installation requirements
- Power cable routing is properly planned
Step 2: Install the Drive Module
Installation procedure:
- Place the drive module inside the cabinet.
- Secure the unit using appropriate mounting hardware.
- Verify mechanical stability.
- Ensure ventilation paths are not blocked.
Step 3: Connect Power Wiring
Connect:
- Input power cables
- Motor output connections
- Grounding conductors
- Control wiring
- Communication cables
Check all high-current connections carefully before operation.
Step 4: Configure Drive Parameters
Set the required parameters:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Proper configuration ensures stable and efficient motor operation.
Step 5: Commissioning Test
Perform:
- Electrical inspection
- Power-up test
- Motor rotation verification
- Parameter checking
- Load testing
- Fault monitoring
Confirm normal operation before connecting the drive to production equipment.
Fault Diagnosis and Troubleshooting
Drive Module Cannot Start
Possible Causes
- Incorrect power connection
- Missing control command
- Incorrect parameter settings
- Cabinet wiring problems
Solutions
- Check input power wiring
- Verify control signals
- Review configuration parameters
- Inspect cabinet connections
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions
- Inspect motor condition
- Check output cables
- Verify motor parameters
- Reduce excessive load
Overvoltage Fault
Possible Causes
- Short deceleration time
- Excessive regenerative energy
- Incorrect braking settings
Solutions
- Increase deceleration time
- Adjust braking configuration
- Analyze load characteristics
Overheating Fault
Possible Causes
- Poor cabinet ventilation
- Cooling system failure
- Blocked airflow
- Long-term overload operation
Solutions
- Improve cabinet ventilation
- Clean cooling passages
- Check cooling fans
- Reduce overload conditions
Communication Failure
Possible Causes
- Incorrect communication parameters
- Damaged cables
- Network configuration issues
Solutions
- Check communication settings
- Inspect cables
- Verify automation system configuration
Maintenance Recommendations
For reliable long-term operation:
- Clean cabinet ventilation areas regularly
- Inspect power terminals
- Check cooling system performance
- Monitor operating temperature
- Review fault history
- Verify drive parameters
Regular maintenance helps improve reliability and extend the service life of the frequency converter.
Key Advantages
High Current Output
The 585 A output capability supports large industrial motor applications.
High-Power Performance
The 315 kW class design provides reliable control for heavy-duty equipment.
Flexible Cabinet Integration
The modular drive design allows customized industrial control solutions.
Energy Efficiency Improvement
Variable speed control helps reduce unnecessary energy consumption.
Reliable Industrial Operation
Designed for demanding continuous-duty environments.
Technical FAQs
What is ABB ACS580-04-585A-4?
The ABB ACS580-04-585A-4 is a high-power industrial frequency converter drive module designed for large AC motor control.
What is the part number?
The part number is 3ABD00036862-D.
What is the rated output current?
The rated output current is 585 A.
What is the power rating?
The frequency converter is designed for 315 kW class motor applications.
What are the dimensions?
The dimensions are 1462 x 345 x 529 mm.
What is the weight?
The weight is 161 kg.
Conclusion
The ABB ACS580-04-585A-4 3ABD00036862-D Frequency Converter is a powerful industrial drive module designed for high-performance motor control applications.
With its 585 A output capability, 315 kW class performance, modular cabinet installation design, and reliable industrial construction, it provides an effective solution for large automation systems and process industries.
This frequency converter helps improve energy efficiency, optimize motor performance, reduce mechanical stress, and support stable long-term operation in modern industrial environments.
