Product Overview
The ABB ACS580-04-505A-4 (3ABD00036867-D) Frequency Converter is a high-power industrial drive module designed for controlling large AC motors in demanding automation, manufacturing, and process applications.
As part of the ABB ACS580-04 drive module family, this frequency converter provides reliable motor speed control, efficient energy management, and stable operation for heavy-duty industrial systems. The ACS580-04 series is designed for cabinet installation applications where high power density, flexible integration, and reliable motor control are required.
The ACS580-04-505A-4 features a rated output current of 505 A and is designed for 250 kW class motor applications. It is suitable for large industrial equipment including pumps, compressors, fans, conveyors, mixers, extruders, and other variable or constant torque applications.

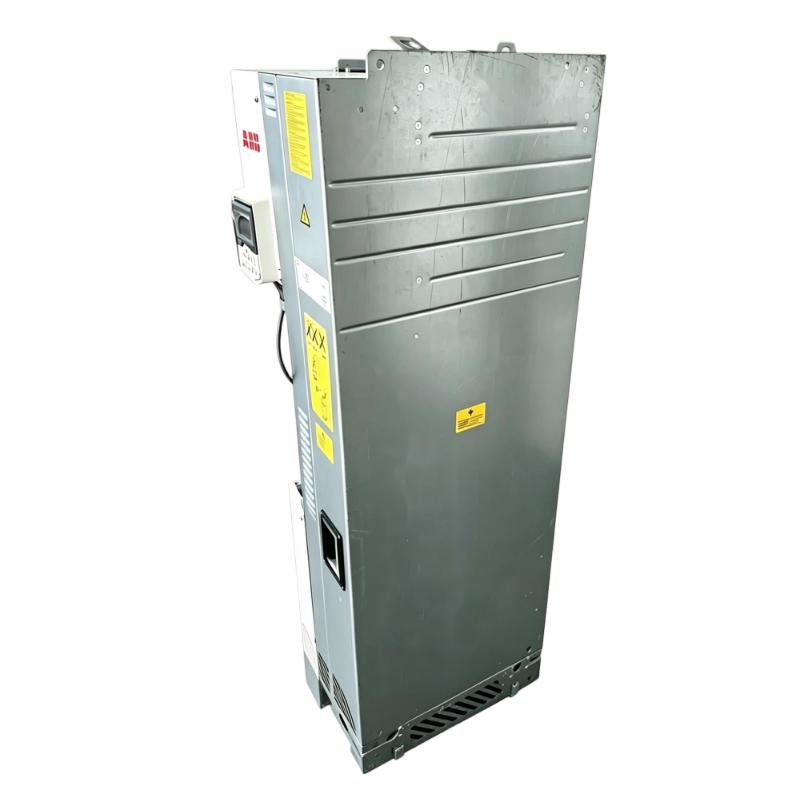

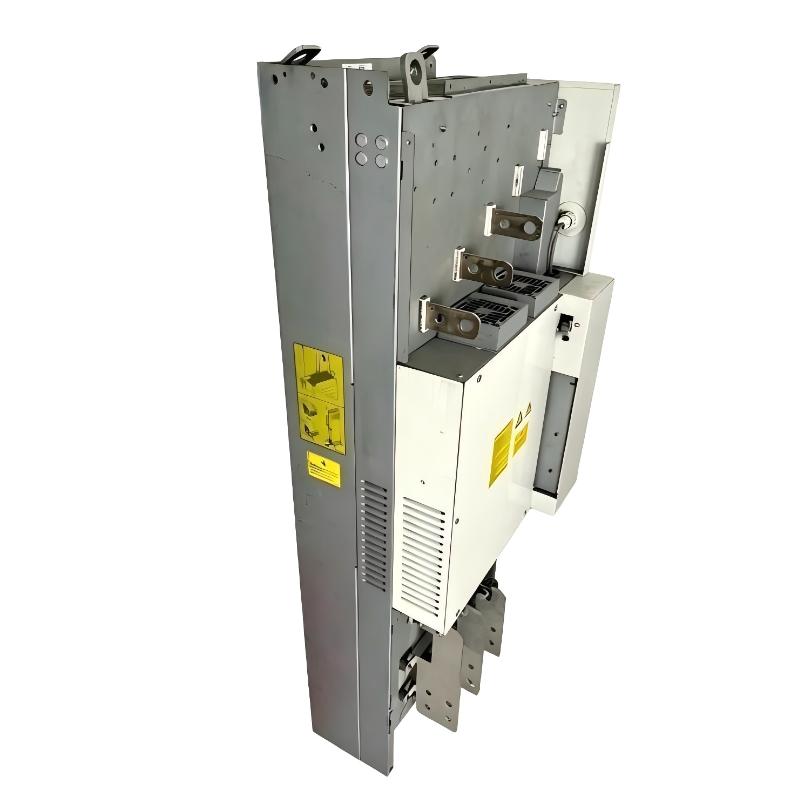

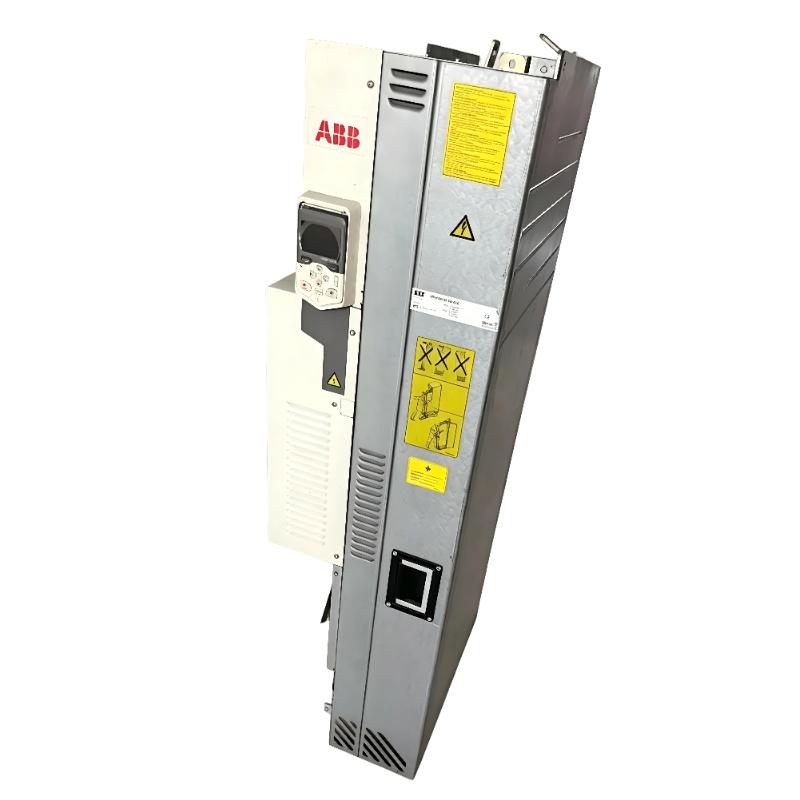

With dimensions of 1462 x 345 x 529 mm and a weight of 161 kg, this frequency converter is designed for large-scale industrial control cabinets requiring high-capacity motor control and robust operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-04-505A-4 |
| Part Number | 3ABD00036867-D |
| Product Type | Frequency Converter |
| Series | ACS580-04 |
| Drive Type | Drive Module |
| Rated Output Current | 505 A |
| Power Class | 250 kW |
| Input Voltage | 380–480 V AC |
| Phase | Three Phase |
| Frame Size | R10 |
| Installation Type | Cabinet Installation |
| Protection Class | IP00 / Cabinet Mounted |
| Dimensions | 1462 x 345 x 529 mm |
| Weight | 161 kg |
| Application | Industrial Motor Control |
Product Features
High-Power Drive Module Performance
The ABB ACS580-04-505A-4 is designed for applications requiring high output current and reliable motor control performance.
Main advantages:
- 505 A high current output capability
- Suitable for large industrial motors
- Stable torque control
- Precise speed regulation
- Reliable continuous operation
The drive module provides strong performance for demanding industrial processes where motor reliability is essential.
Cabinet Integration Design
Unlike compact wall-mounted drives, the ACS580-04 series is designed as a drive module for integration into electrical cabinets.
Installation advantages:
- Flexible cabinet design
- Space-efficient system integration
- Suitable for customized control panels
- Easy integration with industrial power systems
This design allows engineers to build customized drive solutions according to project requirements.
Energy-Efficient Motor Control
The frequency converter improves energy efficiency by adjusting motor speed according to process requirements.
Benefits include:
- Reduced energy consumption
- Improved system efficiency
- Lower mechanical stress
- Optimized equipment performance
- Reduced operating costs
Variable speed control is especially valuable for large pumps, fans, and compressor systems.
Reliable Industrial Construction
The ACS580-04-505A-4 is designed for demanding industrial environments.
Features:
- Robust electrical structure
- Efficient cooling system
- High-power switching capability
- Durable internal components
- Long operational service life
The industrial-grade design supports stable operation in production facilities and process automation systems.
Working Principle
The ABB ACS580-04-505A-4 controls motor speed by converting fixed-frequency AC power into adjustable-frequency AC output.
The operating process includes:
- Incoming three-phase AC power is supplied to the drive module.
- The rectifier converts AC voltage into DC voltage.
- The DC link stabilizes the energy supply.
- The inverter converts DC power into adjustable AC output.
- Controlled voltage and frequency are supplied to the motor.
- Motor speed and torque are adjusted according to application requirements.
This process provides accurate motor control and improves overall system efficiency.
Industrial Applications
Large Pump Systems
The ACS580-04-505A-4 is suitable for large industrial pumping applications.
Typical uses:
- Water treatment systems
- Industrial process pumps
- Cooling water systems
- Fluid transportation equipment
Advantages:
- Smooth startup
- Improved flow control
- Reduced energy consumption
- Lower mechanical stress
Industrial Fan Systems
The frequency converter is suitable for high-power ventilation applications.
Applications:
- Factory ventilation systems
- Cooling fans
- Air handling equipment
- Exhaust systems
Benefits:
- Adjustable airflow control
- Improved efficiency
- Stable operation
- Reduced motor wear
Compressor Systems
The ACS580-04-505A-4 provides reliable control for industrial compressor equipment.
Applications:
- Air compressors
- Process compressors
- Manufacturing systems
Advantages:
- Stable pressure control
- Smooth acceleration
- Improved equipment protection
- Reduced maintenance requirements
Heavy-Duty Manufacturing Equipment
The drive module can be integrated into various industrial machines.
Applications:
- Conveyors
- Extruders
- Mixers
- Material handling systems
Benefits:
- Accurate speed adjustment
- Improved production stability
- Reliable operation under heavy loads
Installation Guide
Installation Preparation
Before installing the ABB ACS580-04-505A-4, verify:
- Correct drive model
- Compatible motor power rating
- Proper cabinet design
- Suitable cooling arrangement
- Correct input voltage
- Reliable grounding system
Installation Steps
Step 1: Prepare the Electrical Cabinet
Confirm:
- Cabinet size is suitable for the drive module
- Cooling airflow is sufficient
- Internal components have proper clearance
- Cable routing is planned correctly
Step 2: Install the Drive Module
- Place the drive module inside the cabinet.
- Secure the unit using proper mounting hardware.
- Ensure mechanical stability.
- Verify ventilation paths are not blocked.
Step 3: Connect Power Wiring
Connect:
- Input power cables
- Motor output connections
- Grounding conductors
- DC connections if required
- Control wiring
Ensure all high-power connections are properly tightened.
Step 4: Configure Drive Parameters
Set:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Correct parameter configuration ensures stable operation.
Step 5: Commissioning Test
Perform:
- Electrical inspection
- Power-up test
- Motor rotation test
- Parameter verification
- Load operation test
- Fault monitoring check
Confirm correct operation before connecting to the production process.
Fault Diagnosis and Troubleshooting
Drive Module Cannot Start
Possible Causes
- Incorrect power connection
- Missing control command
- Incorrect parameter settings
- Cabinet wiring issues
Solutions
- Check input power connections
- Verify control signals
- Review parameter configuration
- Inspect cabinet wiring
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions
- Inspect motor condition
- Check motor cables
- Verify motor parameters
- Reduce excessive mechanical load
Overvoltage Fault
Possible Causes
- Excessive regenerative energy
- Short deceleration time
- Incorrect braking configuration
Solutions
- Increase deceleration time
- Review braking settings
- Analyze load characteristics
Overheating Fault
Possible Causes
- Poor cabinet ventilation
- Cooling system failure
- Excessive operating load
- Blocked airflow
Solutions
- Check cabinet cooling
- Clean ventilation channels
- Verify cooling fans
- Reduce overload conditions
Communication Failure
Possible Causes
- Incorrect communication settings
- Damaged cables
- Control system configuration errors
Solutions
- Check communication parameters
- Inspect wiring
- Verify automation network settings
Maintenance Recommendations
To ensure reliable operation:
- Inspect cooling airflow regularly
- Check power terminals
- Monitor operating temperature
- Clean cabinet ventilation paths
- Review fault history
- Verify parameter settings
Regular maintenance helps improve system reliability and extend equipment service life.
Key Advantages
High Current Capability
The 505 A output rating supports large industrial motor applications.
Cabinet-Friendly Design
The drive module allows flexible integration into customized control cabinets.
Efficient Energy Management
Variable speed operation improves energy efficiency.
Reliable Industrial Performance
Designed for demanding continuous-duty applications.
Wide Application Range
Suitable for pumps, fans, compressors, conveyors, and heavy machinery.
Technical FAQs
What is ABB ACS580-04-505A-4?
The ABB ACS580-04-505A-4 is a high-power industrial frequency converter drive module designed for large AC motor control.
What is the part number?
The part number is 3ABD00036867-D.
What is the rated output current?
The rated output current is 505 A.
What is the power rating?
The frequency converter is designed for 250 kW class motor applications.
What are the dimensions?
The dimensions are 1462 x 345 x 529 mm.
What is the weight?
The weight is 161 kg.
Conclusion
The ABB ACS580-04-505A-4 3ABD00036867-D Frequency Converter is a powerful industrial drive module designed for large motor control applications requiring high reliability and flexible cabinet integration.
With its 505 A output capability, 250 kW class performance, robust industrial design, and efficient motor control functions, it provides stable operation for demanding automation and process systems.
This frequency converter helps improve energy efficiency, optimize motor performance, reduce equipment stress, and support reliable long-term operation in modern industrial environments.
