- ABB
- ACS580-01-430A-4 3AUA0000080510
- Frequency Converter
- Sweden (SE)
- 955 x 380 x 418 mm
- 97 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

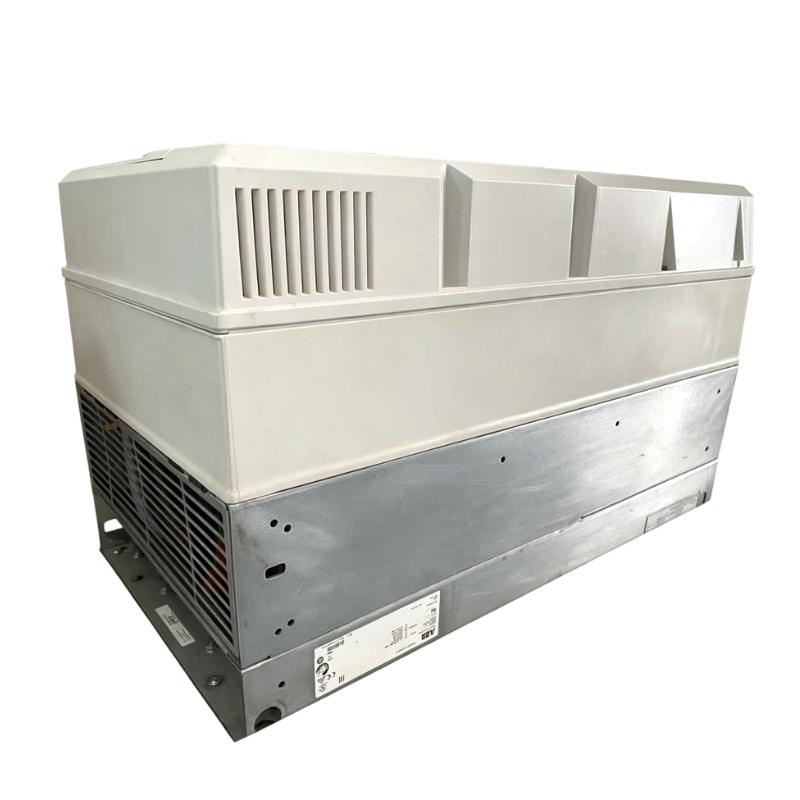

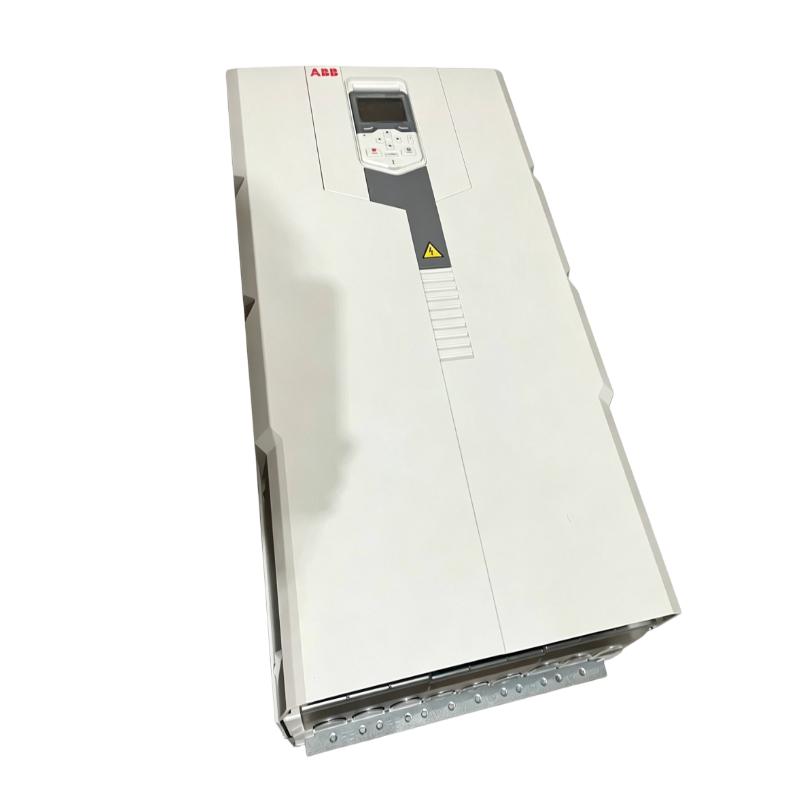

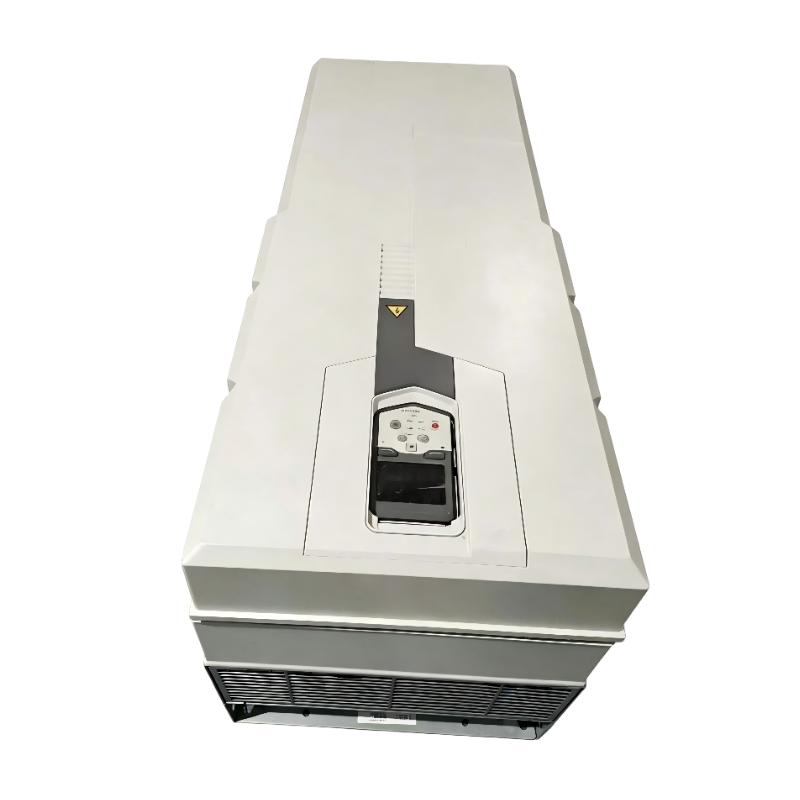

The ABB ACS580-01-430A-4 (3AUA0000080510) Frequency Converter is a high-power industrial variable frequency drive designed for controlling large AC motors in demanding automation, manufacturing, and process industry applications.
As part of the ABB ACS580 series, this frequency converter provides reliable motor speed control, efficient energy management, and stable operation for heavy-duty industrial equipment. It is designed to simplify drive configuration while delivering accurate control performance for continuous operation environments.
The ACS580-01-430A-4 features a rated output current of 430 A and is designed for 250 kW class motor applications. It is suitable for large pumps, fans, compressors, conveyors, extruders, mixers, centrifuges, and other industrial machinery requiring high output capability and reliable motor control.
With dimensions of 955 x 380 x 418 mm and a weight of 97 kg, this frequency converter provides a robust solution for large industrial installations where high current capacity, efficient cooling, and long-term reliability are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-430A-4 |
| Part Number | 3AUA0000080510 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Output Current | 430 A |
| Power Class | 250 kW |
| Input Voltage | 380–480 V AC |
| Phase | Three Phase |
| Mounting Type | Wall-mounted |
| Protection Class | IP21 |
| Dimensions | 955 x 380 x 418 mm |
| Weight | 97 kg |
| Application | Industrial Motor Control |
Product Features
High-Current Motor Control Capability
The ABB ACS580-01-430A-4 is designed for large industrial motors requiring high current output and stable operation.
Main features:
- 430 A high output current capability
- Reliable torque performance
- Accurate motor speed regulation
- Smooth acceleration and deceleration
- Stable operation under demanding loads
The drive provides dependable motor control for applications where production continuity and equipment reliability are critical.
Energy-Efficient Variable Speed Control
The frequency converter improves system efficiency by adjusting motor speed according to actual process requirements.
Benefits:
- Reduced energy consumption
- Improved equipment efficiency
- Lower mechanical stress
- Optimized process control
- Reduced operating costs
Variable speed operation helps industrial systems achieve better performance compared with fixed-speed motor operation.
Flexible Industrial Control Functions
The ACS580-01-430A-4 integrates practical control functions for industrial automation applications.
Key functions:
- Motor parameter configuration
- Adjustable control modes
- Fault monitoring
- Drive protection functions
- Simplified commissioning
These features help engineers configure and maintain the drive efficiently.
Robust Industrial Construction
The frequency converter is designed for continuous operation in industrial environments.
Design advantages:
- Strong mechanical structure
- Efficient cooling system
- Stable electrical performance
- Durable internal components
- Long service life
The rugged construction makes it suitable for manufacturing plants, process industries, and heavy automation systems.
Working Principle
A frequency converter controls AC motor speed by converting fixed-frequency electrical power into adjustable-frequency output power.
The operation process includes:
- Three-phase AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC link stabilizes the electrical energy.
- The inverter produces adjustable AC output.
- Controlled voltage and frequency are supplied to the motor.
- Motor speed and torque are adjusted according to system requirements.
This technology allows precise motor control while improving energy efficiency and process stability.
Industrial Applications
Pump Systems
The ABB ACS580-01-430A-4 is suitable for large industrial pumping applications.
Typical uses:
- Water treatment systems
- Industrial process pumps
- Cooling circulation systems
- Fluid transportation equipment
Advantages:
- Improved flow control
- Reduced energy consumption
- Smooth motor startup
- Reduced mechanical wear
Fan and Ventilation Systems
The drive is widely applied in large ventilation systems.
Applications:
- Industrial cooling fans
- Air handling equipment
- Exhaust systems
- Factory ventilation
Benefits:
- Adjustable airflow control
- Improved energy efficiency
- Stable operation
- Reduced motor stress
Compressor Applications
The ACS580-01-430A-4 provides reliable speed control for compressor systems.
Applications:
- Industrial air compressors
- Process compressors
- Production equipment
Benefits:
- Smooth operation
- Reduced startup impact
- Improved equipment protection
- Stable production performance
Conveyor and Heavy Machinery
The frequency converter supports heavy-duty industrial machinery.
Applications:
- Material handling systems
- Production conveyors
- Extrusion equipment
- Processing machinery
Advantages:
- Precise speed adjustment
- Smooth mechanical movement
- Improved production stability
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-430A-4, confirm:
- Correct frequency converter model
- Compatible motor specifications
- Proper supply voltage
- Suitable installation environment
- Adequate ventilation space
- Reliable grounding connection
Installation Steps
Step 1: Select Installation Location
Choose a suitable installation area:
- Clean and dry environment
- Good airflow conditions
- Low dust exposure
- Protected from excessive heat
Step 2: Mount the Frequency Converter
- Install the drive vertically.
- Secure the converter on a strong mounting structure.
- Confirm mechanical stability before wiring.
Step 3: Electrical Wiring Connection
Connect:
- Main power input cables
- Motor output cables
- Grounding cable
- Control wiring
- Communication cables
Ensure all electrical connections are properly tightened.
Step 4: Configure Drive Parameters
Set the required parameters:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Correct configuration ensures stable motor operation.
Step 5: Commissioning Test
Perform:
- Power inspection
- Motor rotation test
- Parameter verification
- Load testing
- Fault monitoring check
Confirm correct operation before putting the equipment into service.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Incorrect power wiring
- Missing start command
- Incorrect parameter settings
- Active protection function
Solutions
- Check input power connection
- Verify control signals
- Review drive parameters
- Reset faults
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions
- Inspect motor condition
- Check output cables
- Verify motor parameters
- Reduce excessive load
Overvoltage Fault
Possible Causes
- Rapid deceleration
- Excessive regenerative energy
- Incorrect braking settings
Solutions
- Increase deceleration time
- Adjust braking configuration
- Analyze load conditions
Overheating Fault
Possible Causes
- Poor ventilation
- Cooling fan failure
- Blocked airflow
- Continuous overload operation
Solutions
- Clean cooling passages
- Check cooling fan operation
- Improve ventilation
- Reduce overload conditions
Communication Failure
Possible Causes
- Incorrect communication settings
- Damaged cables
- Network configuration issues
Solutions
- Check communication parameters
- Inspect wiring
- Verify automation system settings
Maintenance Recommendations
For reliable long-term operation:
- Clean cooling channels regularly
- Inspect power terminals
- Check cooling fan condition
- Monitor operating temperature
- Review fault records
- Verify drive parameters
Regular maintenance helps extend the service life of the frequency converter and improves system reliability.
Key Advantages
High Output Capability
The 430 A output rating supports large industrial motor applications.
Energy Optimization
Variable speed control improves efficiency and reduces unnecessary energy consumption.
Reliable Industrial Performance
Designed for demanding continuous-duty applications.
Wide Application Compatibility
Suitable for pumps, fans, compressors, conveyors, and heavy machinery.
Easy Automation Integration
Supports modern industrial control system requirements.
Technical FAQs
What is ABB ACS580-01-430A-4?
The ABB ACS580-01-430A-4 is a high-power industrial frequency converter designed for AC motor speed control.
What is the part number?
The part number is 3AUA0000080510.
What is the rated output current?
The rated output current is 430 A.
What is the power rating?
The frequency converter is designed for 250 kW class motor applications.
What are the dimensions?
The dimensions are 955 x 380 x 418 mm.
What is the weight?
The weight is 97 kg.
Conclusion
The ABB ACS580-01-430A-4 3AUA0000080510 Frequency Converter is a high-capacity industrial drive solution designed for large motor control applications.
With its 430 A output capability, 250 kW class performance, robust industrial construction, and flexible control functions, it provides reliable and efficient operation for demanding automation and process systems.
This frequency converter helps improve energy efficiency, optimize motor performance, reduce mechanical stress, and support stable long-term operation in modern industrial environments.
